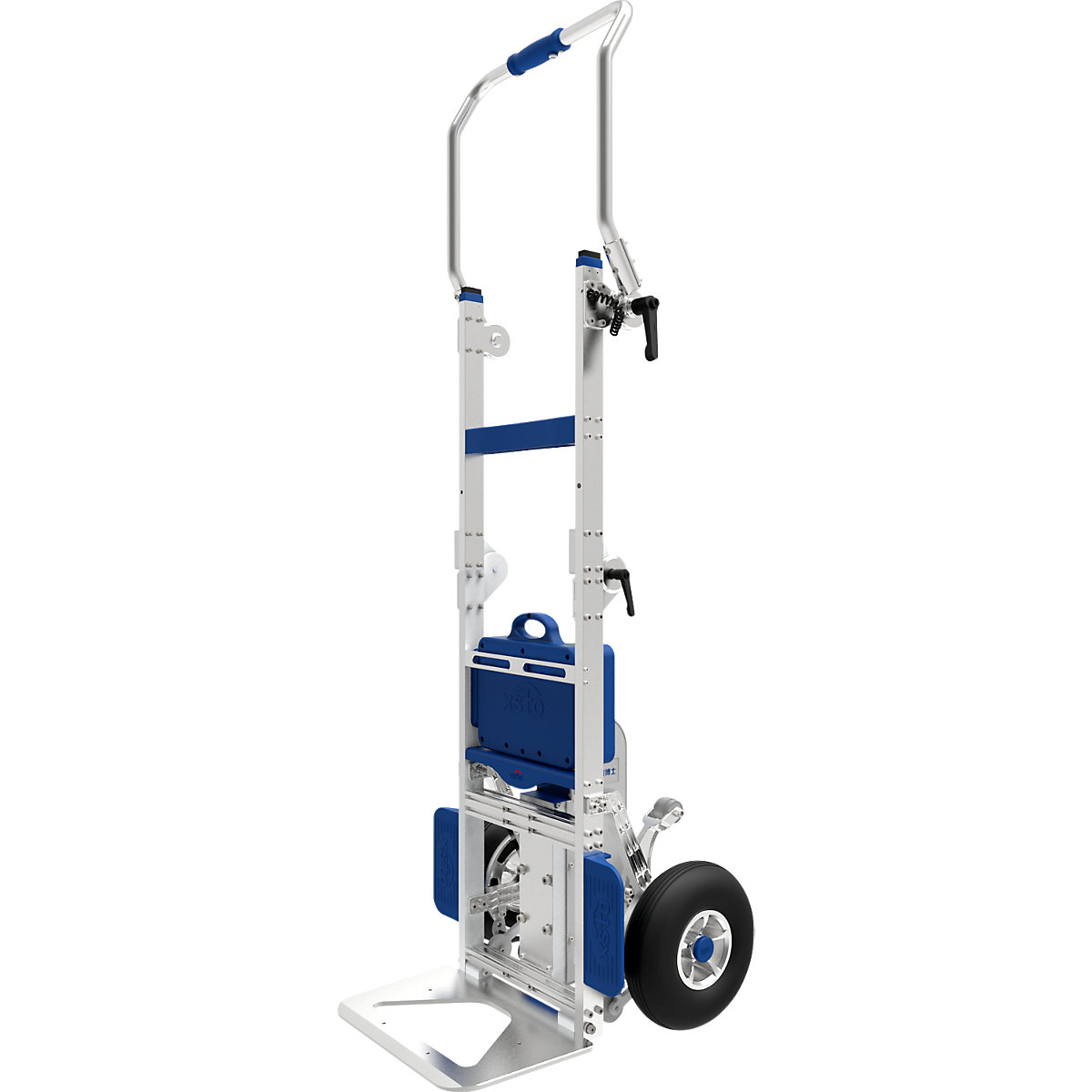

ERGO stair climber, electric footplate WxD 400 x 250 mm, collapsible

  • Transport heavy loads with ease
  • Highly versatile
  • Complete with rechargeable battery, charger and tension belt
  • Collapses to save space
Ref.: 546814 49
ERGO stair climber, electric, footplate WxD 400 x 250 mm, collapsible, max. load 170 kg
Price / items (net)
£3,479.00

Product description
The electric stair climber is an ideal device for the transport of all types of goods across ground surfaces and stairs. This also means that bulky goods, such as refrigerators, stoves, rolls of carpet or copiers can be transported without problems. The climbing speed can be progressively adjusted to one of two levels. Safety brakes automatically stop at the edge of the stairs. Corrections can therefore be made on the stairs at any time.

Battery weight: 3 kg
Battery output: 1700 steps
Climbing speed 1: 17 steps per minute
Climbing speed 2: 34 steps per minute
Base material: high performance aluminium
Automatic brake: yes
Step height: maximum 210 mm
Battery type: lithium
Battery voltage: 48 V
Charging time: 3 h
Charging voltage: 110 – 230 V
Volume: less than 70 dB
Protection class: IP54
Dimensions: upper handle bar top (HxWxD) 1590 x 550 x 300 mm
Dimensions: upper handle bar folded down (HxWxD) 1100 x 550 x 300 mm

With a folding frame and push handle.
Dimensions: folded (HxWxD) 780 x 550 x 300 mm.
Folds together to save space.
  • Transport heavy loads with ease
  • Highly versatile
  • Complete with rechargeable battery, charger and tension belt
  • Collapses to save space
Technical data
Modelwith handle bar
External dimensions when folded780 x 550 x 300 mm
Featureelectric
Colouraluminium silver
Overall width550 mm
Overall height1100 mm
Overall depth300 mm
Materialaluminium
Product typestair climber
Wheel typesolid rubber
Wheel diameter260 mm
Wheel bearingball bearing
Footplate width400 mm
Footplate materialaluminium
Footplate depth250 mm
Max. height of steps210 mm
Max. load170 kg
Suppliedassembled
