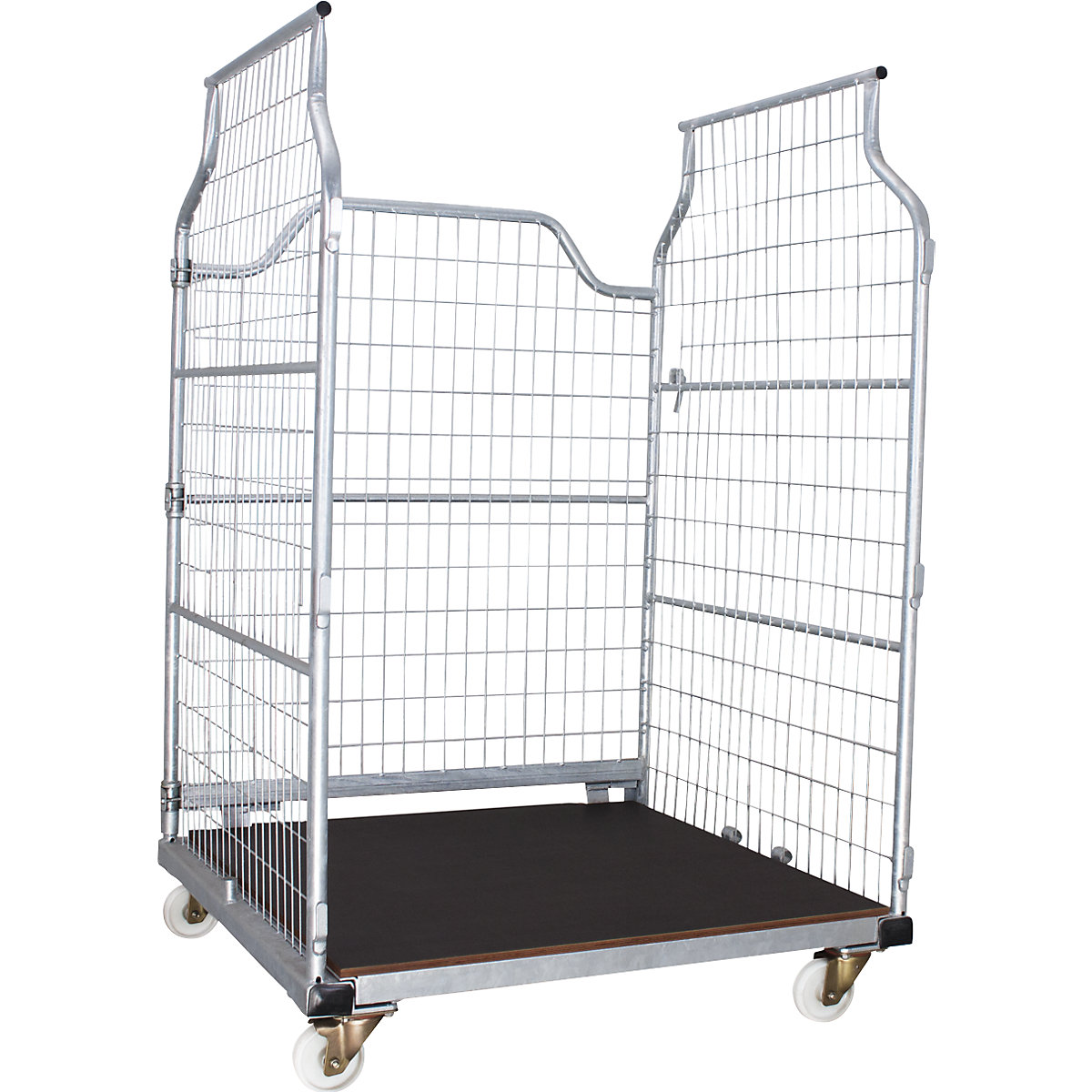

EUROKRAFTpro – Universal Corlette® with wire mesh type 1200, zinc plated

  • Folds together
  • Automatically locking bottom
  • Suitable for HGVs
EUROKRAFTpro
10 year guarantee
10 year guarantee
EUROKRAFTpro – Universal Corlette® with wire mesh, type 1200, zinc plated, HxWxD 1850 x 1200 x 800 mm, 50+ items
Price / items (Plus VAT)
from
£589.00

Product description
– External dimensions 1200 x 800 x 1850 mm (W/D/H)
– Internal dimensions 1120 x 750 x 1615 mm (W/D/H)
– Sturdy tubular steel frame construction
– Folds together
– Suitable for HGVs
– Bottleneck
– Thermally zinc plated model
– Sides and rear with wire mesh, mesh size: wire mesh 50 x 100 x 3.8 mm
– 2 horizontal round tubes in the sides at 500 mm and 1005 mm, measured from the upper edge of the base plate to the upper edge of the traverse tube
– 2 horizontal round tubes in the rear
– Incl. 3 pairs of hooks for the front door
– Weatherproof model
– Eyelets for a drawbar
– Coupling
– U profile with integrated stacking claws
– Automatically locking bottom
– Base frame flush on the outside
– Base: BETOFILM™ base plate, phenolic plywood facing up
– Wheel set: 4 x 125 mm nylon swivel castors, 1 with directional stop
– Max. load: 800 kg
– Max. stacking load: 1000 kg
– Up to 3 units can be stacked
  • Folds together
  • Automatically locking bottom
  • Suitable for HGVs
10 year guarantee
10 year guarantee
Technical data
Max. load800 kg
Max. load per level200 kg
Width1200 mm
Height1850 mm
Finishzinc plated
Wheel fittings4 swivel castors, 1 with wheel stop
Wheel typenylon
Wheel diameter125 mm
Wheel bearingball bearing
Internal width1120 mm
Internal height1615 mm
Mesh size50 x 100 mm
Roll container model3-sided
Frame colourzinc plated
Suppliedassembled
EUROKRAFTpro
