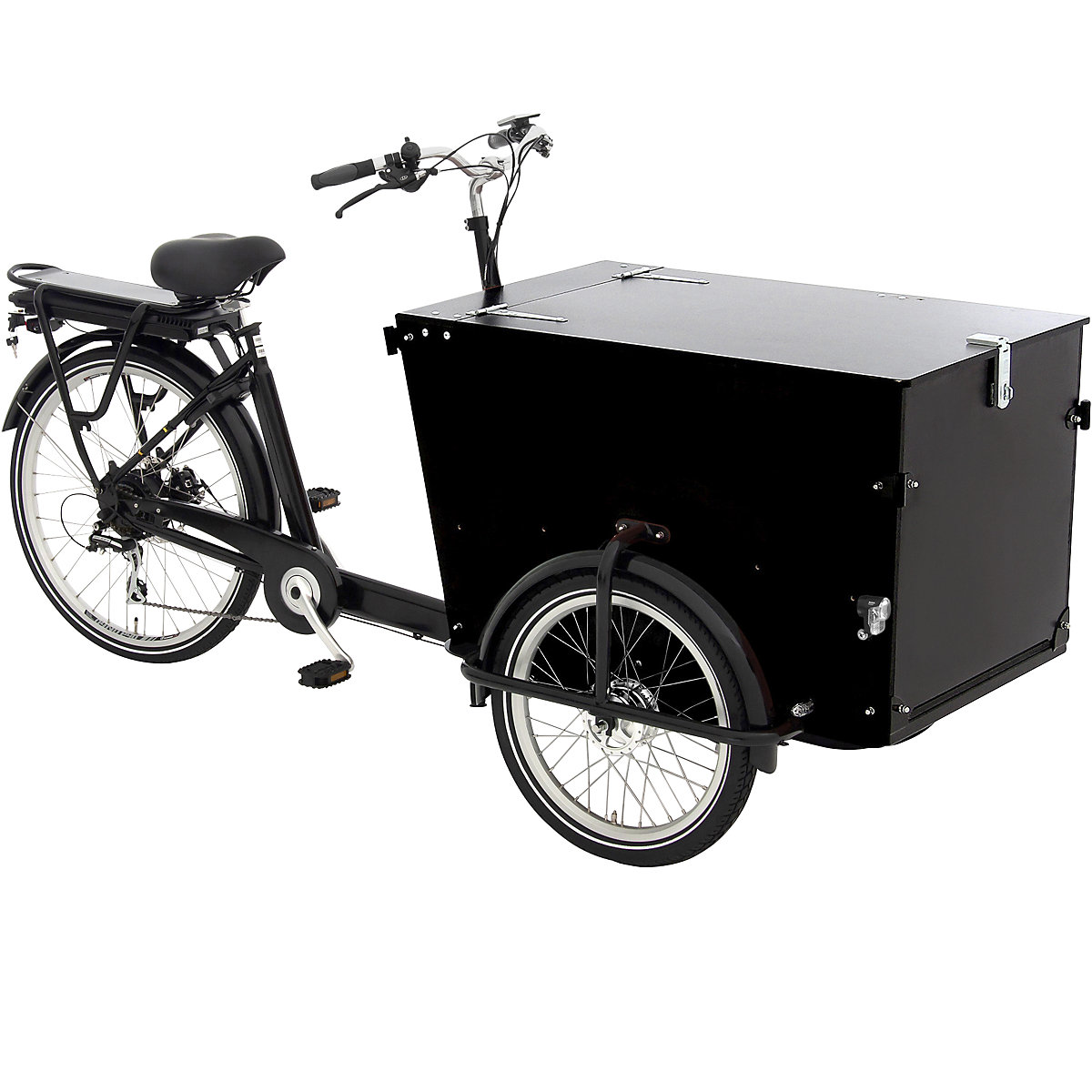

PRO e-cargo delivery bicycle with transport box

  • Shimano gears
  • Durable Schwalbe brand tyres
  • Lithium ion rechargeable battery
  • Large container – 300 litres
  • Unisex
Ref.: 568922 49
PRO e-cargo delivery bicycle, with transport box, motor 250 W, rechargeable battery 374 Wh
Price / items (Plus VAT)

Product description
Ideal for use on the factory premises, as well as for tradesmen, when transporting lightweight materials. Electronic assistance up to 25 km/h ensures the bicycle remains easy to ride, even when the box at the front is weighed down. The powerful rear wheel motor is powered by a 374 Wh rechargeable battery. This bicycle is a unisex model and suitable for persons from 1.57 m to 1.98 m in size.

Technical details:
– Frame: steel, impact resistant powder coating, frame height 500 mm
– Luggage rack: rear, tested for a max. load up to 25 kg
– Dimensions of the wheel: 2170 x 880 x 1100 mm
– Tyres: Schwalbe brand tyres, model Big Apple
– Rims: 20 inches at front, 26 inches at rear – double walled, Weinmann brand
– Lights: LEDs at front and rear, battery operated
– Steering damper: equipped with gas springs for high ride comfort
– Gears: 7-speed Shimano Nexus
– Brakes: drum brake at front, disc brake at rear

Transport box details:
– Box size/capacity: 300 litres
– Max. box load: 80 kg
– Material: European birch plywood with epoxy resin pore fill (Betonplex panels)
– Panels made of nine veneer layers, pressed using water resistant glue (phenolic resin) and cross-bonded, edges with edge sealant

Rechargeable battery details:
– Rechargeable battery: lithium ion technology
– Motor: 250 W, 36 V
– Range 40 – 60 km
– Charging time: 4 – 5 h

Additional details:
– ABUS frame lock
– Height adjustable handlebar
– Extra sturdy spokes
– Parking brake – allows the delivery bike to be parked securely on slopes
– Certified by TÜV and SGS
  • Shimano gears
  • Durable Schwalbe brand tyres
  • Lithium ion rechargeable battery
  • Large container – 300 litres
  • Unisex
Technical data
Overall length2170 mm
Overall width580 mm
Type of brakesdrum brake at front, disc brake at rear
Frame materialsteel
Frame colourblack
Overall max. load180 kg
Loading height530 mm
Platform length900 mm
Platform width580 mm
Battery versionlithium ion rechargeable battery
Charging time4-5 hrs
Power250 watt
Battery capacity10.39 Ah
