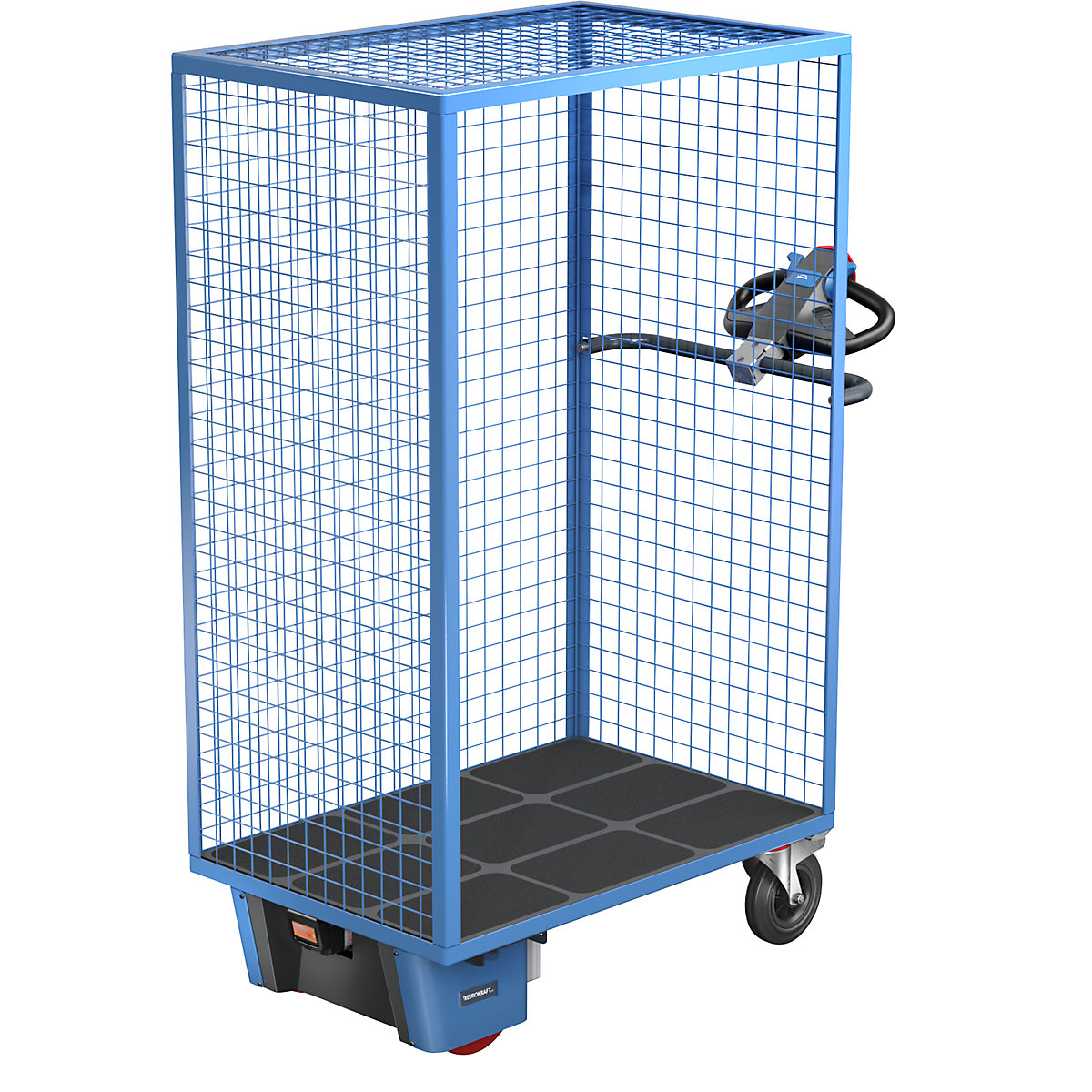

EUROKRAFTpro – Shelf truck with electric drive long side open, LxWxH 1470 x 700 x 1800 mm

  • Highly versatile use due to modular design
  • The replaceable, rechargeable battery system allows unlimited operating time
  • Intuitive operation, perfect steering control
  • Drawbar head with precise speed control, creep speed button, belly switch and horn
  • Integrated foot protection on the e-module
EUROKRAFTpro
10 year guarantee
10 year guarantee
EUROKRAFTpro – Shelf truck with electric drive, long side open, LxWxH 1470 x 700 x 1800 mm, green
Price / items (Excl. VAT)
£2,629.00

Product description
Our high performance NEO e-module in a preconfigured combination with our shelf trucks. Ready to use.
Complete with powerful rechargeable lithium ion battery. Battery charger optionally available.

Easy assembly: highly versatile modular design
Drive battery: spare lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Spare battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged

Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents anything being caught when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence (driver's licence) required
Protection against theft: access control by means of lock
Base plate
Made of recycled plastic. Non-slip and hardwearing surface. Weather resistant. Oil resistant and largely acid-proof. Recyclable.
All specified max. loads apply with uniform load distribution.
  • Highly versatile use due to modular design
  • The replaceable, rechargeable battery system allows unlimited operating time
  • Intuitive operation, perfect steering control
  • Drawbar head with precise speed control, creep speed button, belly switch and horn
  • Integrated foot protection on the e-module
10 year guarantee
10 year guarantee
Technical data
Type of shelf trolleyone long side open
Max. load500 kg
Platform length1015 mm
Platform width680 mm
Length1470 mm
Width700 mm
Height1800 mm
Max. load per platform50 kg
Base plateplastic
MaterialMDF
Wheel fittings2 swivel castors with brakes, 2 drive wheels
Wheel diameterØ200 / Ø230 mm
Wheel typesolid rubber / polyurethane
Adjustment pattern for internal shelves50 mm
Mesh width for end face50 x 50 mm
Mesh width for rear wall50 x 50 mm
Loading height290 mm
Wheel bearingroller bearing
Weight95 kg
Frame materialsteel
Platform colourblack
Platform materialMDF
Battery capacity12 Ah
Charging time6 hrs
Power0.25 kW
Voltage24 V
Max. speed5 km/h
Suppliedpartially assembled
