Ref.: 474531 49

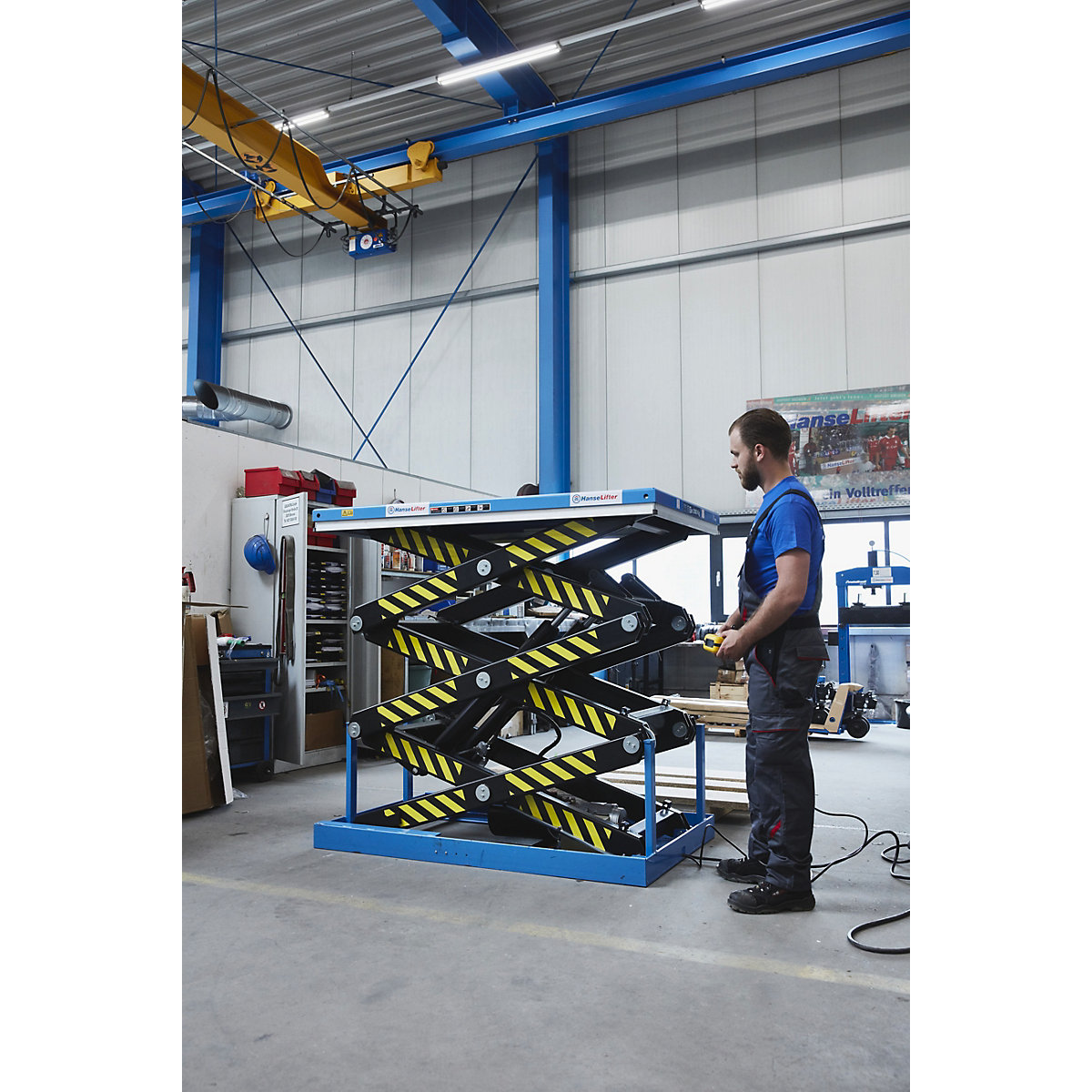

Triple scissor lift table platform LxW 1700 x 1000 mm
(1)max. load 1000 kg, operating voltage 400 V
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 474531 49
Triple scissor lift table platform LxW 1700 x 1000 mm
(1)max. load 1000 kg, operating voltage 400 V
max. load 1000 kg, operating voltage 400 V
£7,200.00
Price / item (Excl. VAT)
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
Stationary lift tables are mainly used for production lines and loading areas. The lift table is a fixed part of production, enabling easier fitting of components. However, height differences can also be compensated with the triple scissor lift table. The special lifting height of 3000 mm makes the lift table ideal for spanning even larger height differences. That’s why this design is also often used in multi-storey warehouses or production lines with multiple levels.
The lift table can be anchored firmly to the floor. A terminal with a 3 m long lead allows the device to be operated outside the danger area. High quality powder coating prevents the lift table from being scratched. Robust scissor support struts and high quality hydraulic pumps with pressure relief valve are included with the stationary lift table as standard features.
The lift table can be anchored firmly to the floor. A terminal with a 3 m long lead allows the device to be operated outside the danger area. High quality powder coating prevents the lift table from being scratched. Robust scissor support struts and high quality hydraulic pumps with pressure relief valve are included with the stationary lift table as standard features.
- Ergonomics in the workplace
Technical data
Platform design | closed |
---|---|
Power | 2.2 kW |
Control voltage | 24 V |
Lift drive | electro-hydraulic |
Platform colour | light blue RAL 5012 |
Platform material | steel |
Platform finish | powder coated |
Scissor mechanism colour | black/yellow |
Scissor material | steel |
Finish | powder coated |
Frame colour | yellow black |
Fittings | with hand operated control unit |
Product type | compact lift tables |
Platform width | 1000 mm |
Platform length | 1700 mm |
Feature | stationary electro-hydraulic |
Supplied | assembled |
Max. load | 1000 kg |
Lifting range | 470 – 3000 mm |
Operating voltage | 400 V |
Lift | 2530 mm |
Lifting capacity at full load in 1 shift operations | max. 12 cycles per hour |
Lifting time without load | 40 sec |
Lifting time with full load | 44 sec |
Weight | 450 kg |
Instructions |
Sustainability
Enkelfähig
Non-Enkelfähig product
This product is currently not yet Enkelfähig. This does not mean that the product does not exhibit any sustainable features, and instead only means that it does not yet meet enough of the sustainability aspects included in the diverse criteria covered by our sustainability evaluation to achieve a rating of more than 3 points. This is why it does not feature the Enkelfähig endorsement.
For more information about product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
This product is currently not yet Enkelfähig. This does not mean that the product does not exhibit any sustainable features, and instead only means that it does not yet meet enough of the sustainability aspects included in the diverse criteria covered by our sustainability evaluation to achieve a rating of more than 3 points. This is why it does not feature the Enkelfähig endorsement.
For more information about product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
