Industrial fan IP54 pedestal model

Robust industrial fan with a chrome-plated protective grille and a powerful high-performance motor for reliable use in commercial environments. All versions are equipped with thermal overload protection according to EN 60335-2-80 and designed for continuous operation.

The fan operates on 220–240 V / ~50 Hz and has a 2.5 m long power cable. Three speed settings allow for demand-driven regulation of the airflow. Depending on the version, a mechanically switchable 80° oscillation is available.

The stable construction and comparatively quiet operation make the fan ideal for warehouses, production areas, and operational areas. All models are certified for commercial use and designed for use in demanding work environments.

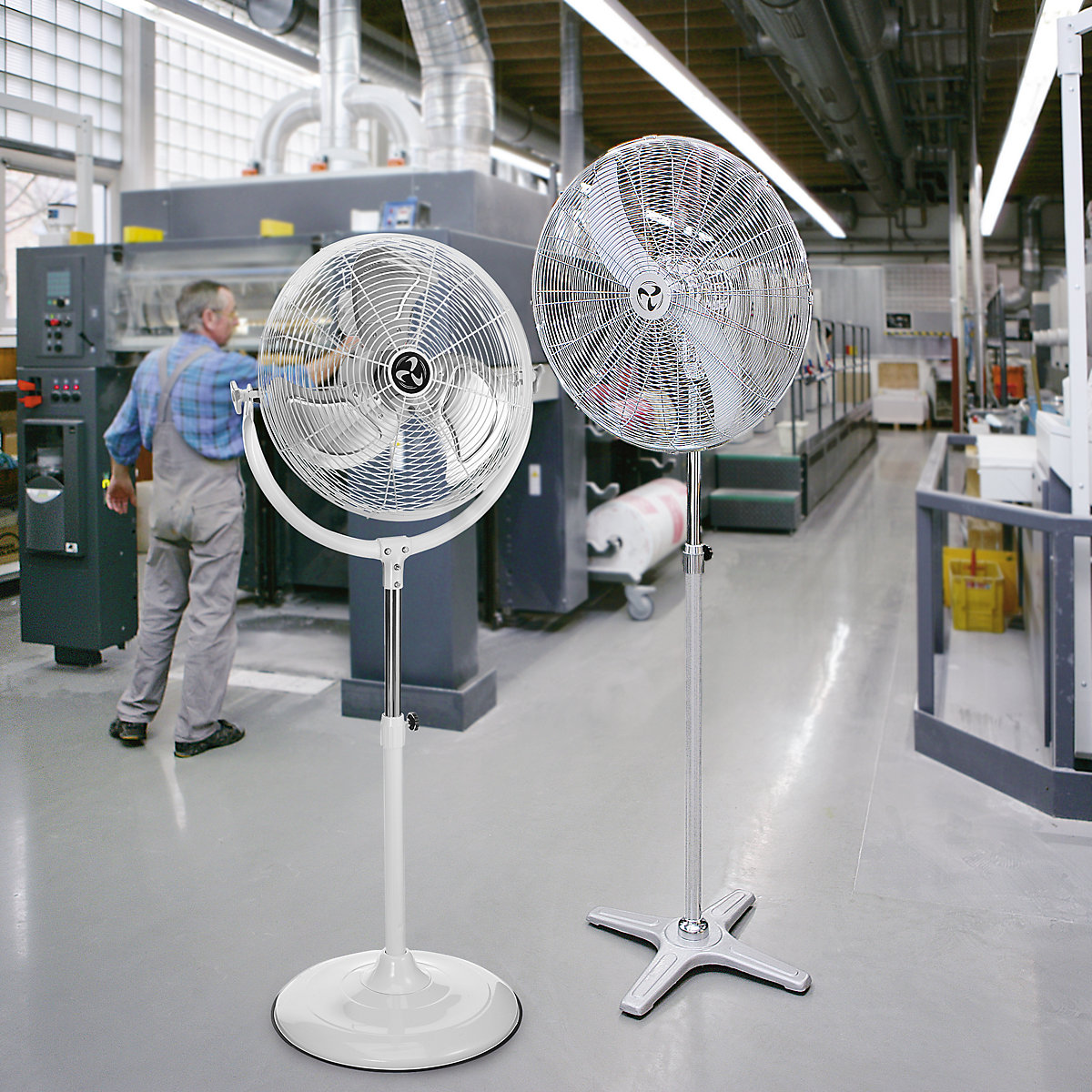

Pedestal Model IP54
The floor-standing version with IP54 protection is dust and splash-proof and is particularly suitable for damp or dirty environments. It is equipped with a 3-bladed impeller made of seawater-resistant aluminium as well as a stable steel tube stand. The speed is regulated via a push-button switch. The sound pressure is 49.9 dB(A) at a distance of 3 m. The height is continuously adjustable from 1215 to 1500 mm.

Pedestal Model
The standard floor-standing version has a heavy cast iron base, painted hammer-grey, which ensures high stability. The mechanical 80° oscillation can be switched off if required. Three speed settings are available, the sound pressure is 54.5 dB(A) at a distance of 3 m. This version is particularly suitable for warehouses and production areas with high cooling requirements.

Wall Model
The wall-mounted version is intended for space-saving installation and is ideal when no floor space is available. Here too, a switchable mechanical 80° oscillation is present. Three speed settings allow for flexible adjustment of the air output. The sound pressure is 54.5 dB(A) at a distance of 3 m. This variant is particularly suitable for production halls and operational areas.

Dust and splash water protected motor in accordance with IP54. Ideal in moist and dusty environments. Triple vane impeller made of salt water resistant aluminium, sturdy tubular steel base. Three speed settings (push switch). Noise level (–3 m): 49.9 dB(A). Height adjustable from 1215 to 1500 mm.
H07RN-F 3 x 1.0 mm² rubber hose cable that can withstand high mechanical loads.
