Ref.: 853430 49

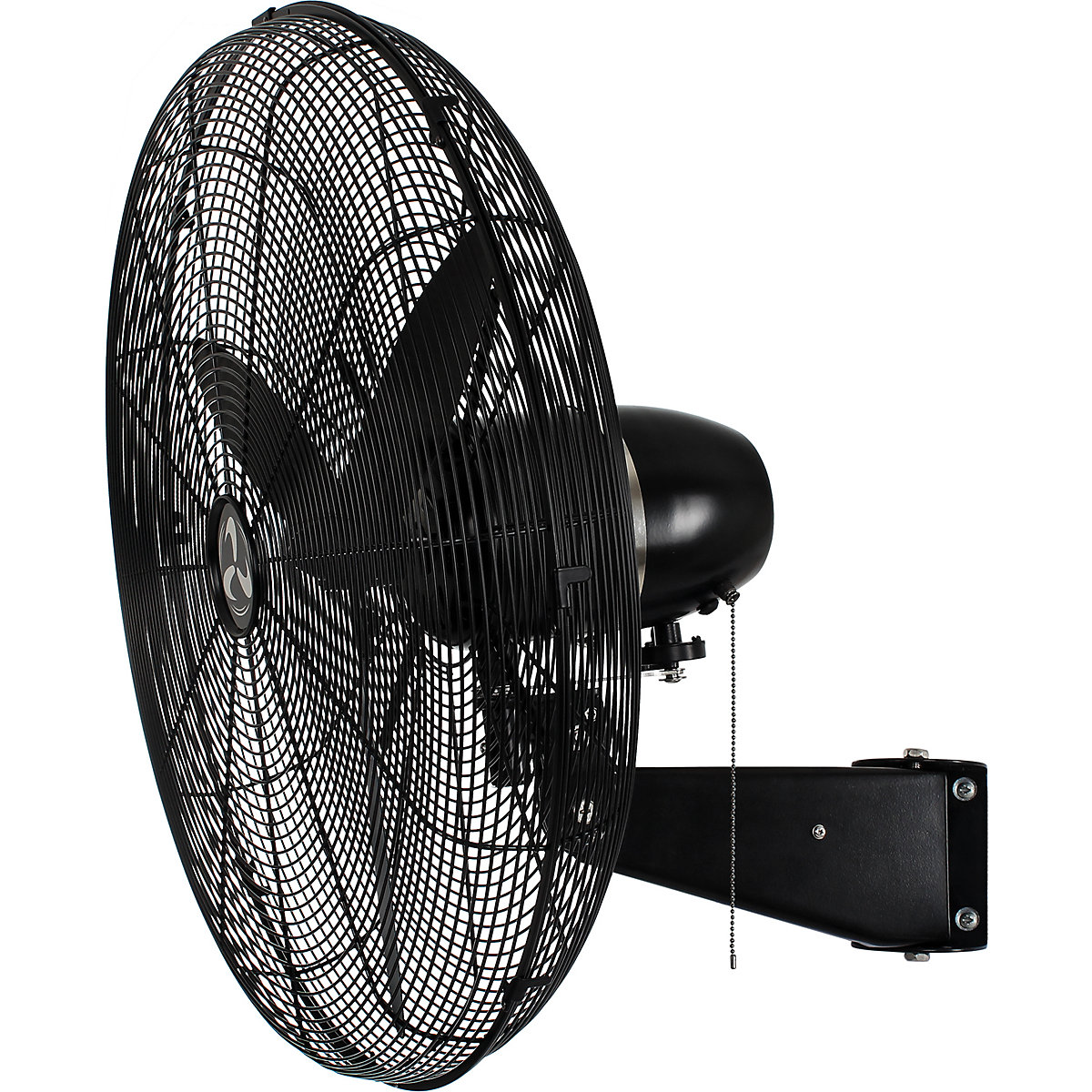

Industrial wall fan IP44 bladed design
black
Ref.: 853430 49
Industrial wall fan IP44 bladed design
black
black
Ref.: 853430 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Practical wall mounted version for avoiding tripping hazards
- Dust and splash water protected in accordance with IP44
- Certified as compliant with the Machinery Directive 2006/42/EC Part 1 for commercial use
- All phase on and off switch for safe operation
- Accessories: 5 stage transformer for more exact air flow regulation

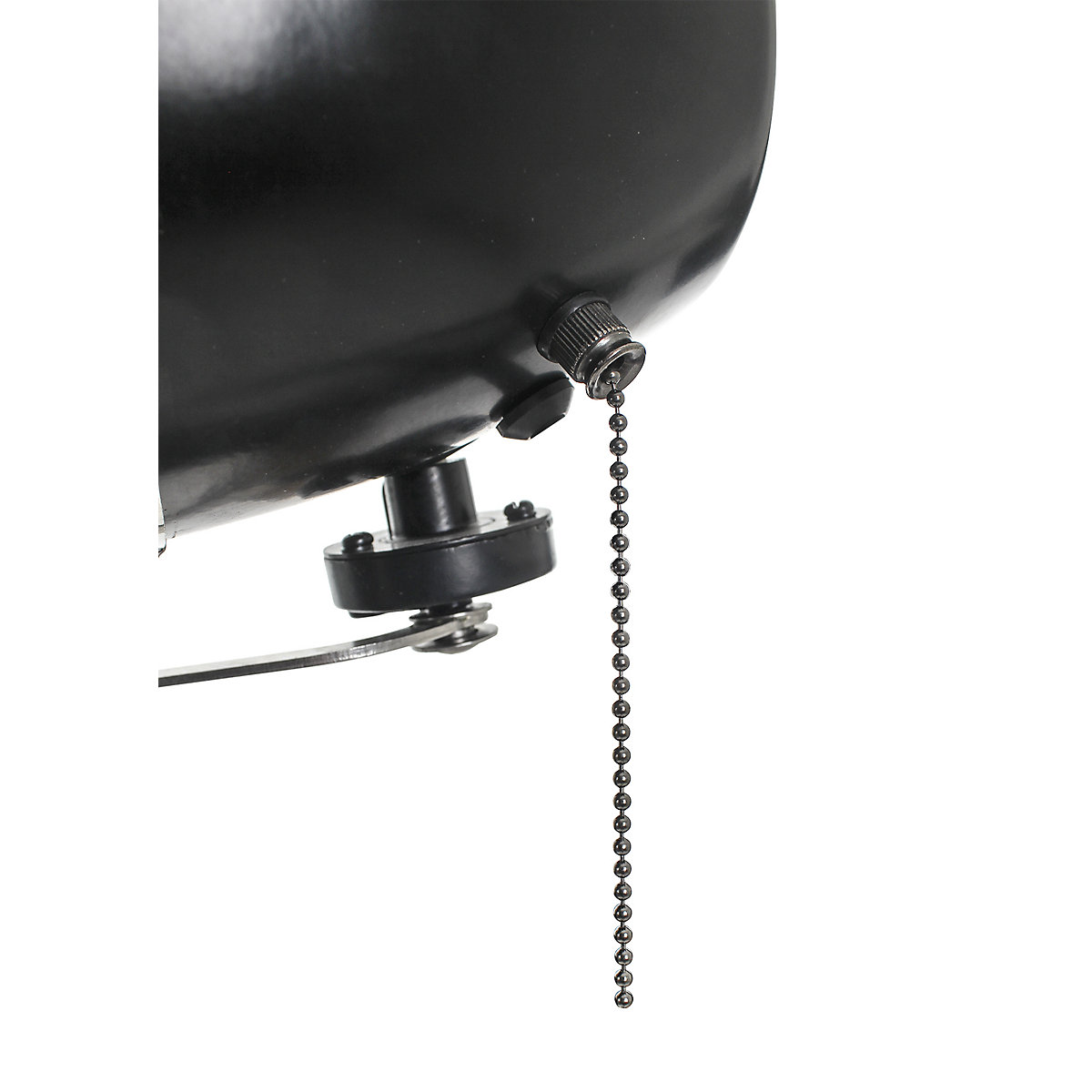

Heavy industrial fan in a robust all-metal design. The wall bracket, protective cage, housing, and blades are corrosion-protected primed and matt black painted. The motor with high-quality ball bearings ensures a long service life. Three speed settings can be adjusted via the pull switch on the motor.
The mechanical, switchable 80° oscillation and the 3-bladed impeller ensure optimal air output. The cage inclination is vertically adjustable, and the wall mount is swivelling. With a 2.5 m connection cable (H05RN-F 3 x 1.0 mm²).
Dust and splash-proof according to IP44, certified according to Machinery Directive 2006/42/EC for commercial use. With an all-pole on/off switch for maximum safety. Optional: 5-step transformer for precise airflow control.
The mechanical, switchable 80° oscillation and the 3-bladed impeller ensure optimal air output. The cage inclination is vertically adjustable, and the wall mount is swivelling. With a 2.5 m connection cable (H05RN-F 3 x 1.0 mm²).
Dust and splash-proof according to IP44, certified according to Machinery Directive 2006/42/EC for commercial use. With an all-pole on/off switch for maximum safety. Optional: 5-step transformer for precise airflow control.
Technical data
| Material | metal |
|---|---|
| Rotor blade diameter | 650 mm |
| Safety cage diameter | 700 mm |
| Colour | black |
| Number of speed settings | 3 |
| Max. speed | 1190 rpm |
| Max. air volume | 10840 m³/h |
| Power | 0,123 kW |
| Sound pressure LPA (–3 m) | 57.4 dB(A) |
| Sound power LWA | 80 dB(A) |
| Height adjustment range | 0 mm |
| Oscillation | 85 ° |
| Fittings | pull switch |
| Feature | round |
| Depth | 505 mm |
| Mains voltage | 220 – 240 V |
| Number of blades | 1 pcs. |
| Product type | industrial fans wall fans |
| Supplied | partially assembled |
| Weight | 12.5 kg |
| Instructions |
