Ref.: 523384 49
XXL crash protection bar, steel, Ø 108 mm – Black Bull for outdoor use
H x W 600 x 650 mm
Height [mm]
Width [mm]
Ref.: 523384 49
XXL crash protection bar, steel, Ø 108 mm – Black Bull for outdoor use
H x W 600 x 650 mm
H x W 600 x 650 mm
Height [mm]
Width [mm]
£659.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£659.00
Price / item (Excl. VAT)
Product description
- Corrosion protected and hardwearing due to hot dip galvanising
- Withstands very heavy loads due to its very large Ø of 108 mm

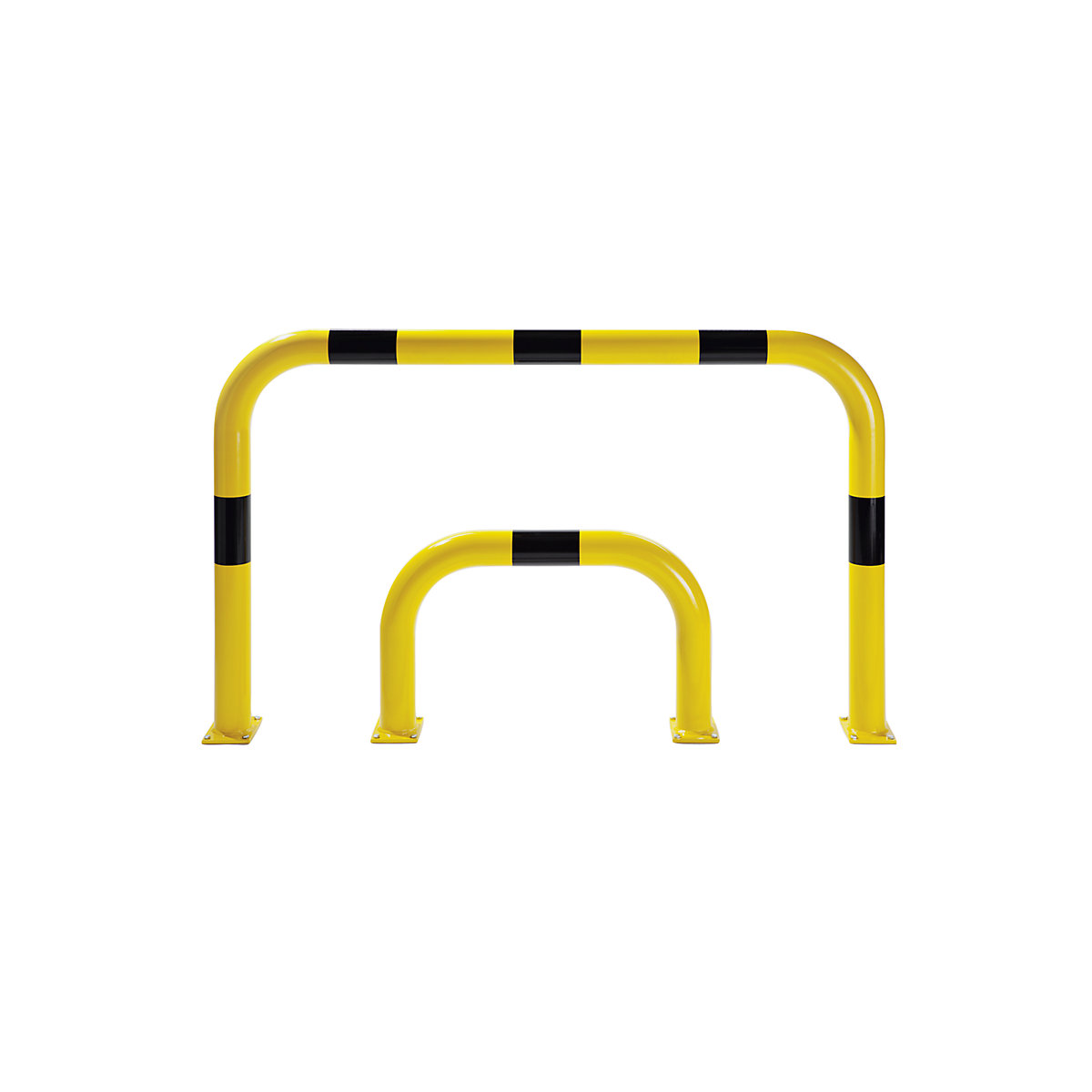

- Large range of different heights and widths
- Extremely robust as it is formed from one piece and manufactured without weld seams
Protects important and sensitive equipment. To delineate separate areas.
Made of high quality steel. Bar Ø 108 mm, wall thickness 3.6 mm. Evenly bent, no welded seams.
For bolting in place, base plates 200 x 140 mm.
Widths of 1000+ mm with black stripes.
TÜV tested in accordance with DGUV 108-007.
Hot dip galvanised and additionally plastic coated in yellow.
Made of high quality steel. Bar Ø 108 mm, wall thickness 3.6 mm. Evenly bent, no welded seams.
For bolting in place, base plates 200 x 140 mm.
Widths of 1000+ mm with black stripes.
TÜV tested in accordance with DGUV 108-007.
Hot dip galvanised and additionally plastic coated in yellow.
Model for concreting in available upon request.
The mounting material can be found under Accessories.
Supplied without fixing material.
Impact protection with a Ø of 76 mm can be found under alternatives.
Technical data
| Type of mounting | with base plate for bolting in place |
|---|---|
| Tube diameter | 108 mm |
| Base plate length | 200 mm |
| Base plate width | 140 mm |
| Material | steel |
| Finish | hot dip galvanised and plastic coated |
| Colour | traffic yellow RAL 1023 jet black RAL 9005 |
| Panel thickness | 3.6 mm |
| Place of use | outdoor use |
| Product type | barrier rails |
| Supplied | assembled |
| Height | 600 mm |
| Width | 650 mm |
| Height above ground | 600 mm |
| Weight | 17.5 kg |
