Ref.: 864784 49

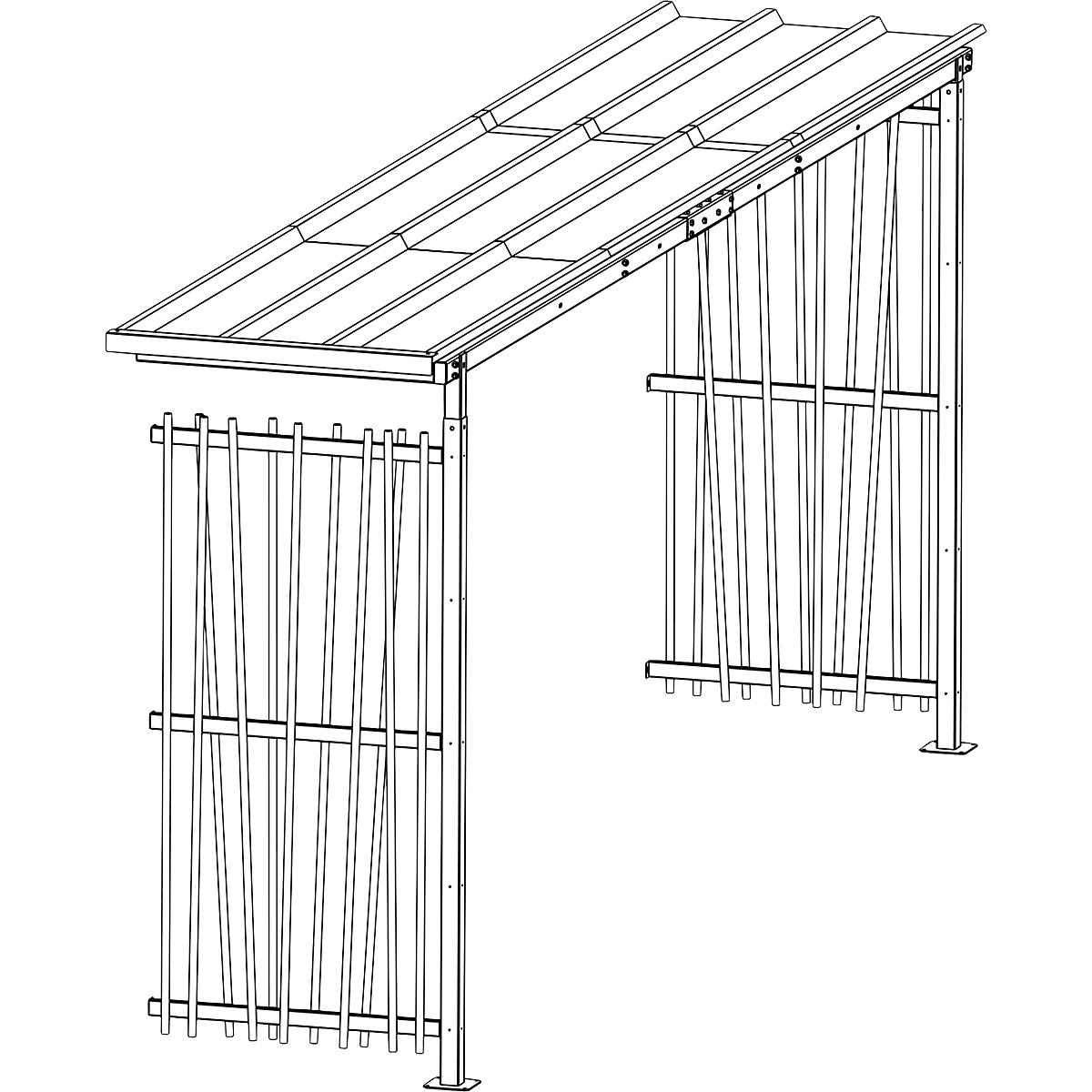

Bicycle shelter – Mottez HxW 2360 x 5600 mm, bamboo

Bicycle shelter – Mottez

depth 1000 mm, extension unit

Depth [mm]
Ref.: 864784 49

Product description
  • With a door with a digital code
  • Spot with presence sensor, which is powered by a solar panel
  • Extension by one metre per extension unit.
  • Different designs available
  • Gutter can be installed
The bicycle shelter, in a 3 x 5 m or 5 x 5 m size, combines modern aesthetics with high functionality and blends harmoniously into any environment thanks to its clean lines. Depending on the desired appearance, the shelter is available in various material options such as reed, bamboo or a robust sheet metal-wood combination. The construction is ideal for the secure and orderly storage of bicycles, motorbikes, scooters or kick scooters and, with its generous dimensions of 515 x 560 x 221 cm, offers space for up to 32 bicycles.

For maximum security, the shelter is equipped with a door including a digital code lock. The stable frame construction consists of galvanised steel tubes (posts 60 x 60 mm, roof tubes 70 x 40 mm), which are additionally finished with a black sandblasted polyester powder coating. The perforated facade cladding, made of 2 mm thick electro-galvanised sheet steel in anthracite grey (RAL 7016), provides a modern look and good ventilation at the same time.

The roof is prepared so that a standard rain gutter for ribbed or corrugated sheet steel can be installed if required (not included). An edge plate mounted on the front ensures a clean and high-quality roof finish. For additional security and comfort, a solar LED spot with a presence detector is included, which automatically illuminates the shelter when motion is detected.

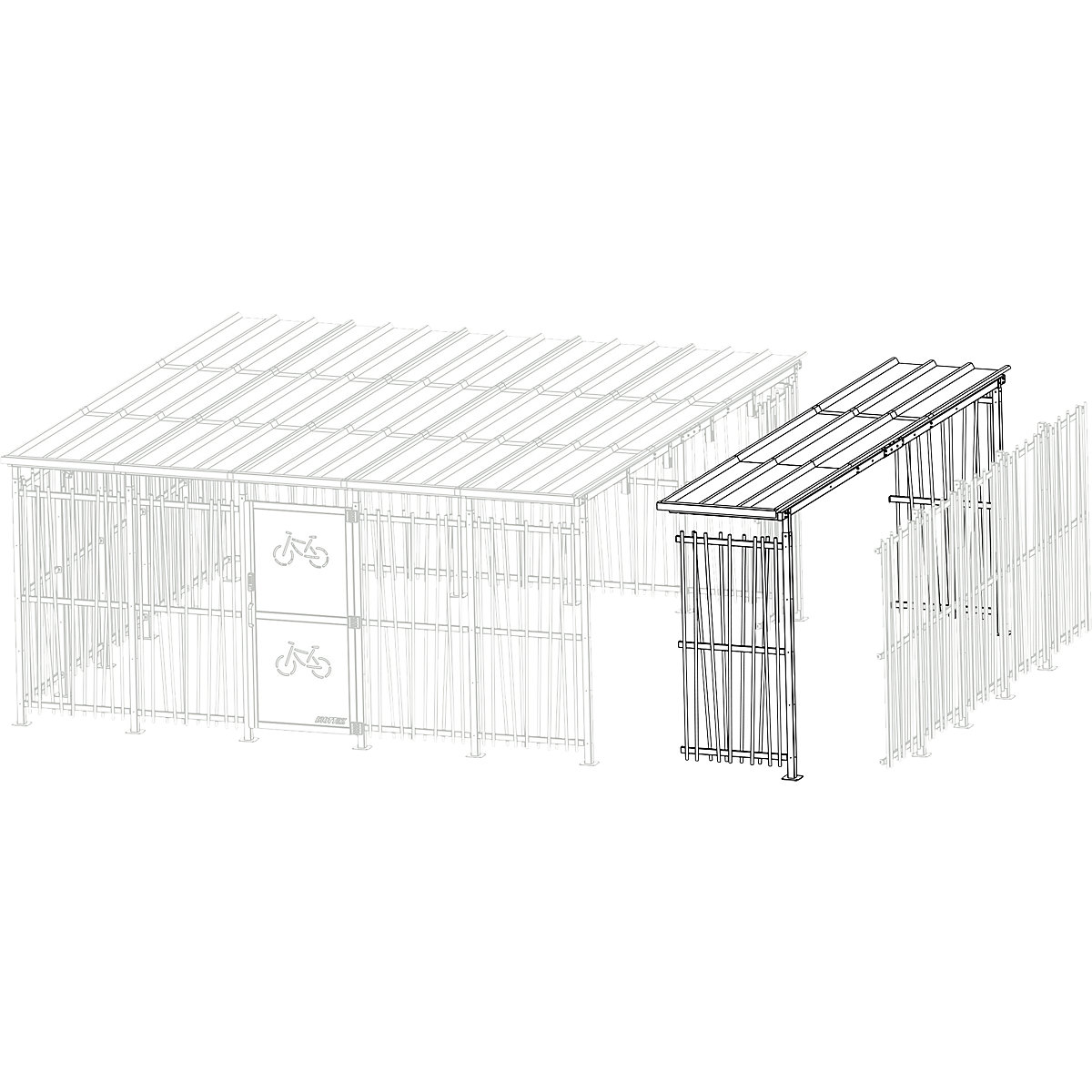

Extensions of 1 metre in width each (add-on units) are available in the respective design.
Technical data
Height2360 mm
Width5600 mm
Finishpainted
Frame materialsteel
Frame colourcharcoal
Clear height2360 mm
Type of mountingfloor attachment
Product typeshelters
Suppliedflat pack
Depth1000 mm
Constructionextension unit
Weight123.52 kg
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .
CriteriaWeightingScore
Icon Climate protectionClimate protection30%1.7
Icon Circulatory economyCirculatory economy30%4.2
Icon BiodiversityBiodiversity25%2.0
Icon Economic efficiencyEconomic efficiency10%0.0
Icon InnovationInnovation5%3.9
Overall score3.1
