Ref.: 864272 49

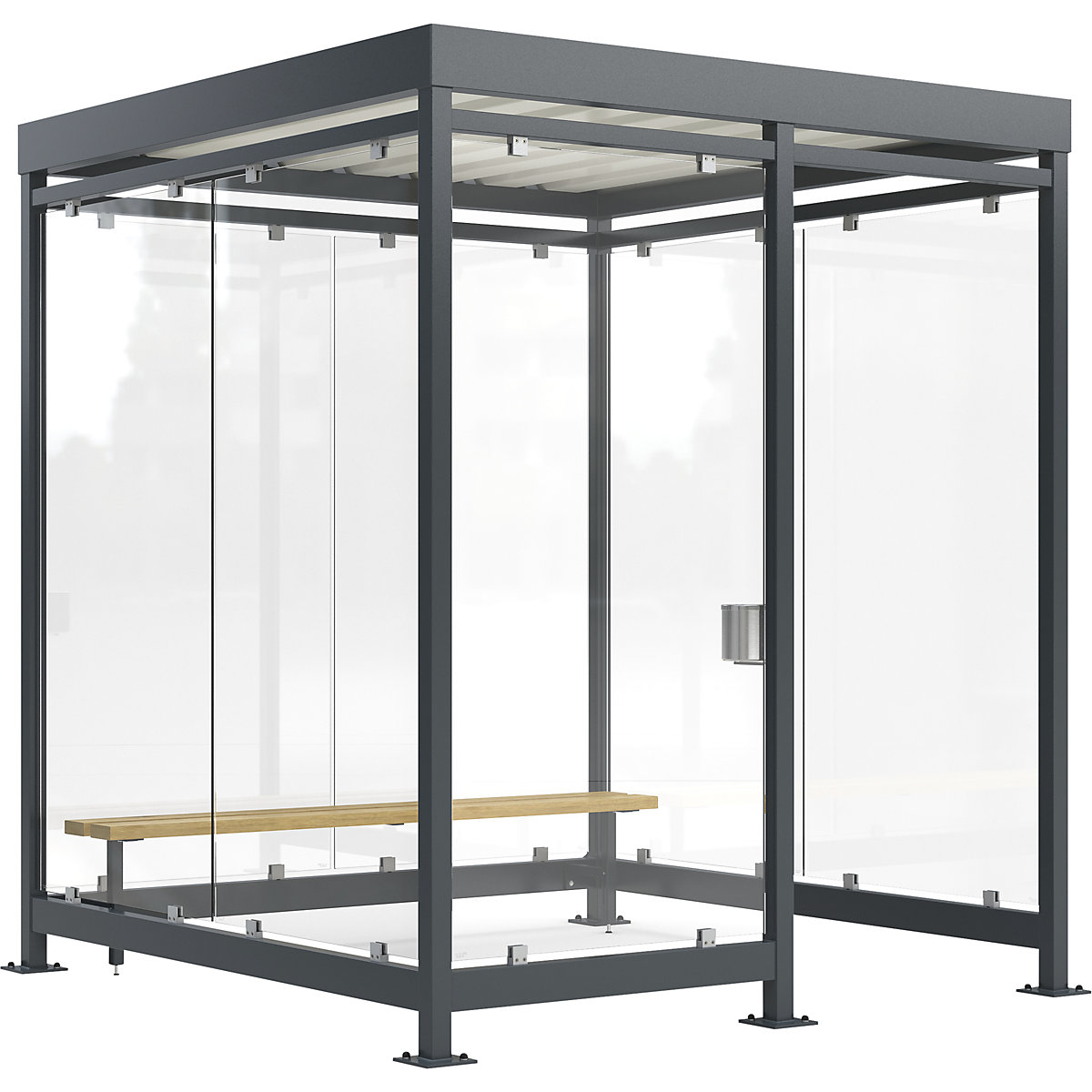

Köln shelter with bench and ashtray – WSM open, fully assembled
W 3180 mm, with bench, 9 glass elements
Width [mm]
Ref.: 864272 49
Köln shelter with bench and ashtray – WSM open, fully assembled
W 3180 mm, with bench, 9 glass elements
W 3180 mm, with bench, 9 glass elements
Width [mm]
Ref.: 864272 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Durable investment with low maintenance as a complete set
- The Cologne model smoker set convinces as an all-round, well-thought-out complete solution.
- High-quality smokers' shelter with rear and side walls made of toughened safety glass (8 mm)

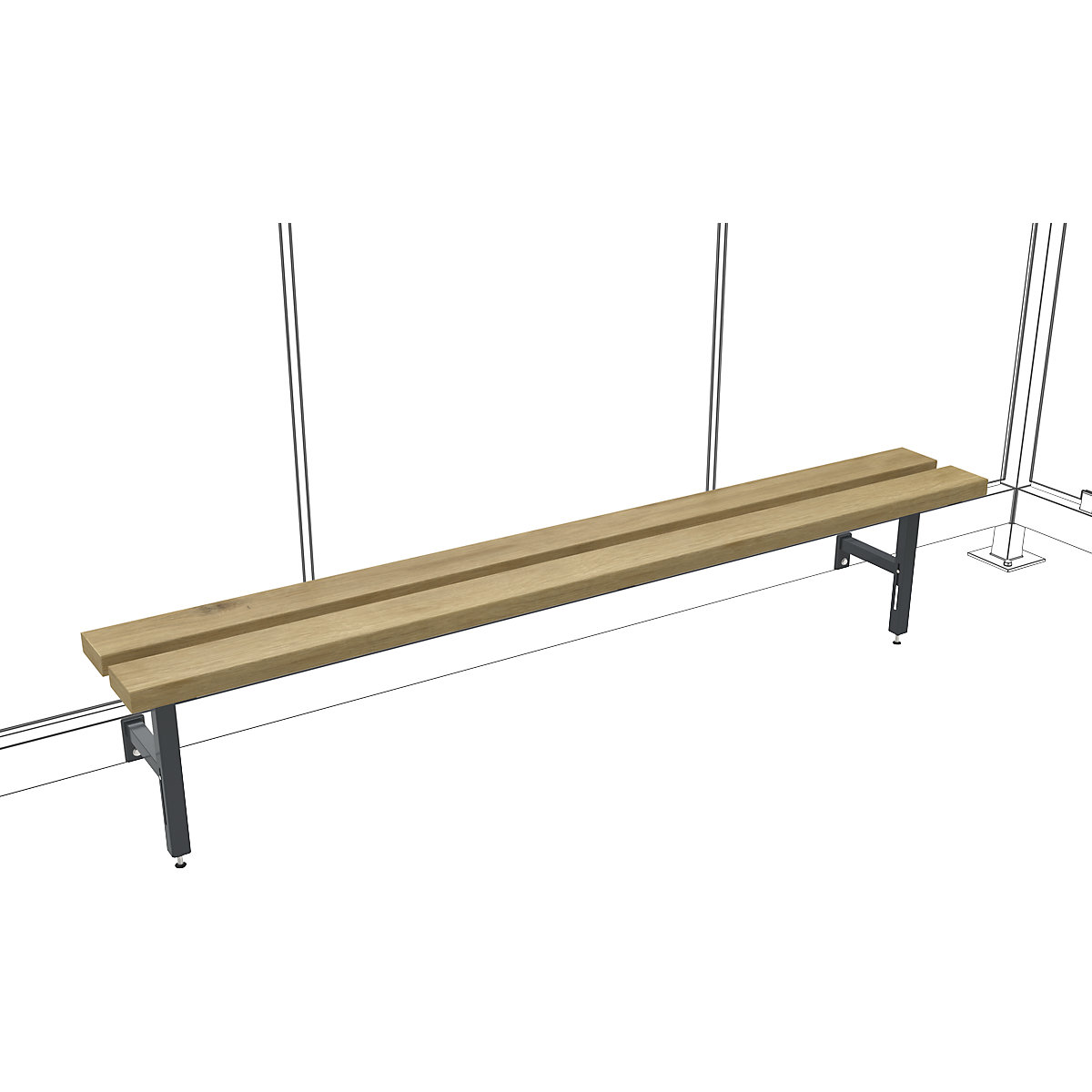

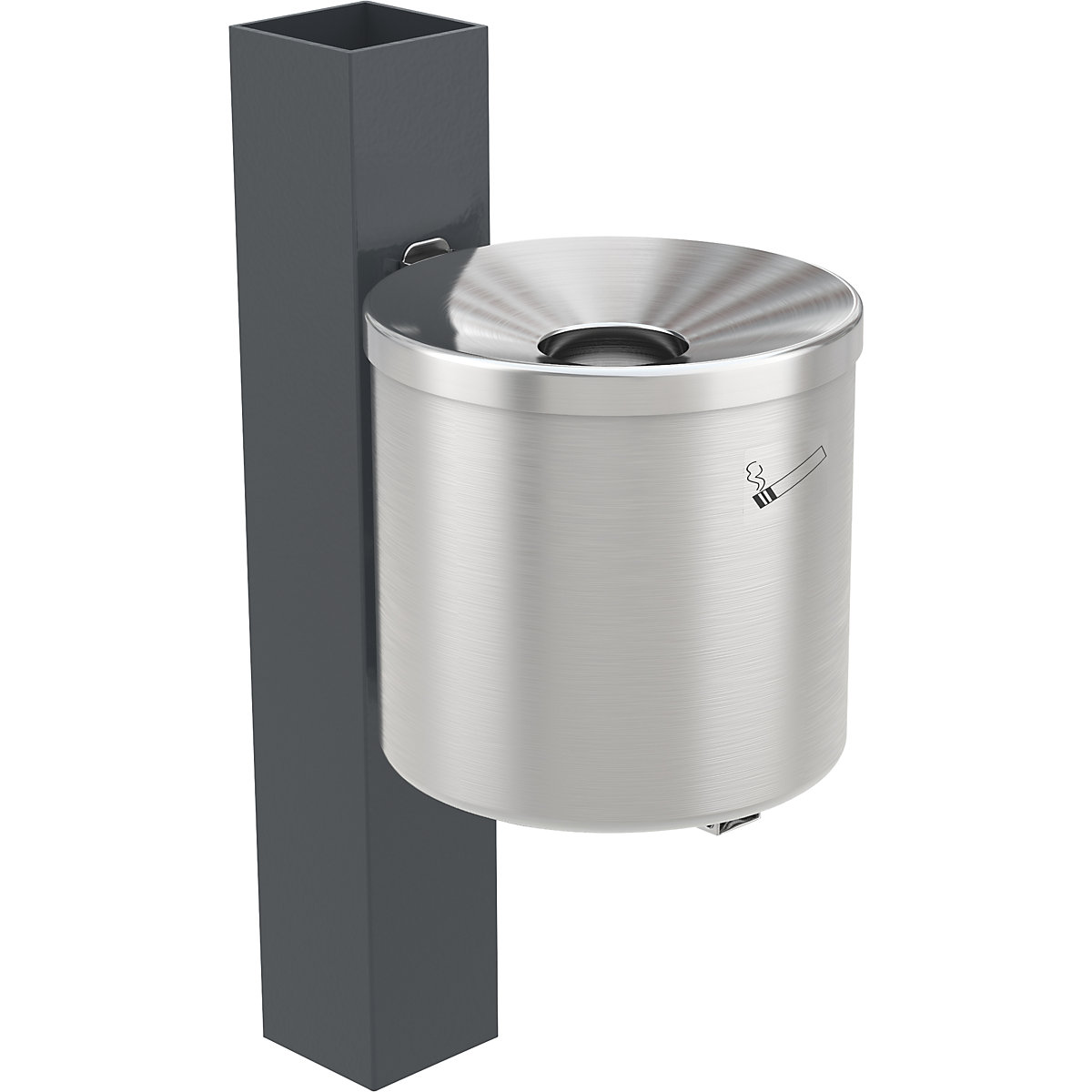

- Incl. integrated benches, ashtrays and certified structural analysis
- Weatherproof trapezoidal sheet metal roof

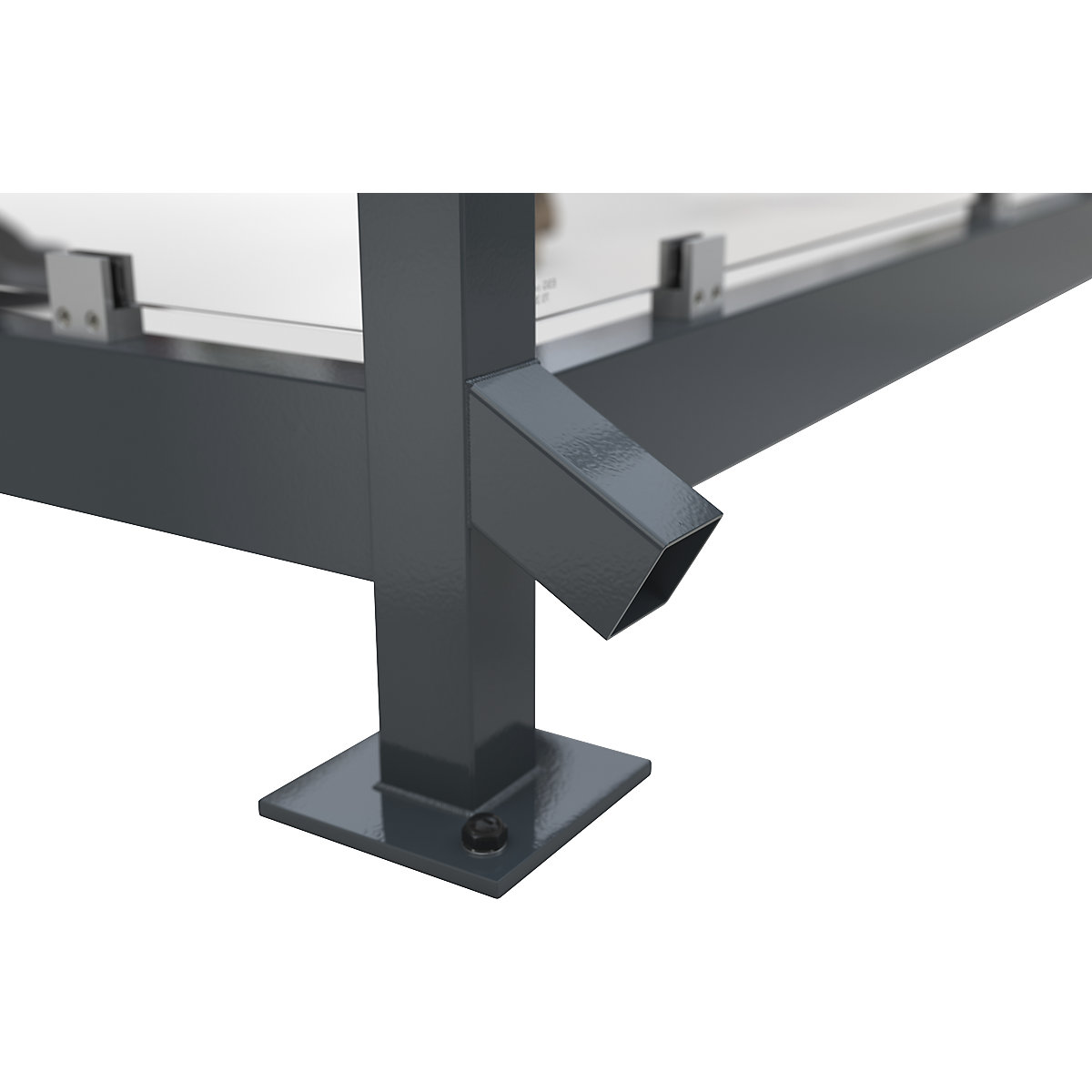

- Drainage via scuppers at the base
- Type statics for high wind loads and snow loads
- Delivered fully assembled
The Köln smoker's shelter model impresses as an all-round, well-thought-out, complete solution. The robust construction of galvanised and colour-coated steel profiles is complemented by large single-pane safety glass elements, providing not only protection from wind and weather but also a modern, open design. The flat roof with an integrated water channel drains rainwater. Another plus: the integrated RELAX Nature 2000 benches and the standard ashtray.
Available on request:
– Paintwork in other RAL colours
– Custom printing on the glass panes
– Special constructions
– Higher snow loads
Available on request:
– Paintwork in other RAL colours
– Custom printing on the glass panes
– Special constructions
– Higher snow loads
Technical data
| Height | 2510 mm |
|---|---|
| Depth | 2165 mm |
| Finish | powder coated |
| Frame material | steel |
| Frame colour | charcoal RAL 7016 |
| Construction | assembled |
| Max. snow load | 110 kg/m² |
| Clear height | 2360 mm |
| Side panel material | single pane safety glass |
| Product type | shelters roofing sets |
| Supplied | assembled |
| Width | 3180 mm |
| Weight | 782 kg |
