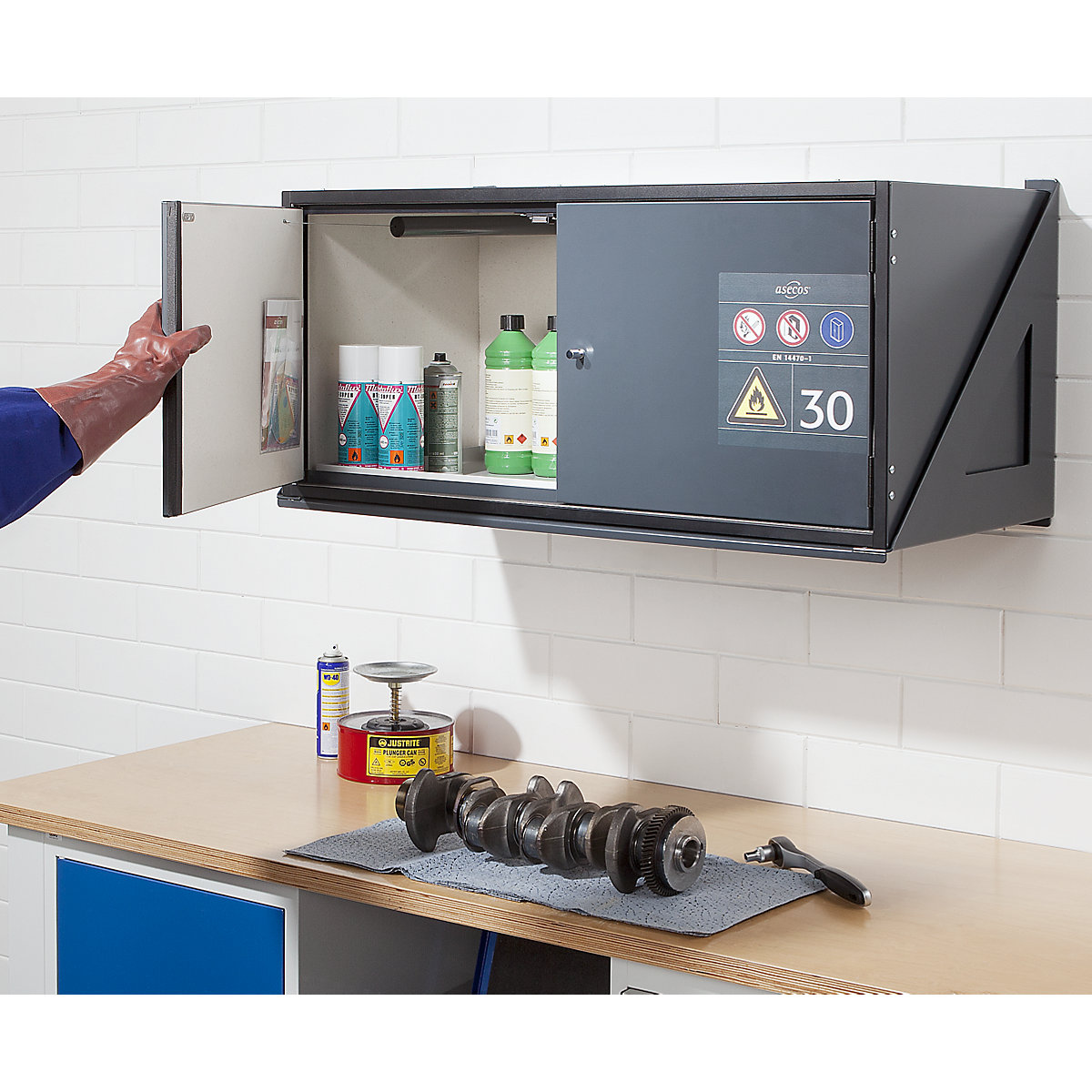

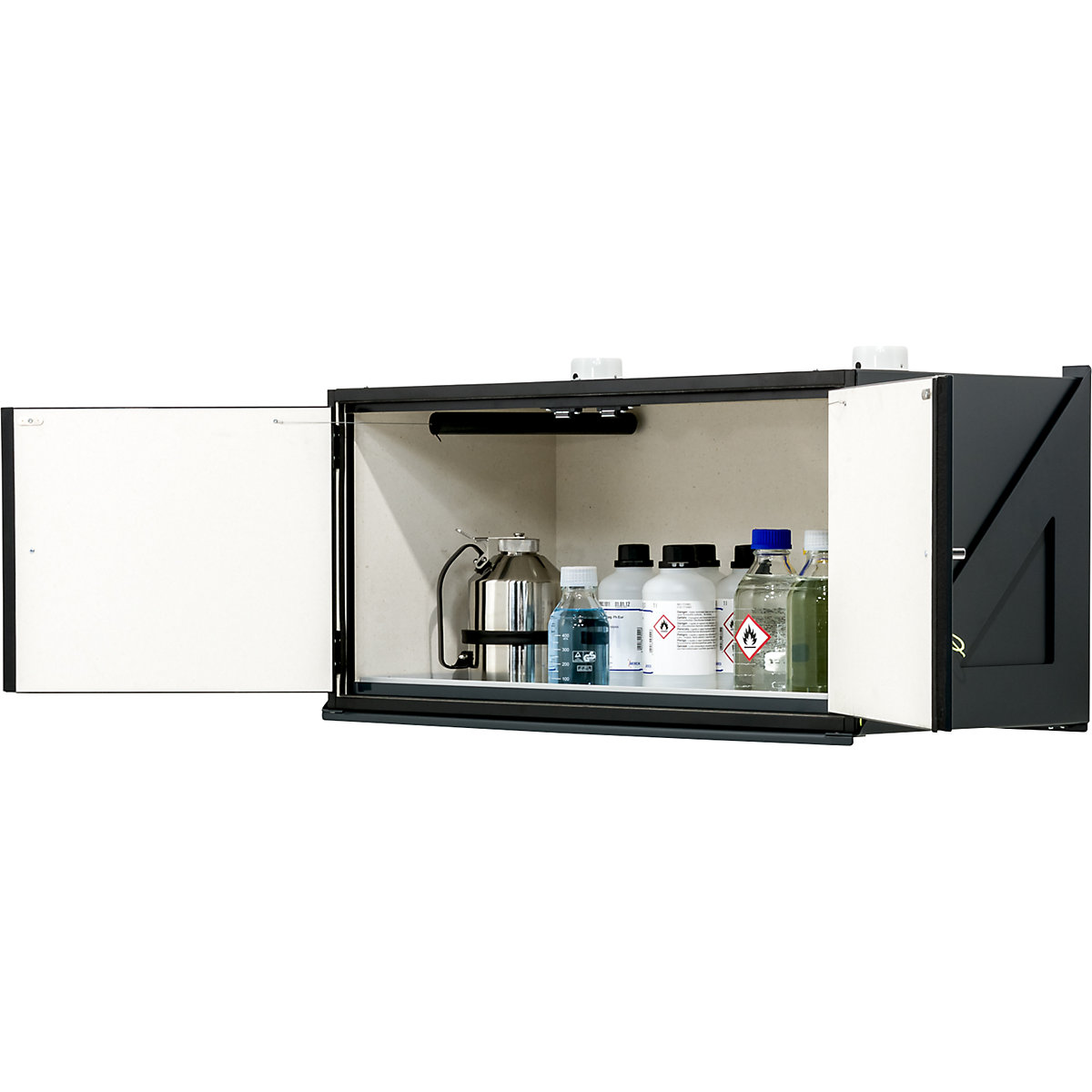

asecos – Type 30 hazardous goods wall mounted storage cupboard, fire resistant without lock

  • For regulation compliant storage of small quantities of flammable liquids in workshops in accordance with EN 14470-1 and TRGS 510
  • Flammable liquids such as spray cans, paints, etc. can be stored safety directly at the workstation – e.g. above the worktop
  • Quick access – saves time and ensures safety at the workplace
  • Proven protection against fire for 30 minutes, GS tested
  • Ventilation connection (DN 75) in the roof of the cupboard
  • Steel frame for wall mounting and fastening material included
asecos
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
Type 30 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 30 minutes, fire chamber tested and certified. Complies with EN 144701-1.
Type 30 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 30 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For flammable liquids
For flammable liquids
Ref.: 118465 49
asecos – Type 30 hazardous goods wall mounted storage cupboard, fire resistant, without lock, external dimensions HxWxD 482 x 995 x 470 mm
Price / items (Excl. VAT)
£1,100.00

Product description
Body and doors in charcoal RAL 7016. Two self-closing hinged doors. 5 litre capacity sump.
Empty weight 77 kg – please observe.

Not lockable.
Fitting a lock at a later stage not possible.
  • For regulation compliant storage of small quantities of flammable liquids in workshops in accordance with EN 14470-1 and TRGS 510
  • Flammable liquids such as spray cans, paints, etc. can be stored safety directly at the workstation – e.g. above the worktop
  • Quick access – saves time and ensures safety at the workplace
  • Proven protection against fire for 30 minutes, GS tested
  • Ventilation connection (DN 75) in the roof of the cupboard
  • Steel frame for wall mounting and fastening material included
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
Type 30 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 30 minutes, fire chamber tested and certified. Complies with EN 144701-1.
Type 30 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 30 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For flammable liquids
For flammable liquids
Technical data
Fire resistance30 minutes
External width995 mm
External height482 mm
External depth470 mm
Internal width942 mm
Internal height414 mm
Internal depth419 mm
Materialsheet steel, powder coated
Hazard classfor flammable media in work rooms in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3)
Ventilationventilation connection (NW 75)
Weight76.68 kg
Body colourcharcoal RAL 7016
Door colourcharcoal RAL 7016
Door typehinged door
Lock typewithout lock
Number of doors2 pcs.
Number of sump trays1 pcs.
Base sump tray capacity5 l
Product typehazardous goods storage cupboards, fire resistant
Suppliedassembled
