Ref.: 788767 49

Safety battery storage cabinet for a fire alarm system – CEMO WxD 830 x 660 mm

Safety battery storage cabinet for a fire alarm system – CEMO

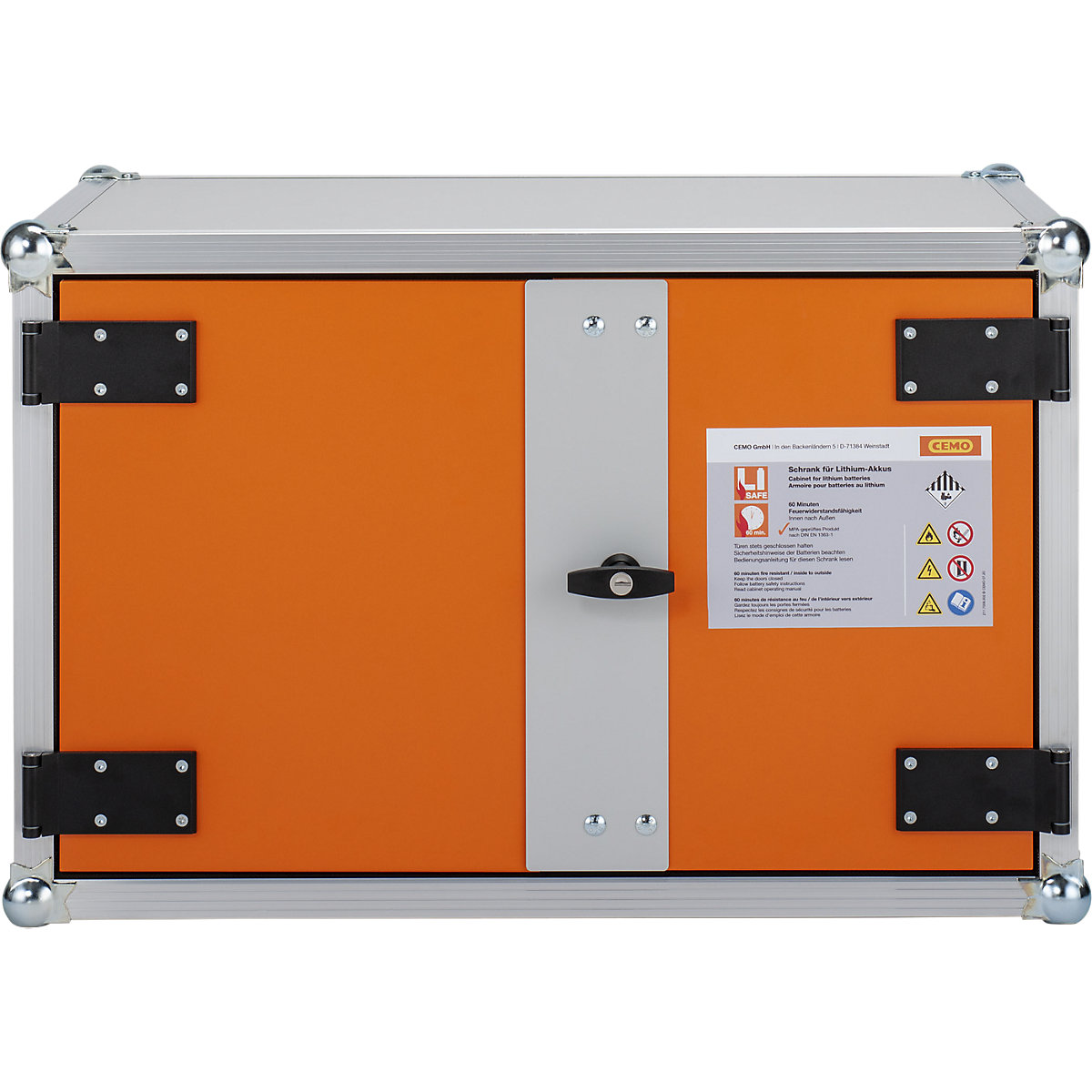

Safety battery storage cabinet for a fire alarm system – CEMO, WxD 830 x 660 mm, without feet-0

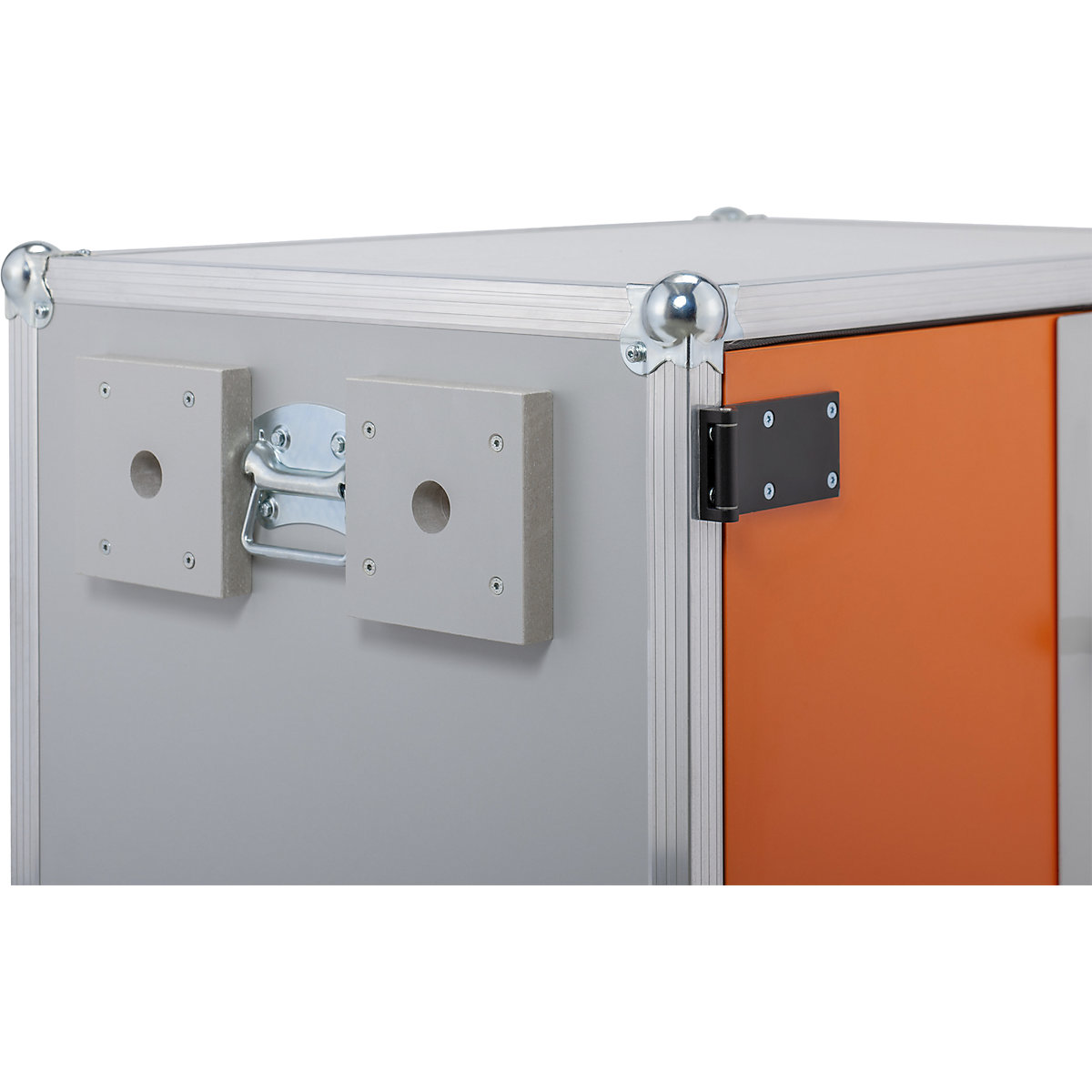

Safety battery storage cabinet for a fire alarm system – CEMO (Product illustration 2)-1

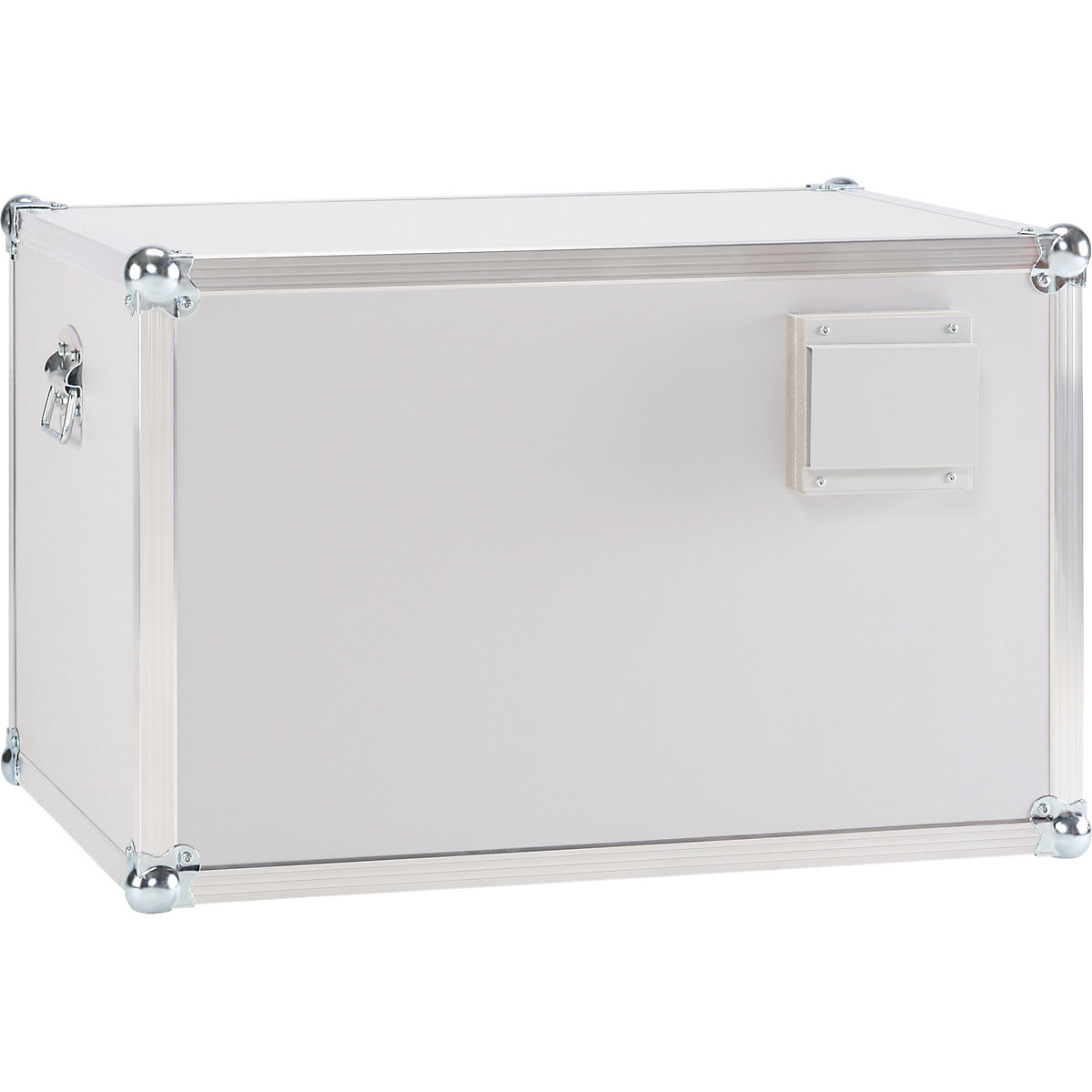

Safety battery storage cabinet for a fire alarm system – CEMO (Product illustration 3)-2

without feet

New
£2,595.00
Price / item (Excl. VAT)

Product description
The PREMIUM and PREMIUM PLUS models of the battery cabinets are designed to relay the alarm to a company's own fire alarm system or internal warning system by means of a zero potential contact. It is therefore not possible to permanently connect them to a fire alarm system with a direct connection to the fire brigade.

These special cabinet models are configured to allow specialists for fire alarm systems to install the fire alarm technology in the cabinets which is required on site or due to the manufacturer specific system compatibility in the company.

Due to regulations relating to occupational health and safety and insurance liability, the guidelines on dangerous goods storage must be observed when storing rechargeable batteries.

The storage and charging of lithium batteries must be kept strictly separate for safety reasons.

Even a small, localised fire can jump to lithium batteries – a small fire that is easy to extinguish then becomes a major challenge for the fire brigade and the company.
Safety storage cupboards for rechargeable batteries allow the consequences of fire to be kept to a minimum, and significantly improve safety in the company.

Advantages:
– Storage of several lithium batteries/rechargeable batteries in the cabinet
– Two battery operated smoke detectors (no power connection, no ventilation)
– Special fire protection seals prevent escape of flames
– Cold smokeproof locking system for the openings
– 2 cable outlets for self-assembly for flexible installation of your custom made fire alarm technology by specialists for fire alarm systems

Model:
– Early alert in the event of damage
– All safety rules relevant for storing lithium batteries are complied with
– Ideal for isolating batteries from stock in storage when charging them
– Can also be used as a cupboard underneath the workbench
– Can be transported for positioning at the installation location
– Double, lockable doors with robust locking and suspension system
– Door painted in orange, similar to RAL 2004, body in grey, similar to RAL 7035
– Construction with non-flammable, fire-resistant components (non-flammable, fire-resistant, homogeneous solid material)
– Spring loaded lockEX door lock for controlled pressure relief in the event of explosions

Safety for storage:
– TÜV NORD Group verification provided within the latest test programme with real battery fire tests and induced gas explosions
– MPA tested fire resistance for more than 60 minutes from the inside to the outside, based on EN 1363-1
  • Specifically for use with fire alarm systems
  • Safe storage of multiple lithium ion batteries in the cabinet
  • MPA tested fire resistance for more than 60 minutes from the inside to the outside
  • With smoke detector, fire protection seals, closure system to seal cold smoke in
  • Spring loaded door lock for controlled pressure relief in the event of explosions
  • Cable outlet for fire alarm technology
Technical data
External width830 mm
External depth660 mm
Internal width730 mm
Internal depth530 mm
Fire resistance60 minutes
Internal fittingssmoke detector (without power connection or ventilation), 2 cable outlets for fire alarm technology
Materialspecial fire resistant boards
Body colourlight grey RAL 7035
Door colourpure orange RAL 2004
Lock typerotary bolt
Door typehinged door
For medialithium-ion batteries/rechargeable batteries
Product typebattery storage safety cabinets
Suppliedassembled
External height520 mm
Internal height450 mm
Mains voltage230 V
Fittingswithout feet
Weight82 kg
Instructions
‌
‌
‌
‌
Sustainability
Enkelfähig
<B>Non-Enkelfähig product</B><br/><br/>This product is currently not yet Enkelfähig. This does not mean that the product does not exhibit any sustainable features, and instead only means that it does not yet meet enough of the sustainability aspects included in the diverse criteria covered by our sustainability evaluation to achieve a rating of more than 3 points. This is why it does not feature the Enkelfähig endorsement.<br/><br/>For more information about product evaluation and the Enkelfähig Initiative, please visit our <a href="/w/company_enkelfaehigscore/">Enkelfähig information page</a>.
Non-Enkelfähig product

This product is currently not yet Enkelfähig. This does not mean that the product does not exhibit any sustainable features, and instead only means that it does not yet meet enough of the sustainability aspects included in the diverse criteria covered by our sustainability evaluation to achieve a rating of more than 3 points. This is why it does not feature the Enkelfähig endorsement.

For more information about product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
‌
Product guide
Together we are strong: Helpful information about this product.
WORKSHOP PRODUCT GUIDE
Handling rechargeable lithium-ion batteries safely

Does this situation sound familiar? You need to make an urgent and important call at exactly the moment your smartphone's battery gives up the ghost. If this also happens to your customers or the employees at your company, and you also have all sorts of other everyday technology such as laptops, notebooks, electric tools such as cordless screwdrivers, e-bicycle batteries, e-scooters etc. to store or recharge, this often requires more than just a comprehensive and practical solution, but also – and this is important – one that is safe and that has been specifically designed for innovative lithium-ion batteries. This is what we call a safety battery charging or safety battery storage cabinet, and it includes functions that provide protection from fires.

Learn more about what makes rechargeable battery cupboards different, why it is so important to store and recharge lithium-ion batteries separately, what you need to observe when handling these high-performance power packs, how to dispose of them properly, and which specific advantages the products made by CEMO will bring you.
