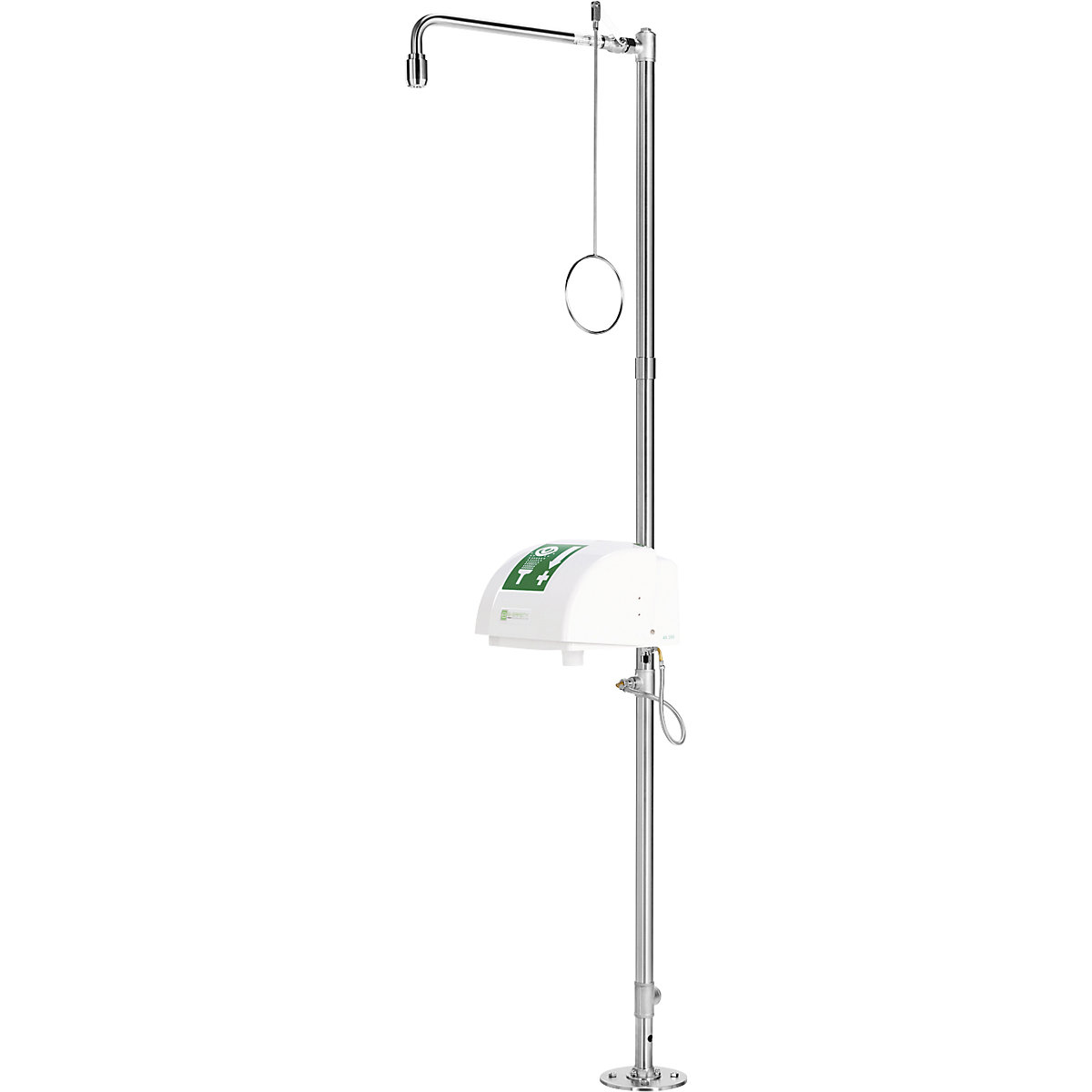

PremiumLine full body emergency shower – B-SAFETY with eye/face shower, collection basin and cover, for floor mounting

The free-standing industrial emergency showers are always used when wall-mounting the shower is not possible or when a central point of contact for first aid is to be created. Their use is also sensible in large halls and production facilities. A major advantage is the good visibility of the shower from all sides. The free-standing emergency showers can be adapted to the on-site requirements as required with a large selection of options.

The B-SAFETY body emergency showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for harsh use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and cleanrooms.

The body emergency showers are equipped with the B-SAFETY high-performance shower head, which not only meets the requirements of ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely free of calcification and maintenance-free, as well as being very robust and corrosion-resistant. The limited, uniform and, above all, soft water jet is optimised for rinsing chemicals from the skin. With the enclosed safety sign according to DIN EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is identified and its visibility is improved. The recognition distance is 15 metres.

– Integrated PremiumLine eye/face wash with bowl and cover, for mounting on the standpipe, position and alignment freely selectable
– 1 1/4-inch standpipe made of stainless steel in three parts, polished, with top and bottom water connection 1 1/4-inch female thread, total height 2300 mm
– Base with 4 mounting holes, made of stainless steel, polished, diameter 200 mm
– Housing, cover and bowl made of impact-resistant and UV-resistant ABS plastic, drain connection 1 1/2-inch male thread, flow regulator made of brass with a very limited spray pattern, chrome-plated, 3/8-inch ball valve made of brass, with lever operation via hinged protective cover, activation by swinging down the cover
– 3/4-inch ball valve made of stainless steel, with quick-connect system and pull rod actuation, pull rod with ring handle made of stainless steel, polished, length 700 mm
– 3/4-inch wall shower arm made of stainless steel, polished, projection 630 mm
– Including top and bottom water connection 1 1/4-inch female thread for installation in circulation pipes, 1 1/4-inch plug made of stainless steel
– Connector made of stainless steel, for quick on-site assembly and easy alignment of the shower arm
– Integrated automatic flow regulator 50 litres/minute for a standard-compliant spray pattern at a specified working range of 1.5 to 3 bar flow pressure
– With integrated 3/8-inch flow regulating valve for adjusting the desired spray height and flow rate
– According to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717, ANSI Z358.1-2014, DIN EN 15154-1:2006, DIN EN 15154-2:2006 and DIN EN 15154-5:2019. DIN-DVGW tested and certified
