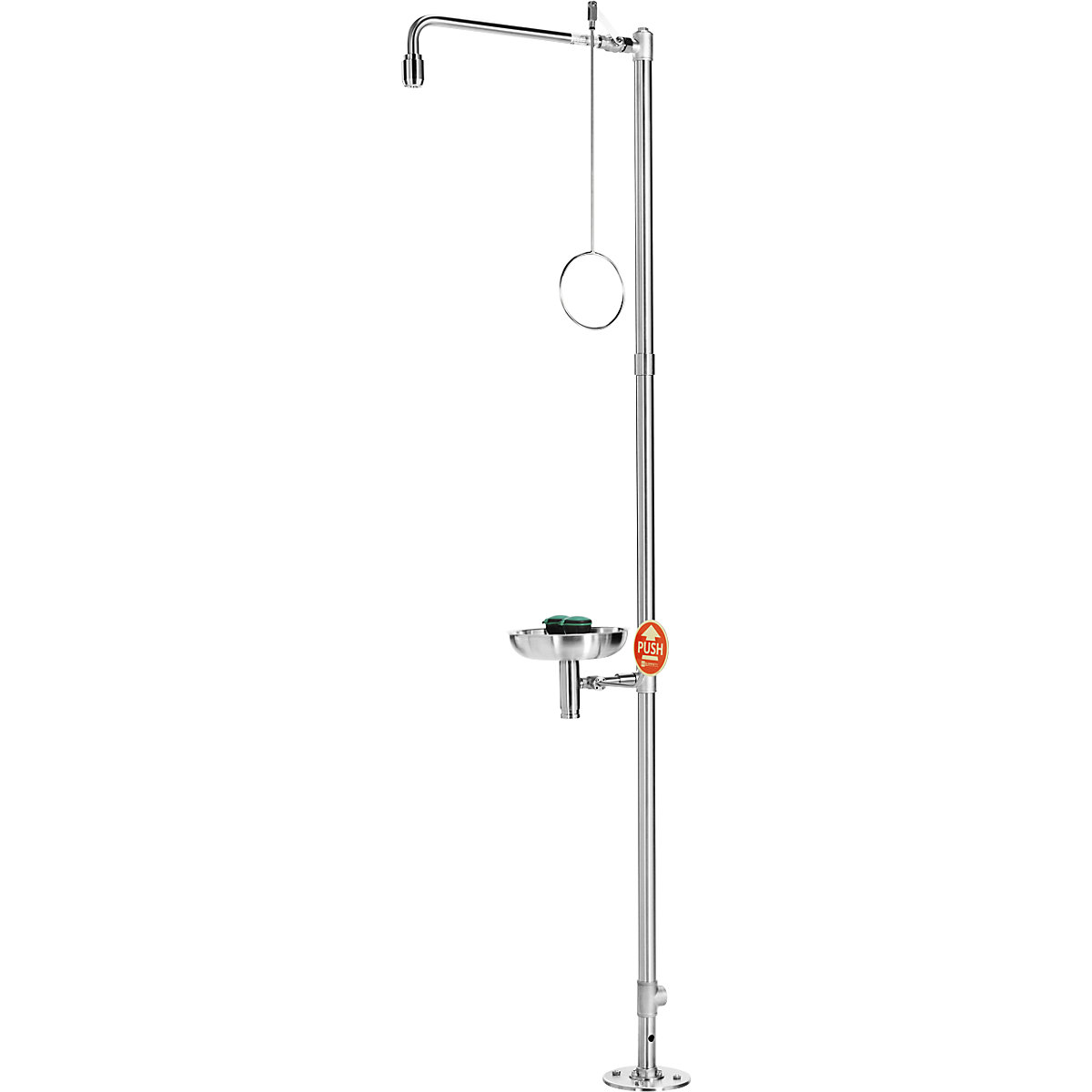

PremiumLine full body emergency shower – B-SAFETY with eye shower and collection basin, for floor mounting

The free-standing industrial emergency showers are always used when wall mounting of the shower is not possible or a central first aid point is to be created. Their use is also sensible in large halls and production facilities. A major advantage is the good visibility of the shower from all sides. Depending on requirements, the free-standing emergency showers can be adapted to the on-site requirements with a large selection of options.

The B-SAFETY PremiumLine body emergency showers are made of stainless steel and are equally suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals but also offers a modern design for laboratories and cleanrooms.

The body emergency showers are equipped with the B-SAFETY high-performance shower head, which not only meets the requirements of ANSI Z358.1 and DIN EN 15154, but is also self-draining, largely scale-free and maintenance free, as well as very robust and corrosion-resistant. The limited, even, and above all soft water jet is optimised for rinsing chemicals from the skin. With the enclosed warning sign according to DIN EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The recognition distance is 15 metres.

– Integrated PremiumLine safety eye shower with collection basin made of stainless steel, installation height 970 mm, orientation of the eye shower freely selectable on site
– Two wide-spray high-performance shower heads made of stainless steel, polished, with plastic spray plate, low-limescale, including rubber protection and tightly closing dust cover with flap mechanism, mounted over a distribution fork
– Collection basin made of stainless steel, diameter 275 mm, polished, drain connection 1 1/4-inch external thread
– Standpipe 1 1/4-inch made of stainless steel, three-part, polished, with upper and lower water connection 1 1/4-inch internal thread, overall height 2300 mm
– Base with 4 mounting holes made of stainless steel, polished, diameter 200 mm
– Wall shower arm 3/4-inch made of stainless steel, polished, projection 630 mm, connecting piece made of stainless steel, for quick on-site installation and easy alignment of the shower arm
– Ball cock 3/4-inch made of stainless steel, with quick mounting system and pull rod actuation, pull rod with ring handle made of stainless steel, polished, length 700 mm
– Including upper and lower water connection 1 1/4-inch internal thread for installation in circulation lines, plug 1 1/4-inch made of stainless steel
– Connecting pipe made of stainless steel for easy installation and alignment of the shower, polished
– Ball cock 1/2-inch made of stainless steel, with PUSH lever operation, control plate made of stainless steel, polished, length 240 mm, with large PUSH signal, long-afterglow according to DIN 67510
– Integrated automatic flow regulator 50 litres/minute for a standard-compliant spray pattern at a specified working range of 1.5 to 3 bar flow pressure
– According to BGI/GUV-I 850-0, DIN 1988 and DIN EN 1717, ANSI Z358.1-2014, DIN EN 15154-1:2006, DIN EN 15154-2:2006 and DIN EN 15154-5:2019. DIN-DVGW tested and approved
