Ref.: 849148 49

Counterbalance crane manual

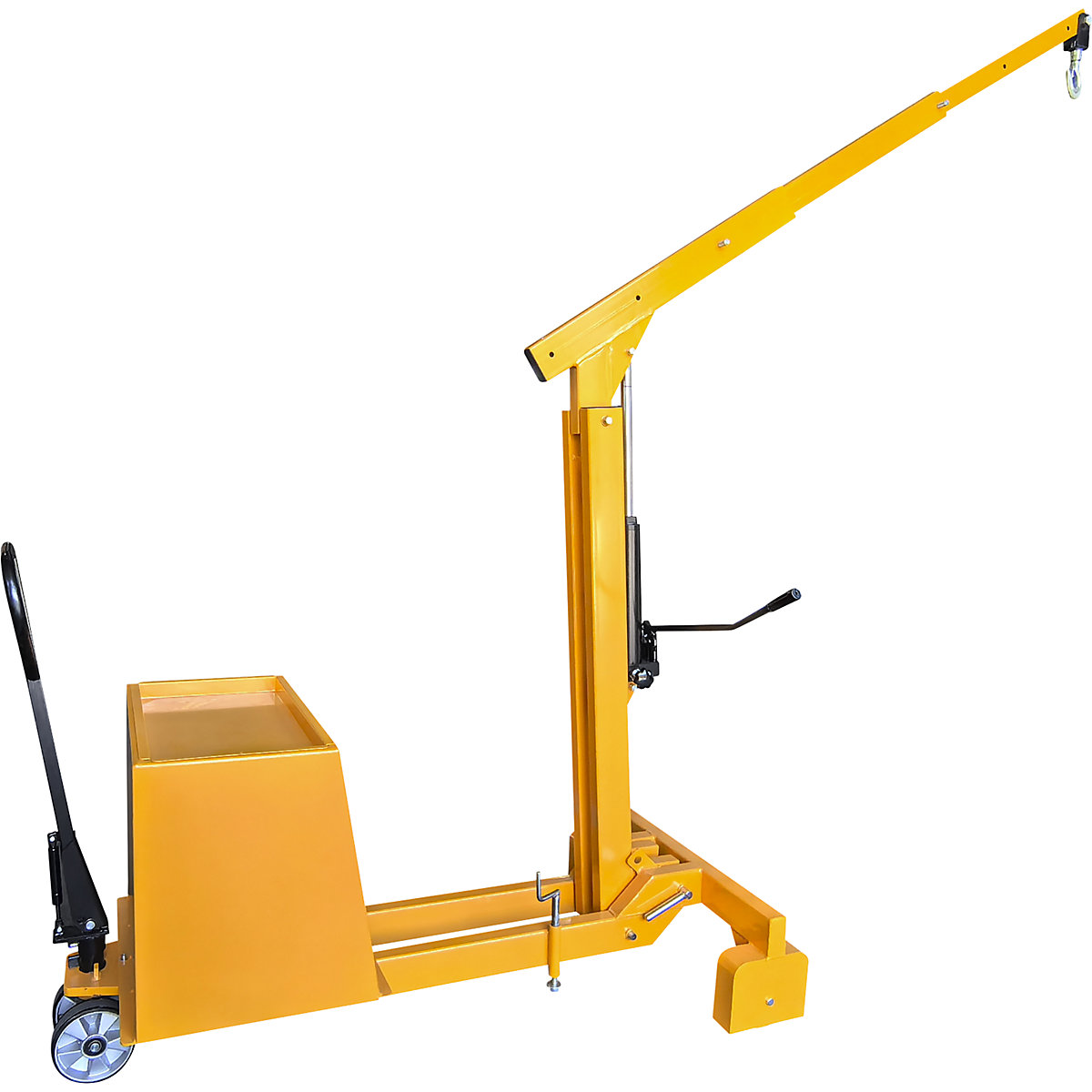

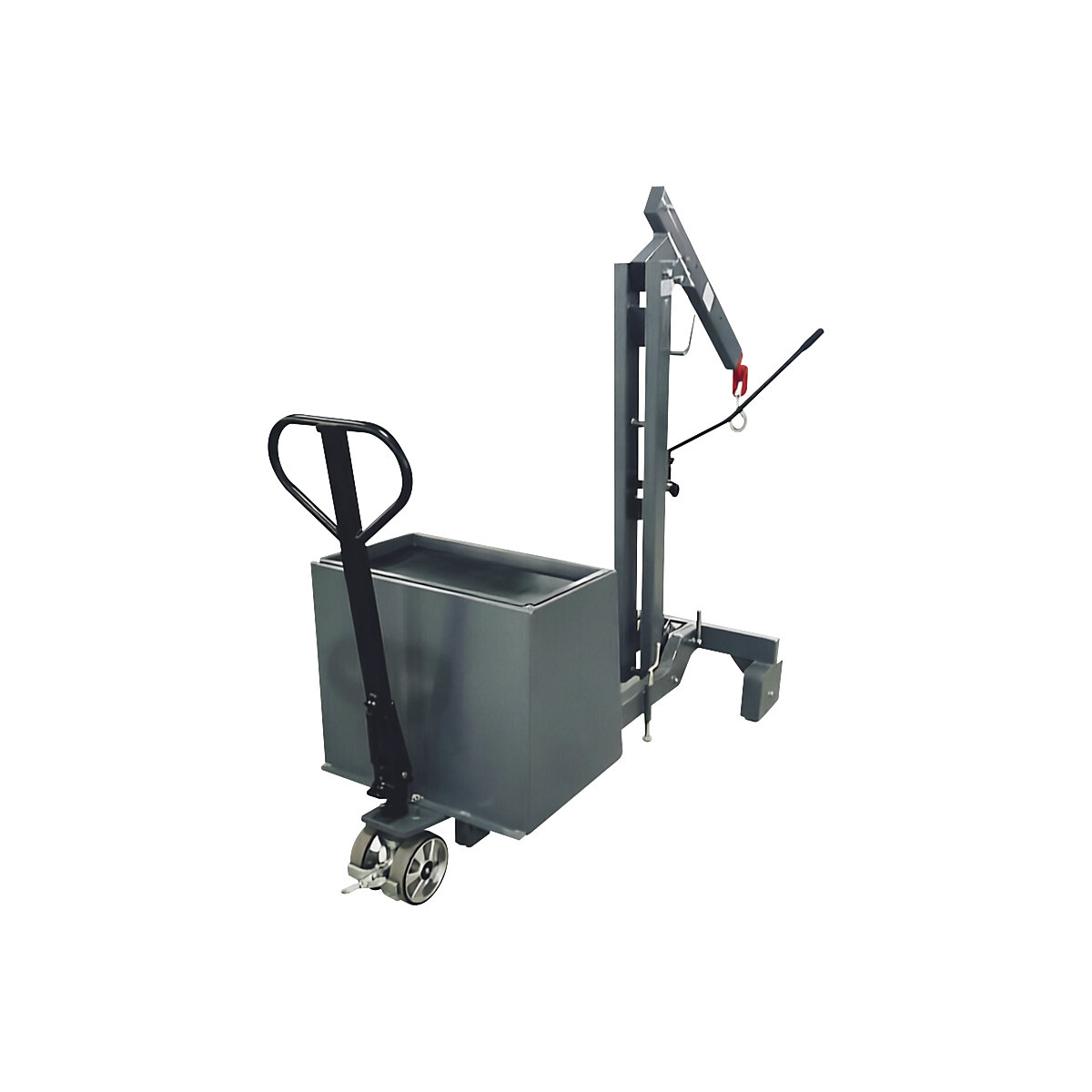

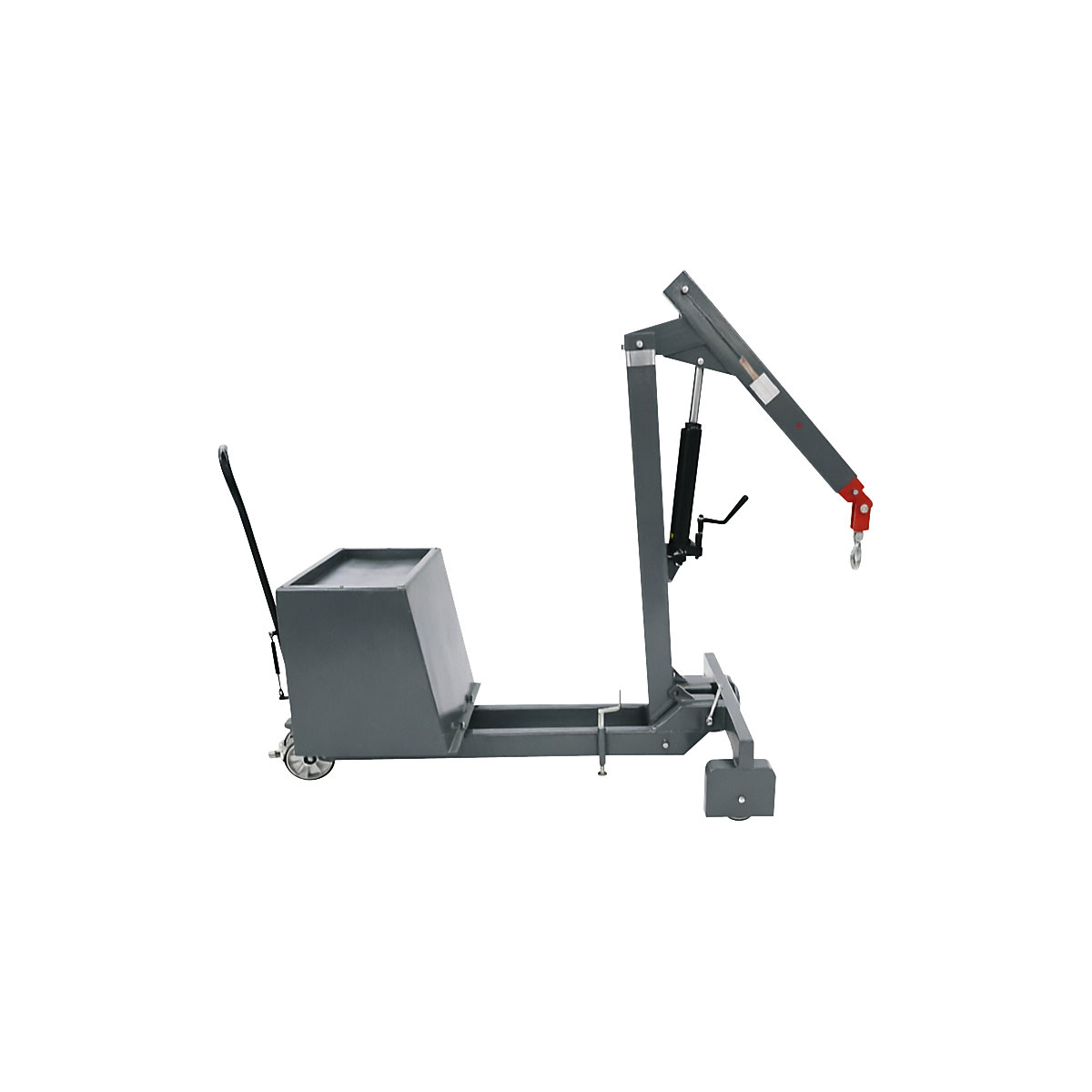

Counterbalance crane

max. load 550 kg

Ref.: 849148 49
Technical data
Max. load550 kg
Max. load (at jib length mm)550 (460 mm) kg, 400 (750 mm) kg, 300 (1040 mm) kg, 220 (1340 mm) kg, 150 (1640 mm) kg kg
Colourbasalt grey RAL 7012
Width905 mm
Height1505 mm
Length1870 mm
Lifting height max. cantilever arm extended2600 mm

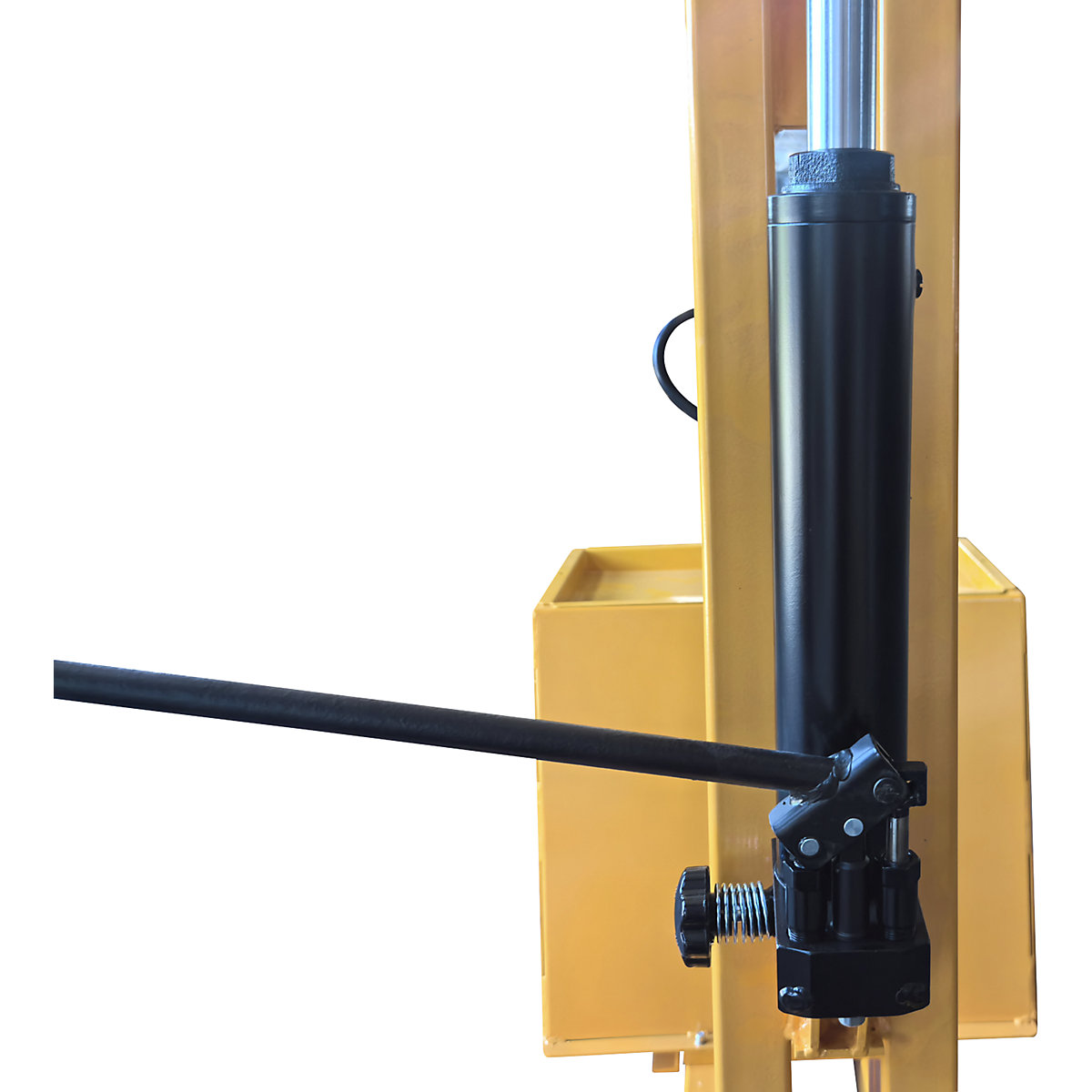

Hydraulic pumpdouble action
Max. crane arm length1640 mm
Min. crane arm length460 mm
Wheel typerubber tyres
Wheel bearingplain bearing
Fixed wheel diameter180 mm
Steering wheel diameter180 mm
Design of cranefolding crane column
Lifting height max. cantilever arm retracted1950 mm
Finishpowder coated
Max. hook height with max. crane arm angle2600 mm
Max. hook height with min. crane arm angle460 mm
Weight472 kg
Product typecounterbalance cranes
Materialsteel
Suppliedassembled
