Ref.: 656764 49

Electric explosion protected drum pump set – Jessberger for flammable media

Electric explosion protected drum pump set – Jessberger

82 l/min, 9 m height

£3,050.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description

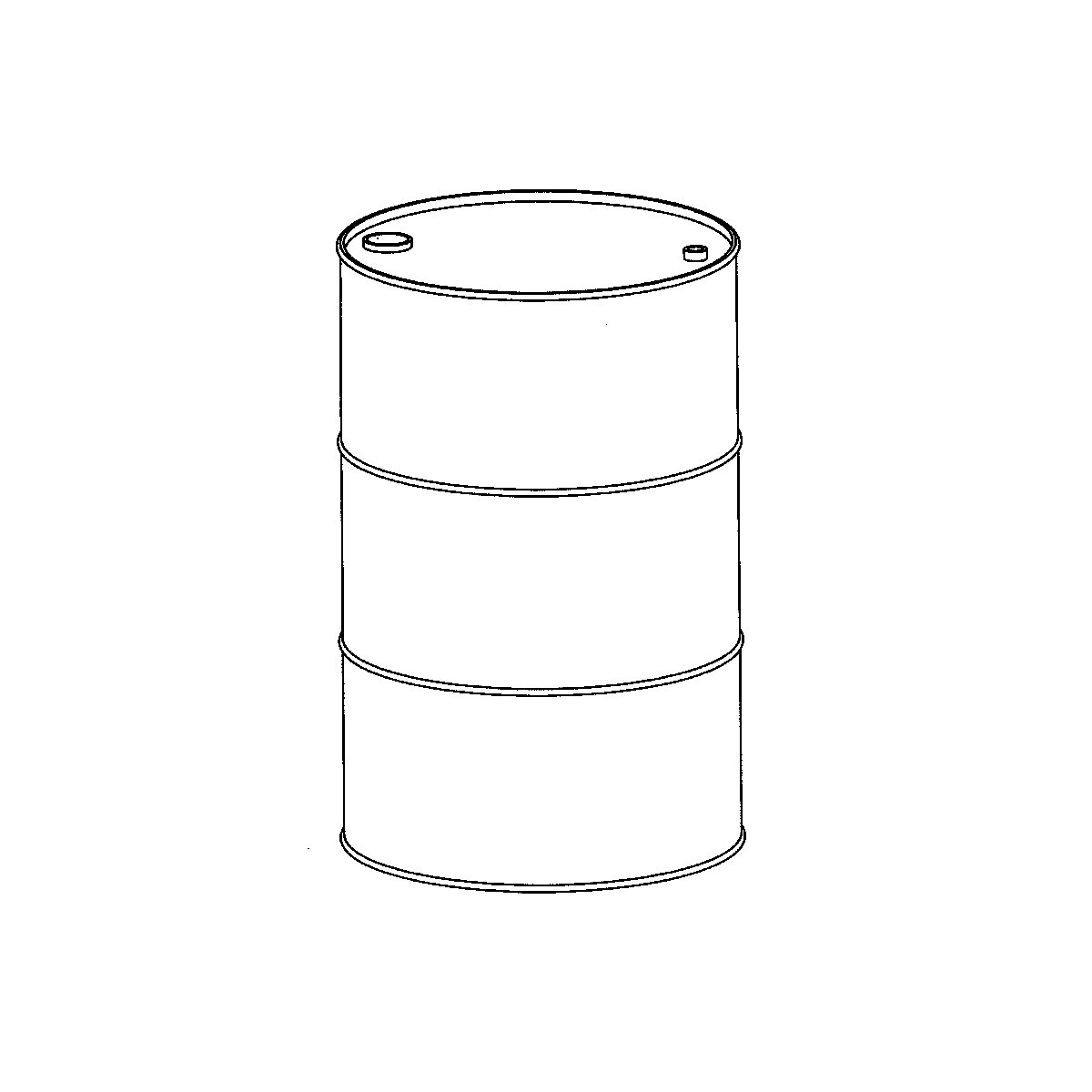

  • Safe, fast, explosion protected emptying of 200 litre drums
  • Low pump weight – easy to handle
  • Practical pump set – ready for immediate use
Electric, explosion protected drum pump set for 200 litre drums – for easily combustible media.

Max. 82 l/min, max. 9 m height, max. viscosity 400 mPas, max. density 1.3 g/cm³.
Stainless steel pump unit, crosslinked polyethylene hose, brass nozzle with PTFE seals.

Drum pump motor
230 V, 50/60 Hz, 460 W, protection class II 2G Ex db IIC T6 Gb, IP55, overload protection with zero voltage trip, 5 m cable without plug (please note that the customer is responsible for connection).
EC type test by Bureau Veritas EPS 17 ATEX 1 088 X and IECEx certificate IECEx EPS 17.0045 X.

Pump unit
Stainless steel 1.4571, external Ø 41 mm, connection thread G 1 1/4'' stainless steel shaft, immersion tube length 1000 mm for 200 litre drum, EC type test ZELM 09 ATEX 0424 X.

2 m conductive multi-purpose hose, 1'' (NW 25).
2 stainless steel hose connections, IG 1 1/4'' or IG 1''.
1 nickel plated brass nozzle with PTFE seals.
1 potential equalisation cable set for earthing the pump.
Please note: if media compatibility etc. is unclear, please enquire about the suitability of pumps beforehand.
For flammable liquids
For flammable liquids
Technical data
Design of pumpelectric container pump set for drums, explosion protected
For mediaslightly flammable media
Material of pumpstainless steel
Drive shaft materialstainless steel
Immersion depth1000 mm
Immersion tube diameter41 mm
Pump rate82 l/min
Pumping height9 m wc
Tube diameter41 mm
Immersion tube length1000 mm
Nominal hose diameter25
Thread1 1/4 inch
Max. viscosity at +20 °C400 mPas
Featureexplosion protected
Scope of deliverypump, 2 m conductive multi-purpose hose, 1'' (NW 25), 2 stainless steel hose connections, 1 1/4'' or 1'' internal threads, 1 nickel plated brass nozzle with PTFE seals, 1 potential compensation cable set
Voltage230 V
Power0.46 kW
Weight13.87 kg
Discharge hose length2000 mm
Product typedrum pumps, electric
Suppliedpre-assembled, final assembly by customer
