Ref.: 116023 49
Counting system – KERN from reference scale and weighing bridge
(1)
weighing range up to 60 kg, read-out accuracy 0.1 g, weighing plate 400 x 300 mm
Max. weighing range [kg]
Scale division [g]
Weighing platform dimensions [mm]
Ref.: 116023 49
Counting system – KERN from reference scale and weighing bridge
(1)
weighing range up to 60 kg, read-out accuracy 0.1 g, weighing plate 400 x 300 mm
weighing range up to 60 kg, read-out accuracy 0.1 g, weighing plate 400 x 300 mm
Max. weighing range [kg]
Scale division [g]
Weighing platform dimensions [mm]
£809.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£809.00
Price / item (Excl. VAT)
Product description

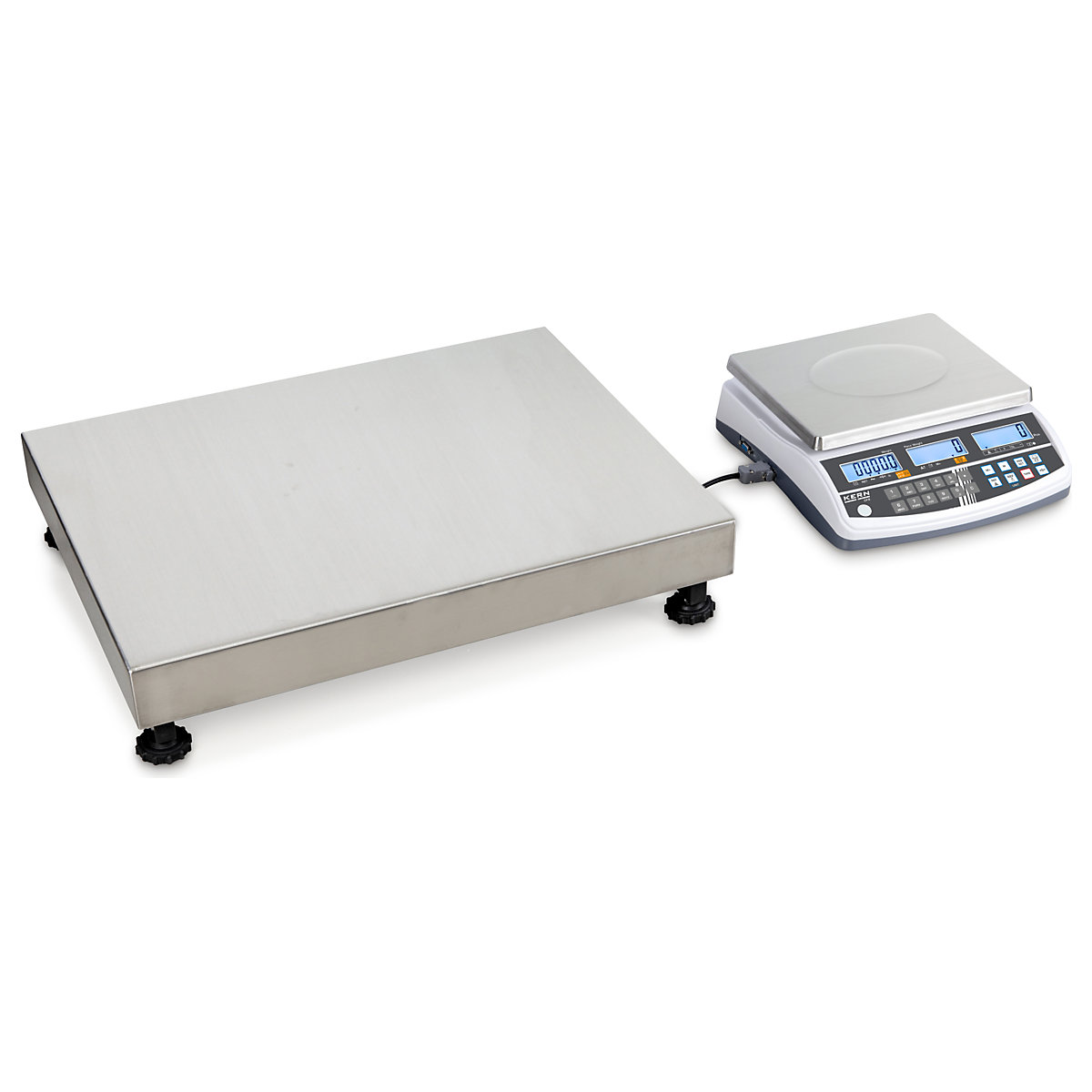

Counting system for counting minute parts in large quantities, counting resolution up to 999,999 points.
This high precision KERN CCS counting system allows a large range of individual counting scales to be replaced.
Reference scale
These professional counting scales, suitable for individual use, use a heavy duty weighing bridge to satisfy the highest requirements of precision, weighing range and volume of items.
Overall dimensions WxDxH 320 x 350 x 125 mm.
Can be programmed using a keypad
Required number of reference items, known reference weight.
Memory (PLU) for 100 items with additional text.
Fill-to-target function
Target weight can be programmed. Reaching the target value is indicated by an acoustic and optical signal.
Precise counting
The automatic reference optimisation incrementally improves the average value of the part weight.
Bulk counter
The bulk item counting is performed with high levels of precision on the weighing platform (= weighing bridge).

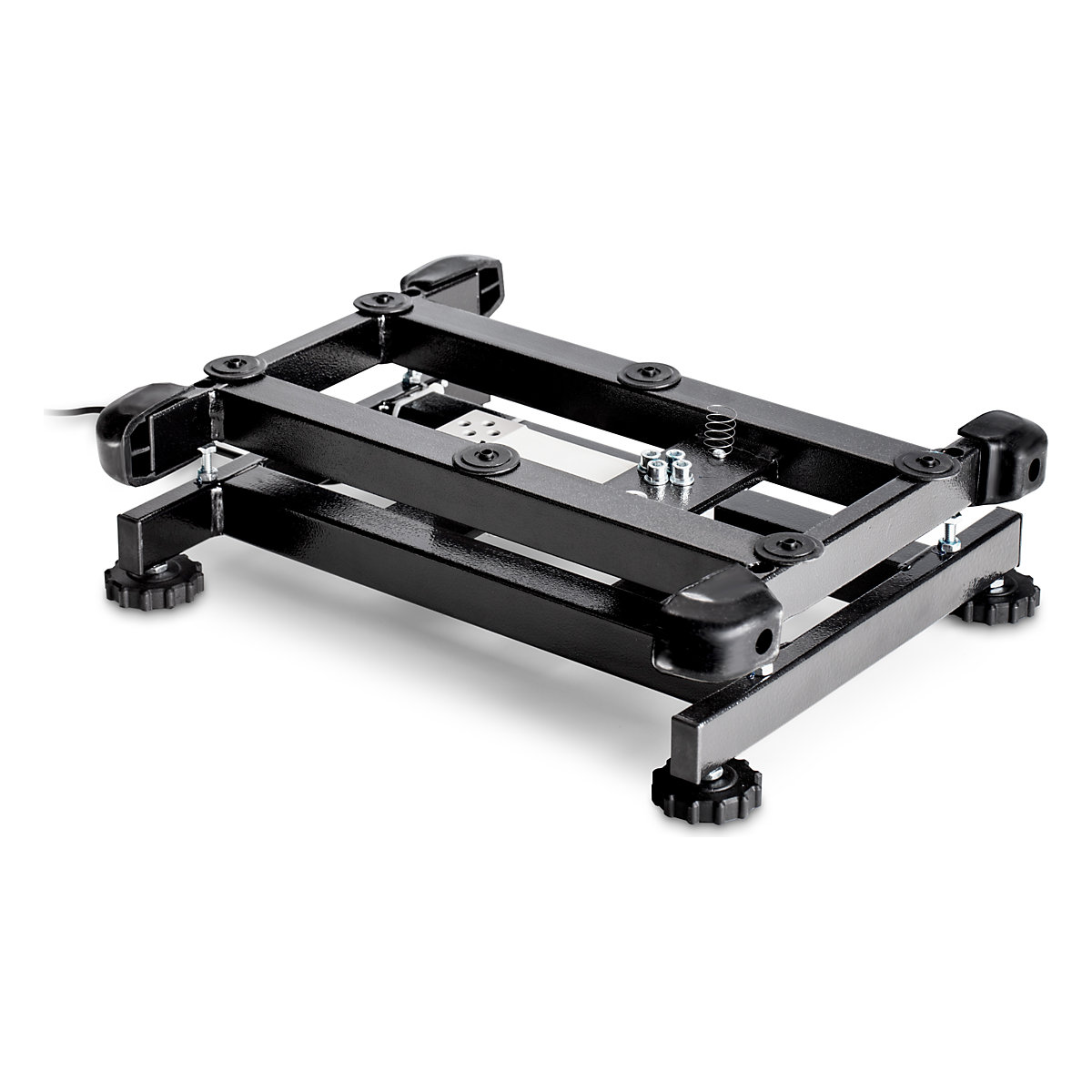

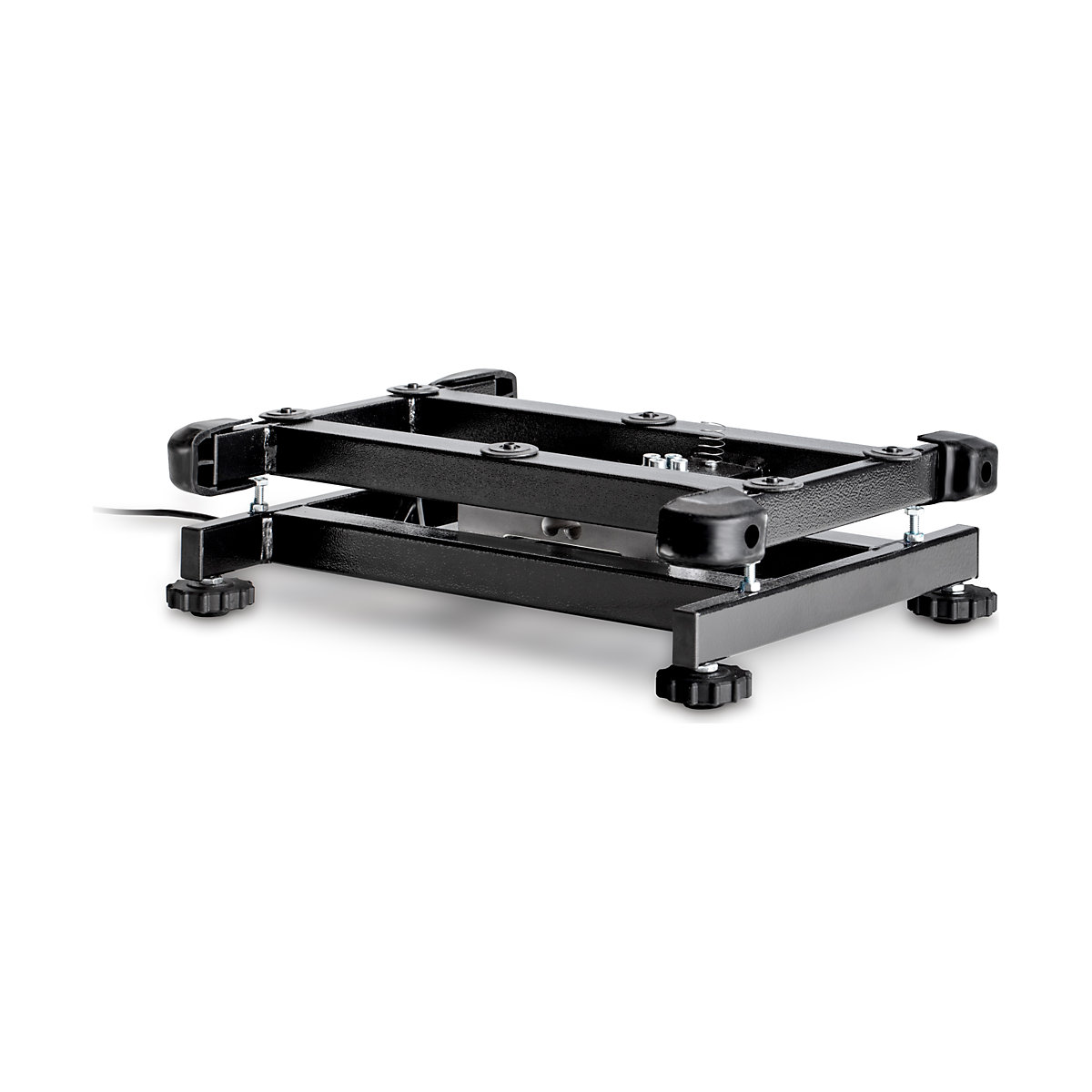

Stainless steel platform, painted steel base, aluminium single-point load cell, dust and splash water protection IP65.
This high precision KERN CCS counting system allows a large range of individual counting scales to be replaced.
Reference scale
These professional counting scales, suitable for individual use, use a heavy duty weighing bridge to satisfy the highest requirements of precision, weighing range and volume of items.
Overall dimensions WxDxH 320 x 350 x 125 mm.
Can be programmed using a keypad
Required number of reference items, known reference weight.
Memory (PLU) for 100 items with additional text.
Fill-to-target function
Target weight can be programmed. Reaching the target value is indicated by an acoustic and optical signal.
Precise counting
The automatic reference optimisation incrementally improves the average value of the part weight.
Bulk counter
The bulk item counting is performed with high levels of precision on the weighing platform (= weighing bridge).
Stainless steel platform, painted steel base, aluminium single-point load cell, dust and splash water protection IP65.
Technical data
| Min. weighing range | 0 g |
|---|---|
| Material of weighing platform | stainless steel |
| Height | 125 mm |
| Width | 320 mm |
| Depth | 350 mm |
| Figures height | 20 mm |
| Lowest item weight for item counting | 0.05 g |
| Function | memory function item counting total checkweighing |
| Interfaces | RS-232 interface for second set of scales |
| Power supply | multiple power supply unit |
| Product type | counting scales |
| Supplied | pre-assembled, final assembly by customer |
| Weight | 3.8 kg |
| Max. weighing range | 60 kg |
| Scale division | 0.1 g |
| Weighing platform dimensions | 400 x 300 mm |
