Ref.: 815022 49

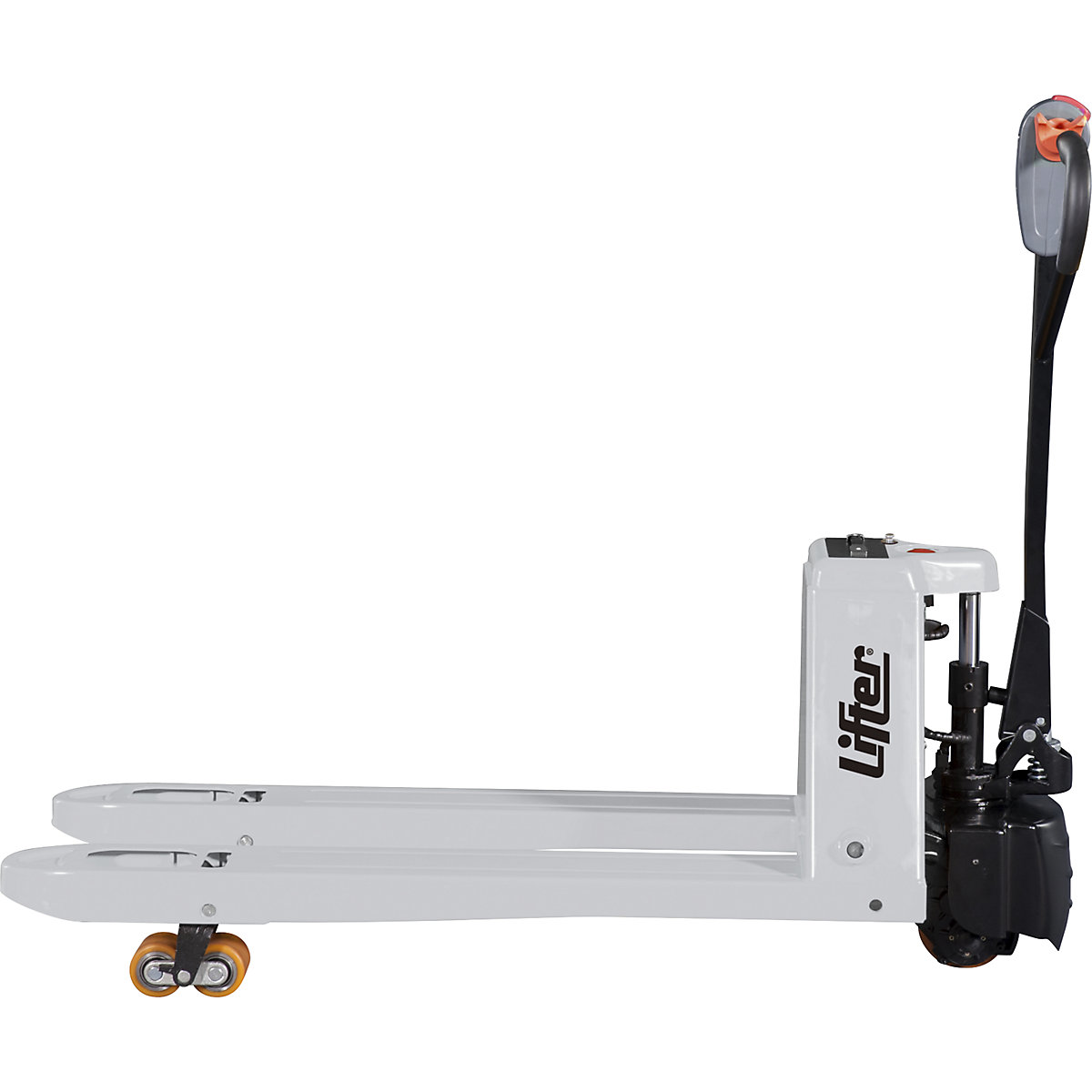

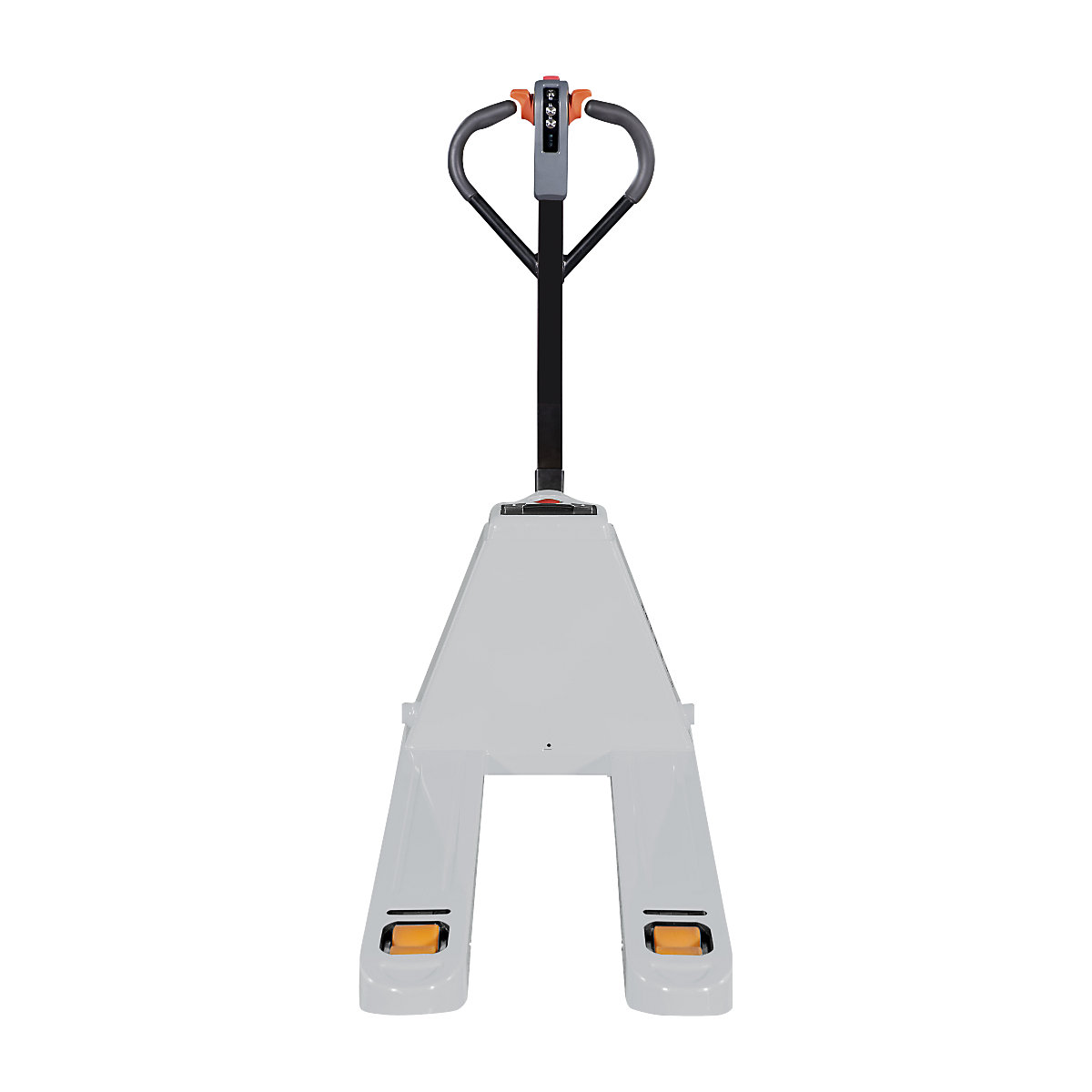

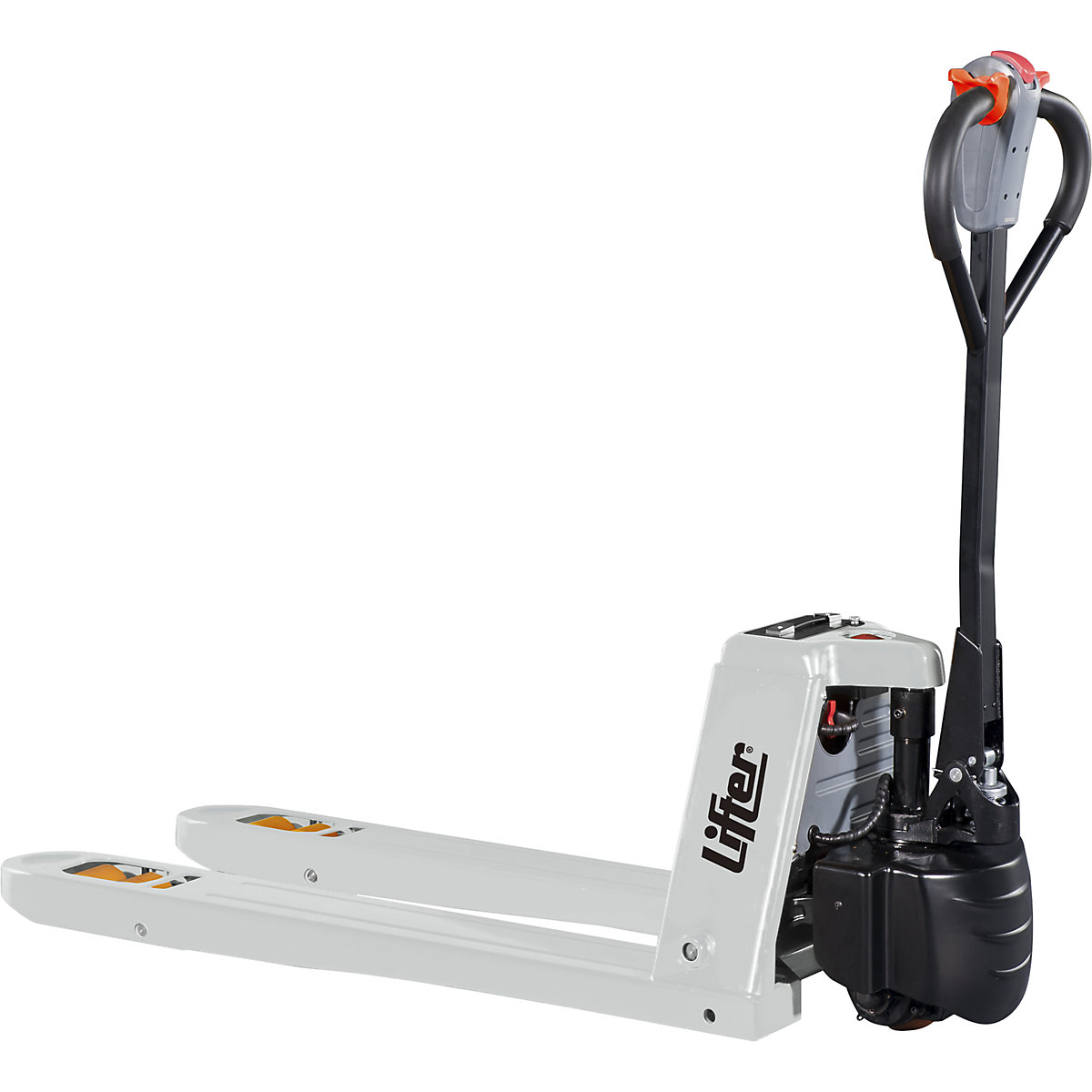

Electric pallet truck – Pramac max. load 2000 kg
LxW 1552 x 550 mm
Ref.: 815022 49
Electric pallet truck – Pramac max. load 2000 kg
LxW 1552 x 550 mm
LxW 1552 x 550 mm
New
£2,100.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£2,100.00
Price / item (Excl. VAT)
Product description
- Easy operation with ergonomic handle and all operating elements on the handle
- Practical for use in confined spaces such as vans, on high tail board panels or in lifts
- The automatic magnetic brake prevents unintentional movement of the trolley
The intuitive controls and compact dimensions make the Easy Line electric pallet trucks easy to operate and allow you to work in the tightest of spaces.
The powerful drive system easily allows the EY to move loads of up to 1.5 t or 2 t and to reach a top speed of 4.5 km/h.
The automatic magnetic brake makes it easier to park on sloped surfaces and prevents unintentional movement of the machine. The pallet truck is distinguished by a high degree of stability and it is equipped with a unique maintenance free, brushless DC motor. Standard safety features of the machine include an emergency stop switch, safety belly switch and electric brake. The cover for the drive wheel protects the operator's feet during use and ensures the components of the industrial truck are protected in the event of collisions with objects. The lithium battery requires no maintenance and has a long service life. The plug-in-and-out system makes the battery easy to replace in just a few seconds without having to disconnect any cables. An optional additional battery enables continuous work without disruptions. External battery charger 48 V / 2 A.
The powerful drive system easily allows the EY to move loads of up to 1.5 t or 2 t and to reach a top speed of 4.5 km/h.
The automatic magnetic brake makes it easier to park on sloped surfaces and prevents unintentional movement of the machine. The pallet truck is distinguished by a high degree of stability and it is equipped with a unique maintenance free, brushless DC motor. Standard safety features of the machine include an emergency stop switch, safety belly switch and electric brake. The cover for the drive wheel protects the operator's feet during use and ensures the components of the industrial truck are protected in the event of collisions with objects. The lithium battery requires no maintenance and has a long service life. The plug-in-and-out system makes the battery easy to replace in just a few seconds without having to disconnect any cables. An optional additional battery enables continuous work without disruptions. External battery charger 48 V / 2 A.
Technical data
| Lifting range | 82 – 197 mm |
|---|---|
| Fork length | 1150 mm |
| Fork width | 160 mm |
| Distance across forks | 550 mm |
| Length | 1552 mm |
| Width | 550 mm |
| Overall height | 1220 mm |
| Min. lifting speed | 0.018 mm/s |
| Max. lifting speed | 0.023 mm/s |
| Min. driving speed | 4 km/h |
| Max. driving speed | 4.5 km/h |
| Climbing performance with load | 6 % |
| Climbing performance without load | 20 % |
| Turning radius | 1353 mm |
| Thickness of fork prong | 58 mm |
| Battery | 48 V / 15 A |
| Battery charger | 48 V / 5 A |
| Working gangway for pallet length | 2024 mm |
| Roller material | polyurethane |
| Fork roller version | tandem |
| Fork roller diameter | 80 mm |
| Fork roller width | 55 mm |
| Steering wheel width | 70 mm |
| Steering wheel diameter | 140 mm |
| Travel motor | 1 kW |
| Lifting motor | 0.8 kW |
| Max. load | 2000 kg |
| Colour | light grey |
| Product type | electric lift trucks |
| Supplied | assembled |
| Weight | 119 kg |
