Ref.: 839474 49

LX electric drawbar stacker – Pramac single mast

LX electric drawbar stacker – Pramac
LX electric drawbar stacker – Pramac, single mast, max. load 1200 kg, lifting height 1600 mm-0
LX electric drawbar stacker – Pramac (Product illustration 2)-1
LX electric drawbar stacker – Pramac (Product illustration 3)-2
LX electric drawbar stacker – Pramac (Product illustration 4)-3

max. load 1200 kg, lifting height 1600 mm

Ref.: 839474 49
Product description
  • High battery capacity of 225 Ah
  • High levels of energy efficiency and reliability
  • Safety button, horn, creep function, operating hours counter and battery indicator
The new LX series is the professional solution for daily storage and transport jobs in medium to large areas, shelving unit systems and production halls. The new LX is at home everywhere that light stackers become overloaded and the use of heavy machinery is uneconomical. All operating elements such as the steering unit and proportional lifting/lowering function control are ergonomically positioned on the drawbar head.

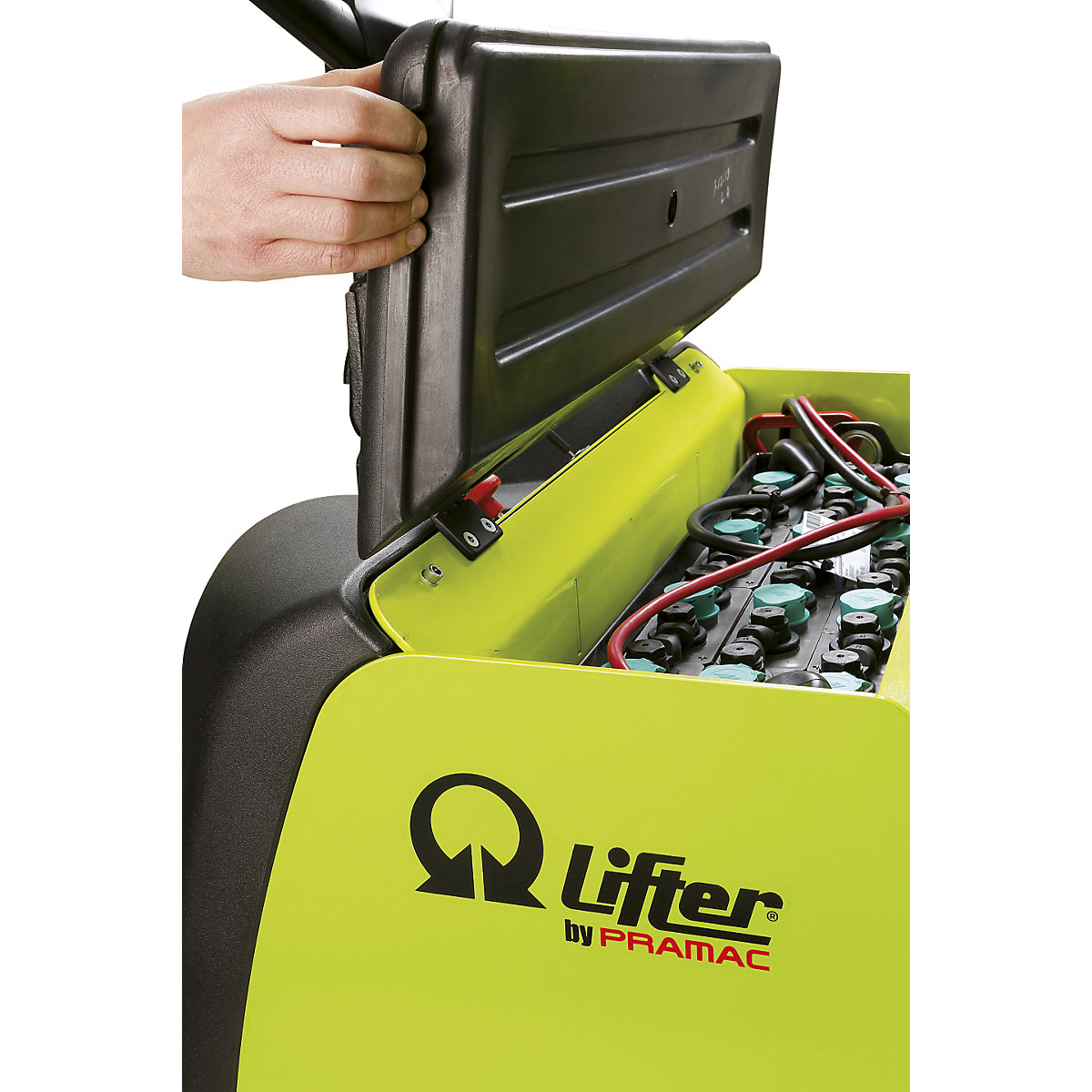

The separate battery compartment allows the installation of high capacity batteries (225 Ah as standard – 300 Ah upon request). Battery maintenance is very easy due to the robust ABS battery cover with hinges. An automatic battery charging system as well as an external high frequency charger can be provided as an option.

The AC technology guarantees higher energy efficiency and a reduction in maintenance costs. Furthermore, the brushless motor with a straightforward design exhibits a higher system reliability.

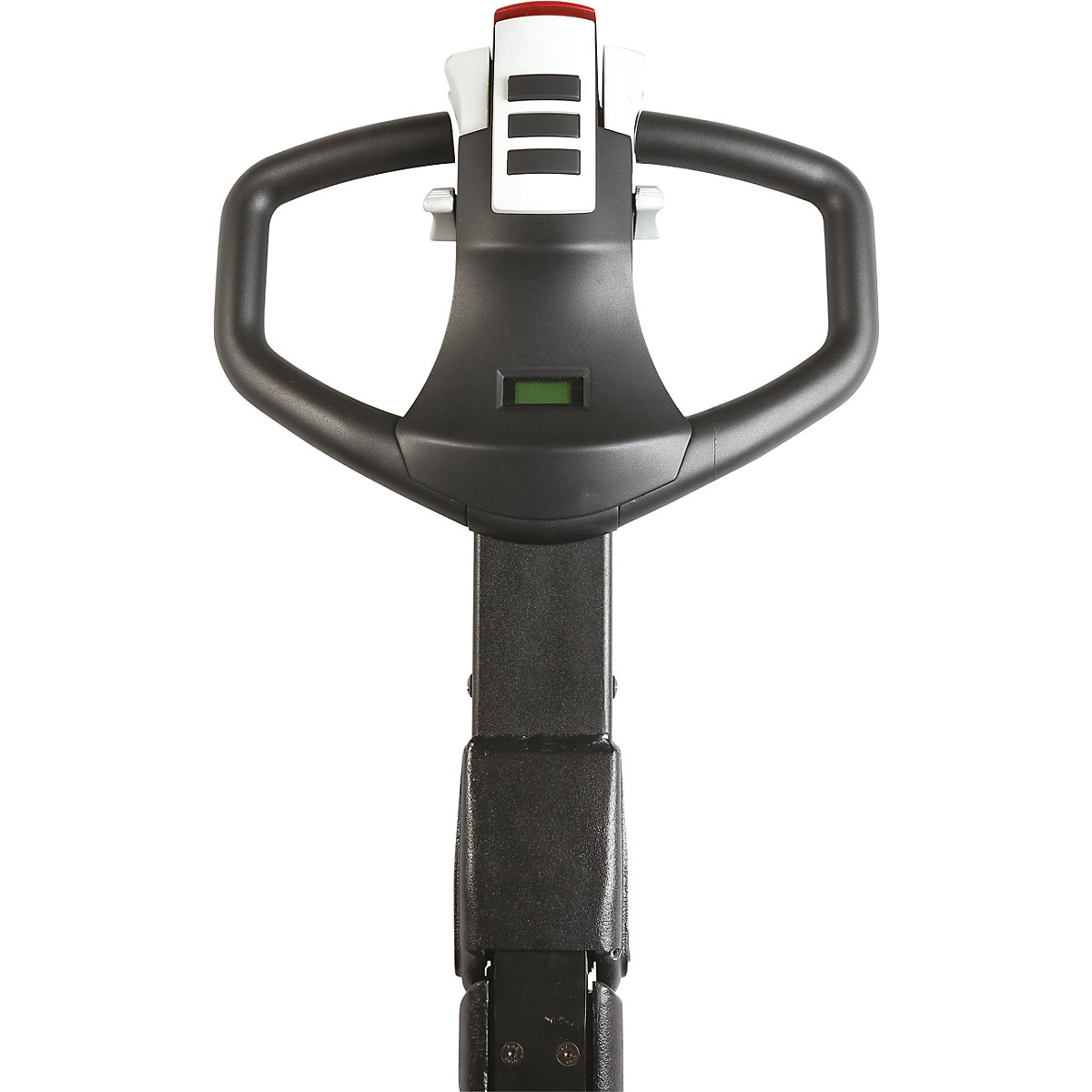

Fully integrated, ergonomic plastic drawbar system with fingertip acceleration and proportional fork control, safety button, horn, creep function, operating hours counter and battery status display as standard equipment.

Please note: the battery charger is not included with the delivery and must be ordered separately.
Technical data
Max. load1200 kg
Lifting range1600 mm
Fork length1150 mm
Fork width150 mm
Distance across forks560 mm
Length1920 mm
Width800 mm
Overall height1965 mm
Min. lifting speed0.16 mm/s
Max. lifting speed0.29 mm/s
Min. driving speed6 km/h
Max. driving speed6 km/h
Climbing performance with load5 %
Climbing performance without load10 %
Design of mastsingle mast
Turning radius1550 mm
Thickness of fork prong70 mm
Working gangway for pallet length2330 mm
Roller materialrubber
Fork roller versionsingle
Fork roller diameter82 mm
Fork roller width70 mm
Steering wheel diameter250 mm
Travel motor1.2 kW
Lifting motor2.2 kW
Colourgreen
Product typedrawbar stackers
Suppliedassembled
Weight768 kg
