NX electric drawbar stacker – Pramac duplex mast

NX electric drawbar stacker – Pramac

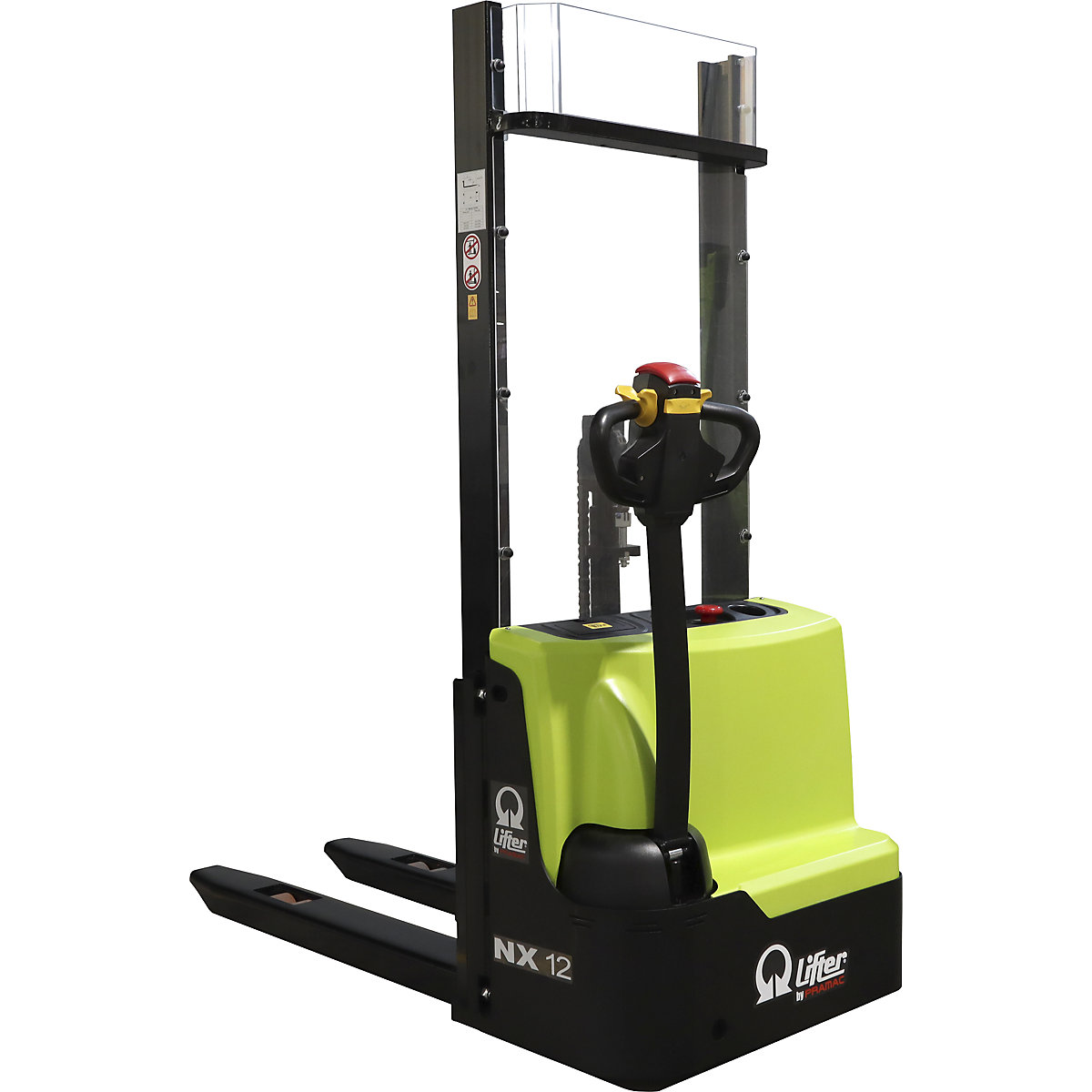

NX electric drawbar stacker – Pramac, duplex mast, max. load 1200 kg, lifting height 2500 mm-0

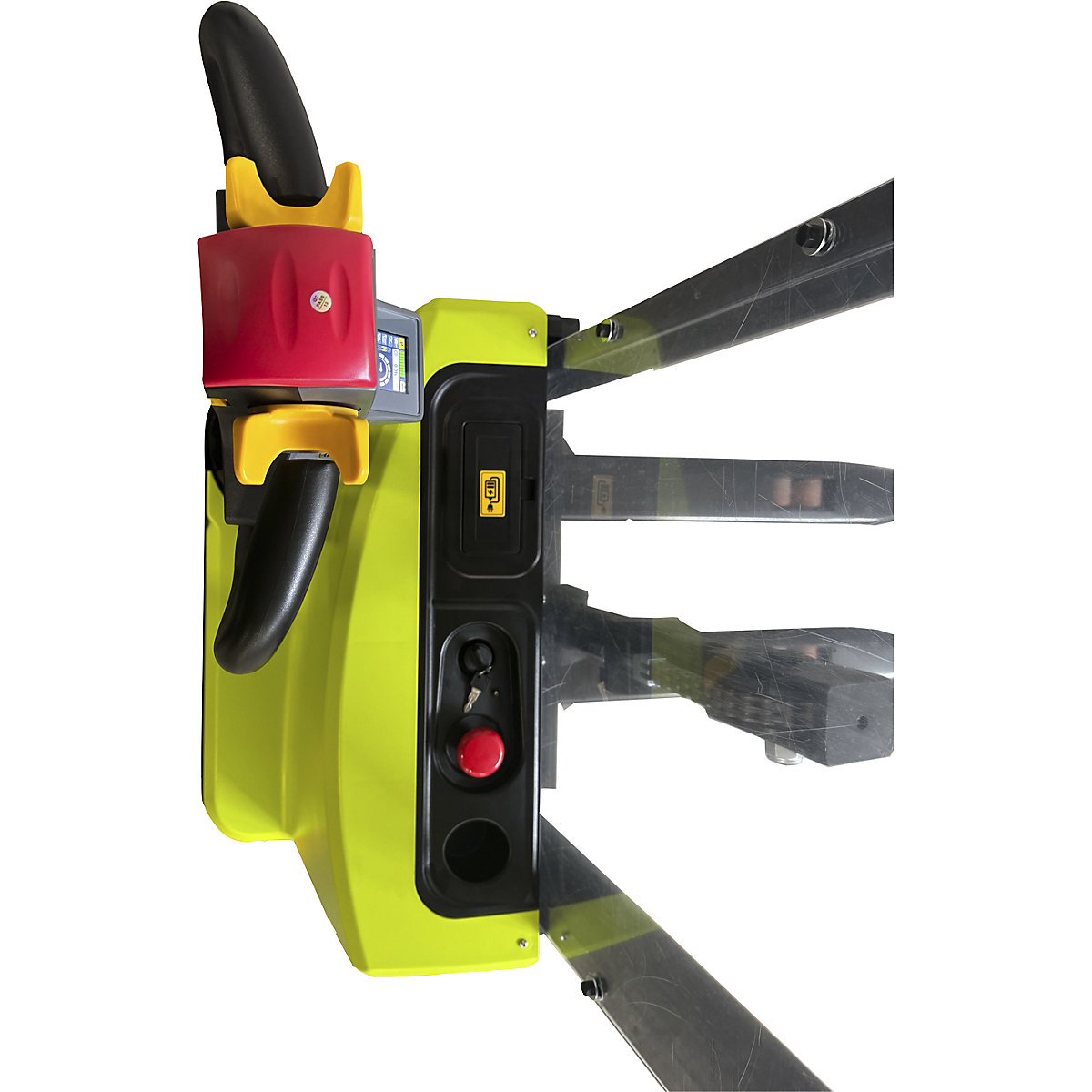

NX electric drawbar stacker – Pramac (Product illustration 2)-1

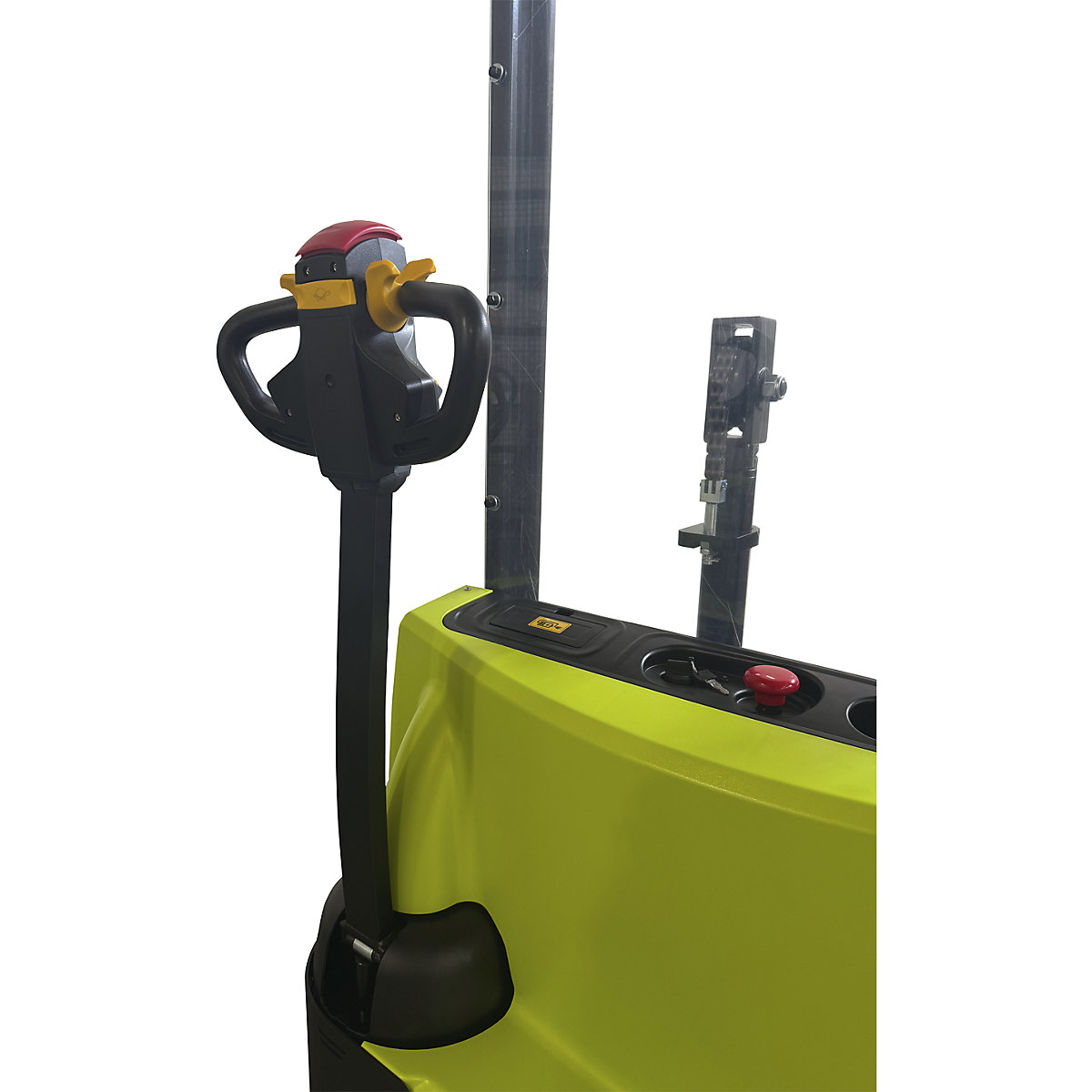

NX electric drawbar stacker – Pramac (Product illustration 3)-2
NX electric drawbar stacker – Pramac (Product illustration 4)-3

max. load 1200 kg, lifting height 2500 mm

Lifting range [mm]
Ref.: 839514 49
Product description
  • Precise lifting and lowering for sensitive loads
  • Compact design for confined storage areas
  • Robust, easy to maintain design
The NX stacker represents excellent value for money and meets the requirements of professional warehouse equipment with ease. Its robust design, ergonomic operation and high reliability make it ideal for light to medium duty warehouse applications.

The compact design means the NX is particularly easy to manoeuvre in narrow aisles and confined spaces – perfect for tight storage areas and efficient processes. The slender dimensions facilitate precise control and ensure maximum manoeuvrability.

Manufactured from durable, high quality materials, the NX guarantees long term, uninterrupted use for everyday assignments. The easy to maintain design allows quick access to the battery and components, reducing downtime and increasing operational readiness.
Technical data
Max. load1200 kg
Fork length1150 mm
Fork width150 mm
Distance across forks560 mm
Length1735 mm
Width820 mm
Min. lifting speed0.1 mm/s
Max. lifting speed0.2 mm/s
Min. driving speed4.3 km/h
Max. driving speed4.6 km/h
Climbing performance with load5 %
Climbing performance without load15 %
Design of mastduplex mast
Turning radius1420 mm
Thickness of fork prong70 mm
Battery24 V / 85 Ah
Battery charger24 V / 10 A
Working gangway for pallet length2200 mm
Roller materialpolyurethane
Fork roller versionsingle
Fork roller diameter80 mm
Fork roller width70 mm
Steering wheel diameter210 mm
Travel motor0.75 kW
Lifting motor2.5 kW
Colourgreen
Product typedrawbar stackers
Suppliedassembled
Lifting range2500 mm
Overall height1788 mm
Weight632 kg
Sustainability
Recyclable
Recyclable products are products that can be recycled at the end of their service life, providing they are separated into all their individual components in designated recycling facilities. This means that the individual components are made of materials that can be exploited using the recycling process and be reprocessed into new products. Recyclable products help reduce the environmental impact of waste and to conserve resources.
