Ref.: 829350 49
Hook-in sump tray – eurokraft pro with PE insert and grate
LxWxH 1765 x 1265 x 165 mm, painted orange
Sump capacity [l]
Length [mm]
Height [mm]
Finish
Colour
Ref.: 829350 49
Hook-in sump tray – eurokraft pro with PE insert and grate
LxWxH 1765 x 1265 x 165 mm, painted orange
LxWxH 1765 x 1265 x 165 mm, painted orange
Sump capacity [l]
Length [mm]
Height [mm]
Finish
Colour
New
£1,075.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£1,075.00
Price / item (Excl. VAT)
Product description
- Convert existing shelving systems into regulation compliant hazardous goods storage shelving
- For the storage of aggressive media
- Easy to place on the support profiles of shelving systems
- Max. load 1000 kg/m² (with evenly distributed load)
You can quickly and economically convert existing shelving systems into regulation compliant hazardous goods storage with these shelf sump trays.

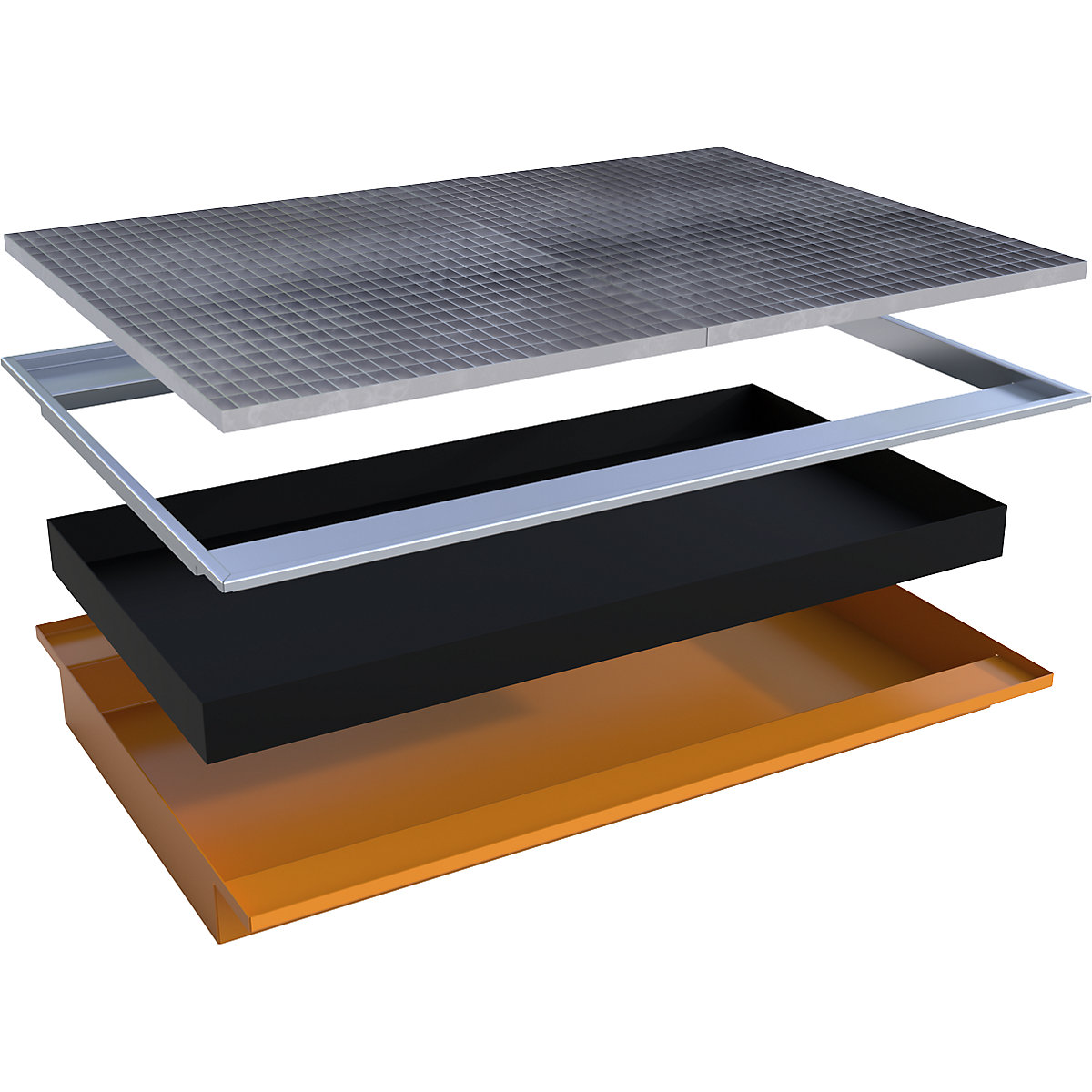

Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material.
With zinc plated steel clamp frame for fixing the plastic insert in place.
This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.
Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.

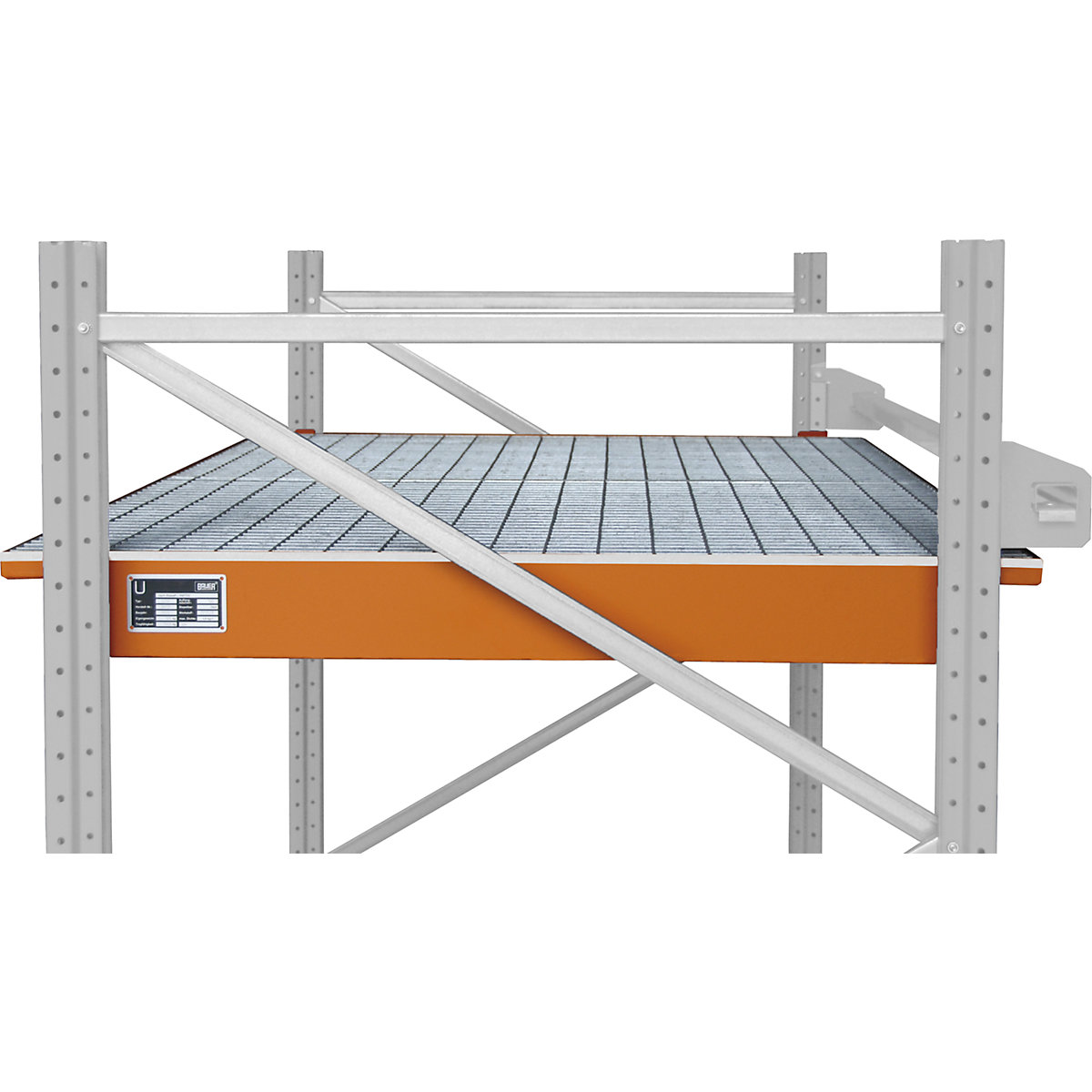

For placement on the cross beams or suspension in the shelf unit. Distance between cross beams 915 mm.
Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material.
With zinc plated steel clamp frame for fixing the plastic insert in place.
This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.
Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.
For placement on the cross beams or suspension in the shelf unit. Distance between cross beams 915 mm.
10 year guarantee
For water hazardous liquids
Resistant to aggressive, corrosive chemicals
For flammable liquids
Technical data
Type of grate | with zinc plated grate |
---|---|
Width | 1265 mm |
Material | sheet steel polyethylene |
Max. load | 1000 kg/m2 kg |
Test symbol | manufacturer's declaration of conformity in accordance with German construction regulation list A, part 1, DIBt, Berlin |
Material thickness | 3 mm |
For media | flammable liquids flammable and water hazardous liquids acids, alkalis, corrosive media |
Hazard class | for flammable liquids in GHS categories 1 – 3, for water hazardous liquids in GHS categories 1 – 4 and for corrosive liquids in GHS category 1 |
Certification | with |
Product type | shelf sump trays shelving unit hook-in sump trays |
Supplied | assembled |
Sump capacity | 173 l |
Length | 1765 mm |
Height | 165 mm |
Finish | painted |
Colour | yellow orange RAL 2000 |
For width | 1800 mm |
Weight | 139 kg |
