Ref.: 590995 49

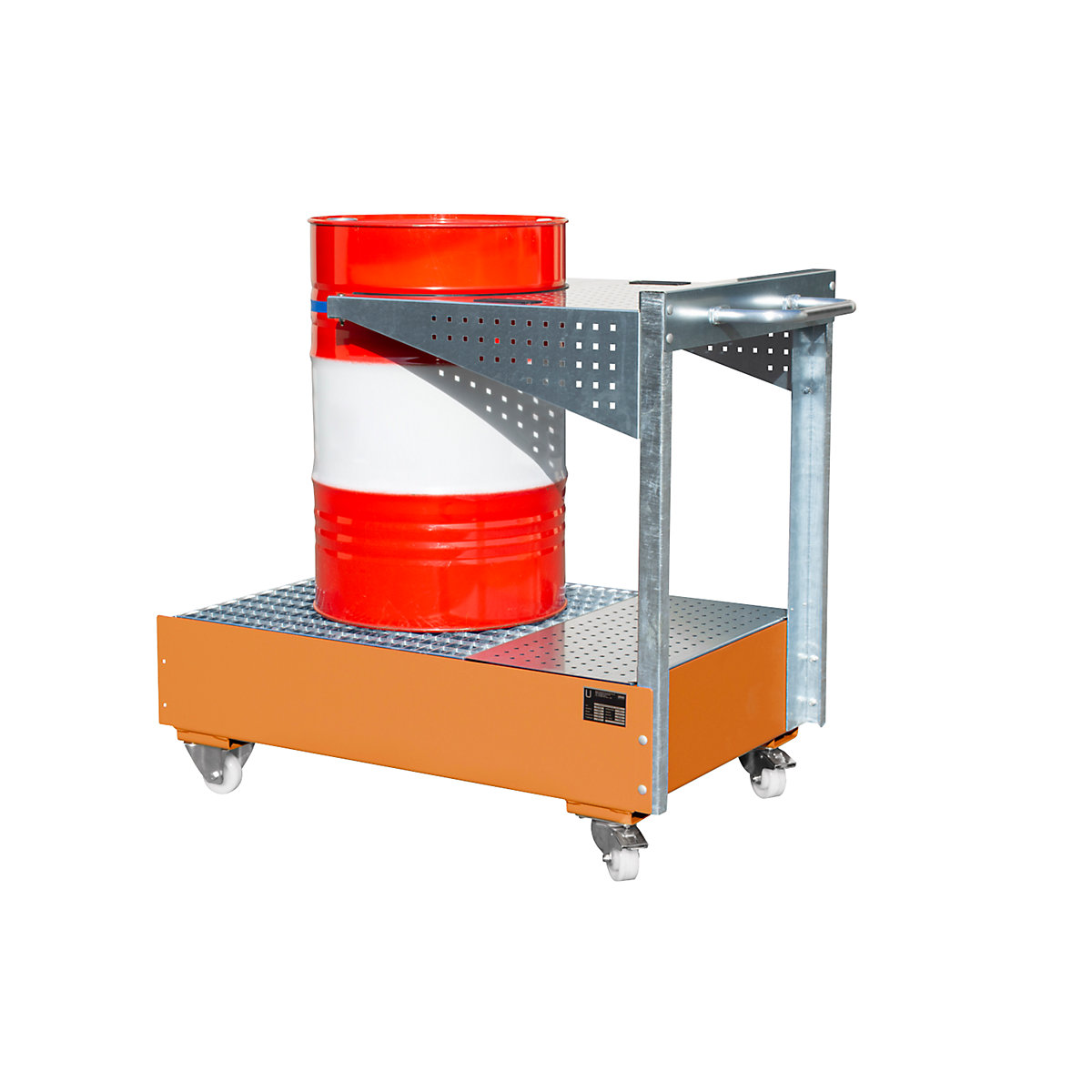

Mobile sump tray with perforated panel bracket for 1 x 200 l drum, LxWxH 1450 x 800 x 1195 mm
painted yellow orange
Finish
Colour
Ref.: 590995 49
Mobile sump tray with perforated panel bracket for 1 x 200 l drum, LxWxH 1450 x 800 x 1195 mm
painted yellow orange
painted yellow orange
Finish
Colour
£1,225.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£1,225.00
Price / item (Excl. VAT)
Product description
- Simple and safe filling at different points of consumption
- With perforated panel bracket and mounting plate
- Tray with manufacturer's declaration of conformity in accordance with StawaR
Mobile sump tray for safe and easy filling of oils, lubricants, flammable and water hazardous liquids etc. from 200 l drums at various consumption points.
For an upright 200 litre drum.
Sump tray made of 3 mm sheet steel, galvanised grate (max. load 1000 kg/m²).
Hot dip galvanised push handles.
Sturdy, galvanised perforated panel bracket with square holes (10 mm) in full length 38 mm grid for free positioning of tool holders.
Sturdy, galvanised mounting plate with square holes (10 mm) in a full length 38 mm grid on the sump tray.
Retaining strap for fixing the drums.
2 swivel and 2 fixed castors made of nylon Ø 100 mm, of which one swivel castor with wheel stop – overall height 125 mm.
Overall dimensions: LxWxH 1450 x 800 x 1195 mm.
Tray dimensions: LxWxH 1295 x 800 x 415 mm.
With certification manufacturers' declaration of conformity in accordance with StawaR – approved for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4.
For an upright 200 litre drum.
Sump tray made of 3 mm sheet steel, galvanised grate (max. load 1000 kg/m²).
Hot dip galvanised push handles.
Sturdy, galvanised perforated panel bracket with square holes (10 mm) in full length 38 mm grid for free positioning of tool holders.
Sturdy, galvanised mounting plate with square holes (10 mm) in a full length 38 mm grid on the sump tray.
Retaining strap for fixing the drums.
2 swivel and 2 fixed castors made of nylon Ø 100 mm, of which one swivel castor with wheel stop – overall height 125 mm.
Overall dimensions: LxWxH 1450 x 800 x 1195 mm.
Tray dimensions: LxWxH 1295 x 800 x 415 mm.
With certification manufacturers' declaration of conformity in accordance with StawaR – approved for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4.
For water hazardous liquids
For flammable liquids
Technical data
| Type of grate | with zinc plated grate |
|---|---|
| Sump capacity | 215 l |
| Length | 1450 mm |
| Width | 800 mm |
| Height | 1195 mm |
| Drum capacity | 1 x 200 l |
| Material | sheet steel |
| Max. load | 1000 kg/m² |
| Test symbol | manufacturers declaration of conformity in accordance with StawaR |
| Material thickness | 3 mm |
| For media | flammable and water hazardous liquids |
| Hazard class | for flammable liquids in GHS categories 1 – 3 as well as water hazardous liquids in GHS categories 1 – 4 |
| Feature | mobile |
| Distributed load | 1000 kg/m² |
| Wheel type | nylon |
| Max. wheel load | 350 kg |
| Wheel fittings | 2 swivel and fixed castors, 1 swivel castor with wheel stop |
| Wheel diameter | 100 mm |
| Drum storage | upright |
| Model | with push handle |
| Certification | with |
| Push handle height | 1100 mm |
| Product type | 200 l sump trays mobile sump trays |
| Supplied | pre-assembled, final assembly by customer |
| Finish | painted |
| Colour | yellow orange RAL 2000 |
| Weight | 101 kg |
