Ref.: 529521 49

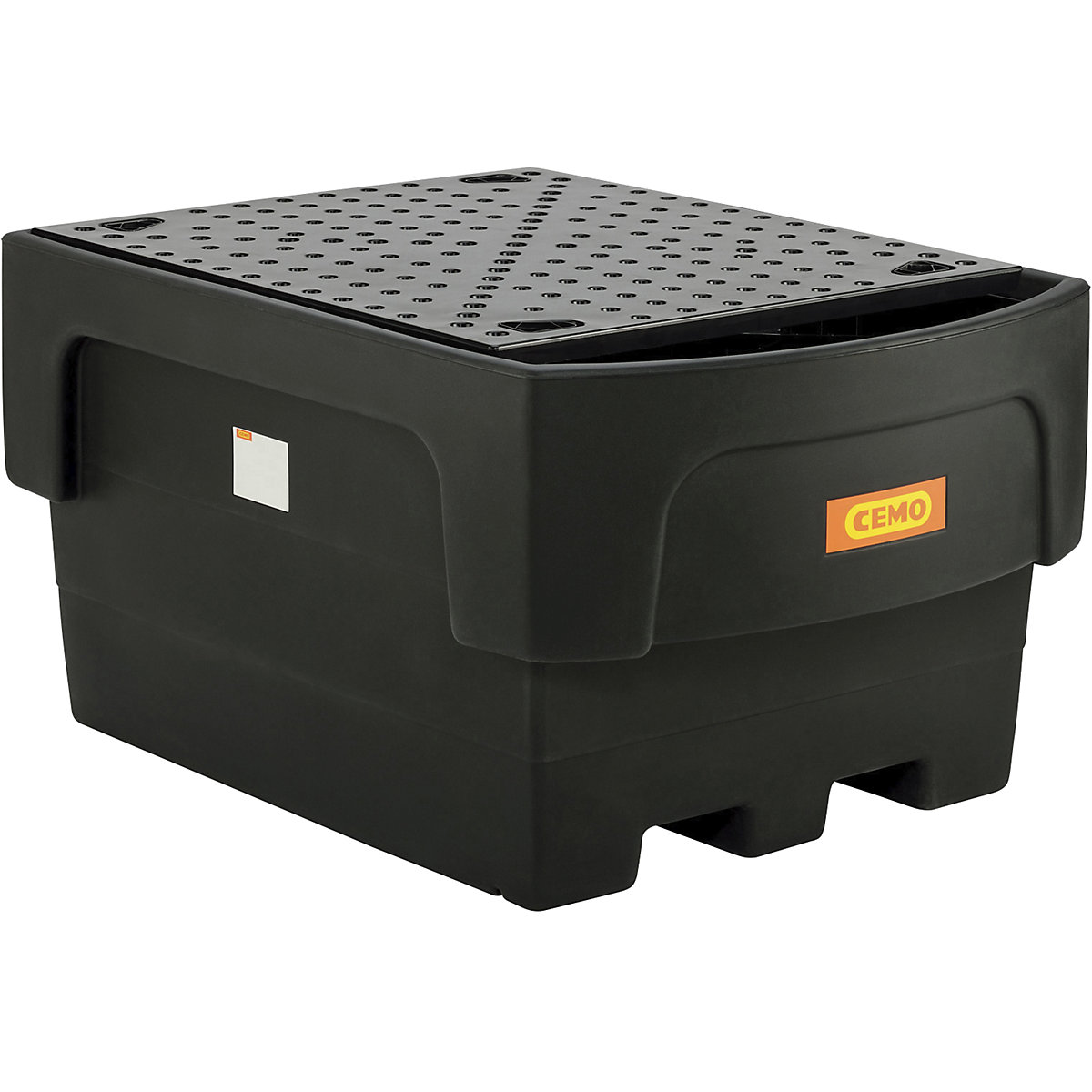

PE sump tray for IBC/CTC tank containers – CEMO for 1 x IBC/CTC filling attachment container

PE sump tray for IBC/CTC tank containers – CEMO

with PE perforated panel

Type of grate
£995.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Product description
  • For indoor storage of corrosive and water hazardous liquids in IBC/CTC tank containers in accordance with regulations
  • With storage area (cross brace/grate) for easy and safe placement of the tank containers

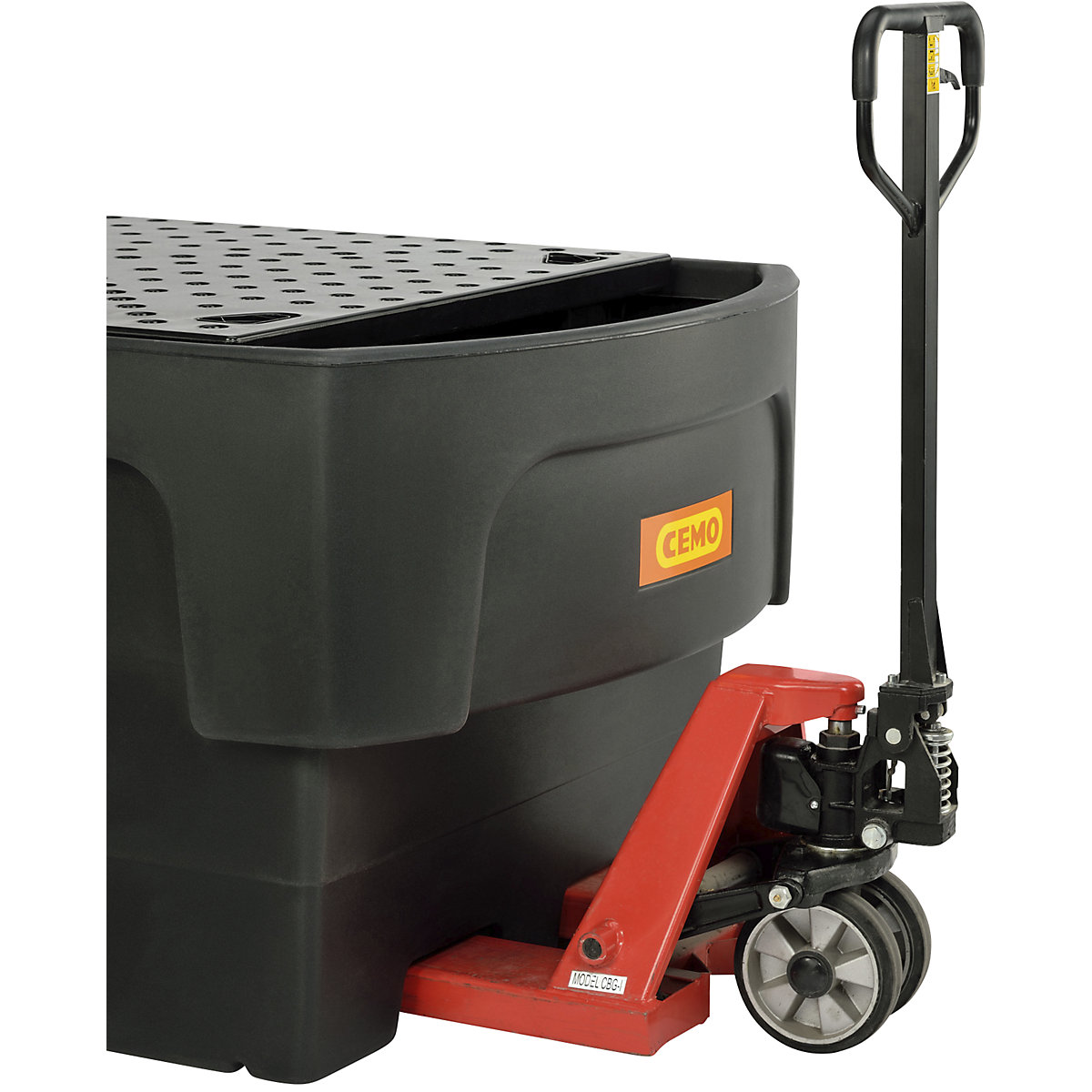

  • Accessible from two sides with forklift and manual pallet truck
  • Made of high quality polyethylene (LDPE), highly resistant to corrosive media, acids, alkalis, oils etc.
  • Can be accessed from two sides with a forklift and manual pallet truck (transport only possible when empty – without IBC/CTC)
  • Can be stacked – for transport or storage (without cross brace / grate)
  • With general certification from the DIBt (German Institute for Construction Technology), Berlin (Z-40.22-564)
Tank containers can be placed directly on the integrated cross brace or either on the steel grate or the PE perforated panel.
Sump capacity 1100 litres.
High max. load and resilience due to an integrated, sturdy PE cross brace – the weight is transferred directly onto the floor. Max. load 1500 kg per storage space.

Sump trays can only be transported when empty – without IBC/CTC.

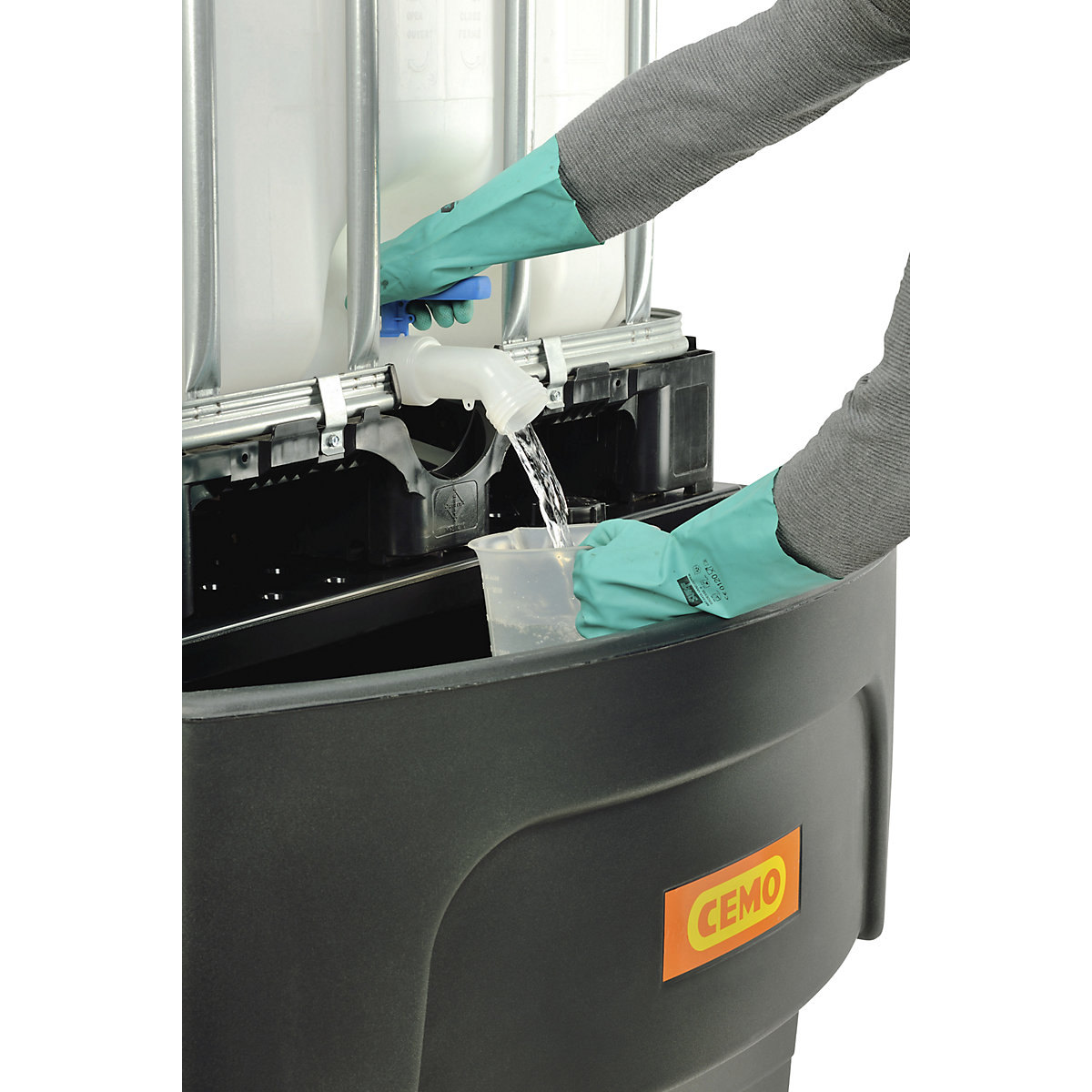

With integrated filling container:
Catches any leaks or splashed liquids, containers can be set down.
The cross brace is supplied partly assembled – easy self-assembly.
For water hazardous liquids
For water hazardous liquids
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
Technical data
Sump capacity1100 l
Length1620 mm
Width1170 mm
Materialpolyethylene
Colourblack
1000 l container capacity1 pcs.
Design of sump traywith filling attachment
Max. load1500 kg
Test symbolwith general certification from the DIBt (German Institute for Construction Technology) Berlin
For mediawater hazardous dangerous goods chemicals, acids and alkalis oils
Hazard classfor corrosive and water hazardous liquids in accordance with GHS
Featurestackable clearance for forklift
Certificationwith
Product type1000 l sump trays
Suppliedpartially assembled
Type of gratewith PE perforated panel
Height880 mm
Weight55 kg
