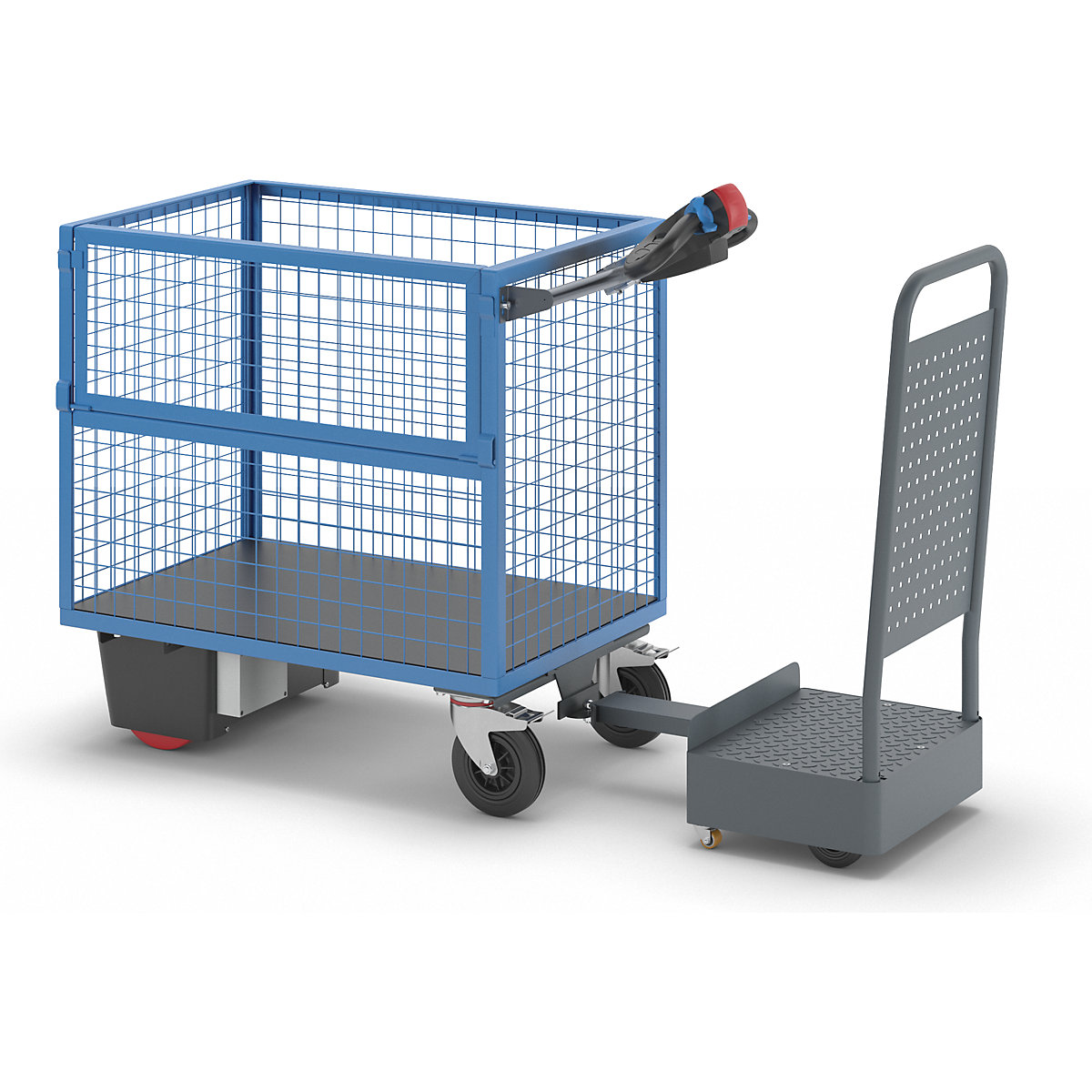

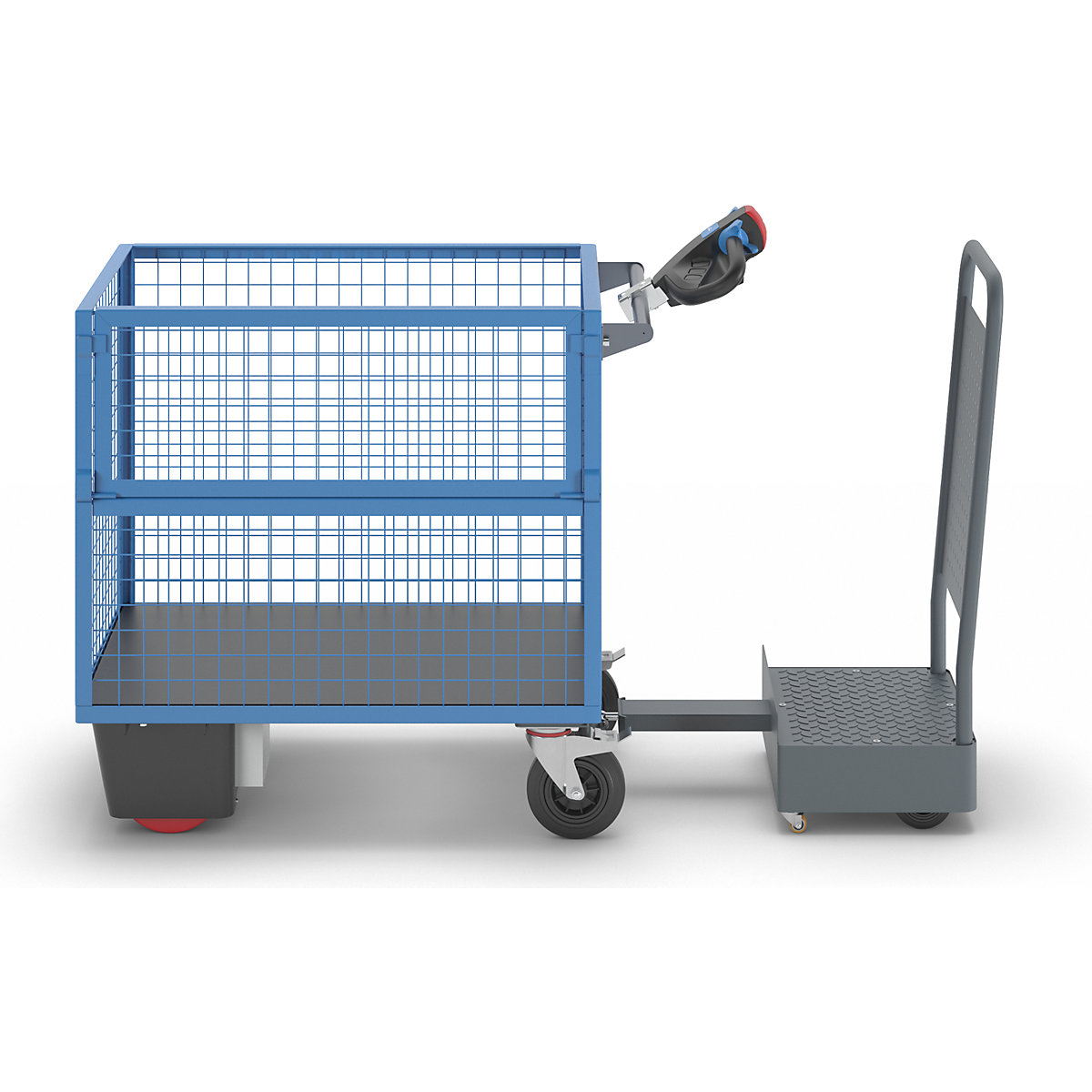

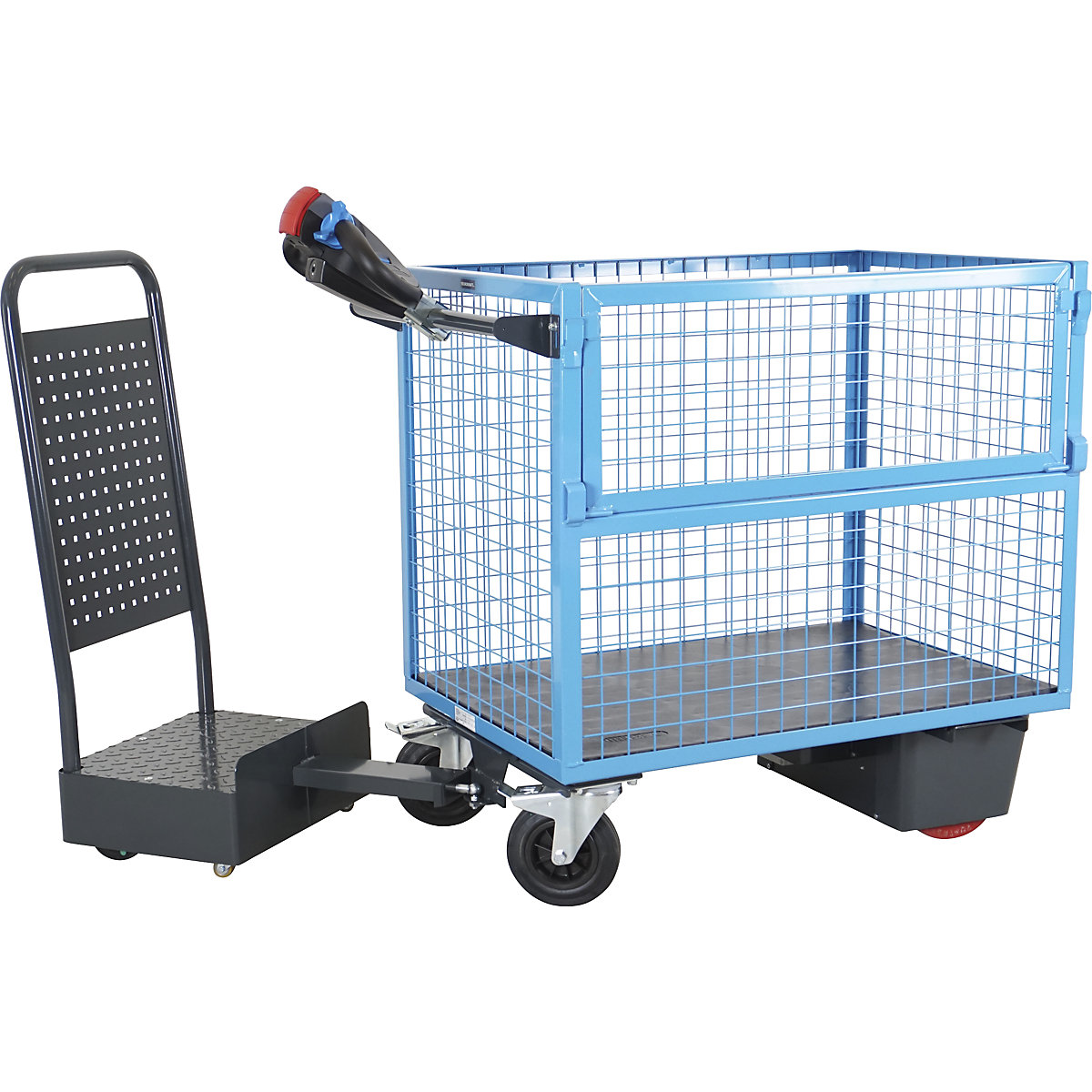

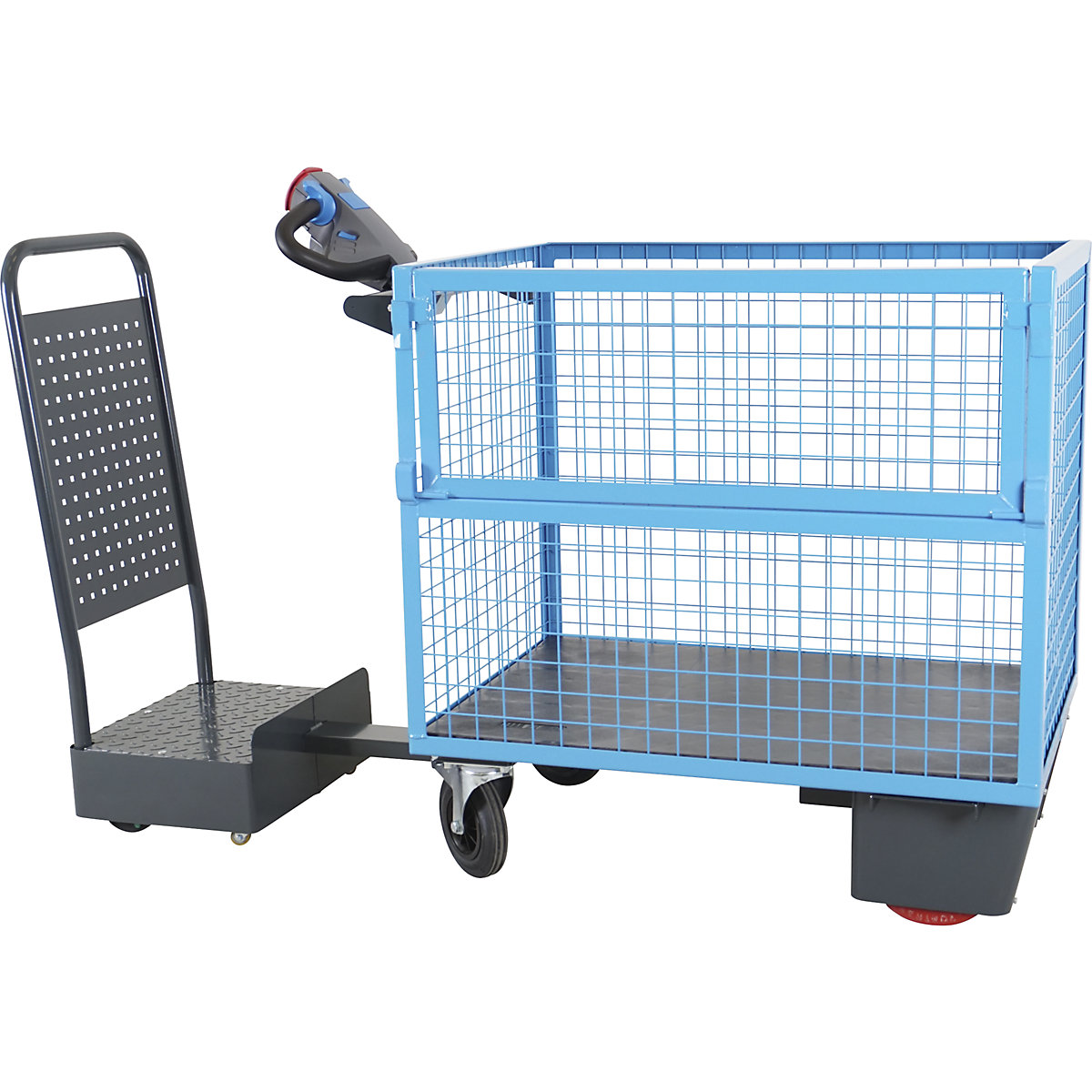

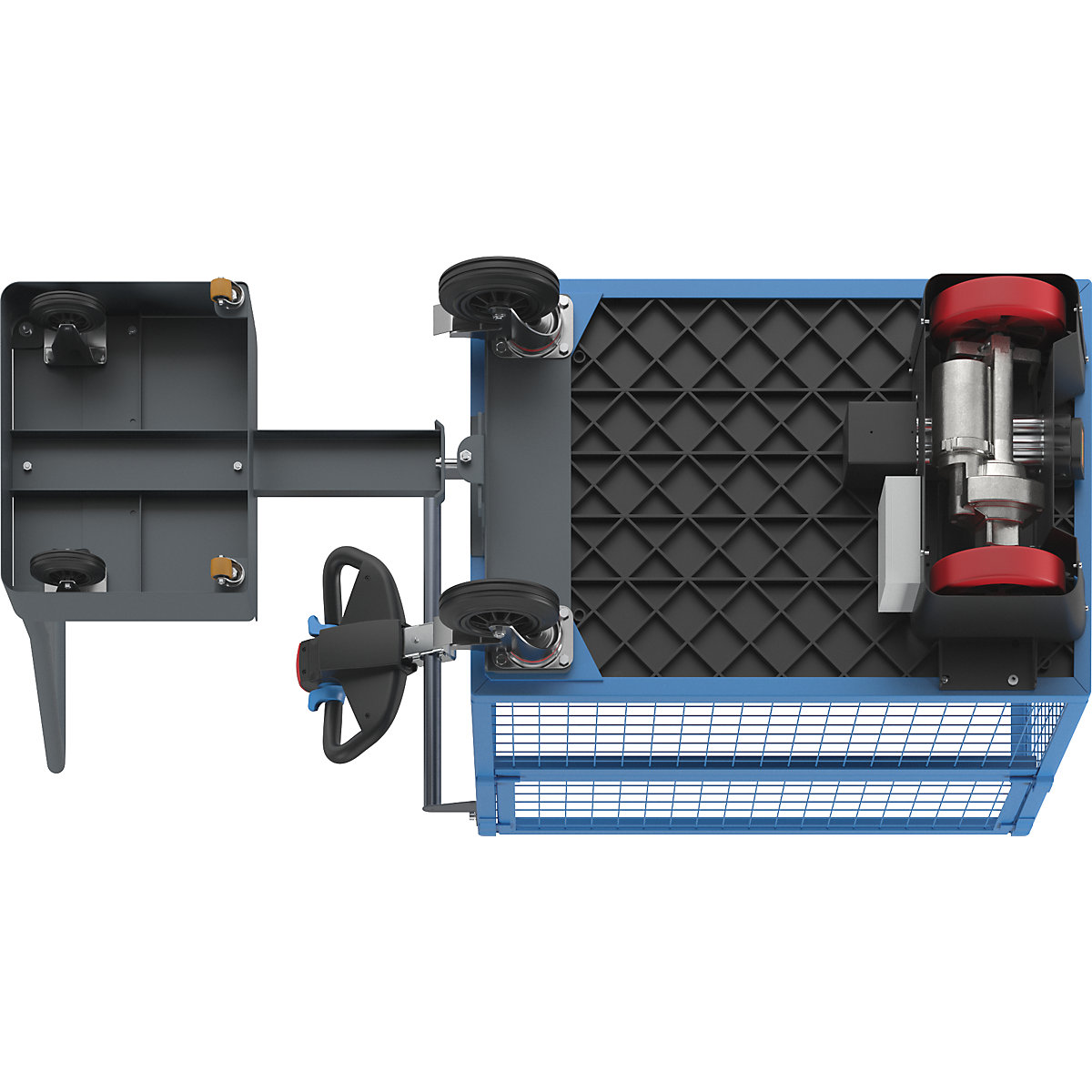

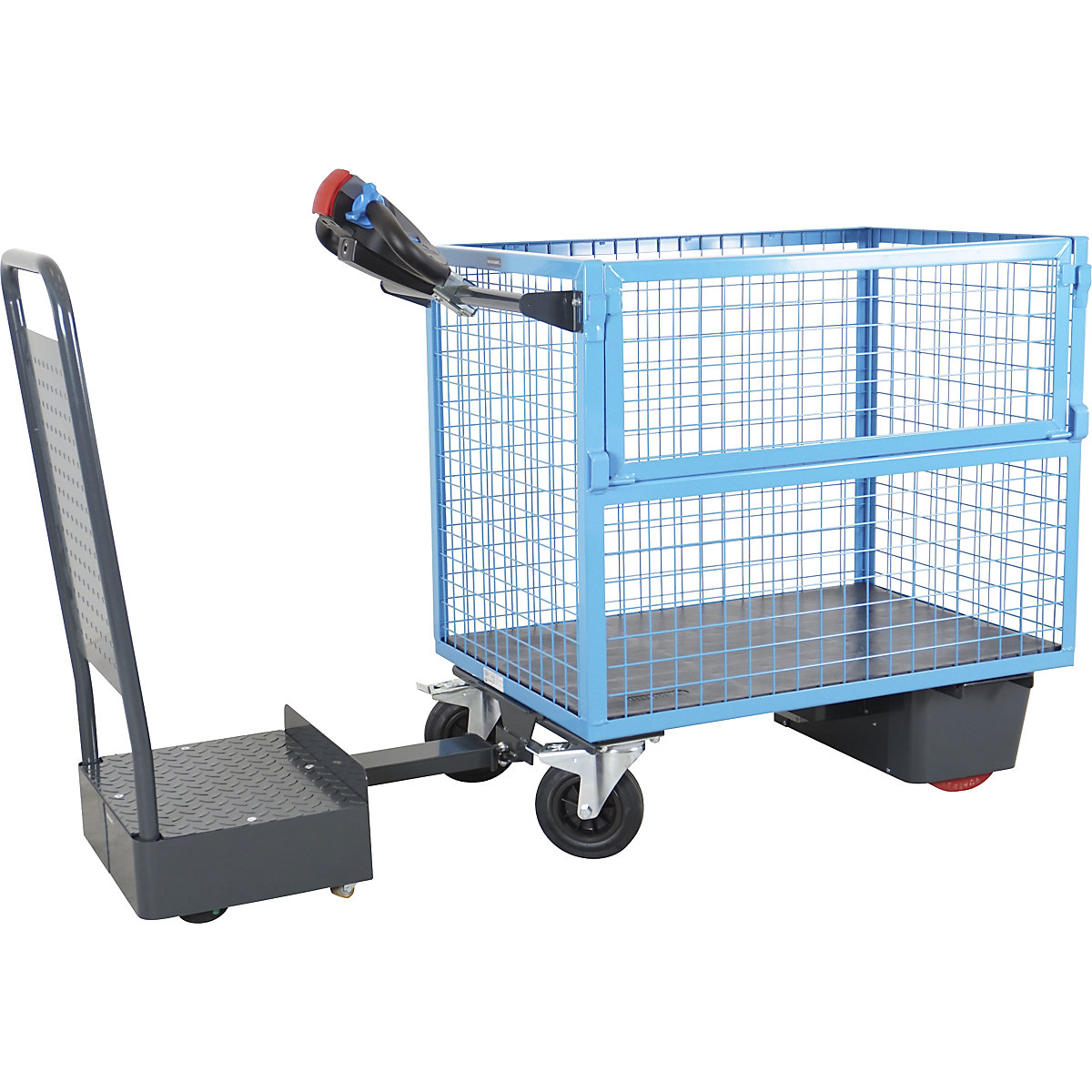

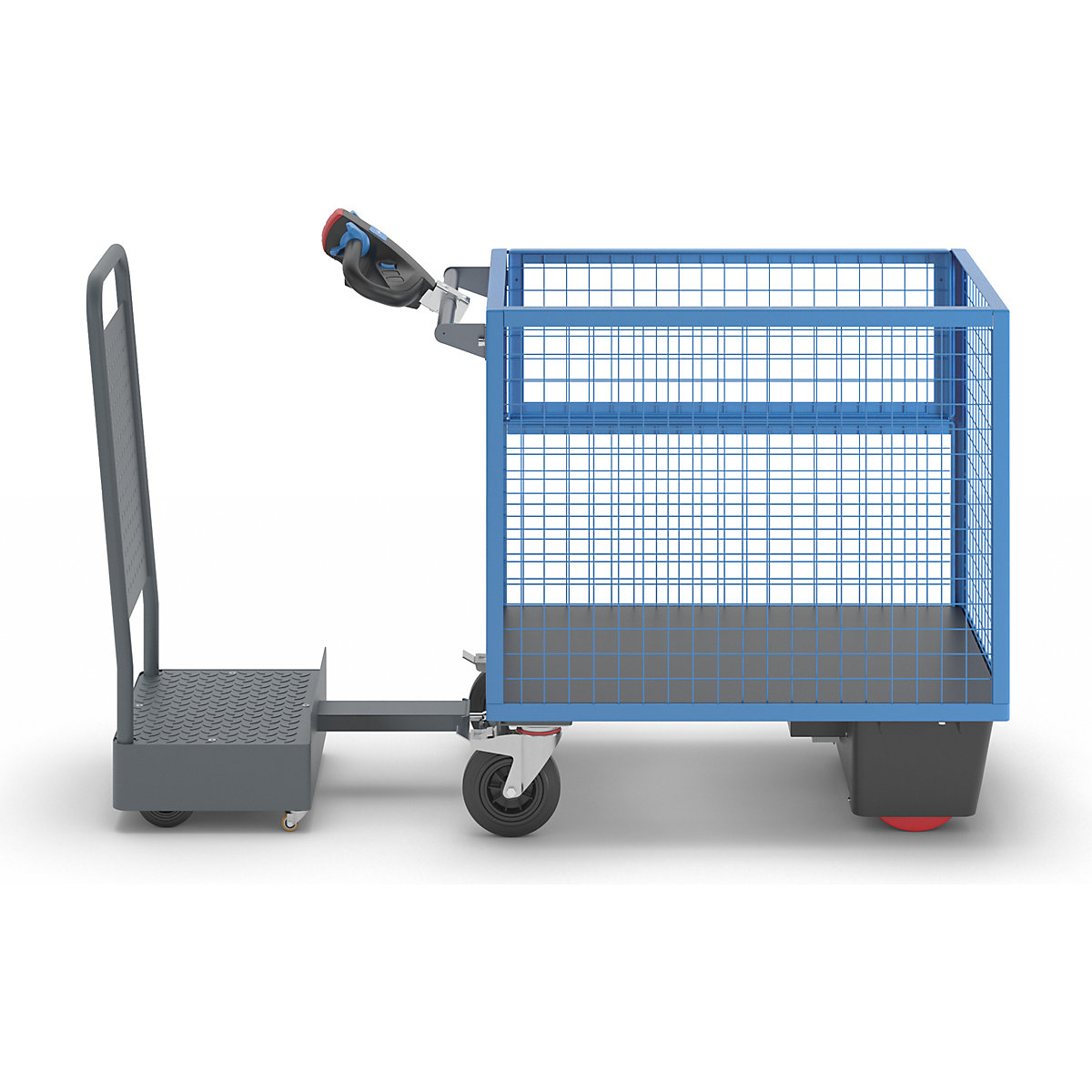

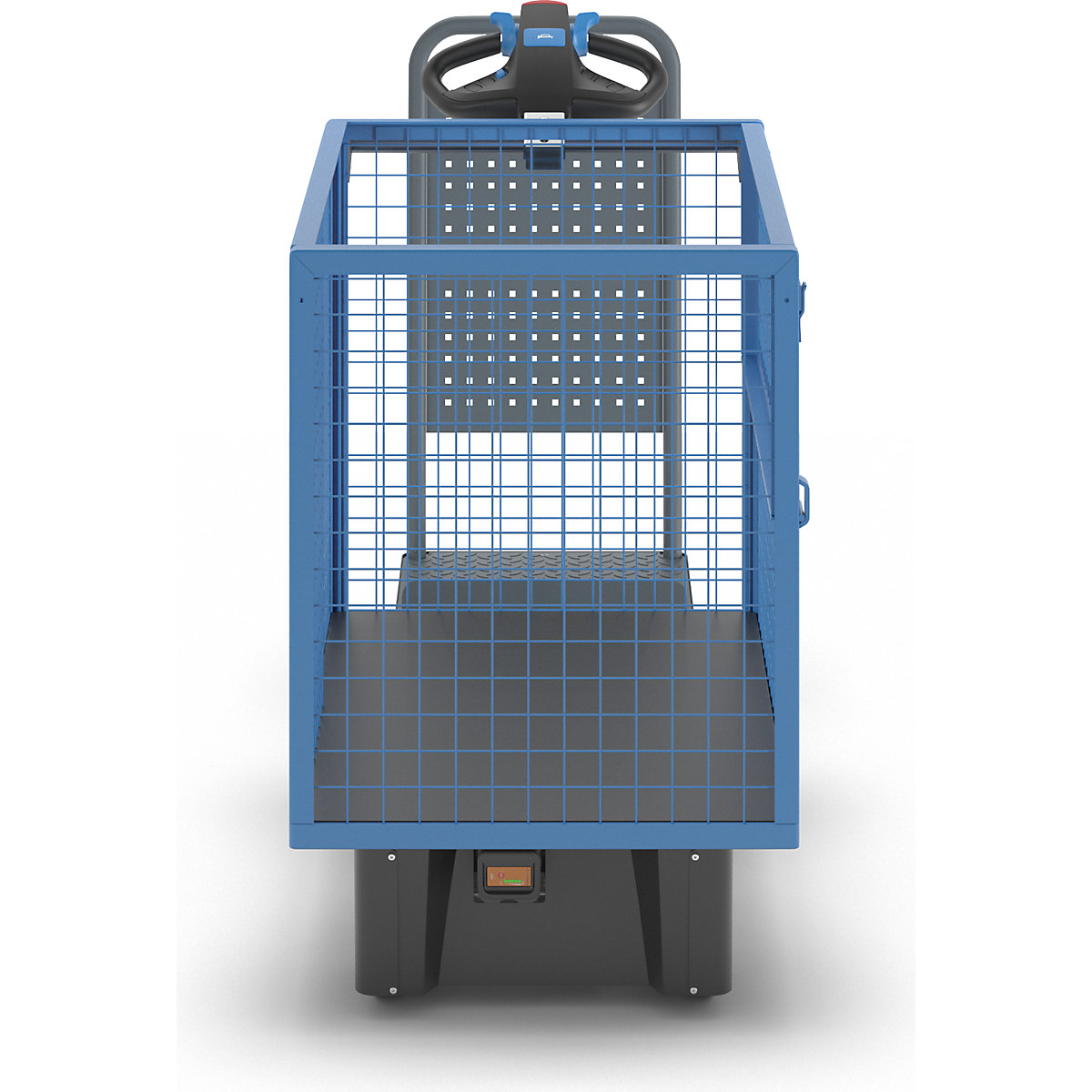

Box truck with electric drive – eurokraft pro with driver's platform

The electric module is easy to retrofit to equip transport trolleys with an electric drive. Complete with powerful lithium ion rechargeable battery and battery charger. Wireless – the control panel controls the drive via Bluetooth.

Easy assembly: highly versatile modular design
Drive battery: replaceable lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged

Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents entrapment when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence (driver's licence) required
Protection against theft: access control by means of lock

Operator's Stand

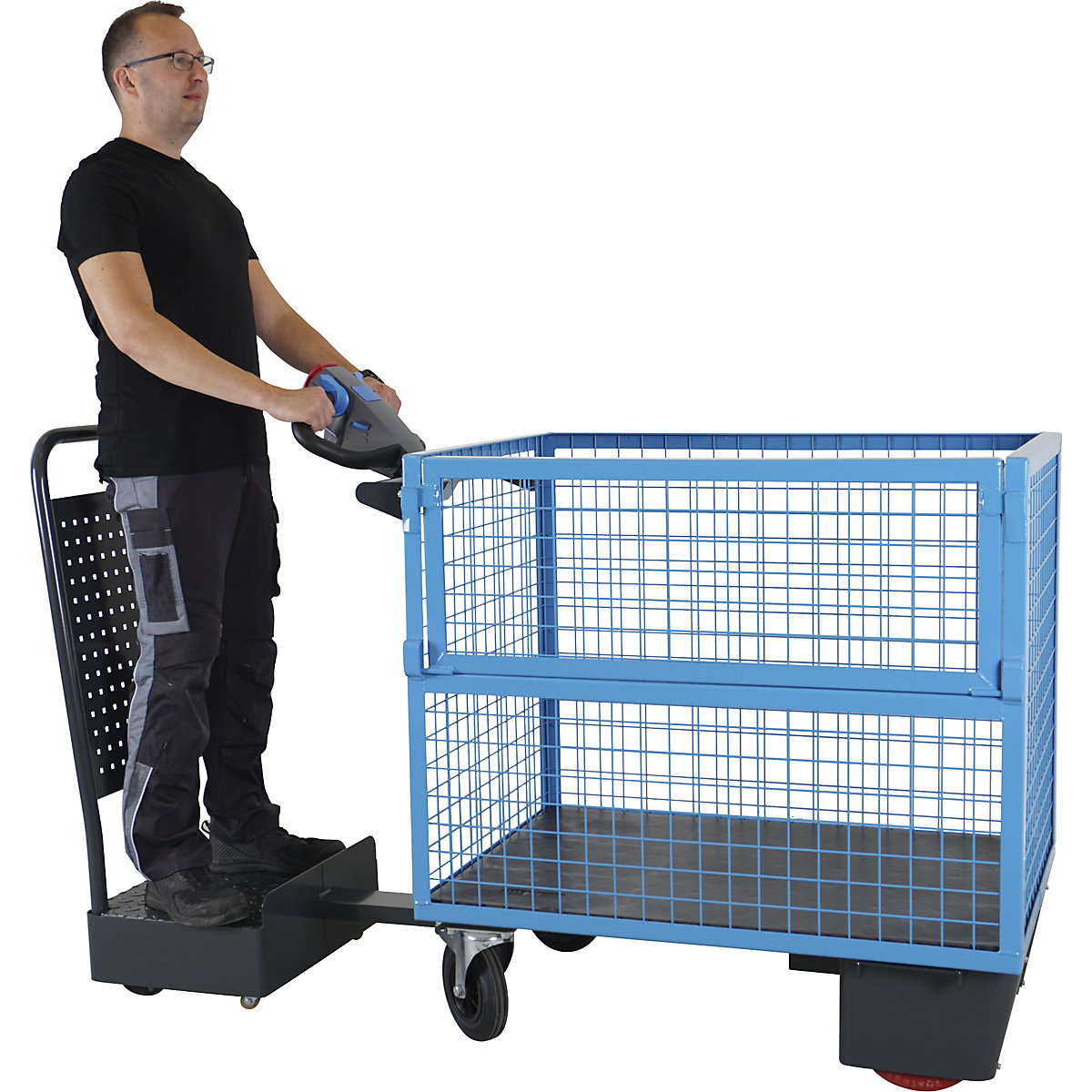

The operator's stand is designed for the E-module series and enables one person to operate a platform trolley with an electric drive, on which the goods are transported. The operator stands securely on the platform, controls the electric drive directly via the drawbar head, and thus moves effortlessly with the trolley. This reduces walking distances, minimises physical strain, and significantly streamlines work processes in warehousing and production.

The operator's stand is connected to the platform trolley via an angled ball joint and can be easily assembled or disassembled if required – use without the operator's stand is also possible. The ergonomic control via the drawbar head ensures easy steering: the system is very agile, track-stable, and tip-proof. The operator platform is equipped with non-slip checker plate, step-over protection, and all-round foot protection. The tubular steel frame with a perforated sheet metal back panel ensures safe driving. The load capacity is a maximum of 500 kg for the platform trolley and 150 kg for the operator's stand. When using the operator's stand, the load capacity of the trolley is reduced by the weight of the person to at least 350 kg. The product is delivered unassembled; assembly is simple. Only usable in combination with the designated eurokraft pro platform trolleys.
