Ref.: 194433 49

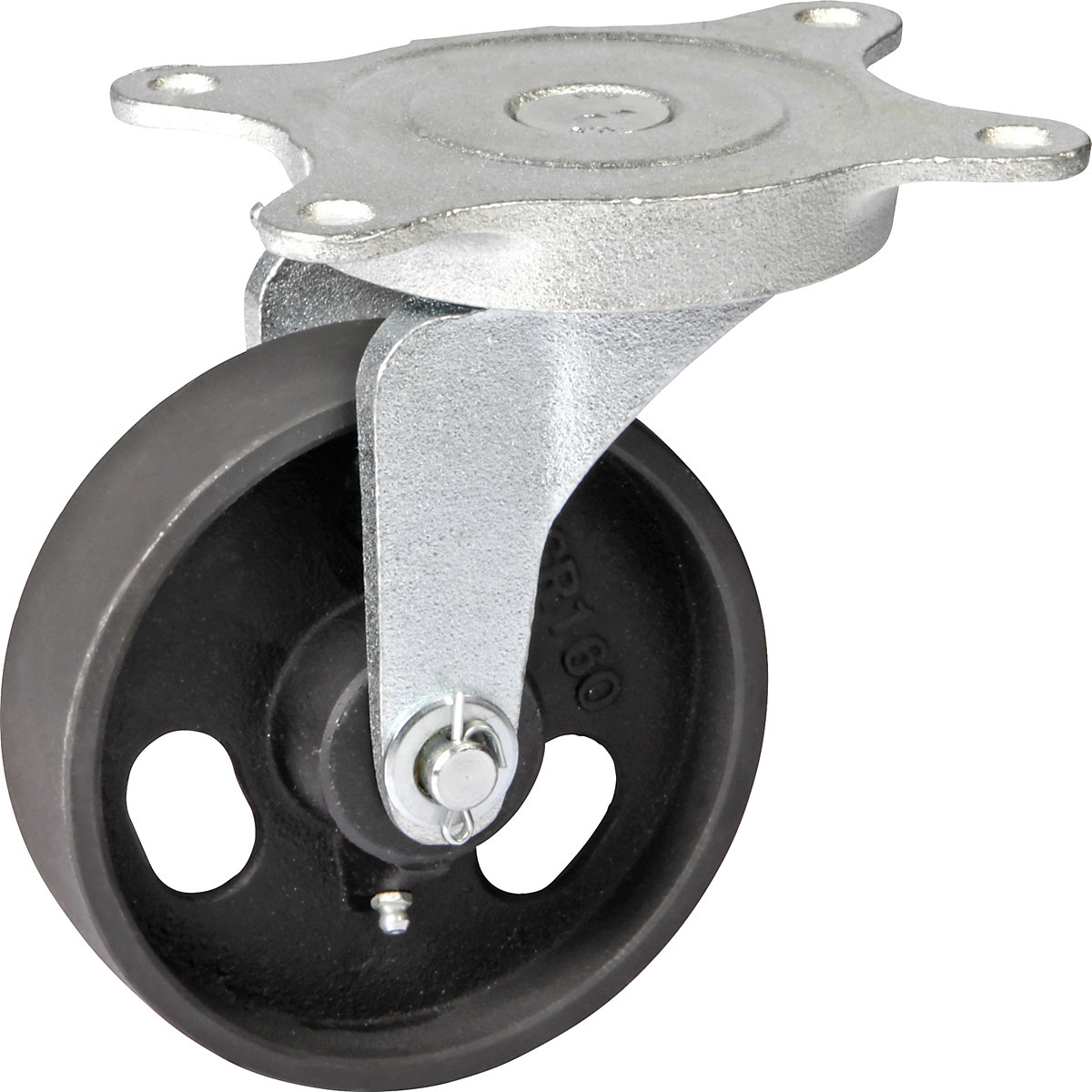

Grey cast iron wheel, annealed cast iron housing wheel Ø x width 160 x 48 mm
swivel castor with plain bearings
Structure
Wheel bearing
Ref.: 194433 49
Grey cast iron wheel, annealed cast iron housing wheel Ø x width 160 x 48 mm
swivel castor with plain bearings
swivel castor with plain bearings
Structure
Wheel bearing
£129.00
Price / item (Excl. VAT)
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£129.00
Price / item (Excl. VAT)
Product description
- With annealed cast iron housing
- Very robust and durable
- For use in harsh environments
- Virtually maintenance free
Wheel body made of high quality GG 20/25 grey cast iron, painted black. Slightly convex running surface. Annealed cast iron housing, swivel housing with double ball bearing race, can be lubricated. Protected against dust and spray water under certain conditions.
Temperature resistant to +100 °C, and up to +300 °C when bearing is lubricated with special grease.
All specified dimensions are approximate.
Temperature resistant to +100 °C, and up to +300 °C when bearing is lubricated with special grease.
All specified dimensions are approximate.
High maximum load
Technical data
| Wheel diameter | 160 mm |
|---|---|
| Wheel material | metal – cast |
| Material of rim | grey cast iron, GG 20 to GG 25 |
| Type of mounting | with top plate |
| Housing material | annealed cast iron |
| Max. load at 4 km/h | 650 kg |
| Wheel width | 48 mm |
| Overall height | 205 mm |
| Temperature resistance | up to +100 °C |
| Swivel castor offset | 50 mm |
| Screw hole diameter | 10 mm |
| Hub length | 56 mm |
| Hub bore | 15 mm |
| Model | heavy duty castors |
| Fixed castor plate dimensions | 175 x 125 mm |
| Swivel castor plate dimensions | 175 x 125 mm |
| Screw hole spacing | 145 x 95 mm |
| Feature | low wear low rolling resistance |
| Supplied | assembled |
| Structure | swivel castor |
| Wheel bearing | plain bearing |
| Product type | swivel castors |
| Weight | 5.1 kg |
