Ref.: 858280 49

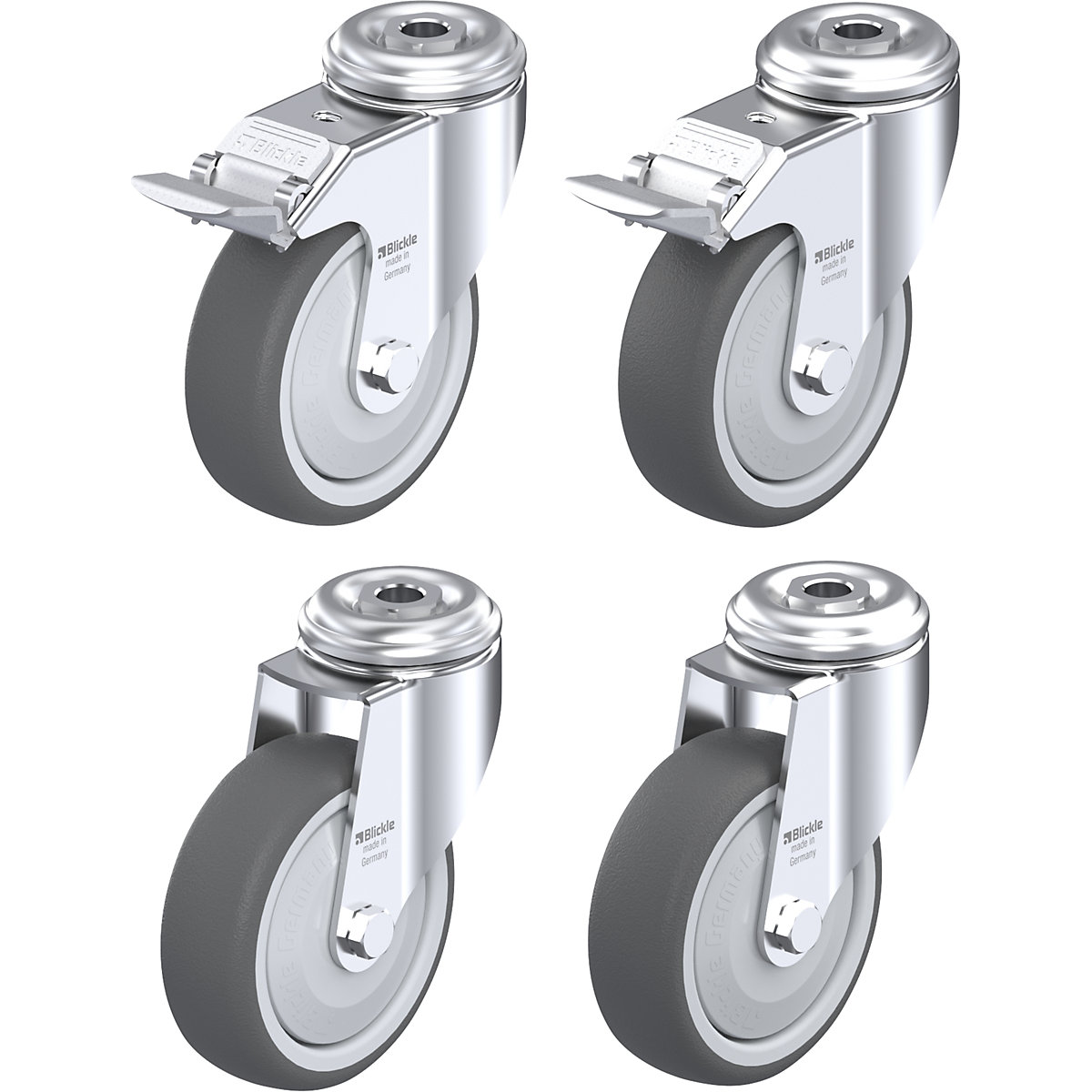

LKRA-PATH 101KF castor set – Blickle max. load 120 kg
wheel Ø 100 mm
Future-proof
Ref.: 858280 49
LKRA-PATH 101KF castor set – Blickle max. load 120 kg
wheel Ø 100 mm

wheel Ø 100 mm
Ref.: 858280 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Tread made of high-quality thermoplastic polyurethane (TPU)
- Leaves no signs of wear on the base
- High chemical resistance to many aggressive media
Castor set LKRA-PATH 101KF: The housing is made of electrolytically zinc-plated sheet steel, is blue passivated and Cr6-free. The dual ball bearing in the live ring with live ring seal has minimal live ring play, smooth running and a long service life due to the special dynamic Blickle riveting. The dark grey tread is made of high-quality thermoplastic polyurethane (TPU), is non-marking, non-staining and exhibits a hardness of 94 Shore A. The wheel body is made of break-resistant, high-quality polyamide 6 in silver grey. Furthermore, the swivel castor is characterised by a plastic thread guard and a very high chemical resistance to many aggressive media. The temperature resistance ranges from –20 °C to +70 °C, and temporarily up to +90 °C. There is a reduced load capacity at temperatures above +35 °C.
Technical data
| Wheel diameter | 100 mm |
|---|---|
| Structure | swivel castor with wheel stop fixed castor |
| Wheel material | thermoplastic polyurethane (TPU) |
| Material of rim | nylon |
| Type of mounting | with bolt hole |
| Housing material | sheet steel |
| Max. load at 4 km/h | 120 kg |
| Wheel width | 32 mm |
| Overall height | 133 mm |
| Wheel bearing | ball bearing |
| Temperature resistance | –20 °C to +70 °C |
| Swivel castor offset | 40 mm |
| Model | light duty castors |
| Bolt hole diameter | 13 mm |
| Plate diameter | 57 mm |
| Housing surface | zinc plated |
| Shore hardness | 94 Shore A |
| Running surface colour | grey |
| Feature | chemical resistant non-marking |
| Product type | swivel castors |
| Supplied | assembled |
| Weight | 2.37 kg |
