Ref.: 845986 49

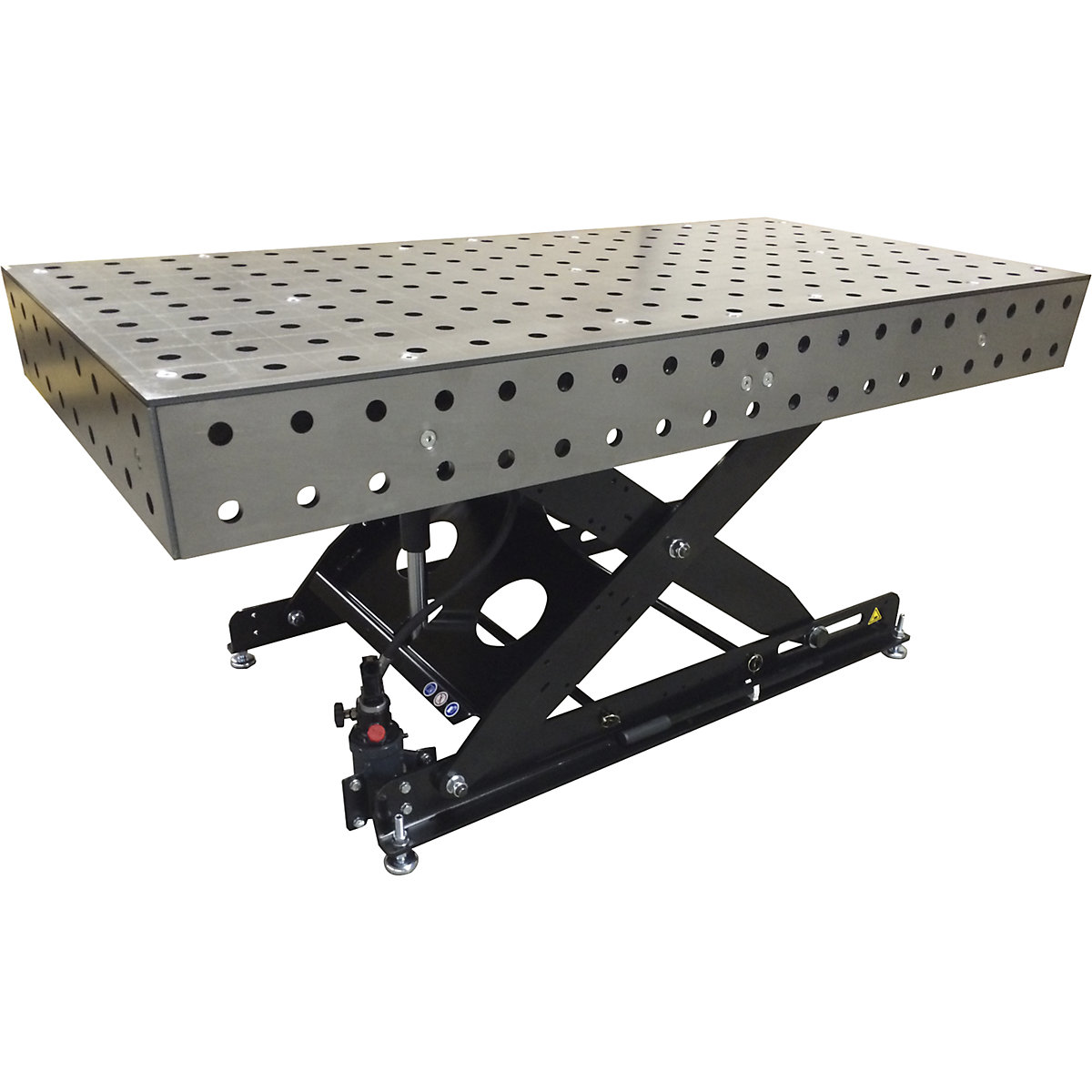

Height-adjustable welding table Ø bores 28 mm, 2000 kg
HxWxD 800 x 1980 x 1480 mm
Width [mm]
Ref.: 845986 49
Height-adjustable welding table Ø bores 28 mm, 2000 kg
HxWxD 800 x 1980 x 1480 mm
HxWxD 800 x 1980 x 1480 mm
Width [mm]
Ref.: 845986 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- All-round side panels for vertical clamping, stops and surface widening
- All-steel construction with hydraulic scissor lift frame
- Manual lifting mechanism
- For ergonomic and precise work
- Hole pattern Ø 28 mm for accommodating System-28 clamping tools
The height-adjustable welding table offers a robust all-steel construction with a hydraulic scissor lift frame that allows for precise working height adjustment. This stable welding lift table supports precise and ergonomic work in various application areas.
The welding lift table features a 28-mm-hole pattern for holding System 28 clamping tools. With this, workpieces, constructions, as well as small processing devices can be securely fixed. The line grid of 100 x 100 mm ensures flexible and precise positioning. The manually operated hydraulics with single-acting cylinders allows for infinite height adjustment. As a result, the special work table is optimally adaptable to individual working conditions and use with machines. The dual tabletop consists of an upper and lower plate, supported by a stable substructure made of two longitudinal beams and three cross beams. The flatness meets the factory standard WN5110000 in accordance with DIN ISO 2768-2. For mobility, integrated transport bars provide easy relocation.
Application areas are diverse: In metal construction as a 3D welding table, in woodworking for clamping glued constructions, or in mechanical engineering as a flexible assembly workstation. Also in general industry, the height-adjustable welding table serves as a mobile maintenance workstation with variable working height.
The surrounding side panels with a height of 200 mm enable vertical clamping, setting stops, or also the widening of the horizontal clamping surface using angles.
The welding lift table features a 28-mm-hole pattern for holding System 28 clamping tools. With this, workpieces, constructions, as well as small processing devices can be securely fixed. The line grid of 100 x 100 mm ensures flexible and precise positioning. The manually operated hydraulics with single-acting cylinders allows for infinite height adjustment. As a result, the special work table is optimally adaptable to individual working conditions and use with machines. The dual tabletop consists of an upper and lower plate, supported by a stable substructure made of two longitudinal beams and three cross beams. The flatness meets the factory standard WN5110000 in accordance with DIN ISO 2768-2. For mobility, integrated transport bars provide easy relocation.
Application areas are diverse: In metal construction as a 3D welding table, in woodworking for clamping glued constructions, or in mechanical engineering as a flexible assembly workstation. Also in general industry, the height-adjustable welding table serves as a mobile maintenance workstation with variable working height.
The surrounding side panels with a height of 200 mm enable vertical clamping, setting stops, or also the widening of the horizontal clamping surface using angles.
On request: Do you need a customised solution for your welding workstation? We would be happy to provide you with an offer tailored to your needs.
Accessories: clamping tools are sold separately as a set – with and without trolley – in the Professional or Starter model
Technical data
| Material | steel |
|---|---|
| Colour | black |
| Bore hole diameter | 28 mm |
| Static distributed load | 2000 kg/m² |
| Panel thickness | 16 mm |
| Product type | welders' benches |
| Supplied | assembled |
| Width | 1980 mm |
| Depth | 1480 mm |
| Height | 800 mm |
| Weight | 630 kg |
