Ref.: 681795 49

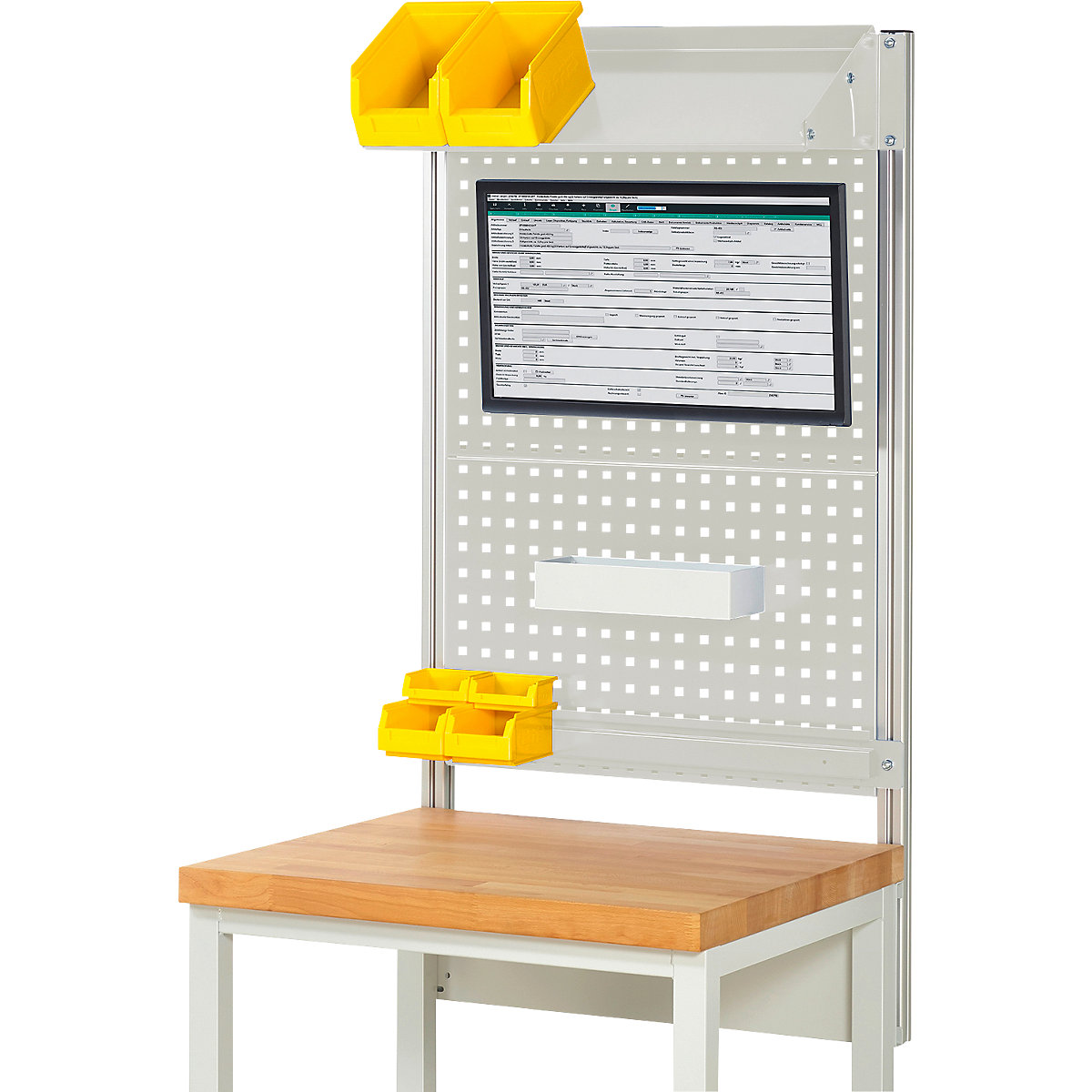

Complete modular system set 2 – RAU for workbench
width 750 mm
Width [mm]
Ref.: 681795 49
Complete modular system set 2 – RAU for workbench
width 750 mm
width 750 mm
Width [mm]
£809.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£809.00
Price / item (Excl. VAT)
Product description
- Suitable for RAU workbenches/work tables and selected EUROKRAFTpro workbenches
- Ergonomics, tidiness and organisation at the workplace
- All interior fittings and attachment parts are adjustable in height
- Easy to add to or expand
- Indispensable for the implementation of LEAN management methods
The complete modular system set 2 includes:
– 1 x fastening set (cross bar) with 2 system uprights
– 2 x perforated panel, height 450 mm, with square system perforation to integrate tool holders and accessories
– 1 x inclined metal shelf (WxD: bay width – 85 mm x 300 mm), raised edges on all sides
– 1 x suspension rail to hold open fronted storage bins (open suspension edge at the rear of the open fronted storage bins required) and/or power strip
– 1 x flat screen holder with mounting adapter for perforated panel (VESA MIS-D 75/100)
Each component of the set is included twice or four times with the 2500 and 3000 mm workbench widths.
The installation height of the add-on units can be adapted on the system supports. The fastening set (cross bar) is attached to the rear of the system frame under the worktop. The system uprights (aluminium profile 40 x 40 mm) are screwed to the fastening set (cross bar) by means of slot nuts (height adjustable) and run upwards behind the worktop so that the entire depth of the worktop remains free (not bolted to the worktop). The system uprights feature a profile groove on all 4 sides to allow use from all sides.
– 1 x fastening set (cross bar) with 2 system uprights
– 2 x perforated panel, height 450 mm, with square system perforation to integrate tool holders and accessories
– 1 x inclined metal shelf (WxD: bay width – 85 mm x 300 mm), raised edges on all sides
– 1 x suspension rail to hold open fronted storage bins (open suspension edge at the rear of the open fronted storage bins required) and/or power strip
– 1 x flat screen holder with mounting adapter for perforated panel (VESA MIS-D 75/100)
Each component of the set is included twice or four times with the 2500 and 3000 mm workbench widths.
The installation height of the add-on units can be adapted on the system supports. The fastening set (cross bar) is attached to the rear of the system frame under the worktop. The system uprights (aluminium profile 40 x 40 mm) are screwed to the fastening set (cross bar) by means of slot nuts (height adjustable) and run upwards behind the worktop so that the entire depth of the worktop remains free (not bolted to the worktop). The system uprights feature a profile groove on all 4 sides to allow use from all sides.
This modular system is designed for RAU workbenches/work tables and selected EUROKRAFTpro workbenches, and cannot be connected to workbenches made by other manufacturers! When placing an order without an appropriate workbench, it is imperative to specify for which series the modular elements are intended.
Technical data
| Depth | 350 mm |
|---|---|
| Colour | light grey RAL 7035 |
| Material | aluminium sheet steel |
| Max. load | 100 kg |
| Effective height | 1130 mm |
| Height | 1400 mm |
| Product type | accessories for workbenches |
| Supplied | flat pack |
| Width | 750 mm |
| For table width | 750 mm |
| Number of uprights | 2 pcs. |
| Bay width | 750 mm |
| Weight | 5 kg |
Sustainability
Sustainable product
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.
You can find out more about product evaluation and our sustainability initiative on our information page .
| Criteria | Weighting | Score |
|---|---|---|
| 30% | 2.0 | |
| 30% | 3.7 | |
| 25% | 2.0 | |
| 10% | 1.9 | |
| 5% | 3.9 | |
| Overall score | 3.0 | |
