Ref.: 903878 49

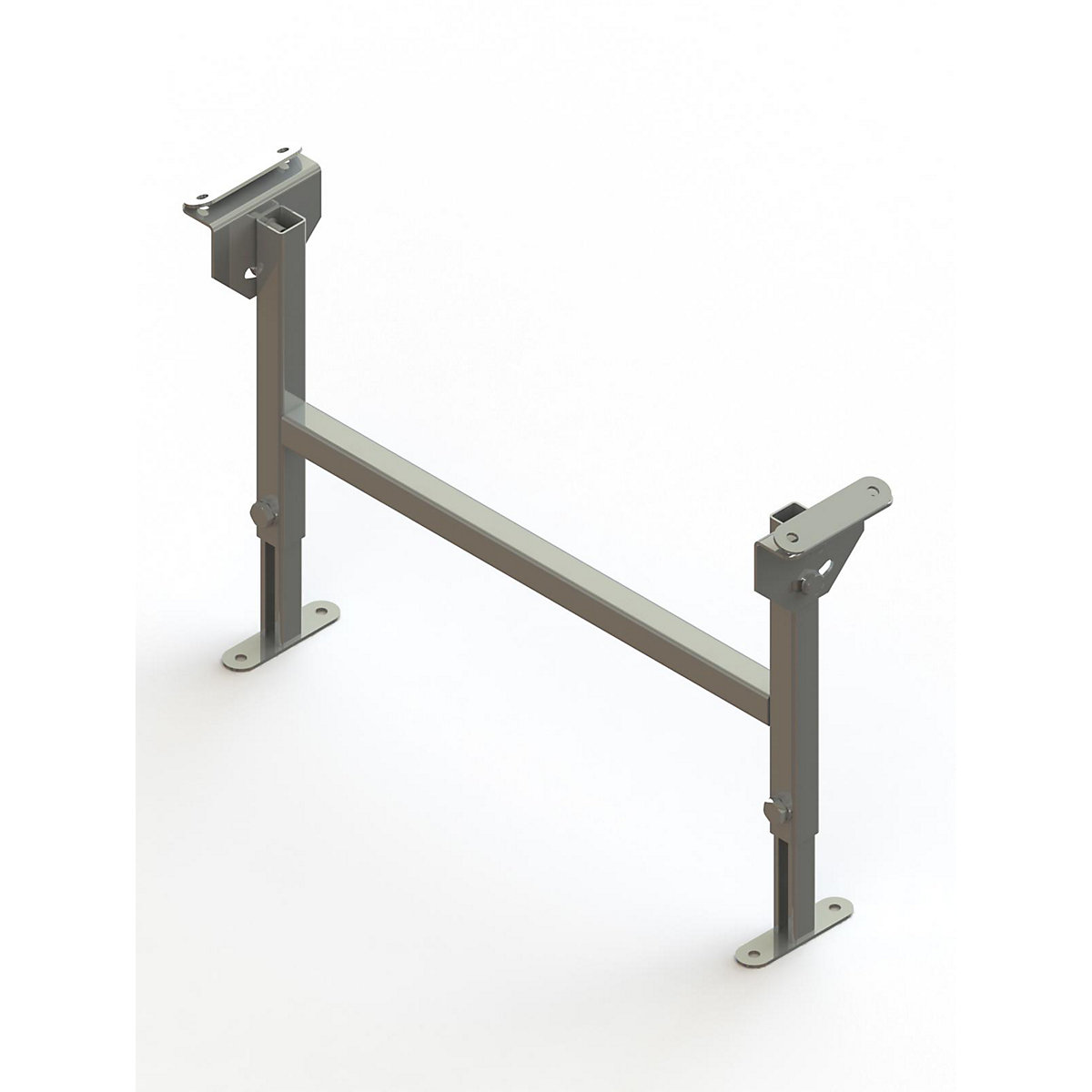

Dual frame support, zinc plated – Gura track width 600 mm

(1)
Dual frame support, zinc plated – Gura

adjustment range 330 – 480 mm

Height adjustment range [mm]
Ref.: 903878 49
Product description
  • For small roller conveyors, light duty skate wheel conveyors and light duty roller conveyors
  • Used for stationary track installation
  • Infinitely height adjustable, with swivel hinge
  • Quick and easy to assemble
Position the roller conveyor and fasten into the required position with two clamping lugs. Square 30 x 30 x 2 mm, zinc plated.
Attention! Not suitable for heavy duty roller conveyors with a max load of up to 400 kg.
Max. load 200 kg.
Technical data
Track width600 mm
Materialrectangular steel pipe, galvanised
Max. load200 kg
Colourzinc plated
Product typeaccessories for conveyors
Suppliedassembled
Height adjustment range330 – 480 mm
Weight5 kg
Pictorial instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

26.47kg CO₂e
LCA Raw Material Extraction & Processing
43.9%
LCA packaging production
1.1%
LCA Product Manufacturing
47.7%
LCA Inbound and Outbound Transportation
7.2%
‌
‌
‌
‌
‌
