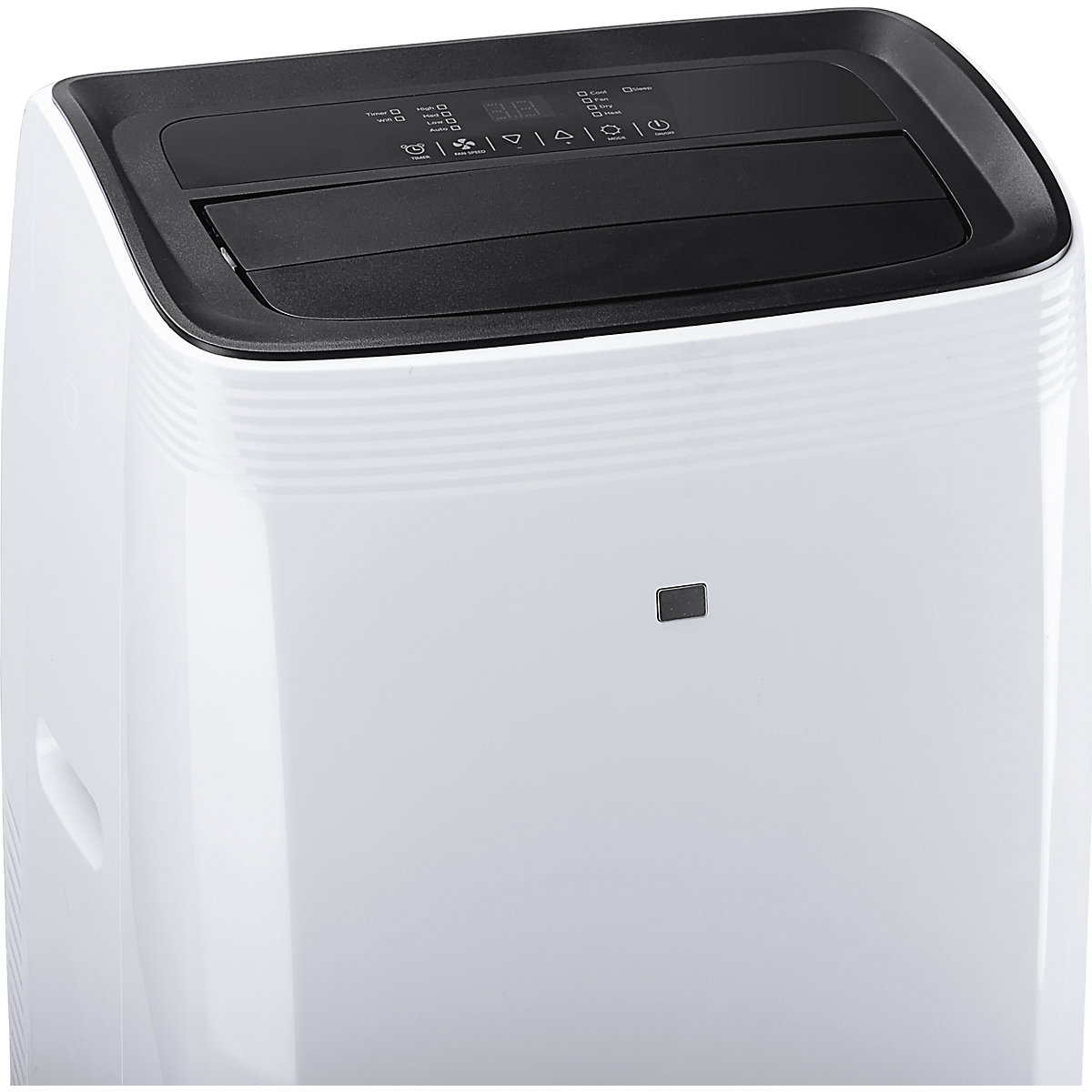

12000 BTU mobile air conditioner – TCL 4-in-1 device, heating and cooling

12000 BTU mobile air conditioner – TCL

cooling power 3.5 kW, white

Ref.: 762233 49
Product description
  • 4-in-1 device: air conditioning, dehumidification,ventilation and heating
  • Suitable for rooms up to approx. 35 m²
  • Ideal air distribution due to adjustable air outlet
  • Air conditioning up to an adjustable range from +18 °C to +32 °C
  • No water tank – no need to empty condensate
  • Self-diagnosis with automatic circuit breaker
  • A washable dust and air filter ensures a healthy climate in the room
  • The device can be operated directly or using a remote control
  • Mobile on 360° castors
Monobloc air conditioner with 3 speed settings. A programmable timer in 24-hour mode can switch the unit on or off, and the additional sleep mode slowly reduces the cooling capacity to ensure a healthy sleep. Self-diagnosis automatically detects errors, shows them on the display and activates a safety mechanism. No water tank – condensation is recycled and used within the unit, no need to empty a container.

Cooling capacity: 3500 watts, Power consumption: 1345 watts, Heating capacity: 3200 watts, Power consumption: 1130 watts, Air circulation: 390 m³/h, hourly energy consumption (cooling): 2 kWh, Energy efficiency class A (spectrum A++ to E), Refrigerant: R290, Energy efficiency ratio: 2.60, GWP refrigerant 3. Cable length 1.5 m, includes exhaust hose length x Ø 1500 x 150 mm (cannot be extended).

Suitable window seals can be found under accessories (see below).

The leakage of refrigerant contributes to climate change. In case of a leak, refrigerants with a low global warming potential contribute less to global warming than those with a higher global warming potential. This unit contains a refrigerant with a global warming potential of 3. Thus, a leak of 1 kg of this refrigerant would have 3 times the impact on global warming as 1 kg of CO₂, based on one hundred years. Do not perform any work on the refrigerant circuit or dismantle the unit; always consult a specialist.
Technical data
Room size35 m²
Power3.5 kW
Cooling capacity12000 BTU/h
Nominal cooling capacity3.5 kW
Max. air volume390 m³/h
Mains voltage220 – 240 V / 50 Hz
Height688 mm
Width419 mm
Depth358 mm
Noise level53 dB(A)
Sound power LWA65 dB(A)
Housing colourwhite
Fittingsremote control air outlet hose
Power consumption1345 watt
Energy efficiency class for coolingA (spectrum A++ to E)
Energy efficiency class for heatingA+ (spectrum A++ to E)
Energy consumption2 kWh/1000h
Air circulation390 m³/h
Energy efficiency indexEER 2.6
Nominal thermal capacity3.2 kW
Hose diameter150 mm
Hose length1.5 m
Temperature range+18 °C to +30 °C
Materialmetal
Product typeair conditioners
Suppliedpre-assembled, final assembly by customer
Weight27.5 kg
