Ref.: 591133 49

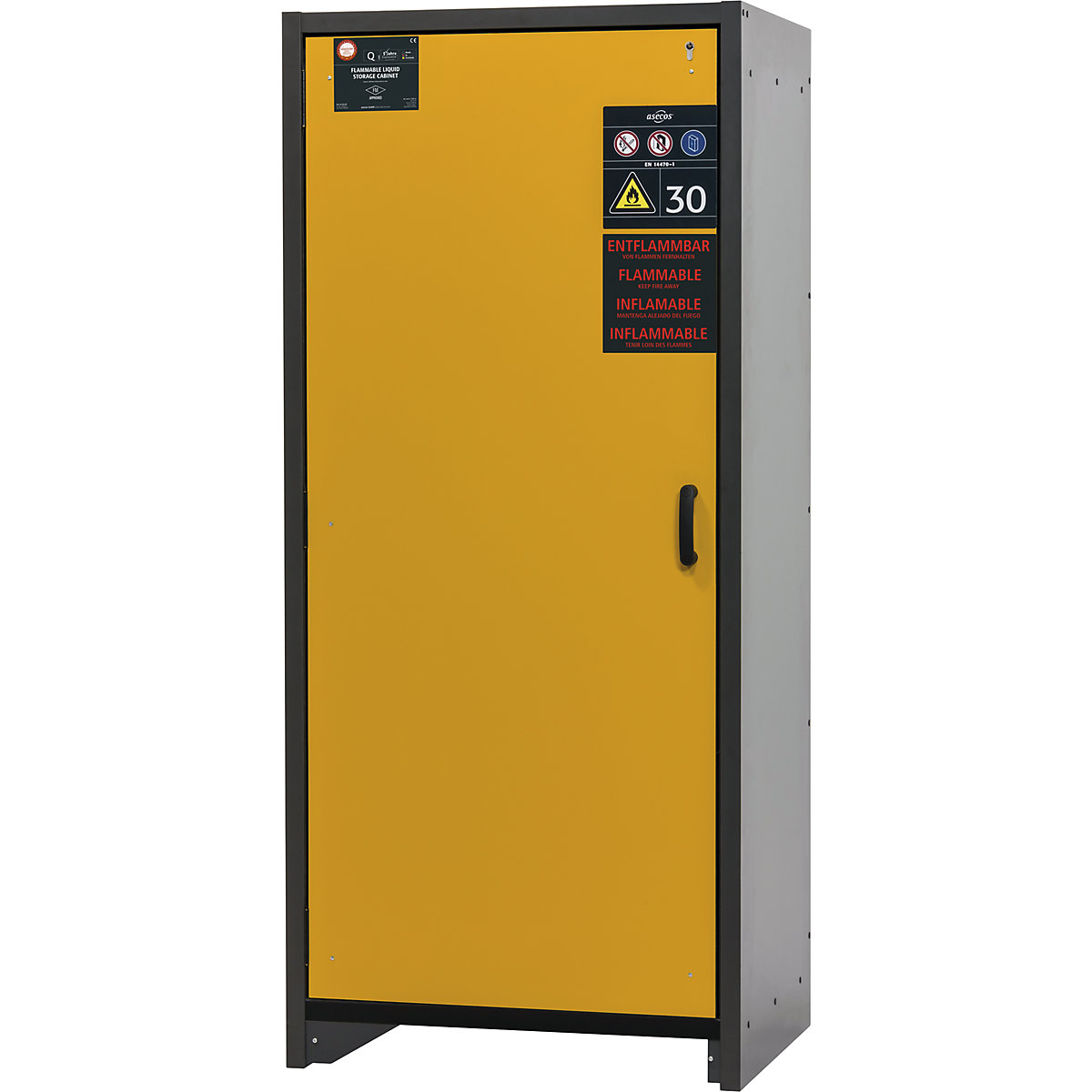

FM/UL/ULC/Type 30 fire resistant hazardous goods storage cupboard – asecos 1-door, width 864 mm
grey/yellow
Door colour
Ref.: 591133 49
FM/UL/ULC/Type 30 fire resistant hazardous goods storage cupboard – asecos 1-door, width 864 mm
grey/yellow
grey/yellow
Door colour
£2,350.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£2,350.00
Price / item (Excl. VAT)
Product description
- For regulation compliant storage of flammable media in laboratories in accordance with EN 14470-1 and TRGS 510 (appendix 3)
- Type tested protection against fire for 30 minutes, certified to FM 6050 and UL/ULC 1275 – self-closing in case of fire
- With door stop system
- Incl. transport base and ventilation closure
Type 30 fire resistant hazardous goods storage cupboard – additionally certified in accordance with FM and UL/ULC (US-American test certificates).
Safe and regulation compliant storage of flammable hazardous goods in workrooms: the fire resistant hazardous goods storage cupboard makes an impression with its robust and durable design. The sturdy, high quality and scratch resistant outer body features a powder coated textured surface. The 3 point door hinges as well as the full locking mechanism and safety elements are protected from corrosion and mounted outside the storage space to ensure maximum safety and durability. The door system, which stays in place at any opening angle and closes automatically in the event of fire, ensures easy handling. In addition, the door locks in the arrest system, which enables safe storage and retrieval of the containers (with Wing Door Arrest System – WDAS). Unauthorised access is prevented by the lockable profile cylinder, which can be integrated into the locking system. The integrated transport base makes it easy to transport and move the cupboard in the company. Plinth covers or adjustment aids with plinth covers can be added as an option and are available as accessories. An integrated ventilation system is available, which enables connection (DN 75) to a technical exhaust air system. The cupboard has three certifications and fulfils the requirements of EN 14470-1, the international FM standard 6050 and is UL/ULC 1275 listed.
Certificates:
– Fireproof for 30 minutes
– Tested model in accordance with EN 14470-1
– Compliant with EN 16121/16122
– Compliant with CE
– FM 6050 certified
– Certified according to UL/ULC 1275

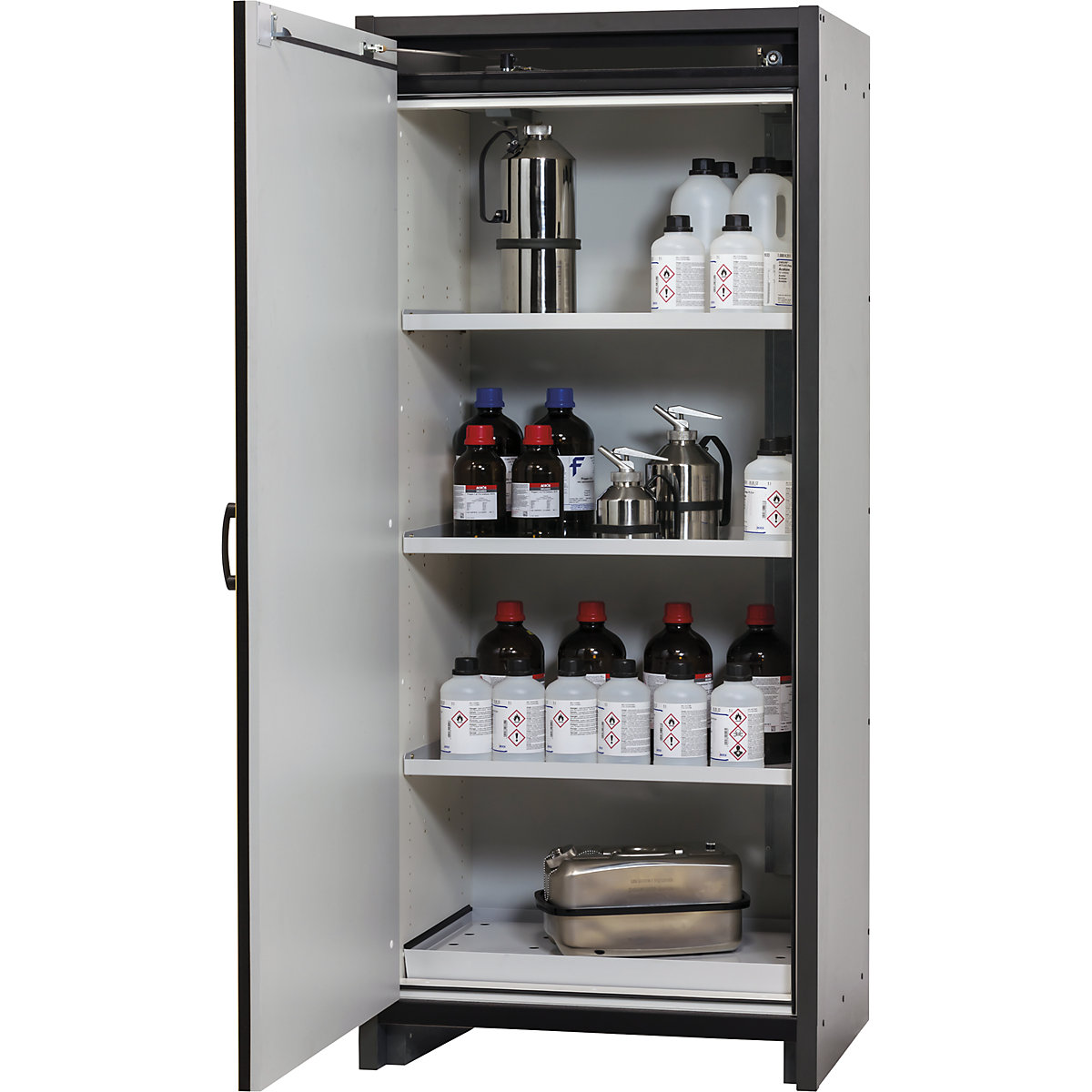

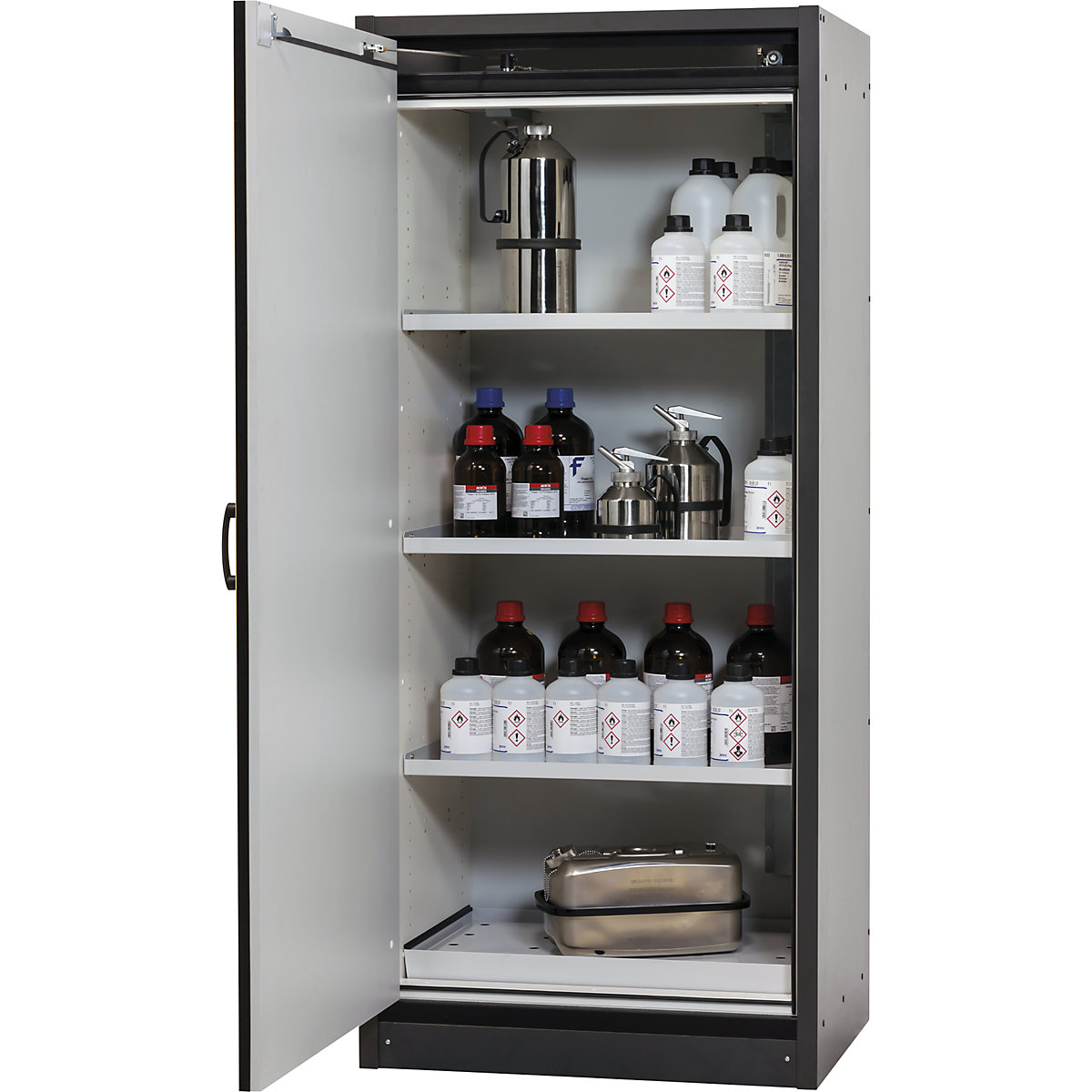

Interior fittings:
– 3 shelves, max. load 75 kg, powder coated sheet steel, light grey RAL 7035
– 1 perforated sheet insert for use in StawaR base sumps, max. load 75 kg, powder coated sheet steel, light grey RAL 7035
– 1 base sump, capacity 22 litres, powder coated sheet steel, light grey RAL 7035
Safe and regulation compliant storage of flammable hazardous goods in workrooms: the fire resistant hazardous goods storage cupboard makes an impression with its robust and durable design. The sturdy, high quality and scratch resistant outer body features a powder coated textured surface. The 3 point door hinges as well as the full locking mechanism and safety elements are protected from corrosion and mounted outside the storage space to ensure maximum safety and durability. The door system, which stays in place at any opening angle and closes automatically in the event of fire, ensures easy handling. In addition, the door locks in the arrest system, which enables safe storage and retrieval of the containers (with Wing Door Arrest System – WDAS). Unauthorised access is prevented by the lockable profile cylinder, which can be integrated into the locking system. The integrated transport base makes it easy to transport and move the cupboard in the company. Plinth covers or adjustment aids with plinth covers can be added as an option and are available as accessories. An integrated ventilation system is available, which enables connection (DN 75) to a technical exhaust air system. The cupboard has three certifications and fulfils the requirements of EN 14470-1, the international FM standard 6050 and is UL/ULC 1275 listed.
Certificates:
– Fireproof for 30 minutes
– Tested model in accordance with EN 14470-1
– Compliant with EN 16121/16122
– Compliant with CE
– FM 6050 certified
– Certified according to UL/ULC 1275
Interior fittings:
– 3 shelves, max. load 75 kg, powder coated sheet steel, light grey RAL 7035
– 1 perforated sheet insert for use in StawaR base sumps, max. load 75 kg, powder coated sheet steel, light grey RAL 7035
– 1 base sump, capacity 22 litres, powder coated sheet steel, light grey RAL 7035
Type 30 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 30 minutes, fire chamber tested and certified. Complies with EN 144701-1.
FM safety cupboards. FM approved. Recognised by the independent US testing agency FM Factory Mutual.
For water hazardous liquids
For toxic liquids
For flammable liquids
Factory Mutual (independent testing agency)
US test certificate.
US test certificate.
Technical data
| Fire resistance | 30 minutes |
|---|---|
| Material | special fire resistant boards sheet steel, powder coated |
| Height | 1947 mm |
| Width | 864 mm |
| Depth | 620 mm |
| Internal height | 1626 mm |
| Internal width | 750 mm |
| Internal depth | 519 mm |
| Container size | small containers |
| Hazard class | for flammable media in work rooms in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3) |
| Ventilation | ventilation connection (NW 75) |
| Body colour | charcoal |
| Door type | hinged door |
| Lock type | profile cylinder |
| Number of doors | 1 pcs. |
| Number of shelves | 3 pcs. |
| Shelf material | sheet steel |
| Max. shelf load | 75 kg |
| Shelf height adjustment increments | 32 mm |
| Number of sump trays | 1 pcs. |
| Base sump tray capacity | 22 l |
| Product type | hazardous goods storage cupboards, fire resistant |
| Supplied | assembled |
| Weight | 216.7 kg |
| Door colour | safety yellow |
Sustainability
Product with potential for future improvement
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.
You can find out more about product evaluation and our sustainability initiative on our information page.
