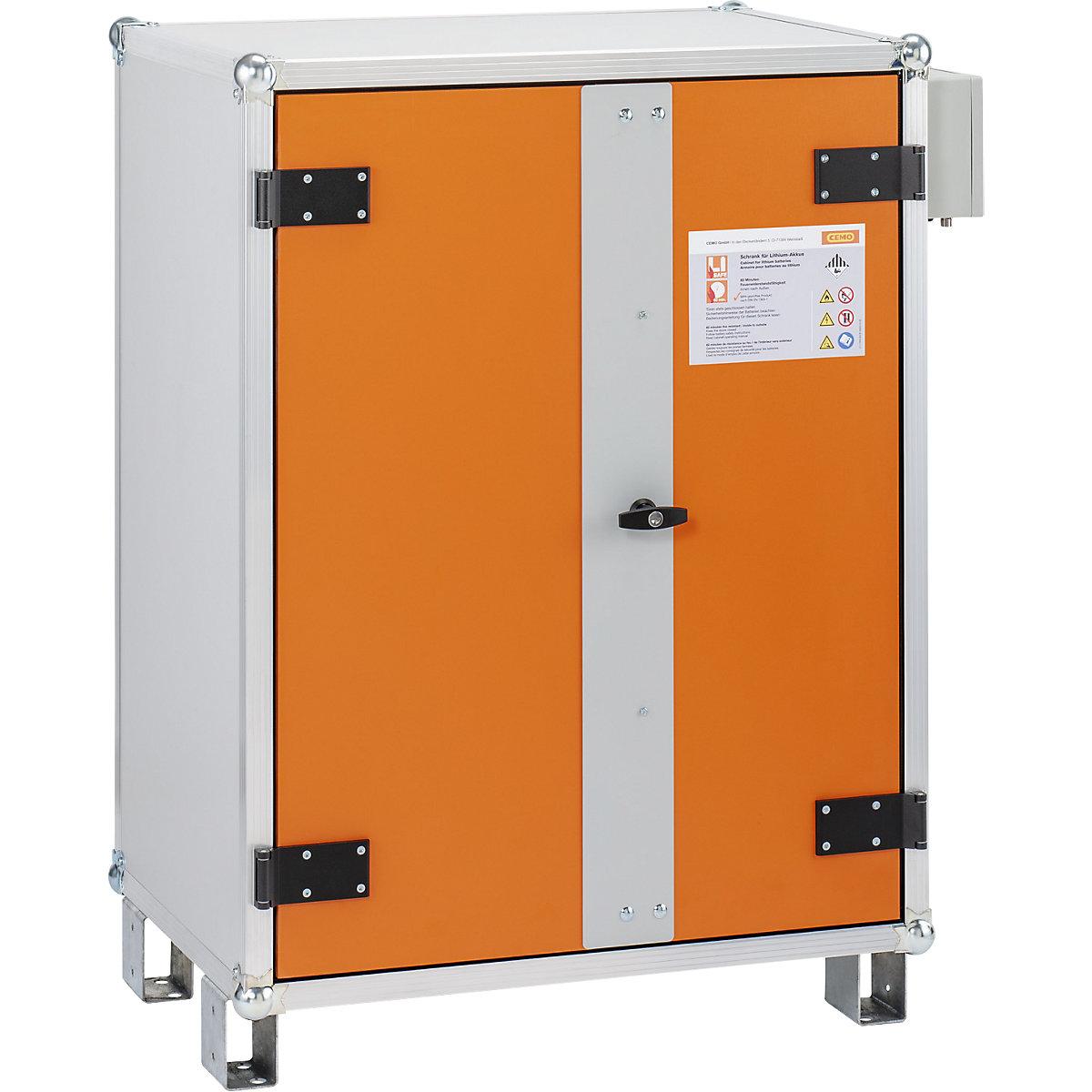

PREMIUM PLUS safety battery charging cabinet – CEMO DxH 660 x 1110 mm
230 V, orange/grey
Width [mm]
Ref.: 788769 49
PREMIUM PLUS safety battery charging cabinet – CEMO DxH 660 x 1110 mm
230 V, orange/grey
230 V, orange/grey
Width [mm]
£5,590.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£5,590.00
Price / item (Excl. VAT)
Product description
- Safe charging and storage of multiple lithium ion batteries in the cabinet
- Spring loaded door lock for controlled pressure relief in the event of explosions
- MPA tested fire resistance for more than 60 minutes from the inside to the outside
Most fires involving rechargeable lithium batteries that have been investigated occurred during charging.
The storage and charging of lithium batteries must therefore be kept strictly separate for safety reasons.
Fire protection is particularly important when charging rechargeable lithium batteries. Safety battery charging cabinets allow the consequences of fires to be reduced to a minimum and safety at the company to be improved significantly.
Advantages:

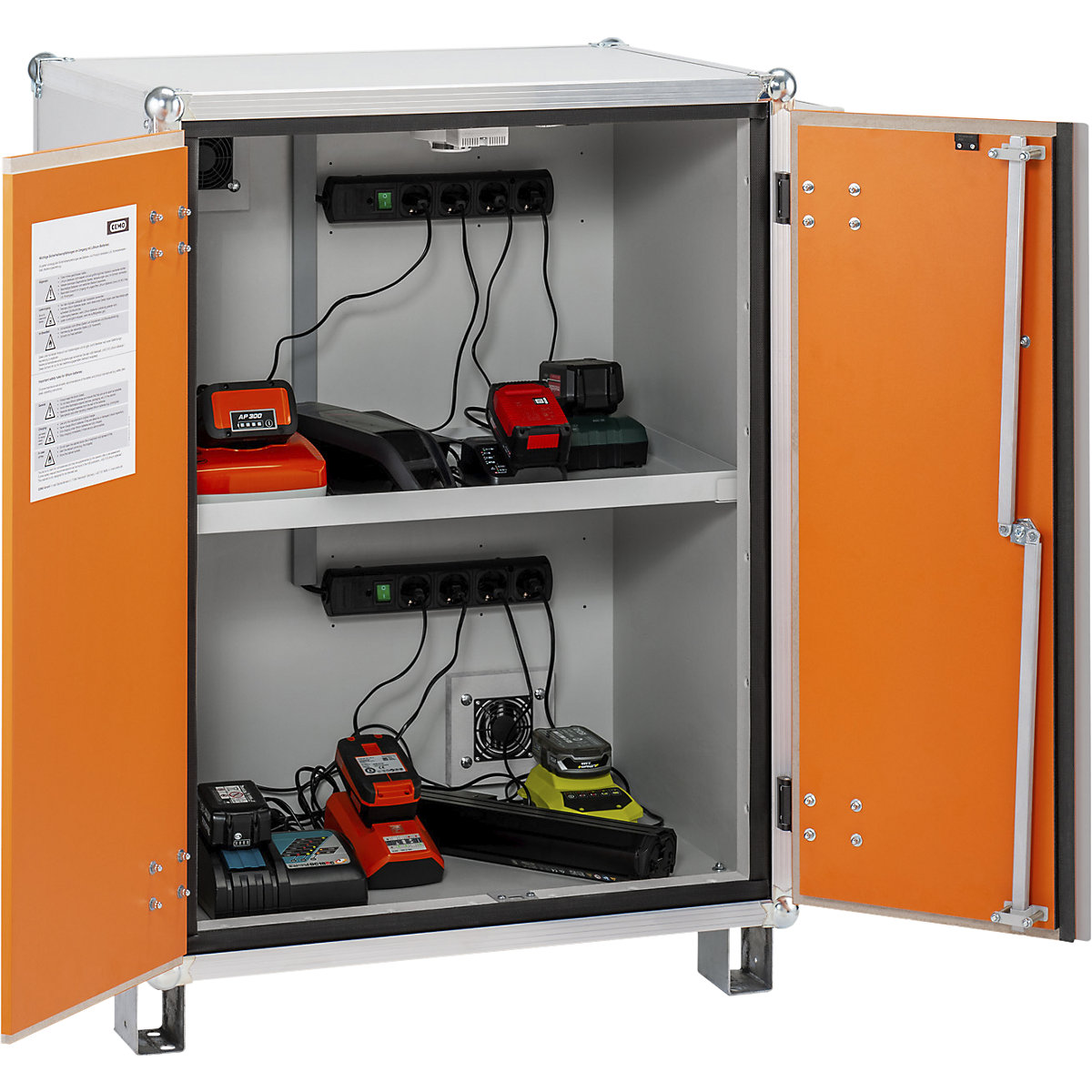

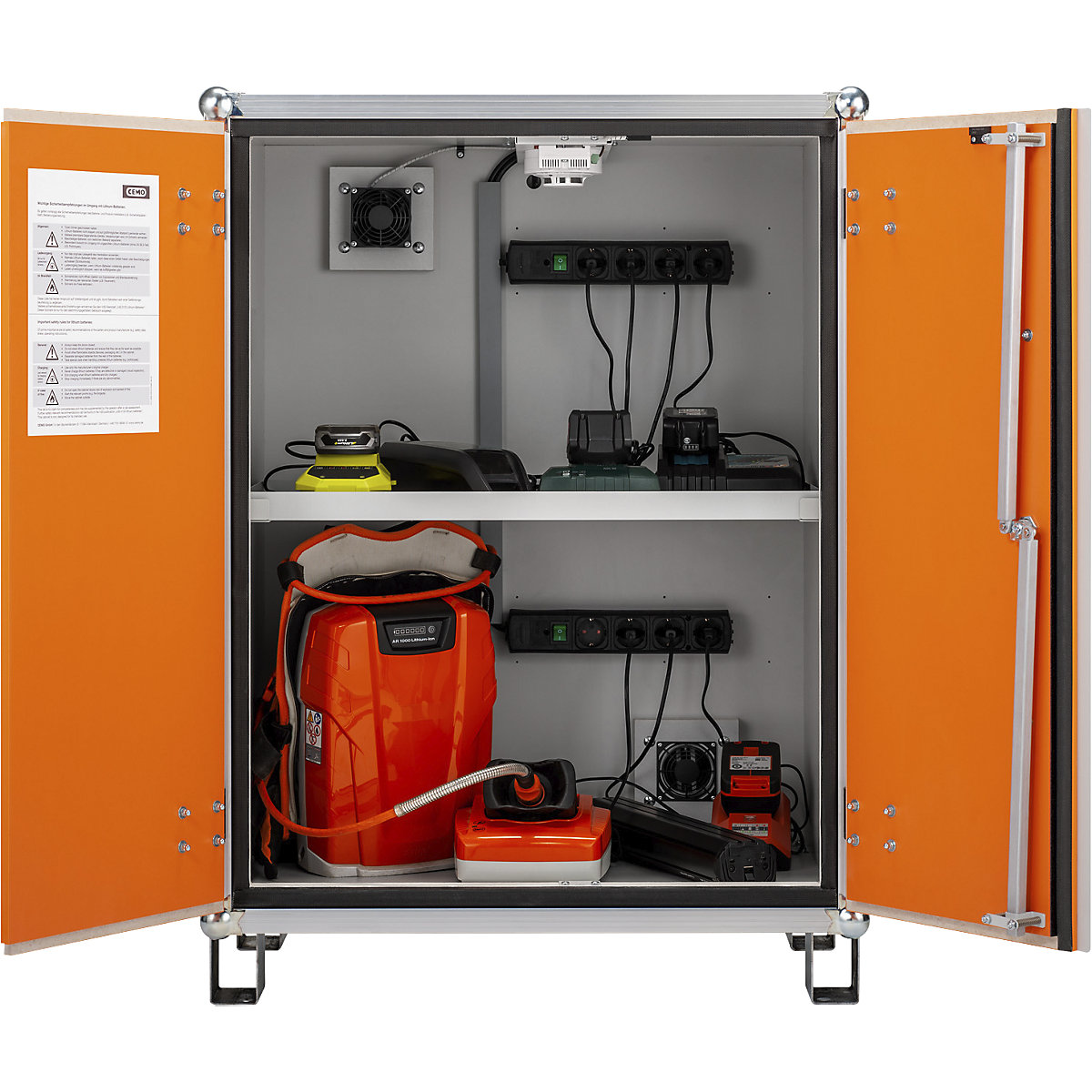

– Charge several rechargeable lithium batteries in the cabinet
– Early alert in the event of damage
– All safety rules relevant for charging lithium batteries are complied with
– Ideal for isolating batteries from stock in storage when charging them
Model:

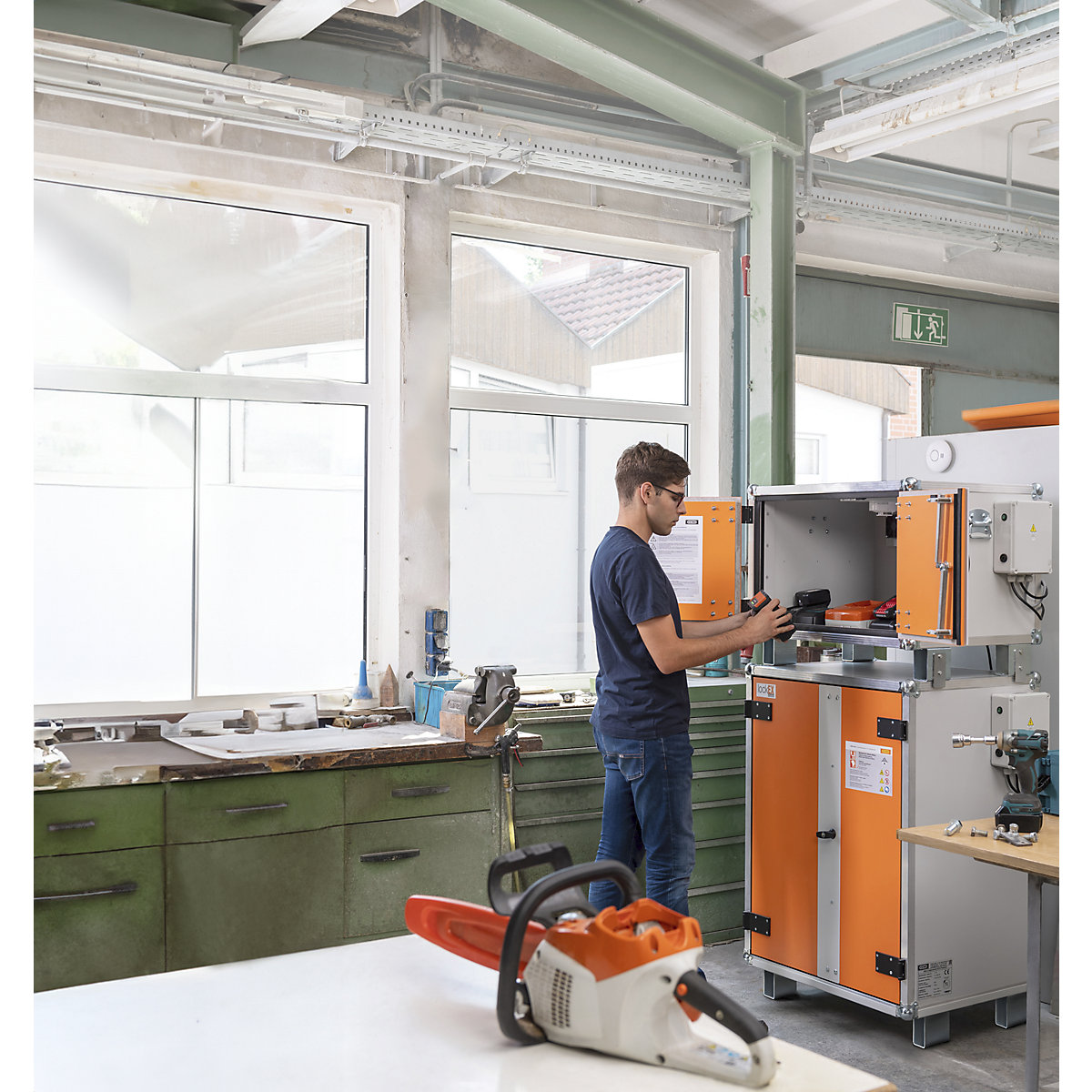

– Can also be used as a cupboard underneath the workbench
– Construction with non-combustible, fire resistant components
– Spring loaded lockEX door lock for controlled pressure relief in the event of explosions
– Special fire protection seals prevent escape of flames
– Cold smokeproof locking system for the openings
– Can be transported for positioning at the installation location

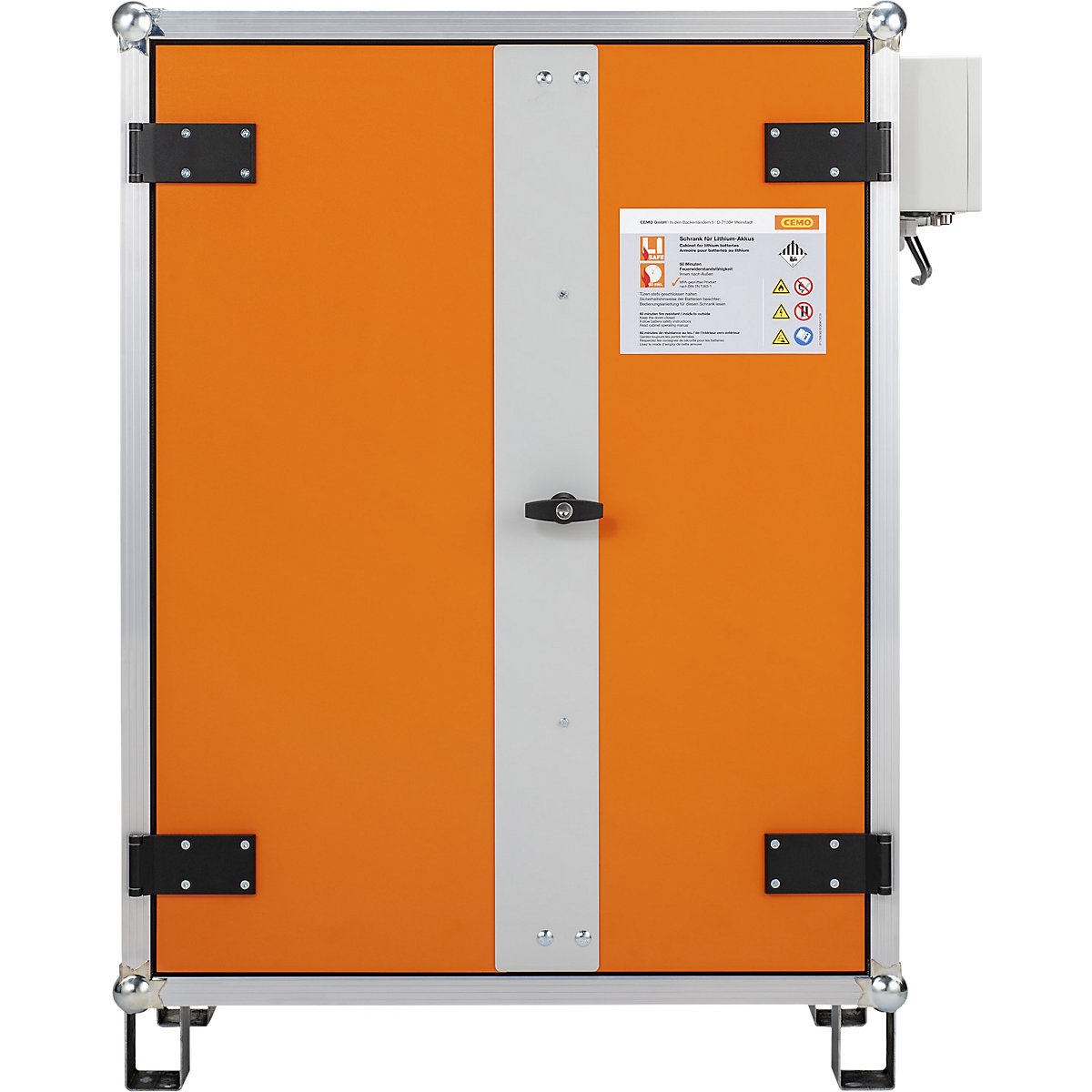

– Lockable double doors with sturdy lock and hinges
– Door painted in orange, similar to RAL 2004, body in grey, similar to RAL 7035
Safety when charging:
– TÜV NORD Group verification provided within the latest test programme with real battery fire tests and induced gas explosions
– MPA tested fire resistance for more than 60 minutes from the inside to the outside, based on EN 1363-1
Features:

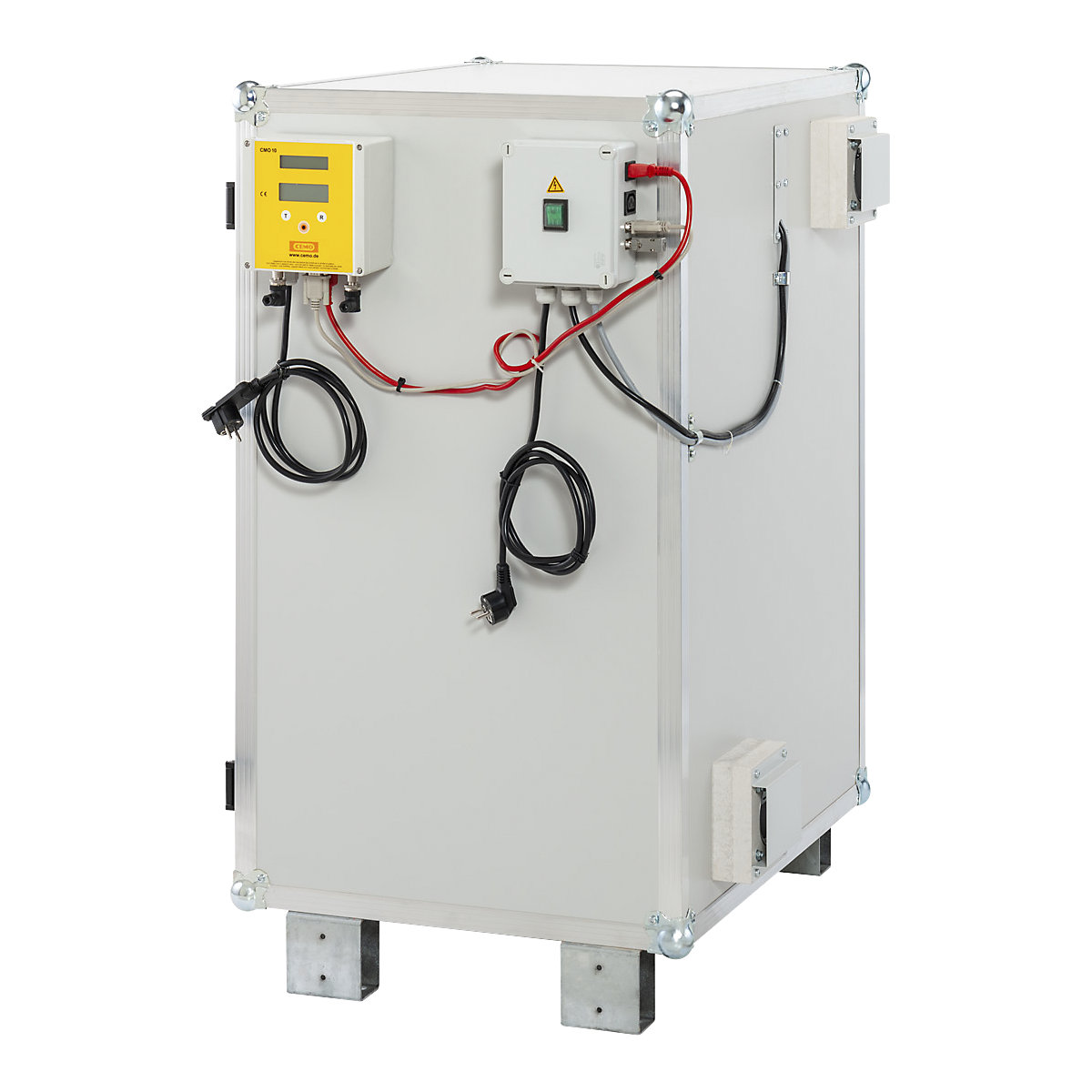

Mains powered smoke detector, zero current activated by door contact switch or in the event of smoke detection, and zero potential output for connection to a fire alarm system on the outside of the cabinet. Acoustic warning tone, interior temperature display, remote alarm to mobile phone by means of SIM card (not included with delivery), additional functions by means of remote access, 12 V connection option on the outside of the cabinet for e.g. combination alarm device (optical and acoustic) available as an accessory.
The storage and charging of lithium batteries must therefore be kept strictly separate for safety reasons.
Fire protection is particularly important when charging rechargeable lithium batteries. Safety battery charging cabinets allow the consequences of fires to be reduced to a minimum and safety at the company to be improved significantly.
Advantages:
– Charge several rechargeable lithium batteries in the cabinet
– Early alert in the event of damage
– All safety rules relevant for charging lithium batteries are complied with
– Ideal for isolating batteries from stock in storage when charging them
Model:
– Can also be used as a cupboard underneath the workbench
– Construction with non-combustible, fire resistant components
– Spring loaded lockEX door lock for controlled pressure relief in the event of explosions
– Special fire protection seals prevent escape of flames
– Cold smokeproof locking system for the openings
– Can be transported for positioning at the installation location
– Lockable double doors with sturdy lock and hinges
– Door painted in orange, similar to RAL 2004, body in grey, similar to RAL 7035
Safety when charging:
– TÜV NORD Group verification provided within the latest test programme with real battery fire tests and induced gas explosions
– MPA tested fire resistance for more than 60 minutes from the inside to the outside, based on EN 1363-1
Features:
Mains powered smoke detector, zero current activated by door contact switch or in the event of smoke detection, and zero potential output for connection to a fire alarm system on the outside of the cabinet. Acoustic warning tone, interior temperature display, remote alarm to mobile phone by means of SIM card (not included with delivery), additional functions by means of remote access, 12 V connection option on the outside of the cabinet for e.g. combination alarm device (optical and acoustic) available as an accessory.
Technical data
| Height | 1110 mm |
|---|---|
| Depth | 660 mm |
| Internal height | 880 mm |
| Internal width | 730 mm |
| Internal depth | 530 mm |
| Fire resistance | 60 minutes |
| Power supply | 2 x 6 fold (230 V) |

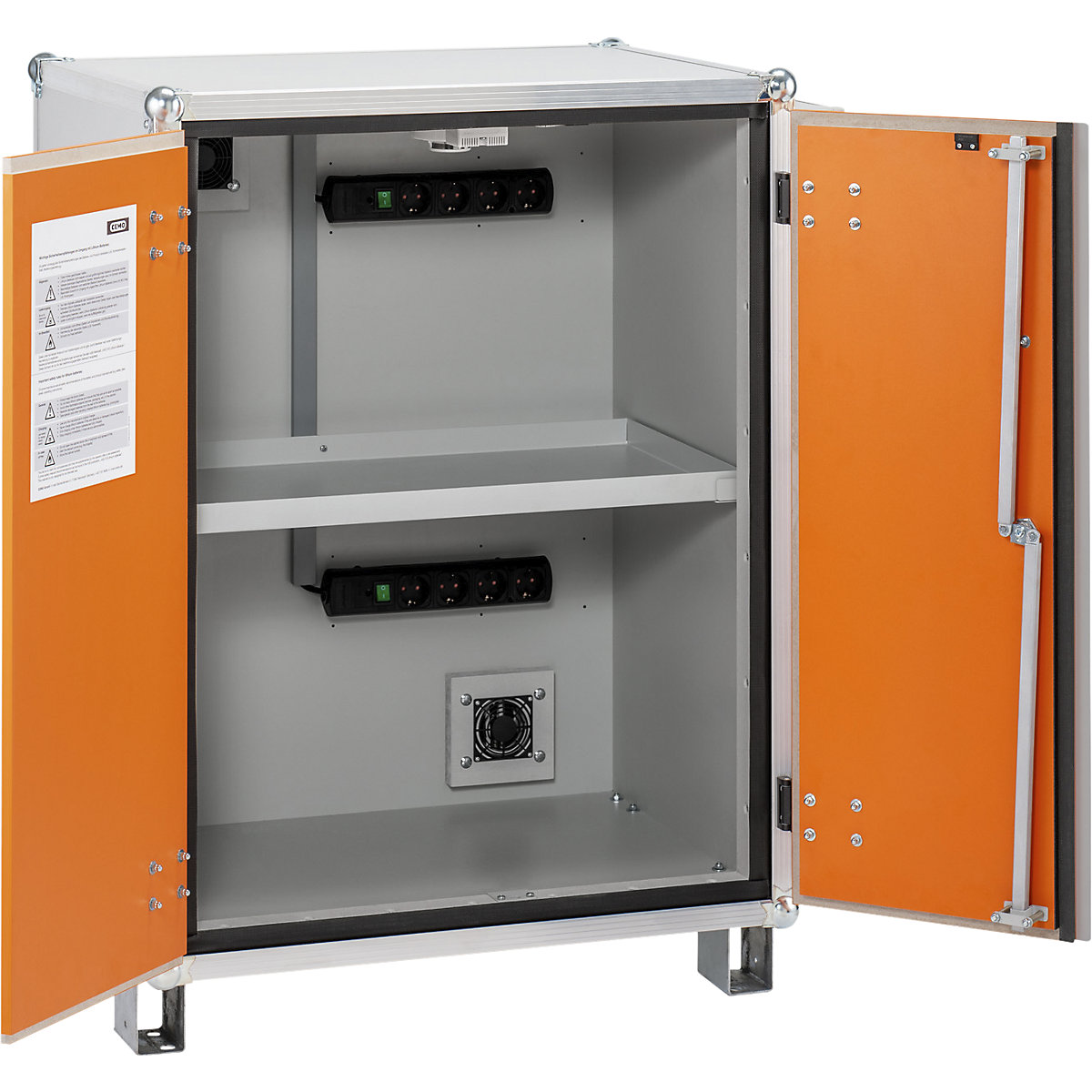

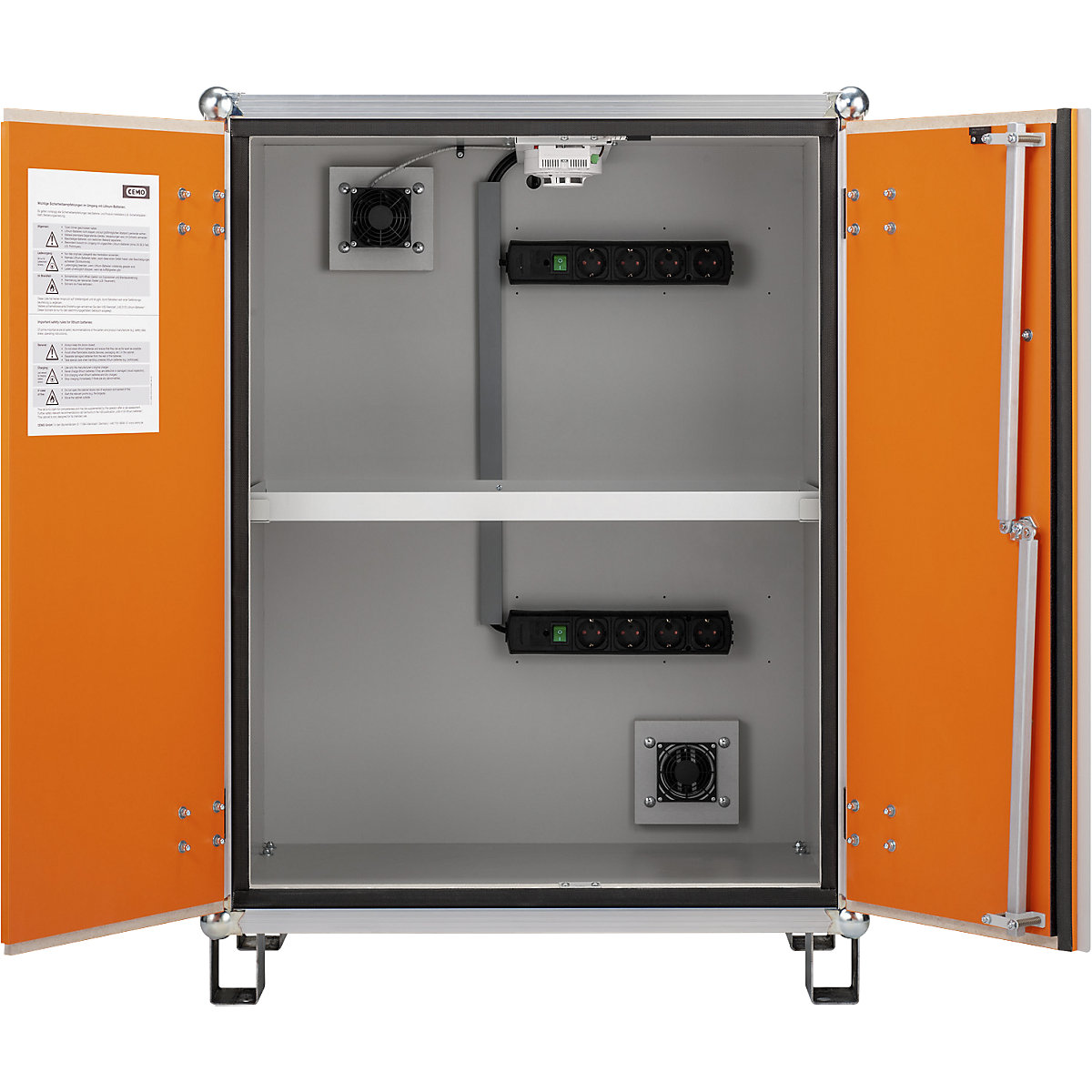

| Internal fittings | smoke detector, fan, door contact switch, 2 x 6 socket trailing socket, zero current in the event of heat and smoke development, acoustic warning tone, option for connection to fire alarm system, 12 V connection option, interior temperature display, alarm sent by SMS, additional functions available using remote access |
| Fittings | with feet |
| Ventilation | ventilation opening with fan and ventilation holes |
| Material | special fire resistant boards |
| Number of shelves | 1 pcs. |
| Shelf material | sheet steel, powder coated |
| Body colour | light grey RAL 7035 |
| Door colour | pure orange RAL 2004 |
| Lock type | rotary bolt |
| Door type | hinged door |
| For media | lithium-ion batteries/rechargeable batteries |
| Product type | battery charging safety cabinets |
| Supplied | assembled |
| Width | 890 mm |
| Mains voltage | 230 V |
| Weight | 135 kg |
| Instructions |
