Ref.: 547021 49

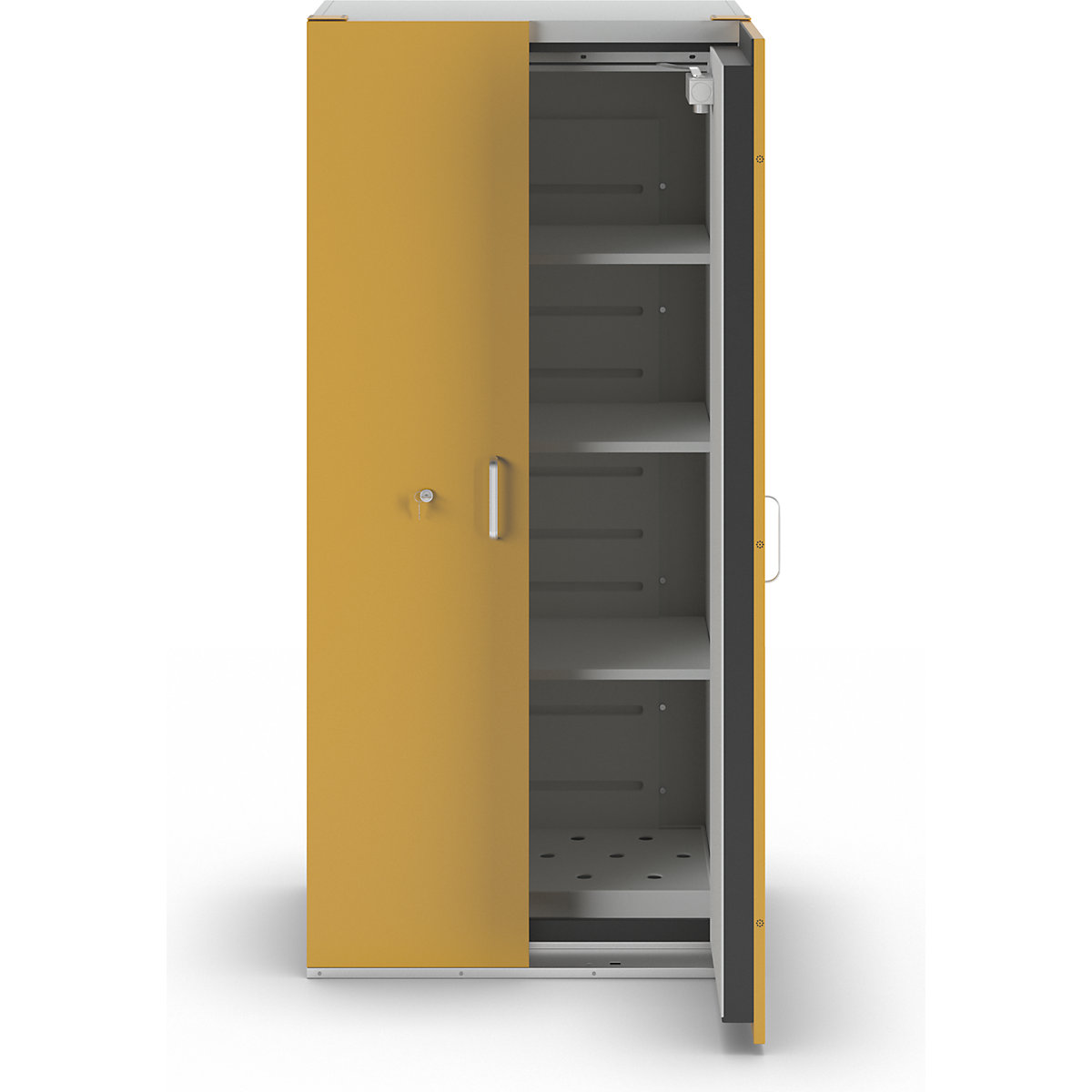

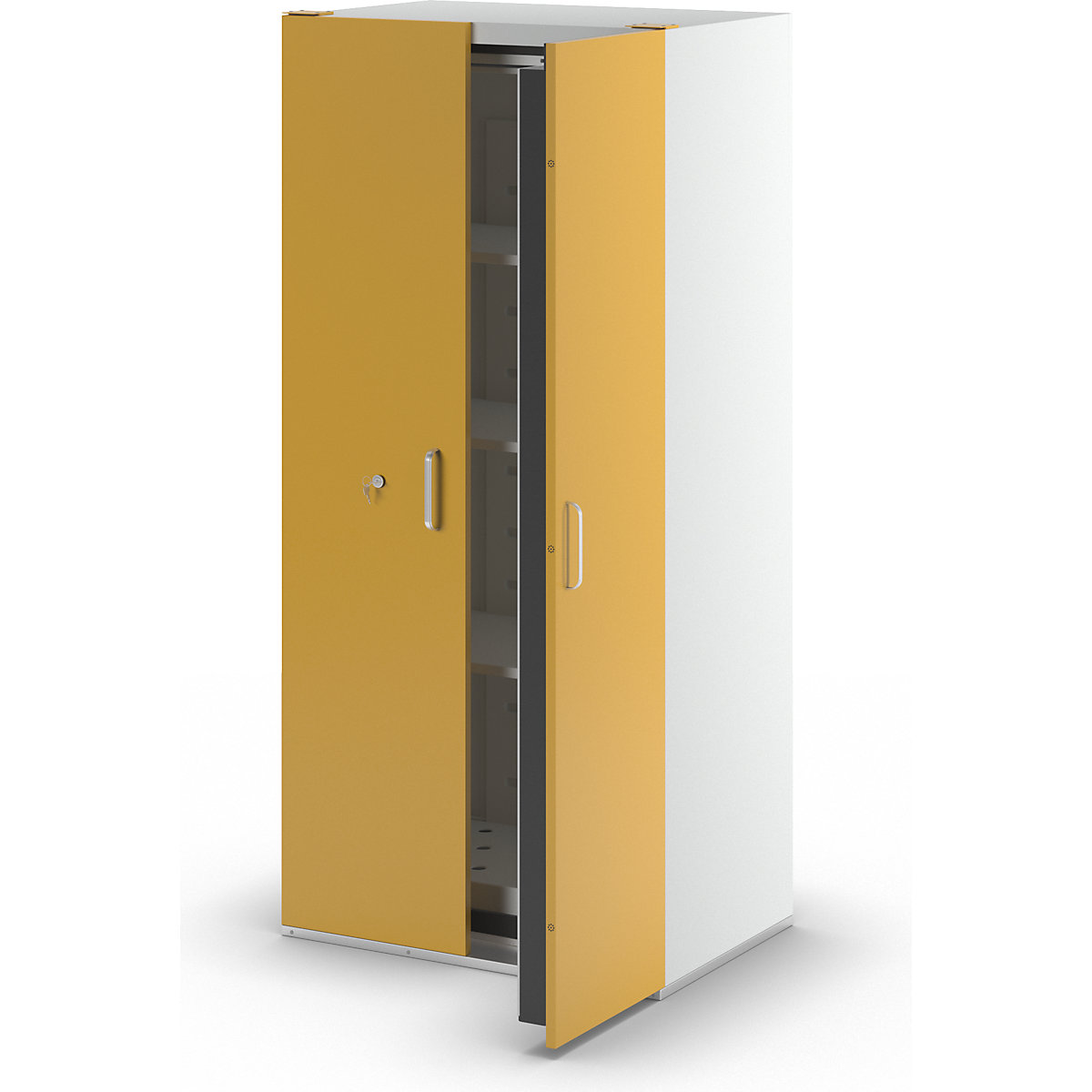

Fire resistant hazardous goods storage cupboard type 90 – LaCont 2 doors
HxWxD 1935 x 900 x 598 mm
Width [mm]
Ref.: 547021 49
Fire resistant hazardous goods storage cupboard type 90 – LaCont 2 doors
HxWxD 1935 x 900 x 598 mm
HxWxD 1935 x 900 x 598 mm
Width [mm]
£3,050.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£3,050.00
Price / item (Excl. VAT)
Product description
- Approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 90) and TRGS 510, Annex 3
- Type approved as fireproof for >90 minutes, GS tested
- Insulated in accordance with DIN 4102
- Doors close automatically in the event of fire
- Supplied complete with perforated metal cover for the base sump
- Operation in accordance with TRGS 510 (also approved without extraction – the explosion protected area around the cupboard must be complied with)
Safe storage of flammable liquids at the workplace with the fire-resistant hazardous material cabinet Type 90 LaCont. With a fire resistance of >90 minutes according to EN 14470-1 (Type 90) and TRGS 510, Annex 3, this cabinet offers reliable protection for your flammable liquids.
The robust construction as well as the type-tested and GS-certified fire resistance make this cabinet a reliable choice for demanding work environments. In case of fire, the doors are self-closing to quickly protect the flammable liquids. Additionally, the insulation according to DIN 4102 provides further protection. The fire-resistant hazardous material cabinet Type 90 LaCont impresses not only with its safety, but also with its functionality. Three shelves are height-adjustable in a 64 mm grid and are supplemented with a sump tray plus perforated sheet cover as the first storage level. Spilled liquids are reliably collected and accumulation on the cover is prevented by the perforated sheet.
The outer body consists of powder-coated steel sheet in light grey, the two hinged doors are lockable with a cylinder lock and powder-coated in striking daffodil yellow. The inner body made of HPL-coated panels offers high fire and chemical resistance as well as robustness and durability. This design facilitates cleaning and maintenance and ensures additional safety during the storage of hazardous materials. The bottom trim rail is made of stainless steel (Niro-Raute).
Operation of the hazardous material cabinet is approved according to TRGS 510 even without exhaust air; the Ex-zone around the cabinet must be observed. The ventilation connection via DN80 pipe stub enables an optional connection of an exhaust air system. Levelling feet for compensating uneven floors ensure optimal use in any environment (max. 3 mm height difference, adjustment is made via the 4 screws). With the fire-resistant hazardous material cabinet Type 90 LaCont, you choose the highest safety standards and reliability.
Earthing connection according to TRBS 2153 (prevention of ignition sources)
Marking according to EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3.
Interior features:
1 x sump tray according to StawaR / ÜHP
1 x perforated sheet cover as 1st storage level
3 x shelf height-adjustable in a 64 mm grid
All stated load capacities apply with even load distribution.
Doors can be locked with cylinder lock.
The robust construction as well as the type-tested and GS-certified fire resistance make this cabinet a reliable choice for demanding work environments. In case of fire, the doors are self-closing to quickly protect the flammable liquids. Additionally, the insulation according to DIN 4102 provides further protection. The fire-resistant hazardous material cabinet Type 90 LaCont impresses not only with its safety, but also with its functionality. Three shelves are height-adjustable in a 64 mm grid and are supplemented with a sump tray plus perforated sheet cover as the first storage level. Spilled liquids are reliably collected and accumulation on the cover is prevented by the perforated sheet.
The outer body consists of powder-coated steel sheet in light grey, the two hinged doors are lockable with a cylinder lock and powder-coated in striking daffodil yellow. The inner body made of HPL-coated panels offers high fire and chemical resistance as well as robustness and durability. This design facilitates cleaning and maintenance and ensures additional safety during the storage of hazardous materials. The bottom trim rail is made of stainless steel (Niro-Raute).
Operation of the hazardous material cabinet is approved according to TRGS 510 even without exhaust air; the Ex-zone around the cabinet must be observed. The ventilation connection via DN80 pipe stub enables an optional connection of an exhaust air system. Levelling feet for compensating uneven floors ensure optimal use in any environment (max. 3 mm height difference, adjustment is made via the 4 screws). With the fire-resistant hazardous material cabinet Type 90 LaCont, you choose the highest safety standards and reliability.
Earthing connection according to TRBS 2153 (prevention of ignition sources)
Marking according to EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3.
Interior features:
1 x sump tray according to StawaR / ÜHP
1 x perforated sheet cover as 1st storage level
3 x shelf height-adjustable in a 64 mm grid
All stated load capacities apply with even load distribution.
Doors can be locked with cylinder lock.
NOTE: The access height of the cupboard including packaging and exhaust duct is approx. 2200 mm. The exhaust duct on the cupboard can also be removed for transport.
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For water hazardous liquids
For toxic liquids
For flammable liquids
Technical data
| Fire resistance | 90 minutes |
|---|---|
| Material | special fire resistant boards sheet steel, powder coated |
| Height | 1935 mm |
| Transfer height | 2200 mm |
| Depth | 598 mm |
| Body colour | light grey RAL 7035 |
| Door colour | daffodil yellow RAL 1007 |
| Internal height | 1700 mm |
| Internal depth | 430 mm |
| Door type | hinged door |
| Lock type | cylinder lock |
| Number of shelves | 3 pcs. |
| Shelf material | sheet steel |
| Max. shelf load | 75 kg |
| Shelf height adjustment increments | 64 mm |
| Number of sump trays | 1 pcs. |
| Product type | hazardous goods storage cupboards, fire resistant |
| Supplied | assembled |
| Width | 900 mm |
| Internal width | 797 mm |
| Door version | 2 doors |
| Number of doors | 2 pcs. |
| Base sump tray capacity | 29.5 l |
| Weight | 395 kg |
