Ref.: 572111 49

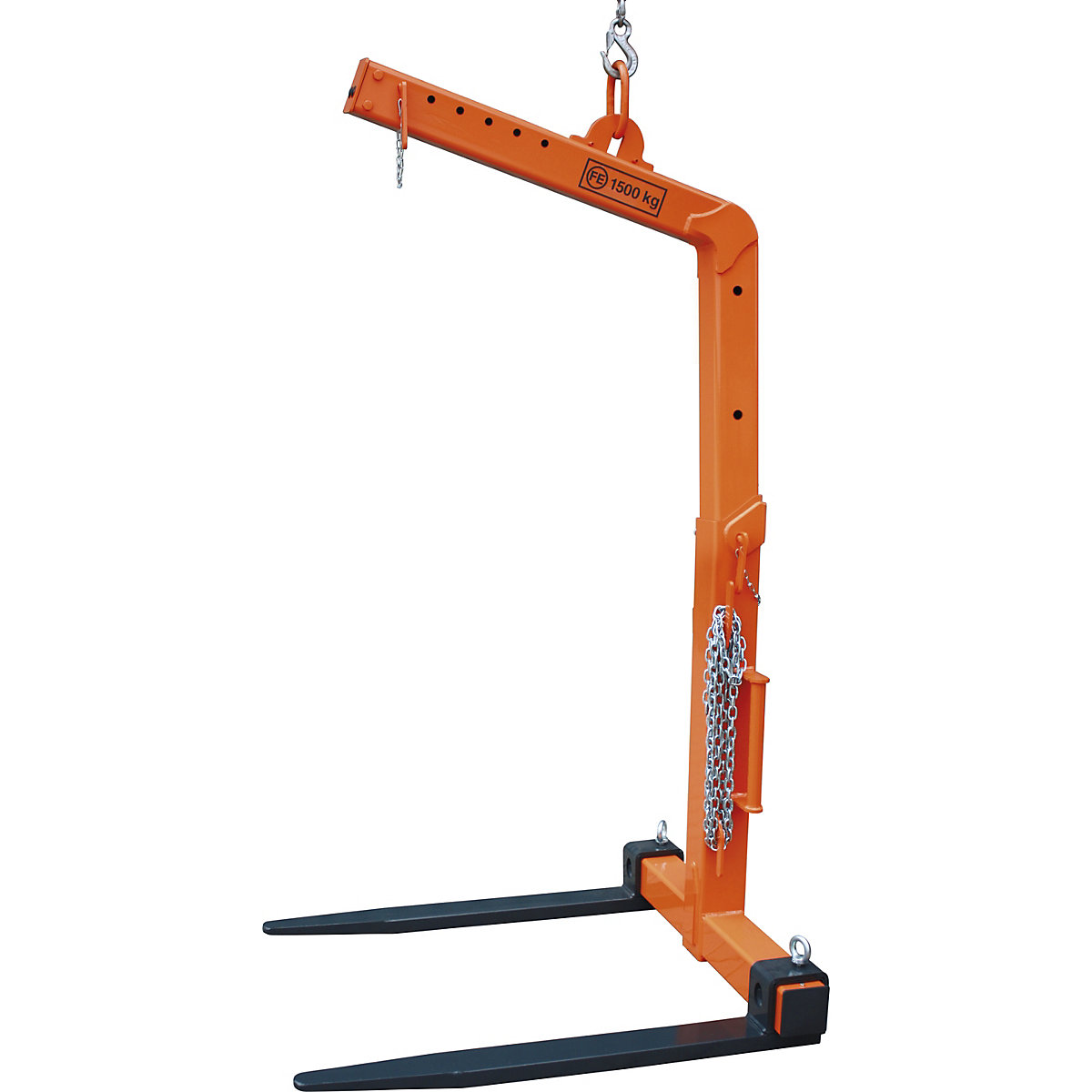

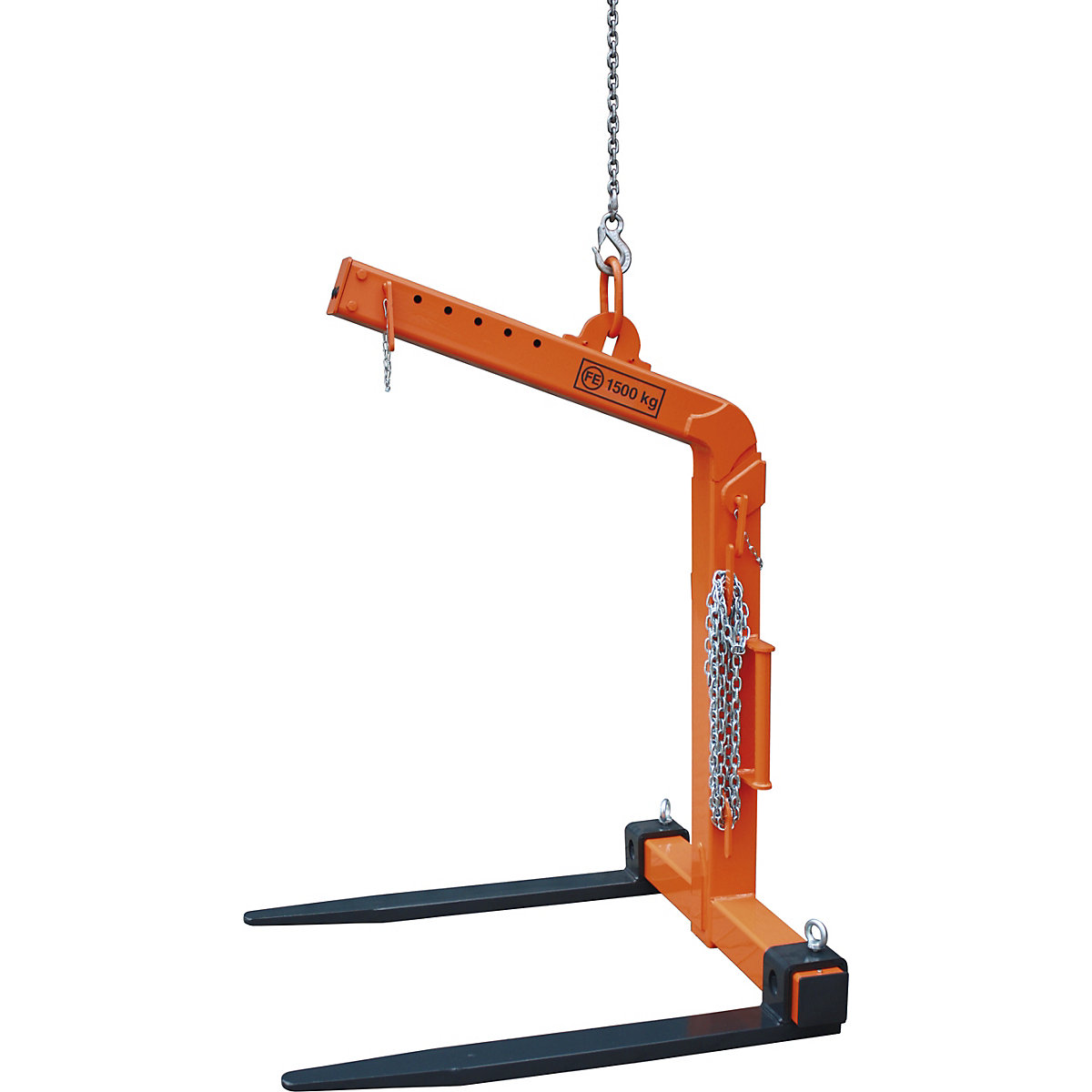

Balanced crane fork, automatic – Eichinger effective height 1150 – 1750 mm, standard

Balanced crane fork, automatic – Eichinger

max. load 600 kg

Max. load [kg]
£1,150.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Product description
  • Automatically balanced weights against spring pressure

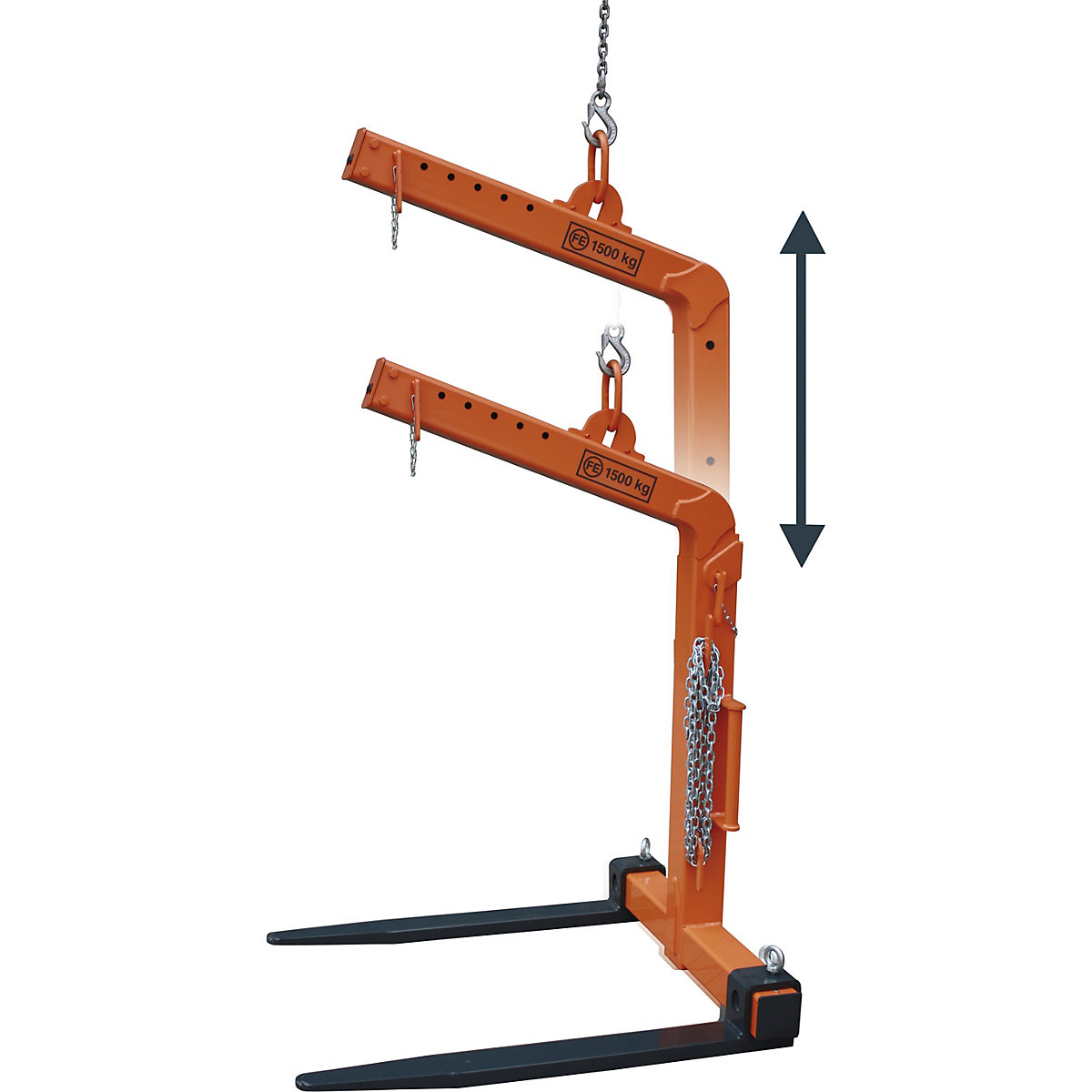

  • Adjustable effective height
  • Infinitely adjustable fork width
With automatically balanced weights against spring pressure.
Ball bearing mounted, maintenance free PVC roller guide in the support arm.

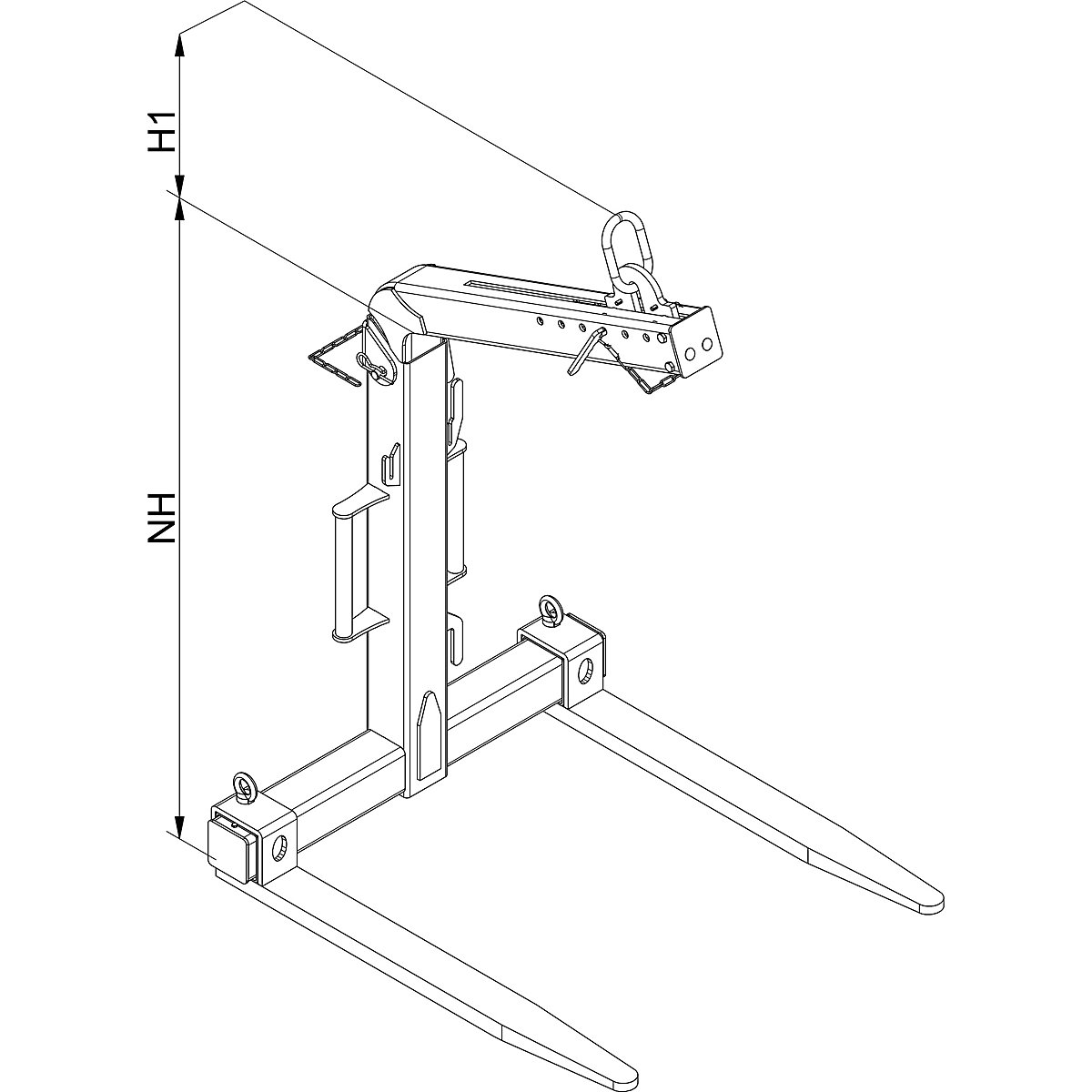

Infinite width adjustment by manually moving the forks from 450 – 950 mm. Effective height can be adjusted from 1150 – 1750 mm using locking pins.
Standard fork length 1 m.
Supplied complete with 4 m safety chain.

Forks made of solid material.

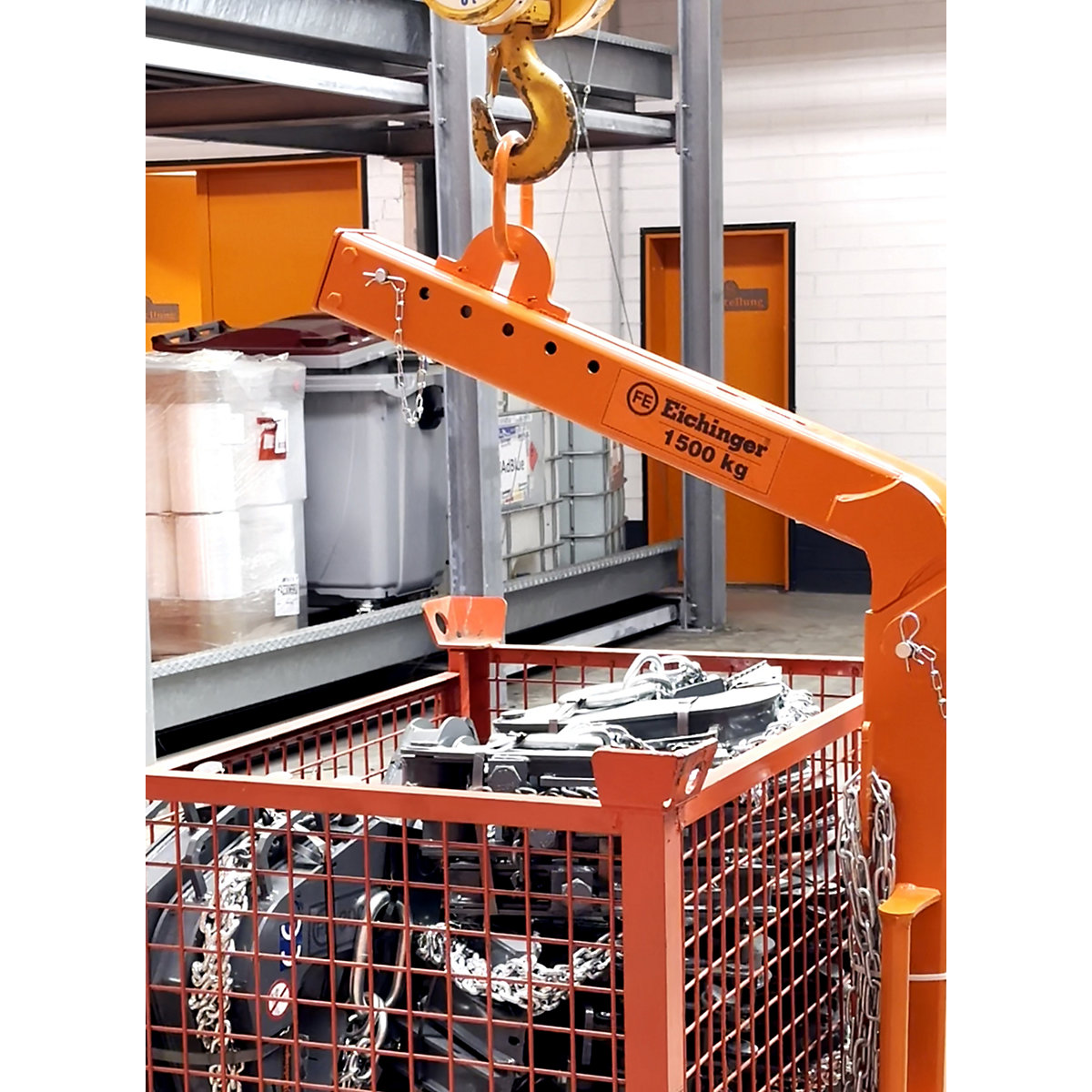

Available upon request with safety cage or loading box in normal size or in any other special size required.
The automatically balanced weights function optimally at a load capacity of 30% or more.
Technical data
Load centre680 mm
Effective height from1150 mm
Fork length1000 mm
Weight compensationautomatic
Materialsteel, painted
Colourpure orange RAL 2004
Effective height up to1750 mm
Fork adjustment range450 – 950 mm
Product typecrane forks
Suppliedassembled
Max. load600 kg
Fork width80 mm
Thickness of fork prong40 mm
Weight130 kg
