Electric wire rope winch max. load 80 kg
wire rope length 23 m
Ref.: 604998 49
Electric wire rope winch max. load 80 kg
wire rope length 23 m
wire rope length 23 m
Ref.: 604998 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Automatic shut down as soon as the rope is wound
- Immediately ready for use with rope and safety hooks
- Hooks rotate 360° with safety lock

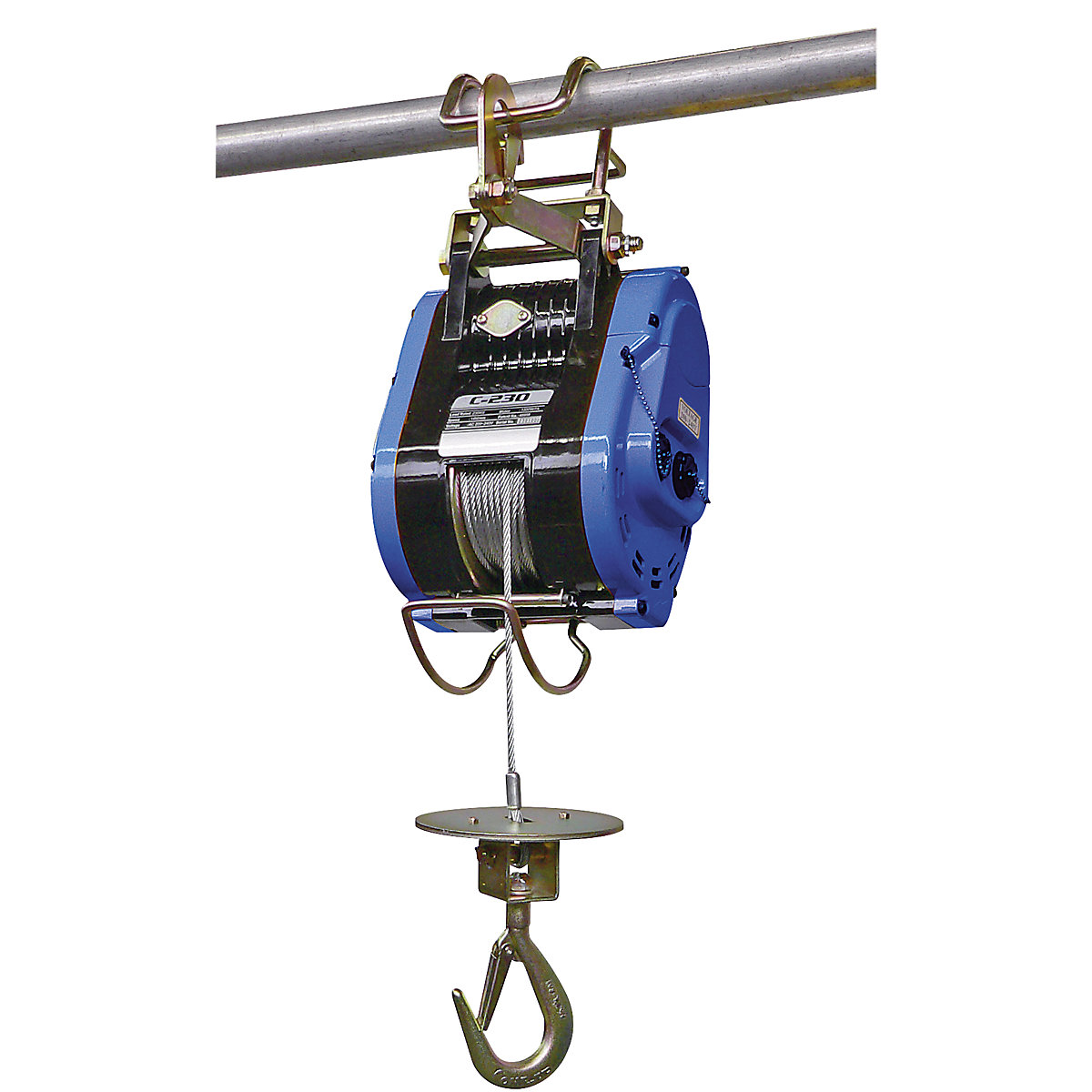

This wire rope winch is particularly easy to install due to its light and compact design. As soon as the sheave touches the limit arm when raising the load, it stops automatically. The integrated loading pressure brake ensures the brakes act immediately.
Technical details
– Motor protection IP44
– Control IP65, water protected with EMERGENCY-off
– Mains voltage 230 V, cable 5 m
Technical details
– Motor protection IP44
– Control IP65, water protected with EMERGENCY-off
– Mains voltage 230 V, cable 5 m

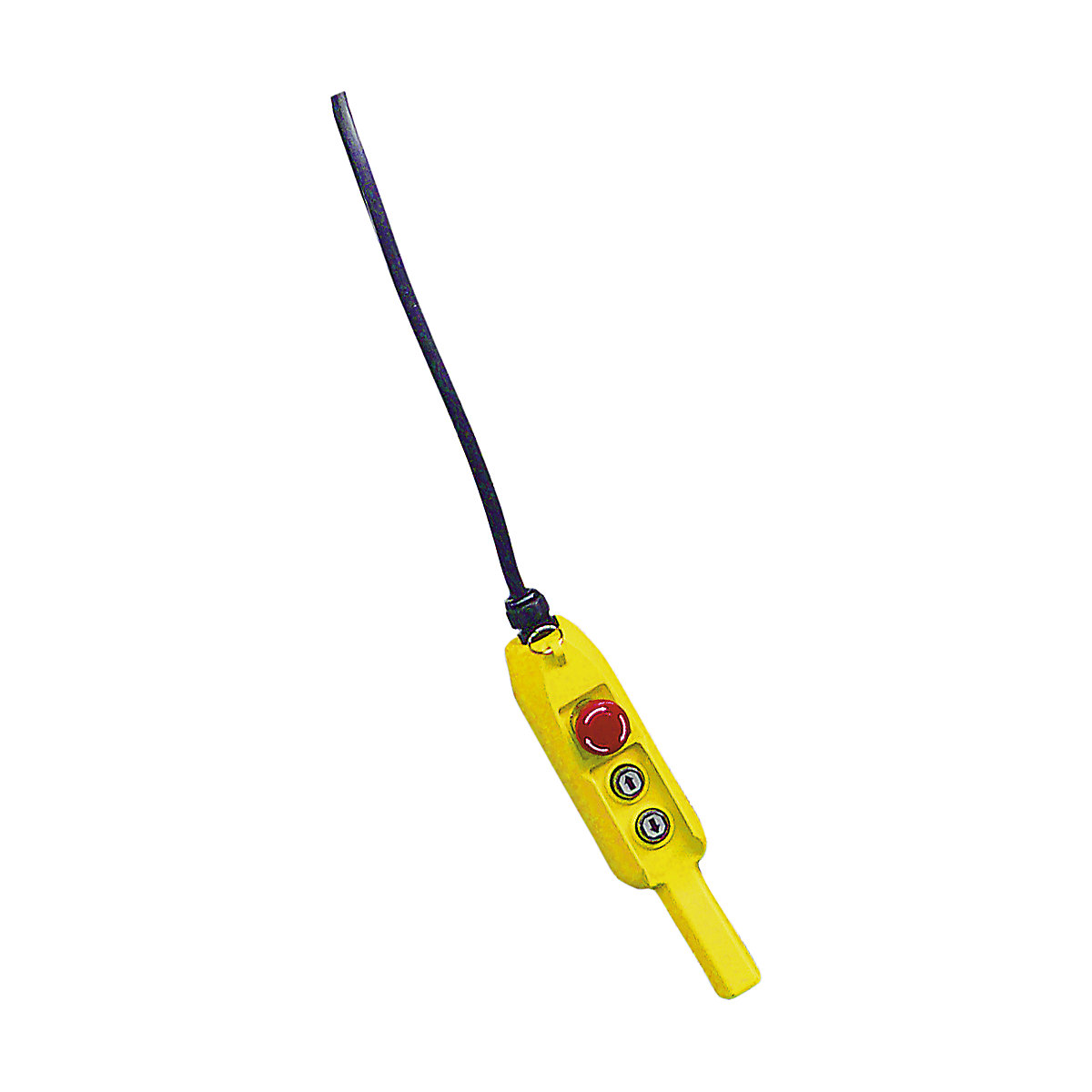

Remote control with 10 m cable as standard.
Technical data
Max. load | 80 kg |
---|---|
Wire rope length | 23 m |
Wire rope speed | 18 – 30 m/min |
Voltage | 230 V |
Power | 0.8 kW |
Strength of current | 4 A |
Cable length | 5 m |
Weight | 18 kg |
Protection type | IP44 |
Product type | cable winches for construction |
Supplied | assembled |
