Ref.: 756238 49

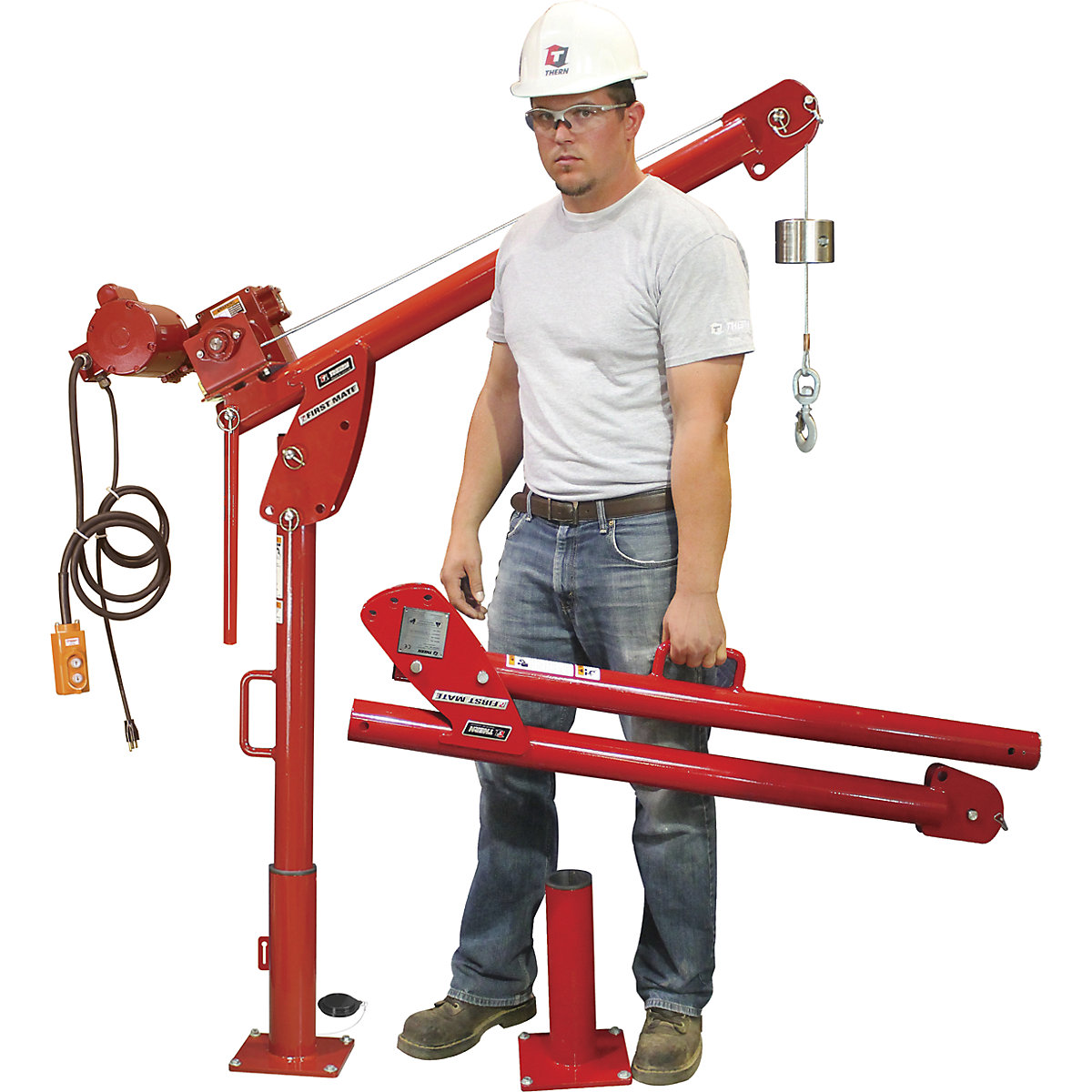

First Mate portable davit crane – Thern stainless steel
max. load 385 kg
Ref.: 756238 49
First Mate portable davit crane – Thern stainless steel
max. load 385 kg
max. load 385 kg
£4,790.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£4,790.00
Price / item (Excl. VAT)
Product description
- Complete crane set, stainless steel, with manual wire rope winch, base mount and steel rope with load hook
- Ideally suited for changing locations
- Swivels 360°
Fixed crane arm length, adjustable crane arm angle for three different operating positions, folds together for transport and storage. Virtually unlimited areas of use.
Whether on construction sites, roofs of buildings, silos or ships – the areas of use for these cranes is virtually unlimited.
Do you need the crane somewhere else? No problem! Its low weight and the innovative snap fastenings allow it to be removed within minutes and be set up somewhere else, and all this without tools.
Supplied complete with: stainless steel crane, stainless steel manual wire rope winch with spur gear transmission, stainless steel base mount platform (without set of bolts for mounting, see Accessories), stainless steel rope with load hook, Ø 4.8 mm, length 13.7 m.
Whether on construction sites, roofs of buildings, silos or ships – the areas of use for these cranes is virtually unlimited.
Do you need the crane somewhere else? No problem! Its low weight and the innovative snap fastenings allow it to be removed within minutes and be set up somewhere else, and all this without tools.
Supplied complete with: stainless steel crane, stainless steel manual wire rope winch with spur gear transmission, stainless steel base mount platform (without set of bolts for mounting, see Accessories), stainless steel rope with load hook, Ø 4.8 mm, length 13.7 m.
Technical data
| Max. load | 385 kg |
|---|---|
| Max. load (at jib length mm) | 609 mm – 385 kg, 889 mm – 272 kg, 1066 mm – 225 kg |
| Width | 1066 mm |
| Height | 1778 mm |
| Length | 1066 mm |
| Lifting height max. cantilever arm extended | 1778 mm |
| Max. crane arm length | 1066 mm |
| Min. crane arm length | 609 mm |
| Finish | stainless steel |
| Max. hook height with max. crane arm angle | 1778 mm |
| Max. hook height with min. crane arm angle | 1016 mm |
| Weight | 44 kg |
| Product type | slewing cranes |
| Supplied | pre-assembled, final assembly by customer |
