Ref.: 543916 49

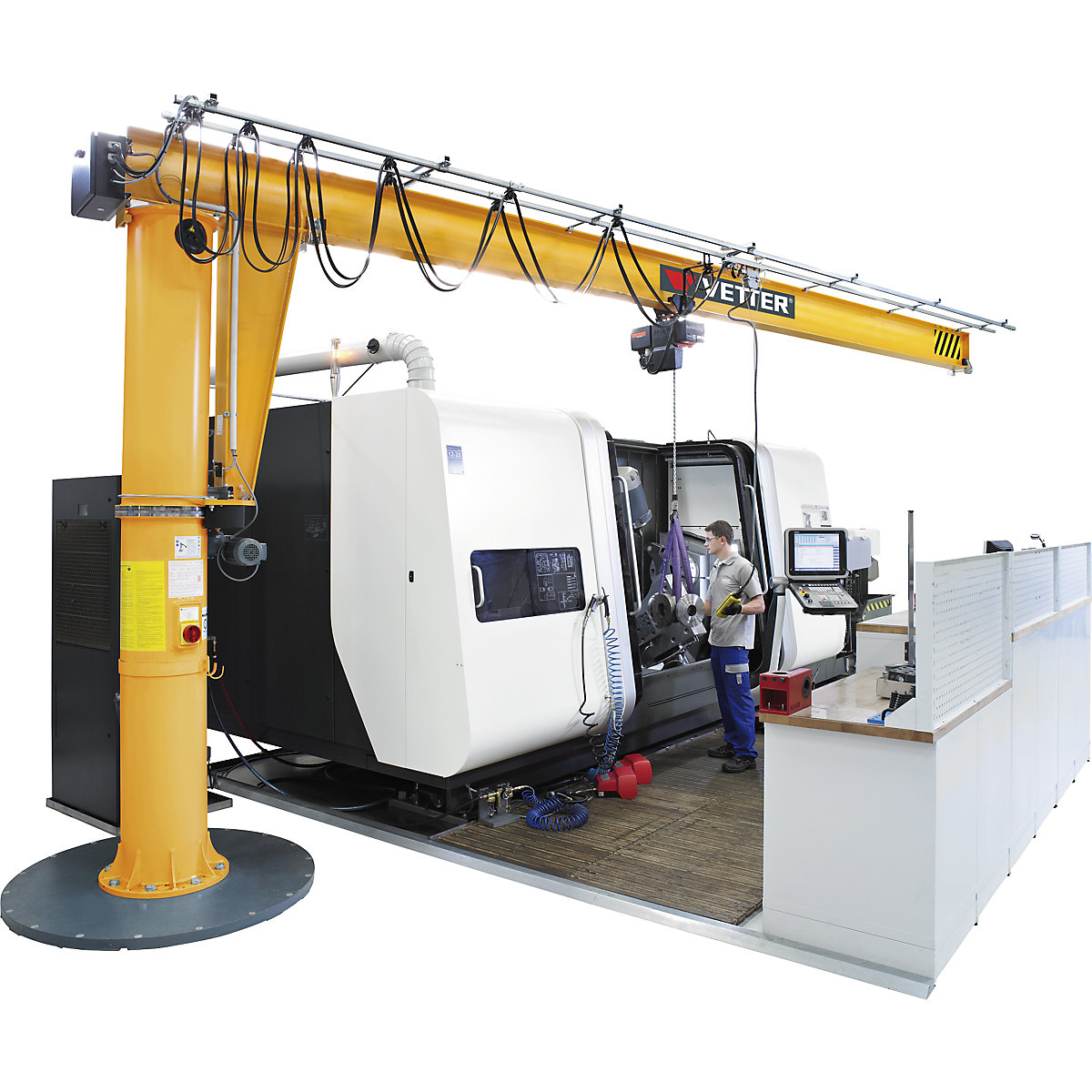

MEISTER M post mounted jib crane – Vetter with HF electric chain hoist, max. load 500 kg

MEISTER M post mounted jib crane – Vetter

reach 3 m

Flange width [mm]
Overall height [mm]
Reach [mm]
£10,400.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Product description
  • Swivels continuously through 360° due to power supply through slip ring housing
  • High quality coating
  • Includes SECURING ANCHOR system VAS2 for fast and easy assembly
The powerful, robust MEISTER post mounted jib crane is the world's most manufactured crane in its class.
The technical specifications for these cranes makes it necessary to manufacture them to order – no right of return.
Technical data
Max. load500 kg
Operating voltage400 V
Swivel range360°
Design of rotary cranecrane with electric chain hoist and manual drive dolly
Height of lifting gear480 mm
Main lift4.5 m/min
Precise lift1.1 m/min
Crane jib bottom edge3300 mm
Control voltage24 V
Lifting height2820 mm
Colourdaffodil yellow RAL 1007
Product typepost mounted jib cranes
Suppliedflat pack
Flange width120 mm
Overall height3610 mm
Reach3000 mm
Weight553 kg
