Ref.: 563519 49

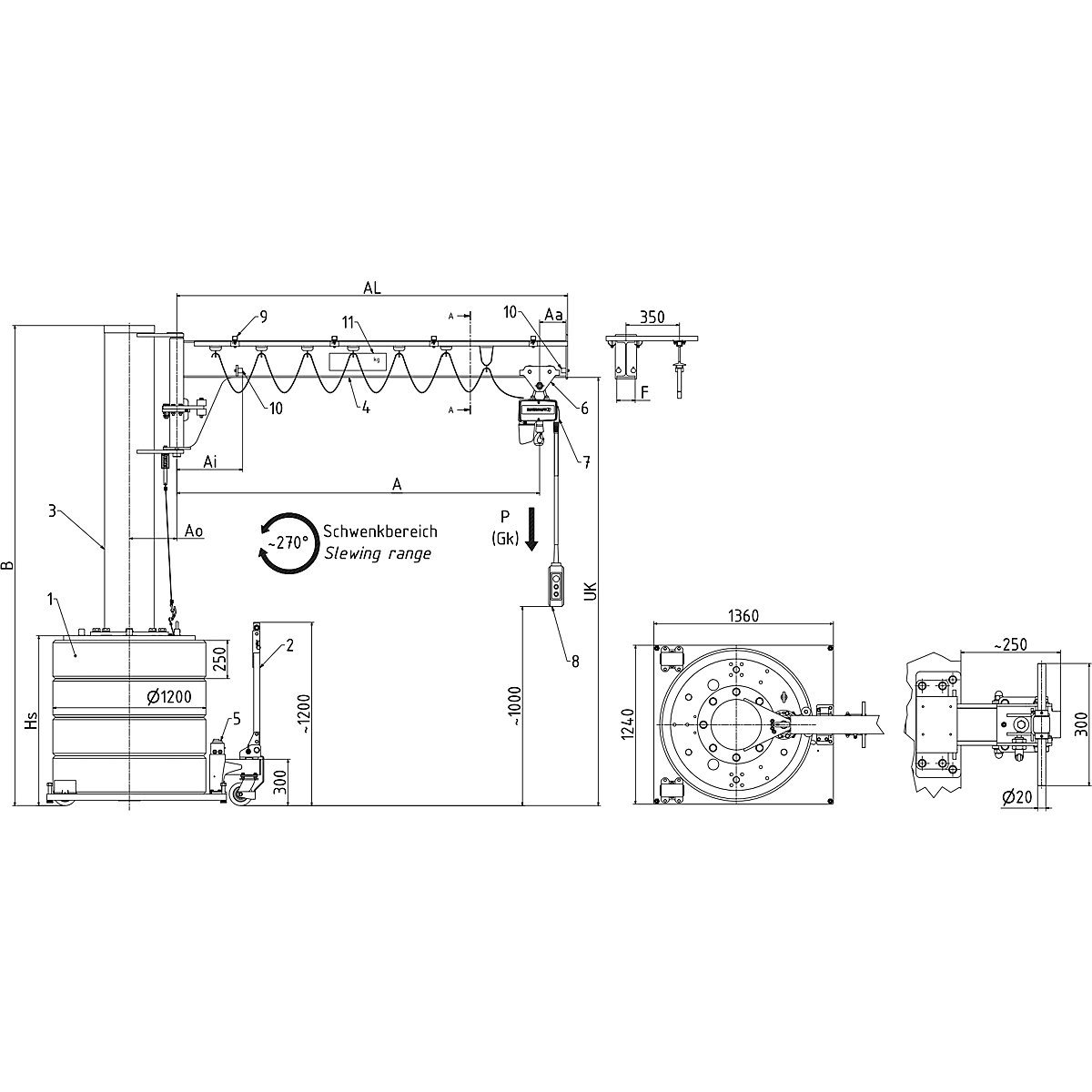

Mobile post mounted jib crane – Vetter slewing range 270°, max. load 125 kg
reach 3.0 m
Overall height [mm]
Reach [mm]
Ref.: 563519 49
Mobile post mounted jib crane – Vetter slewing range 270°, max. load 125 kg
reach 3.0 m
reach 3.0 m
Overall height [mm]
Reach [mm]
£12,400.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£12,400.00
Price / item (Excl. VAT)
Product description
- No anchoring to factory floor required
- Suitable for versatile use and fast to move
- Modular base weight design
Classification in accordance with EN 13001 HC2 S2 HD2 for light-duty industrial use.
Locks in position and three eyelets for crane transport. Eyelet for securing the electric chain hoist during transport. Operating voltage 400 V / 50 Hz, control voltage 24 V. Detailed documentation.
Electric chain hoist with manual drive dolly. 2-stage lifting speed. Designed for use in halls with ambient temperatures of +5 °C to +40 °C.
Paintwork suitable for operation in halls, steel shot blasted crane construction and jib crane in RAL 1007 daffodil yellow, steel mobile mounting base in RAL 7016 charcoal, concrete grey base weight.
Mounting base fully assembled.
Electrical system: mains cut-off switch, CEE device plug, power supply using a round trailing cable.
Locks in position and three eyelets for crane transport. Eyelet for securing the electric chain hoist during transport. Operating voltage 400 V / 50 Hz, control voltage 24 V. Detailed documentation.
Electric chain hoist with manual drive dolly. 2-stage lifting speed. Designed for use in halls with ambient temperatures of +5 °C to +40 °C.
Paintwork suitable for operation in halls, steel shot blasted crane construction and jib crane in RAL 1007 daffodil yellow, steel mobile mounting base in RAL 7016 charcoal, concrete grey base weight.
Mounting base fully assembled.
Electrical system: mains cut-off switch, CEE device plug, power supply using a round trailing cable.
Supplied without crane trolley, forklift pockets and slewing limiter. Available under accessories. The technical specifications for these cranes makes it necessary to manufacture them to order – no right of return.
Technical data
Max. load | 125 kg |
---|---|
Operating voltage | 400 V / 50 Hz |
Swivel range | 270° |
Design of rotary crane | crane with electric chain hoist |
Height of lifting gear | 433 mm |
Main lift | 8 m/min |
Precise lift | 2 m/min |
Crane jib bottom edge | 2500 mm |
Control voltage | 24 V |
Lifting height | 2067 mm |
Feature | mobile |
Colour | daffodil yellow RAL 1007 |
Product type | post mounted jib cranes |
Supplied | partially assembled |
Overall height | 2790 mm |
Reach | 3000 mm |
Weight | 1543 kg |
