Ref.: 852514 49
Screw lock E233, pack of 6 – ABUS for E27 and E33 threads
for DII and DIII system plinths
Ref.: 852514 49
Screw lock E233, pack of 6 – ABUS for E27 and E33 threads
for DII and DIII system plinths
for DII and DIII system plinths
Ref.: 852514 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description

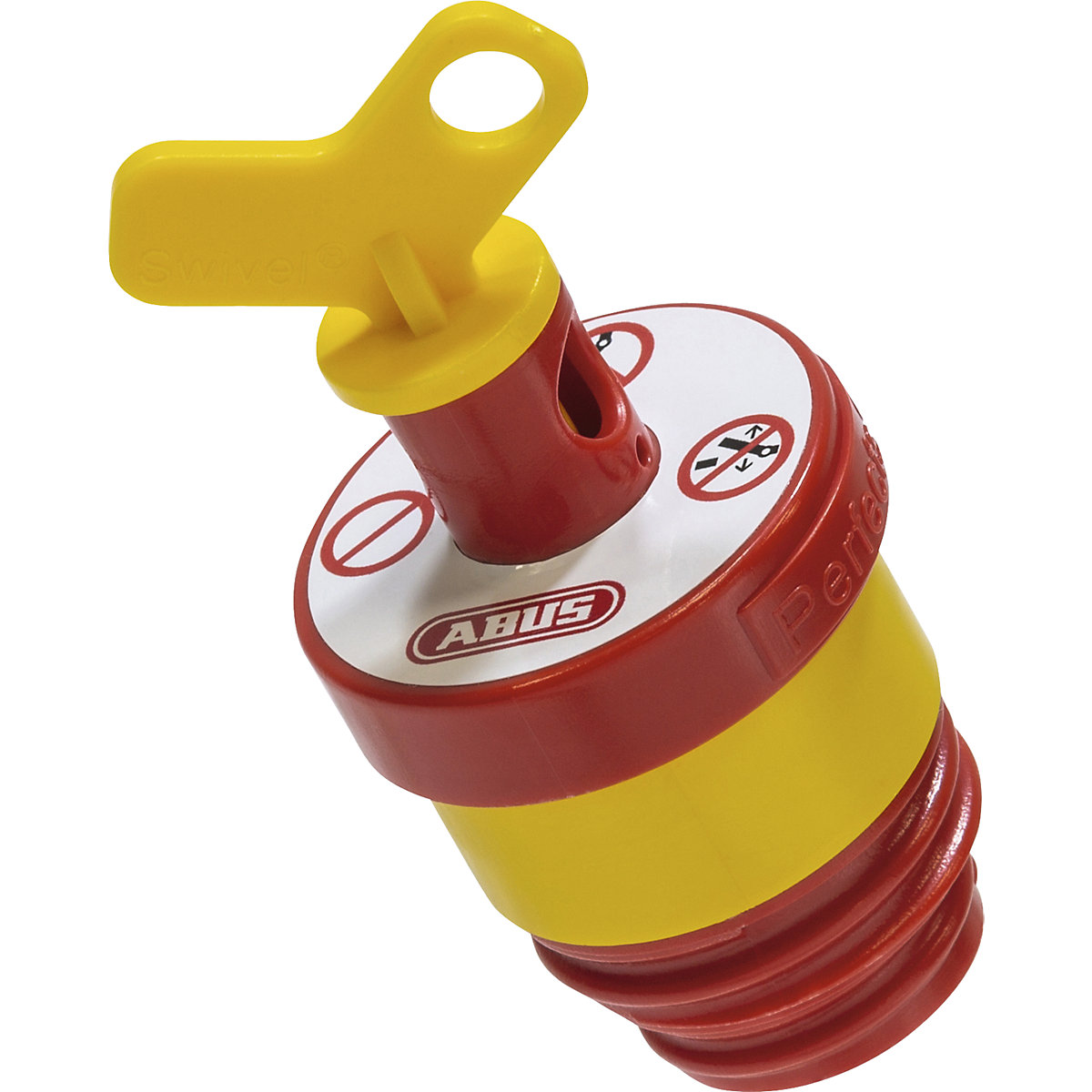

- With staggered thread diameter for E27 and E33 threads
- With the enclosed special yellow key for setting and removing the lock
- For fitting a padlock and therefore LOTO-compliant
- Possible securing of the screw base using a rope or a cable lock
- White warning sticker for clear communication
The E233 screw fuse interlock offers a well-thought-out locking system for the secure safeguarding of screw plinths in maintenance situations. With its stepped thread diameter for E27 and E33 threads, it reliably prevents the insertion of fuse cartridges into DII and DIII system plinths.

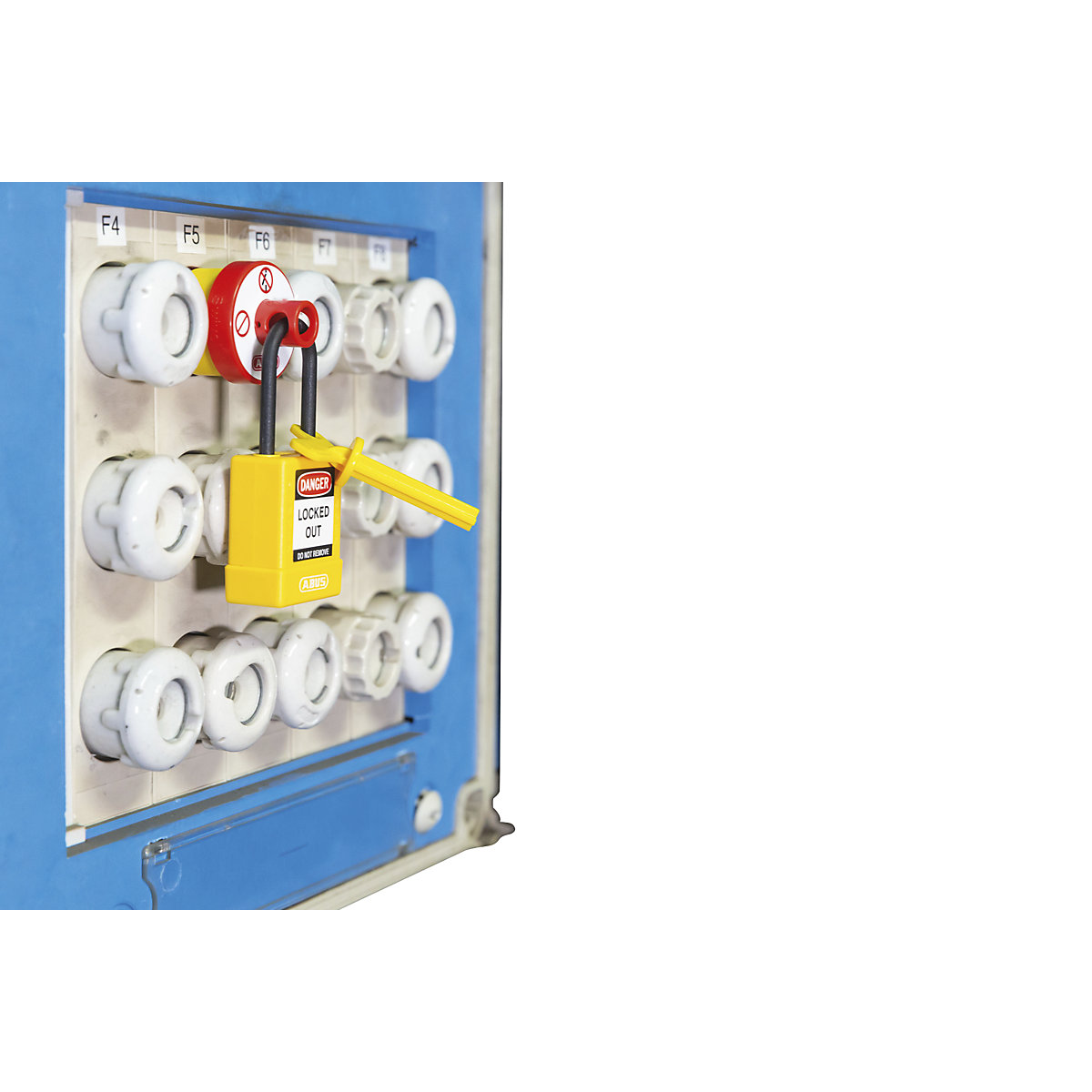

The interlock is screwed directly into the screw plinth and mechanically blocks access. A yellow special key is included and enables the easy installation and removal of the interlock. For additional security, a padlock can be attached – thus the system meets the requirements for Lockout-Tagout (LOTO). Several screw plinths can also be flexibly secured in series with a rope or cable lock.
A white warning sticker ensures clear visual communication and increases occupational safety. This locking system is ideal for use in industrial facilities, where controlled shutdowns and protection against unintentional re-energisation are essential.
The interlock is screwed directly into the screw plinth and mechanically blocks access. A yellow special key is included and enables the easy installation and removal of the interlock. For additional security, a padlock can be attached – thus the system meets the requirements for Lockout-Tagout (LOTO). Several screw plinths can also be flexibly secured in series with a rope or cable lock.
A white warning sticker ensures clear visual communication and increases occupational safety. This locking system is ideal for use in industrial facilities, where controlled shutdowns and protection against unintentional re-energisation are essential.
Technical data
| Colour | red yellow |
|---|---|
| Material | plastic |
| Product type | lockout/tagout products |
| Weight | 0.04 kg |
