Ref.: 254673 49

Mesh stacking frames – ratioform for stacking, four mesh panels

(1)
Mesh stacking frames – ratioform

for pallets 1200 x 800, H 400 mm

£169.00
Price / item (Excl. VAT)

Delivery time: 7-10 Working days
Product description
  • For 1200 x 800 mm EURO pallets

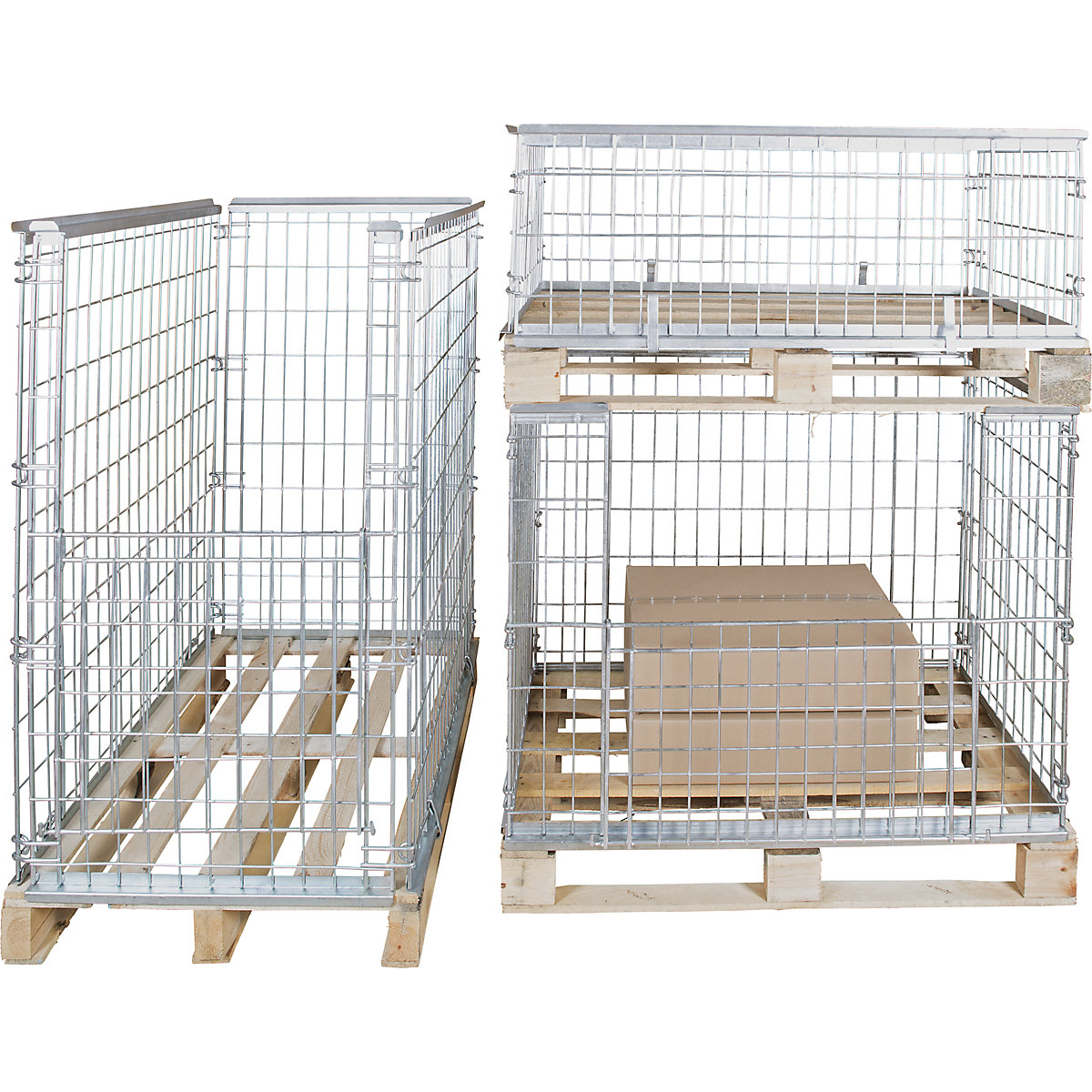

  • Up to 4 units can be stacked
  • Quick placement on pallets
  • Open design for good visibility of contents and capacity

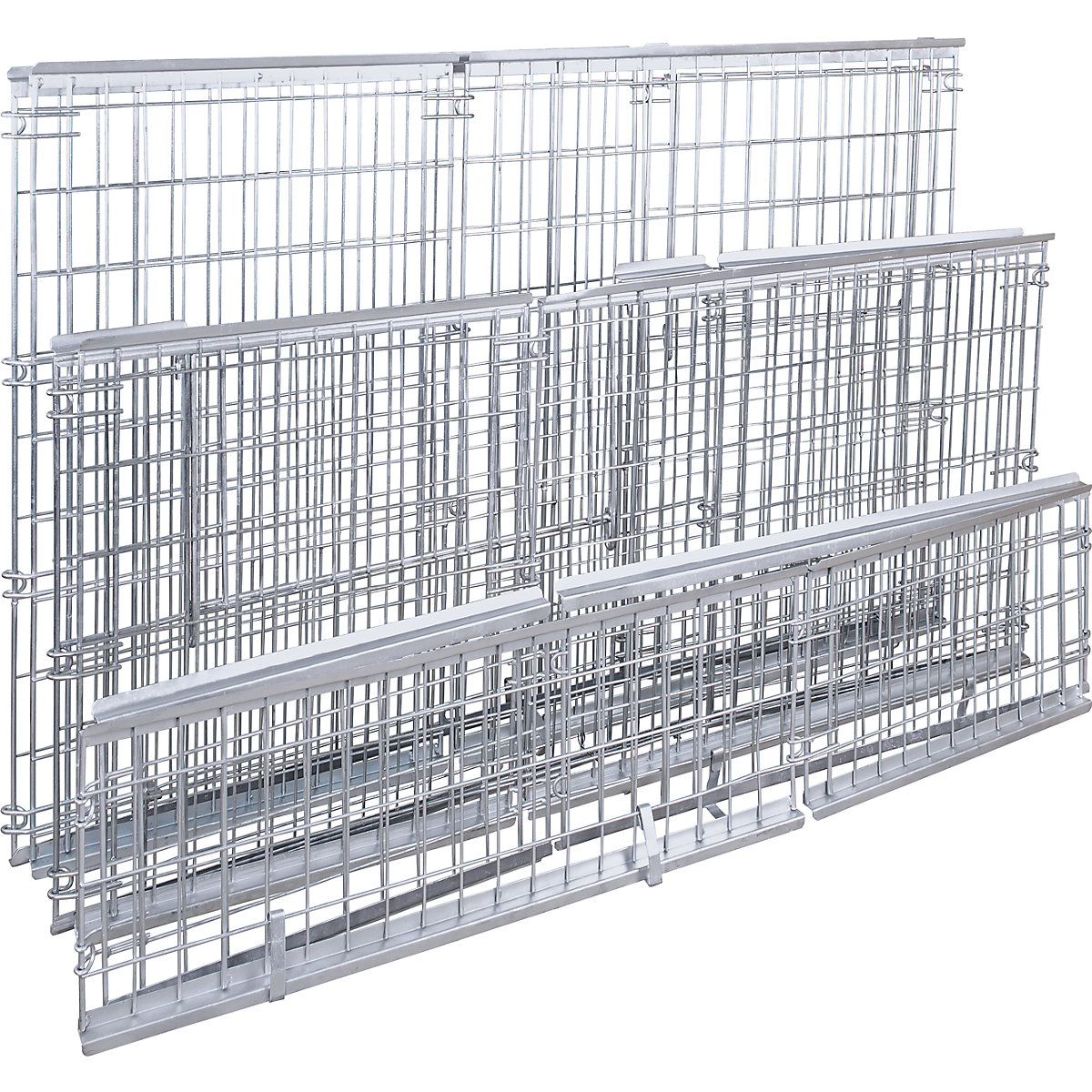

  • Collapsible to save space when not in use

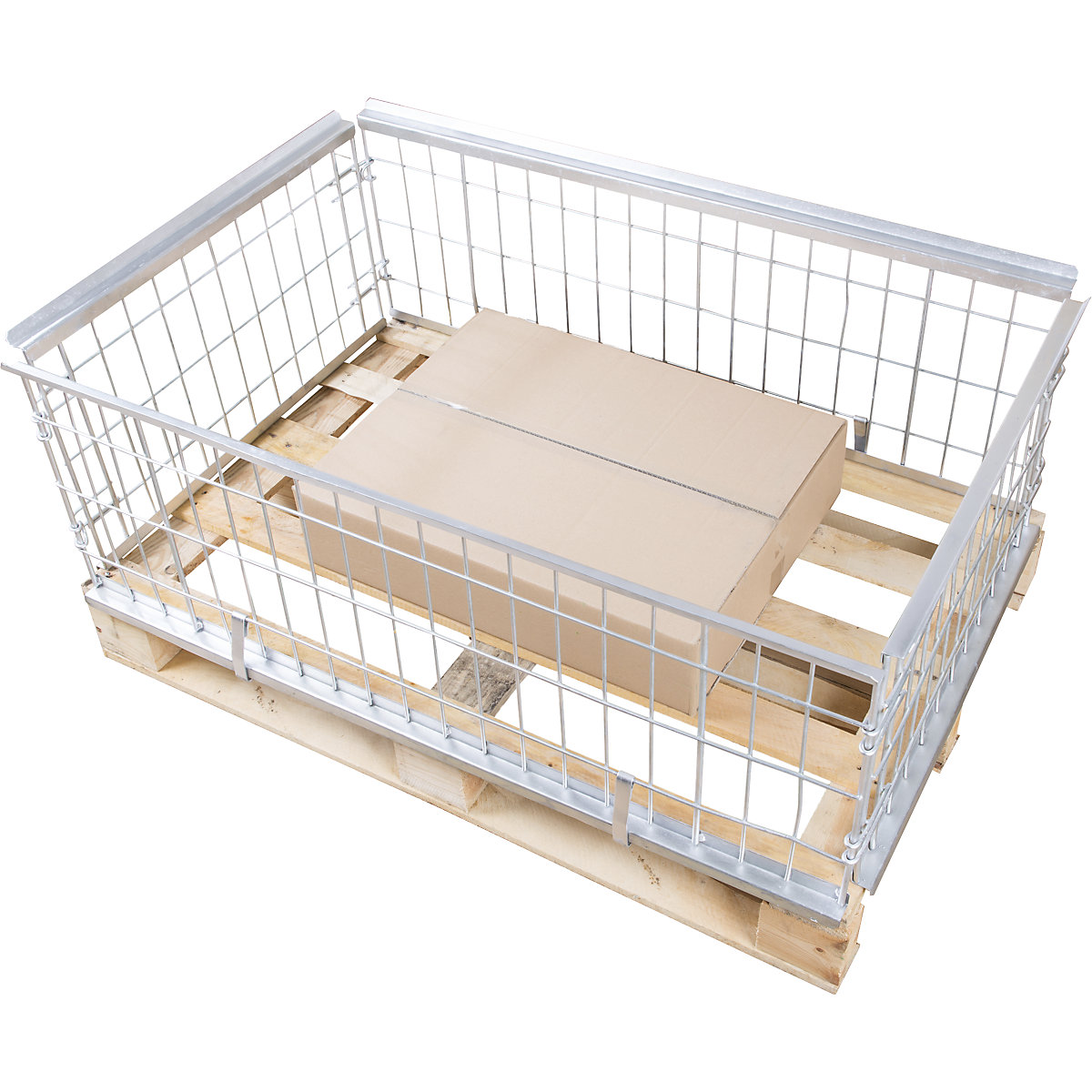

The mesh pallet collar transforms pallets in next to no time into flexible transport and storage containers. The four stable mesh walls are simply placed onto the pallet and create a secure boundary for a wide variety of goods. This allows loose, bulky or delicate goods to be reliably stored, transported and picked. At the same time, the contents remain visible at all times, which facilitates stock control and access to the goods.

The robust steel construction is designed for daily use in the warehouse, production and dispatch. Thanks to the open mesh structure, good air circulation is enabled while the goods are held securely within the pallet. The pallet collar can be folded to save storage capacity when not in use, thereby supporting efficient warehouse organisation. In combination with pallets, this creates a flexible reusable solution for internal logistics processes and goods transport.
Technical data
For pallet size1200 x 800 mm
Height440 mm
Effective height400 mm
Max. load800 kg
Stacking load2400 kg
Materialsteel mesh
Finishgalvanised and chrome-plated
Colourchrome
Length1200 mm
Width800 mm
Strut wire thickness9.8 mm
Mesh wire thickness4.8 mm
Mesh size120 x 65 mm
Weight19 kg
Product typepallet frames
Suppliedassembled
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.
