Ref.: 119790 49

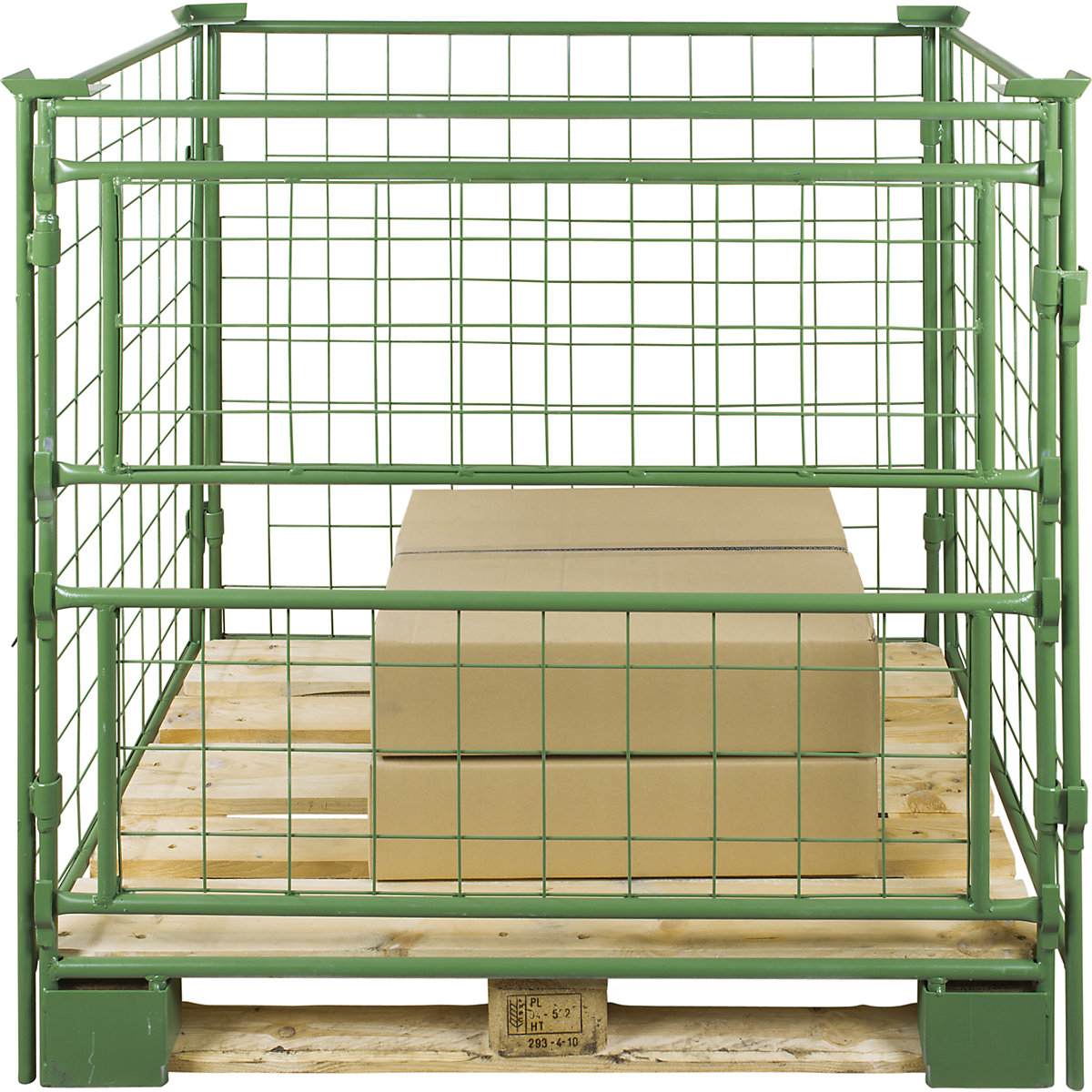

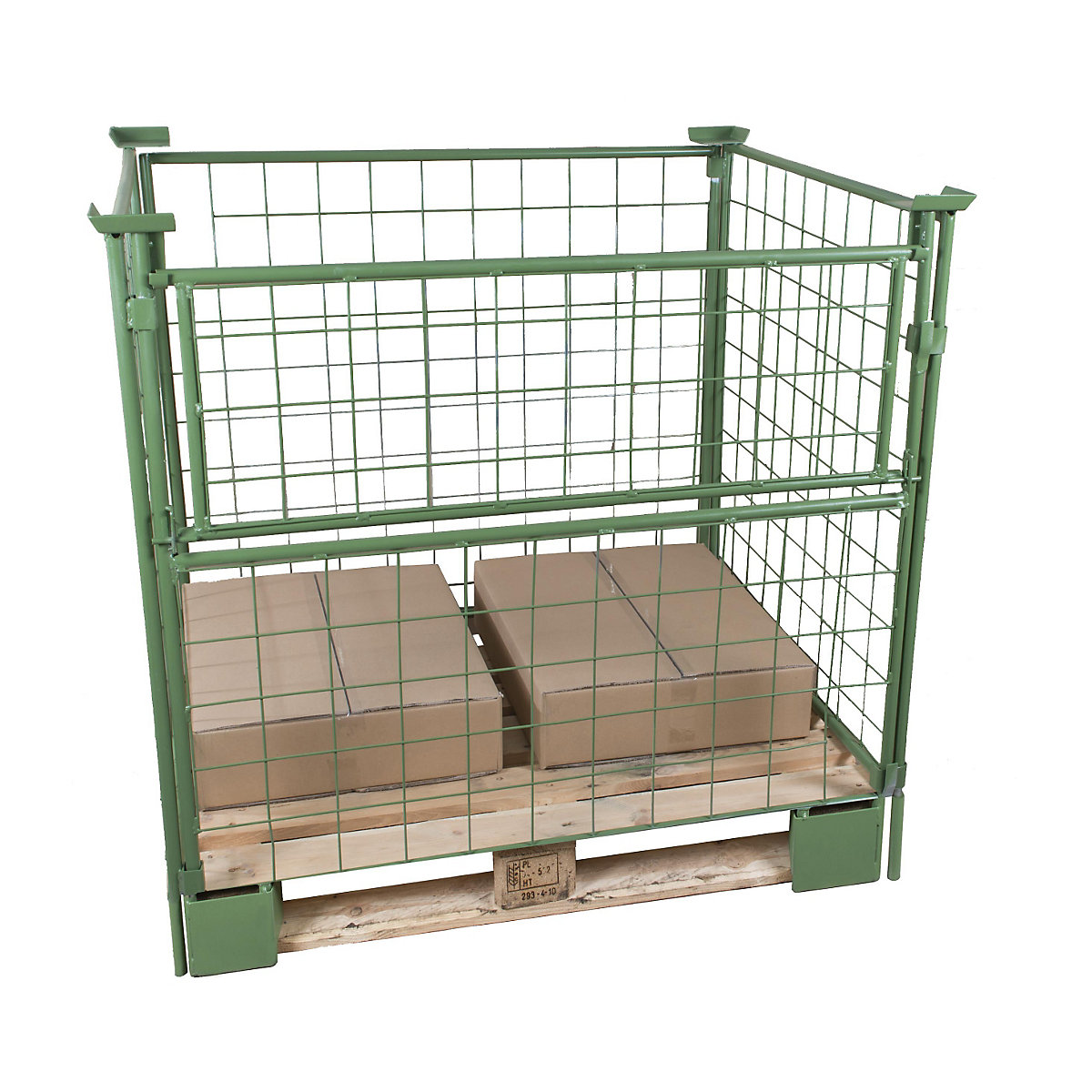

Pallet frame – ratioform effective height 1000 mm, for stacking

(1)
Pallet frame – ratioform

WxL 800 x 1200 mm, 1 long side can be half folded

£229.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Ref.
119790 49
119801 49
119793 49
119803 49
119795 49
119805 49
119797 49
119808 49
119799 49
119785 49
For pallet size [mm]
Effective height [mm]
Weight [kg]
1200 x 800
800
21
1200 x 1000
800
22
1200 x 800
1,000
24
1200 x 1000
1,000
25
1200 x 800
1,200
27
1200 x 1000
1,200
29
1200 x 800
1,600
37
1200 x 1000
1,600
40
1200 x 800
1,800
41
1200 x 1000
1,800
43
Price / item (Excl. VAT)
Select
£229.00
£255.00
£255.00
£269.00
£269.00
£285.00
£285.00
£309.00
£309.00
£329.00
Product description

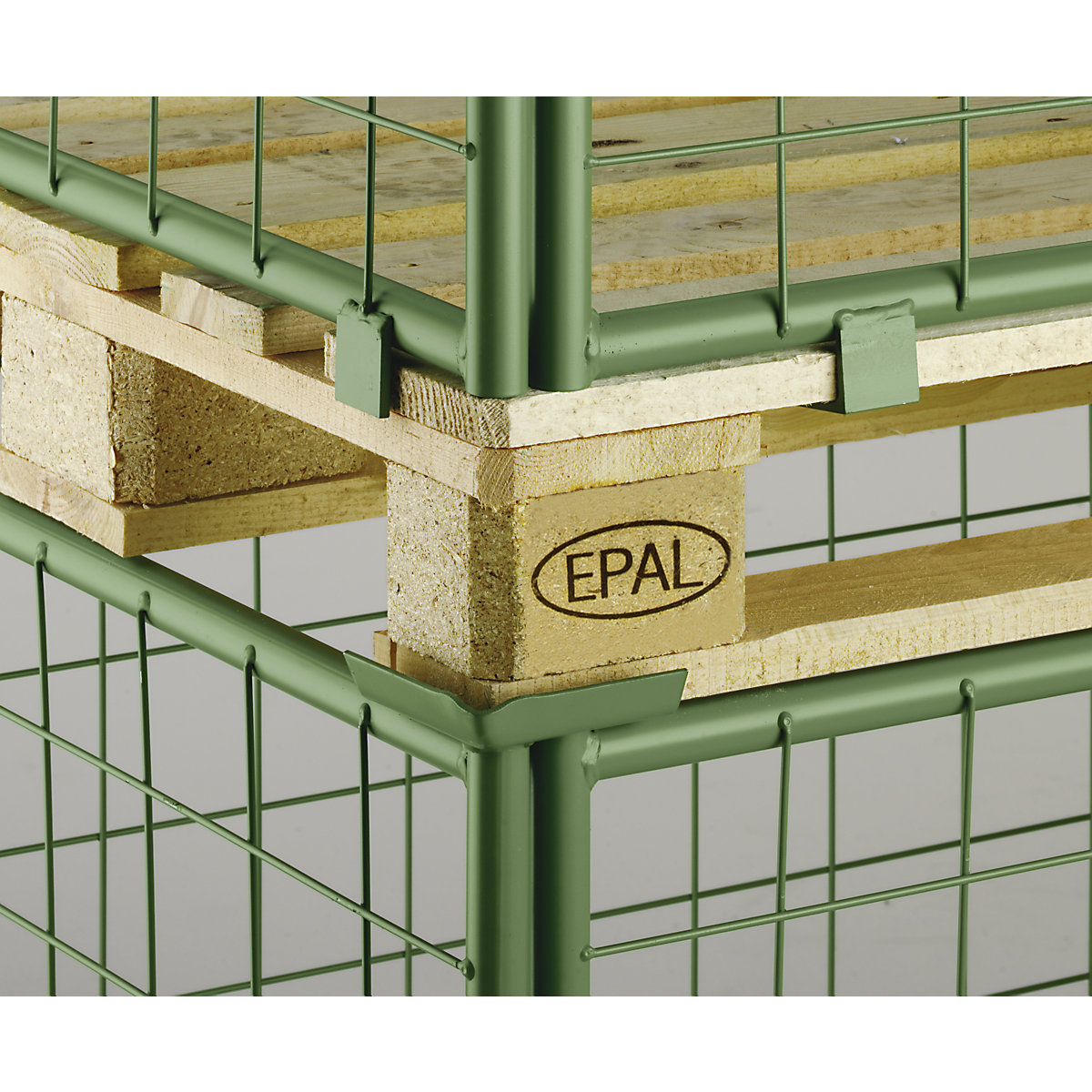

  • Easy assembly – for stacking on, or for attaching – to the pallet
  • Minimal space requirements, two-part and folding
  • For 800 x 1200 mm and 1000 x 1200 mm pallets
  • Frame made of tubular steel, Ø 27 mm with 4 stacking feet
Frame closed on all sides, with open section on long side, as well as other RAL colours on request.
Supplied without pallet.
Supplied flat pack – easy self-assembly.
Technical data
Model1 long side with half drop gate
Max. load1000 kg
Stacking load2000 kg
Type of mountingfor stacking
Materialtubular steel, painted
Colourreseda green RAL 6011
Mesh size100 x 100 x 4 mm
Product typepallet frames
Suppliedassembled
For pallet size1200 x 800 mm
Effective height800 mm
Weight21 kg
