Ref.: 648704 49

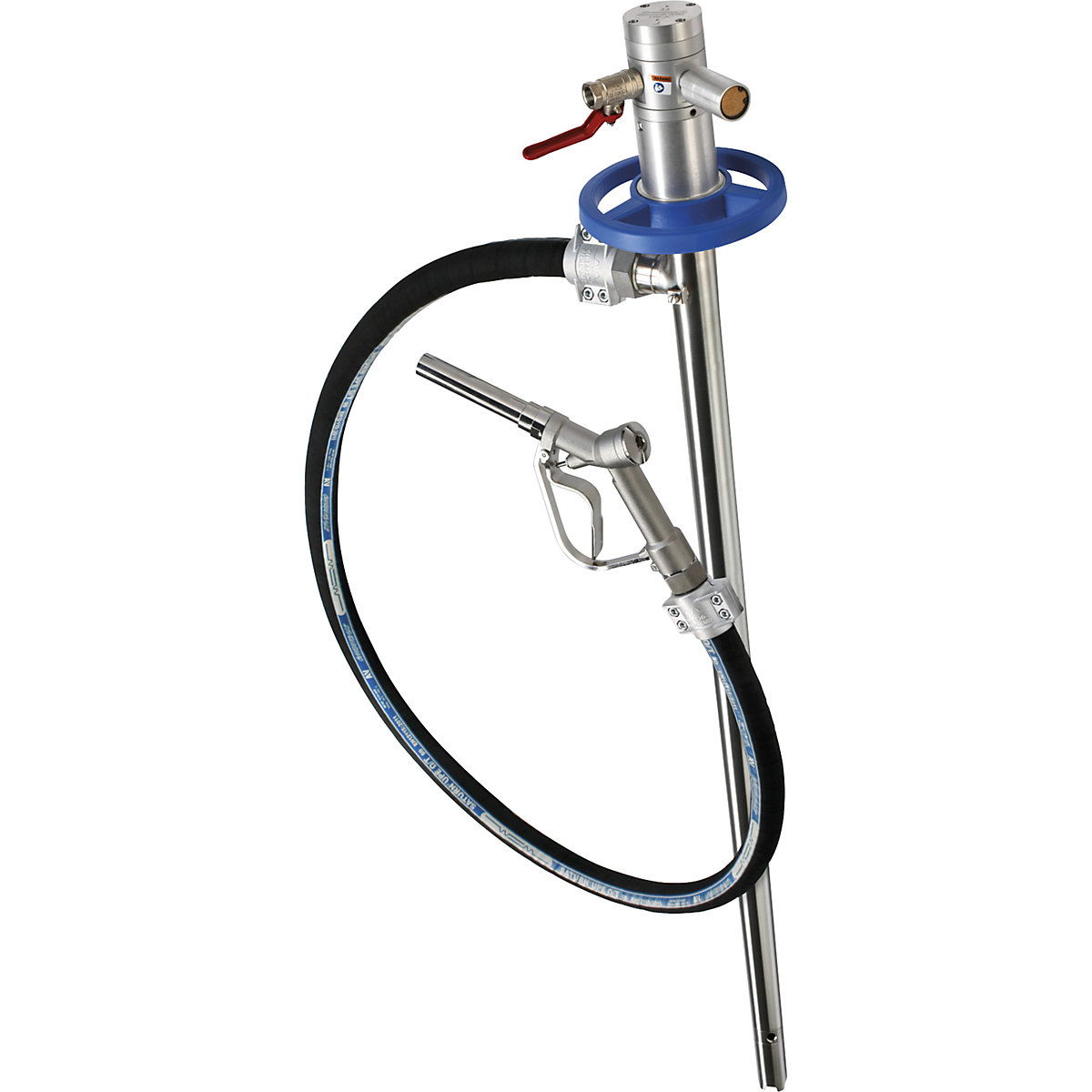

Compressed air container pump set – Jessberger for flammable media 78 l/min, 300 W

Compressed air container pump set – Jessberger

explosion protected

For flammable liquids
For flammable liquids
£2,575.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Product description
  • For IBC/CTC tank containers
  • High level of safety when flammable media are used in hazardous areas
  • Low weight – easy handling
Compressed air pump set for IBC/CTC tank containers.
For flammable media in explosion hazard zone 0 or for use in explosion hazard zones 1 or 2.

– No-seal version without mechanical seal
– Pump unit made of stainless steel 1.4571
– 2 m conductive multi-purpose hose 1'' (NW 25) made of crosslinked polyethylene
– 2 stainless steel hose connections with 1 1/4'' and 1'' internal threads
– 1 nickel plated brass nozzle with PTFE seals
– 1 potential equalisation cable set for earthing the drum pump

For flammable media:
Alcohol, petrol, brake cleaner, butyl acetate, antifreeze concentrate, isopropanol, kerosene, concentrated formic acid, acetic acid or propionic acid, solvents such as acetone, butanol, ethanol, methanol, toluene etc.

Aluminium compressed air motor, 300 W at max. 6 bar operating pressure. Motor with ball cock and silencer, Ex II 2 GD c IIC (80 °C) X.
Special seals available upon request.
Technical data
Connection type1 1/4 inch
Pump rate78 l/min
Operating pressure min./max.max. 6 bar
Power300 kW
For mediafor flammable media solvents (explosion protected) flammable hydrocarbons, such as ethanol, petrol, butanol, isopropanol, kerosene, methanol, petroleum highly flammable/flammable/high purity liquids explosion hazard zone 0
Design of pumpno-seal version without mechanical seal
Material of pumpstainless steel / PTFE / FKM
Drive shaft materialstainless steel
Immersion depth1200 mm
Immersion tube diameter41 mm
Pumping height9 m wc
Immersion tube length1200 mm
Nominal hose diameter25
Max. viscosity at +20 °C400 mPas
Featureexplosion protected
Discharge hose length2000 mm
Colourblack blue silver
Product typecompressed air pumps
Suppliedpre-assembled, final assembly by customer
Weight10.42 kg
