Ref.: 119182 49

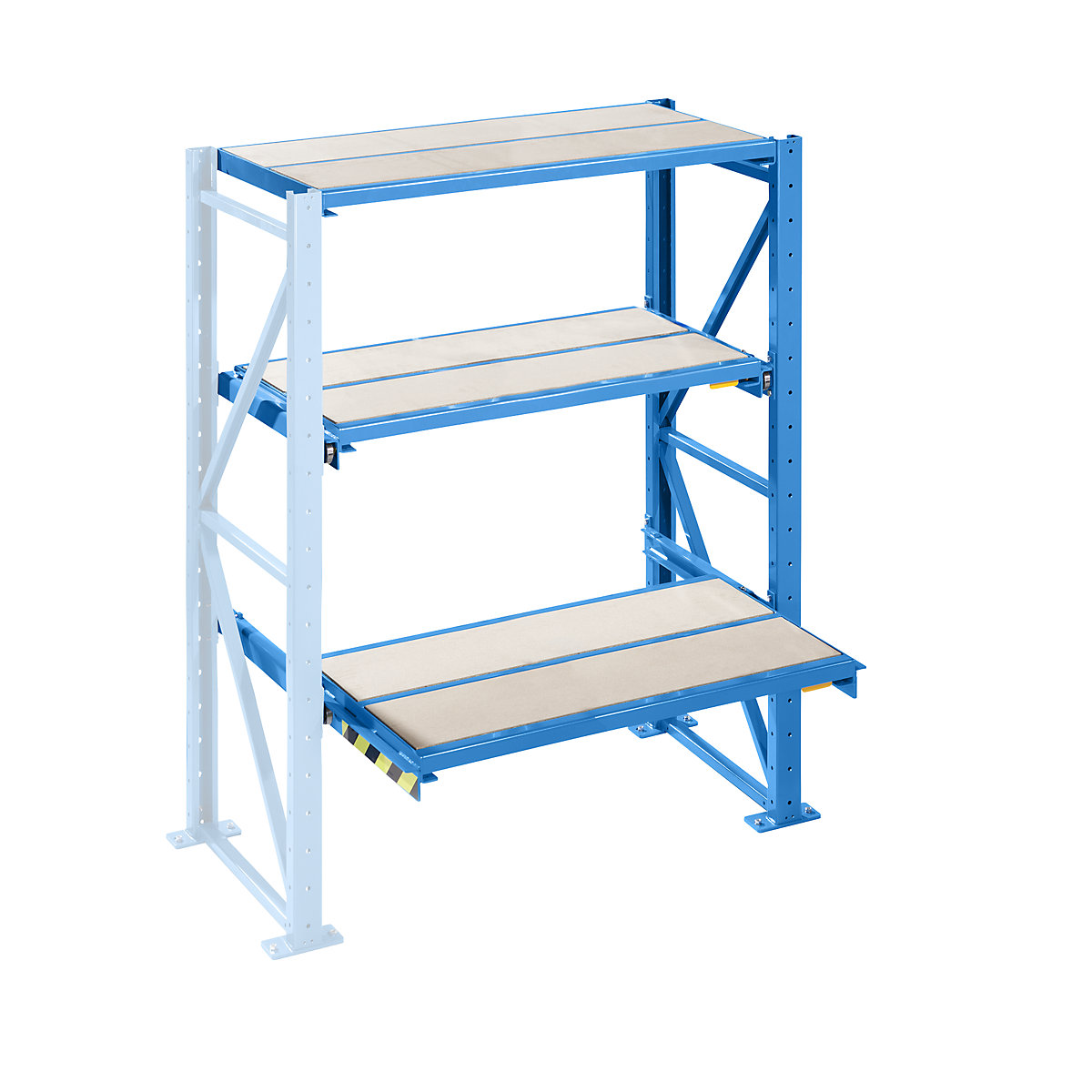

Heavy duty pull-out shelving unit – LISTA shelf width 1290 mm, depth 860 mm, extension shelf unit
light blue
Colour of uprights
Ref.: 119182 49
Heavy duty pull-out shelving unit – LISTA shelf width 1290 mm, depth 860 mm, extension shelf unit
light blue
light blue
Colour of uprights
£2,675.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£2,675.00
Price / item (Excl. VAT)
Product description
- Heavy duty drawers – Max. load 1000 kg
- Available as a complete shelf unit
- Ideal for storing heavy goods, such as injection moulds, punching tools, motors, etc.
- Maximum stability provided by welded steel construction
- Pallet storage crossways or lengthways
- Loading possible using crane and forklift truck
- Pallet storage: on either a fixed frame or on the floor
- Easy to move heavy duty drawers that can be locked in place when pushed in and when pulled out
- Heavy duty drawers: placement of moulded chipboard or sheet metal panels allows the goods to be stored flush and be pulled out
Extension shelf unit consisting of
– 1 upright, incl. floor anchoring (4 x bolt anchor M12 / 140) and levelling plate set (1 x 1 mm, 2 mm and 4 mm thick)
– 2 extension frames for partial extension (65 %) incl. 2-part chipboard inlay, 40 mm thick
– 1 fixed frame as a top shelf incl. 2-part chipboard inlay, 40 mm thick
Max. load top shelves 200 kg.
Max. fixed frame and extension frame shelf load 1000 kg.
– 1 upright, incl. floor anchoring (4 x bolt anchor M12 / 140) and levelling plate set (1 x 1 mm, 2 mm and 4 mm thick)
– 2 extension frames for partial extension (65 %) incl. 2-part chipboard inlay, 40 mm thick
– 1 fixed frame as a top shelf incl. 2-part chipboard inlay, 40 mm thick
Max. load top shelves 200 kg.
Max. fixed frame and extension frame shelf load 1000 kg.
Side panels, rear panels, covers, sliding doors, roller shutters, floor anchoring for different floor conditions are also available on request.
Safety information
1. A diagonal cross brace must be installed in each standard shelf unit and in every 3rd extension shelf unit.
2. Anchoring regulations: heavy duty pull-out shelving must always be anchored to the floor.
3. When the complete shelf units are installed, the floor anchoring provided is suitable for a floor with a concrete strength class of at least B25, for a maximum screed depth of 35 mm and a concrete thickness of at least 200 mm.
The specified max. load applies with uniform load distribution. Only one extension frame may be extended per shelf bay.
Determining the overall shelf unit width
Number of shelf widths + number of upright widths 80 mm + 2 x outside footplate widths 60 mm.
1. A diagonal cross brace must be installed in each standard shelf unit and in every 3rd extension shelf unit.
2. Anchoring regulations: heavy duty pull-out shelving must always be anchored to the floor.
3. When the complete shelf units are installed, the floor anchoring provided is suitable for a floor with a concrete strength class of at least B25, for a maximum screed depth of 35 mm and a concrete thickness of at least 200 mm.
The specified max. load applies with uniform load distribution. Only one extension frame may be extended per shelf bay.
Determining the overall shelf unit width
Number of shelf widths + number of upright widths 80 mm + 2 x outside footplate widths 60 mm.
Supplied flat pack.
Extension frames, fixed frames and top shelves in the same colour as the support frame.
10 year guarantee
Safety tested
This is a test symbol. GS stands for certified safety.
This is a test symbol. GS stands for certified safety.
Technical data
| Shelf unit type | extension unit |
|---|---|
| Shelf unit height | 2000 mm |
| Shelf width | 1290 mm |
| Shelf depth | 860 mm |
| Width | 1490 mm |
| Depth | 860 mm |
| Pull-out shelf width | 1290 mm |
| Max. bay load | 9000 kg |
| Max. shelf load | 1000 kg |
| Adjustment grid | 100 mm |
| Material | steel |
| Scope of delivery | 1 upright, incl. floor anchoring and levelling plate set, 2 extension frames for single drawer incl. chipboard inlay, 1 fixed frame as a top shelf incl. chipboard inlay |
| Product type | heavy duty bolt-together shelving units |
| Supplied | flat pack |
| Weight | 175 kg |
| Colour of uprights | light blue RAL 5012 |
| Pictorial instructions |
