Ref.: 945707 49

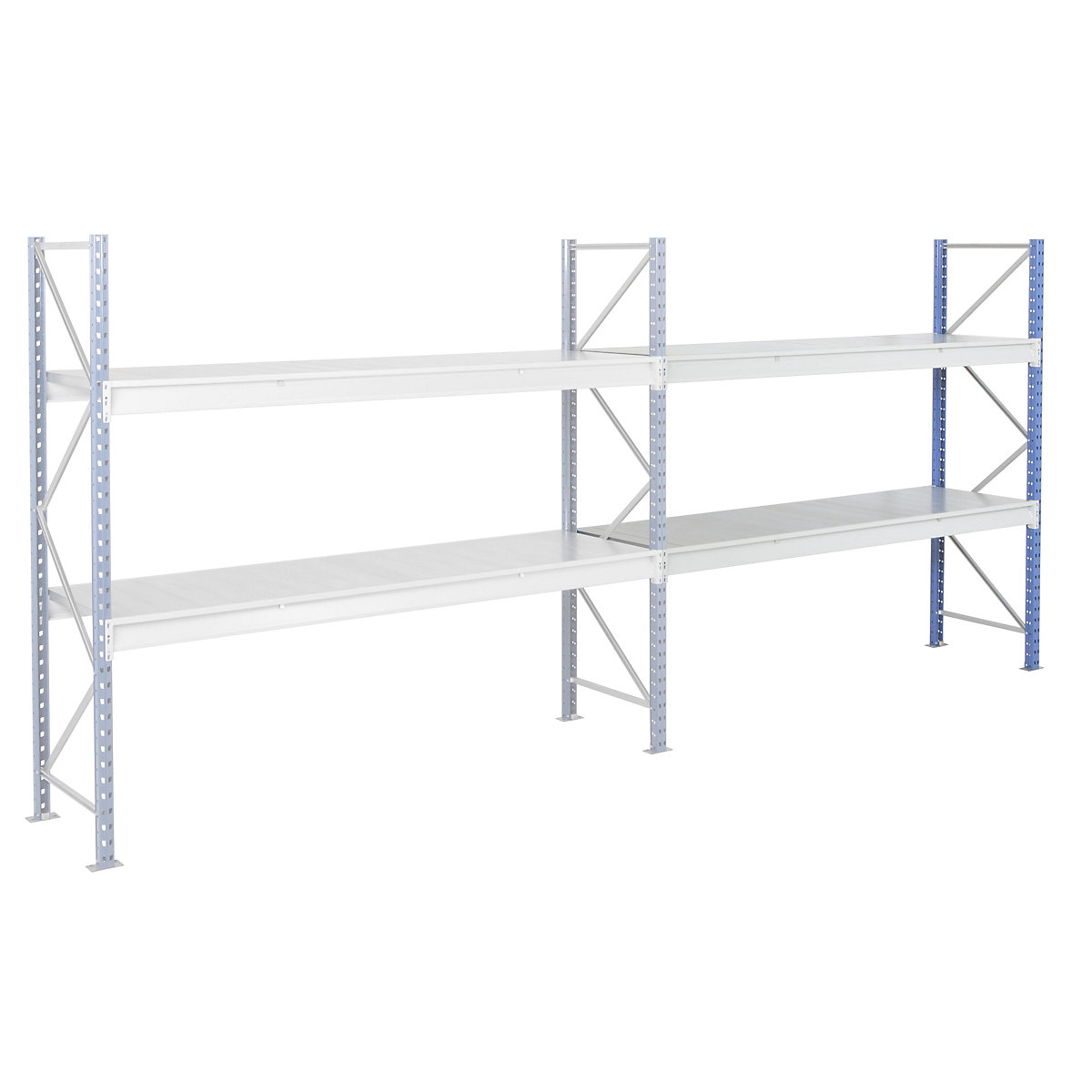

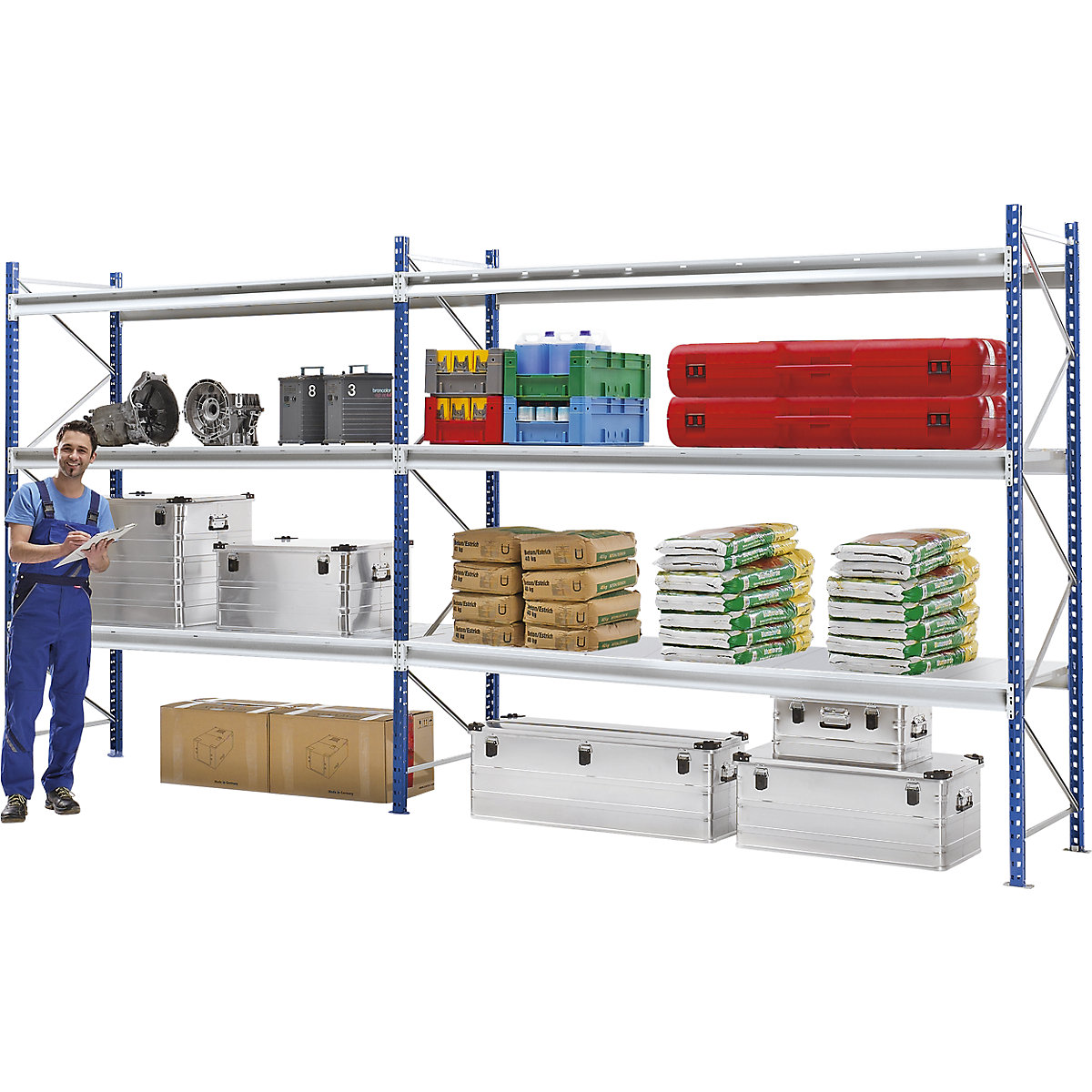

Heavy duty wide span shelving with steel shelf panels – Manorga frame colour blue

(10)
Heavy duty wide span shelving with steel shelf panels – Manorga

HxWxD 1996 x 2410 x 800 mm, standard shelf unit

Shelf unit type
Shelf unit height [mm]
Shelf width [mm]
£749.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • For the manual storage of bulky and heavy goods
  • Boltless installation and adjustment of support beams
  • Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
Upright frame
2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010. Contoured profile, 50 x 50 mm.
Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts.
Zinc plated base plates for floor anchoring, 3 mm in height. Bolts and plugs not included.
50 mm shelf adjustment grid.

Shelves

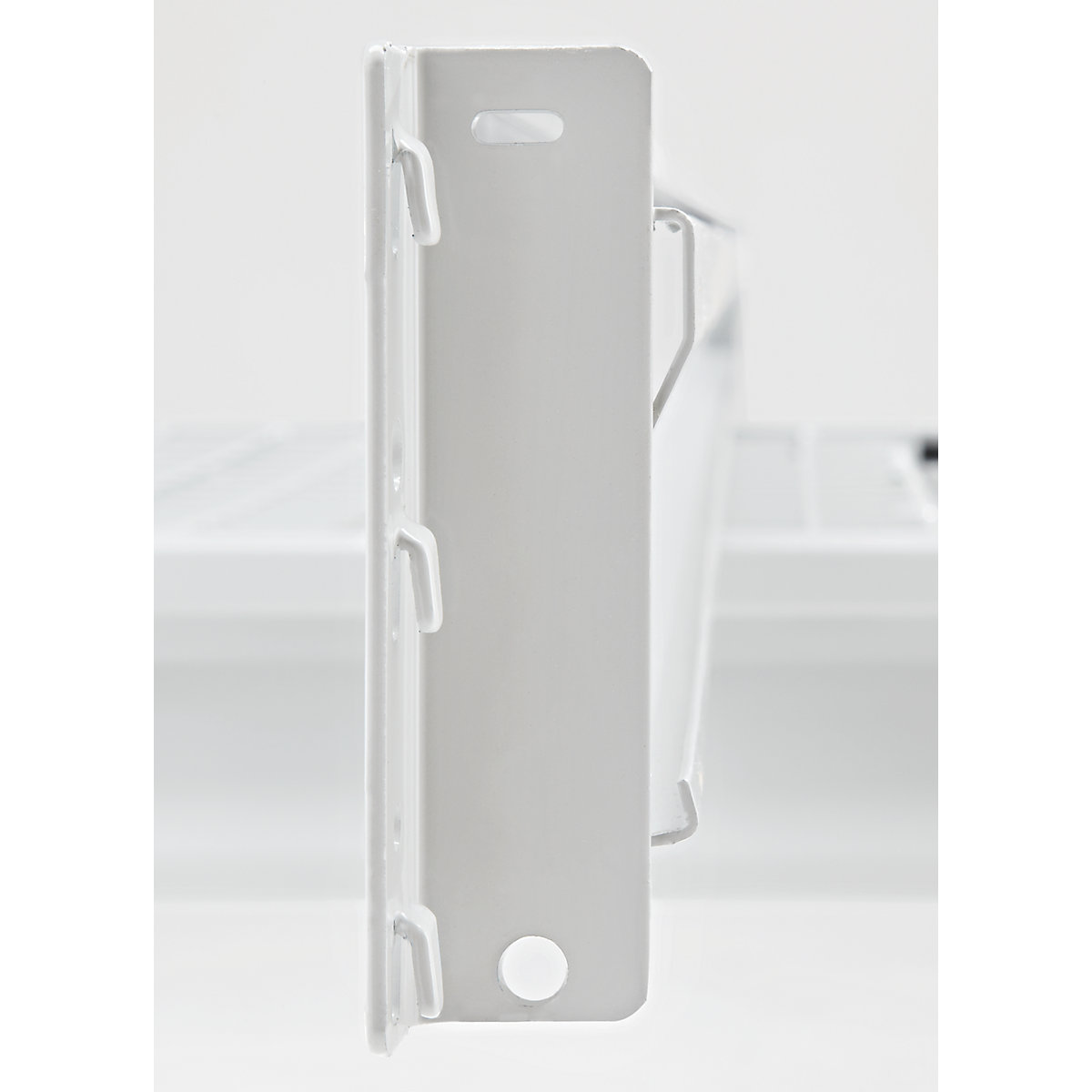

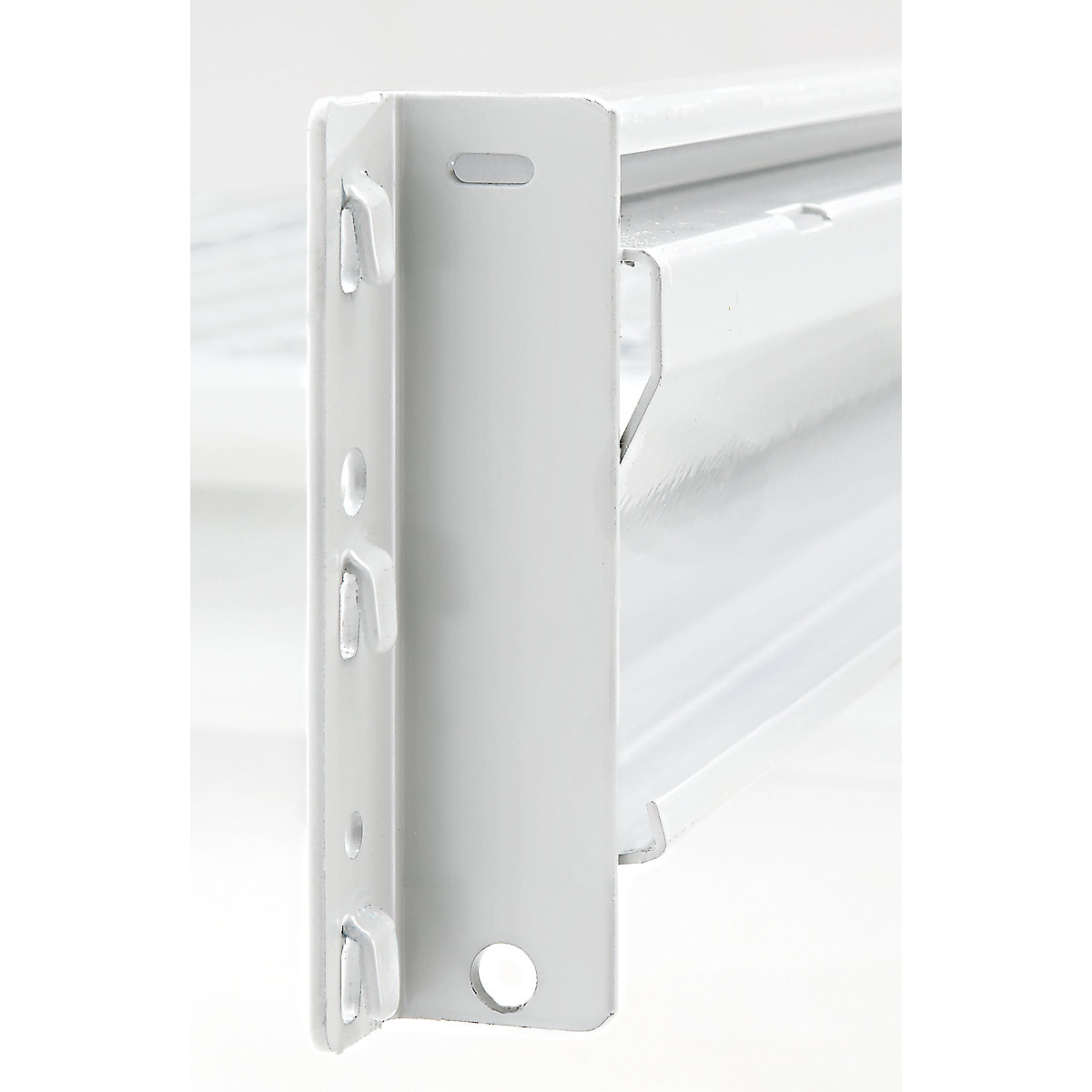

Support beams with Z profile, plastic coated light grey RAL 7035.

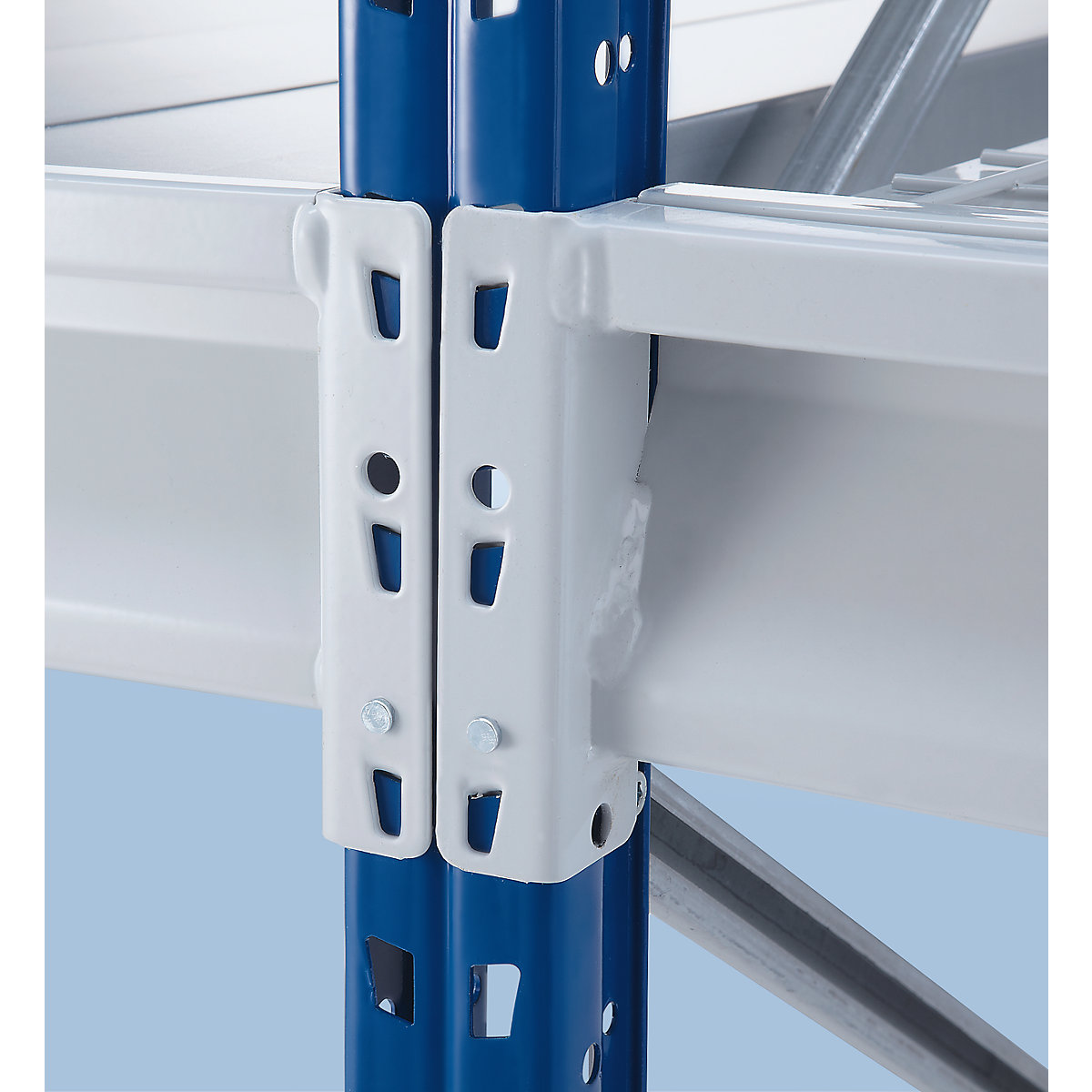

3 suspension hooks with securing pins for mounting the support beams.

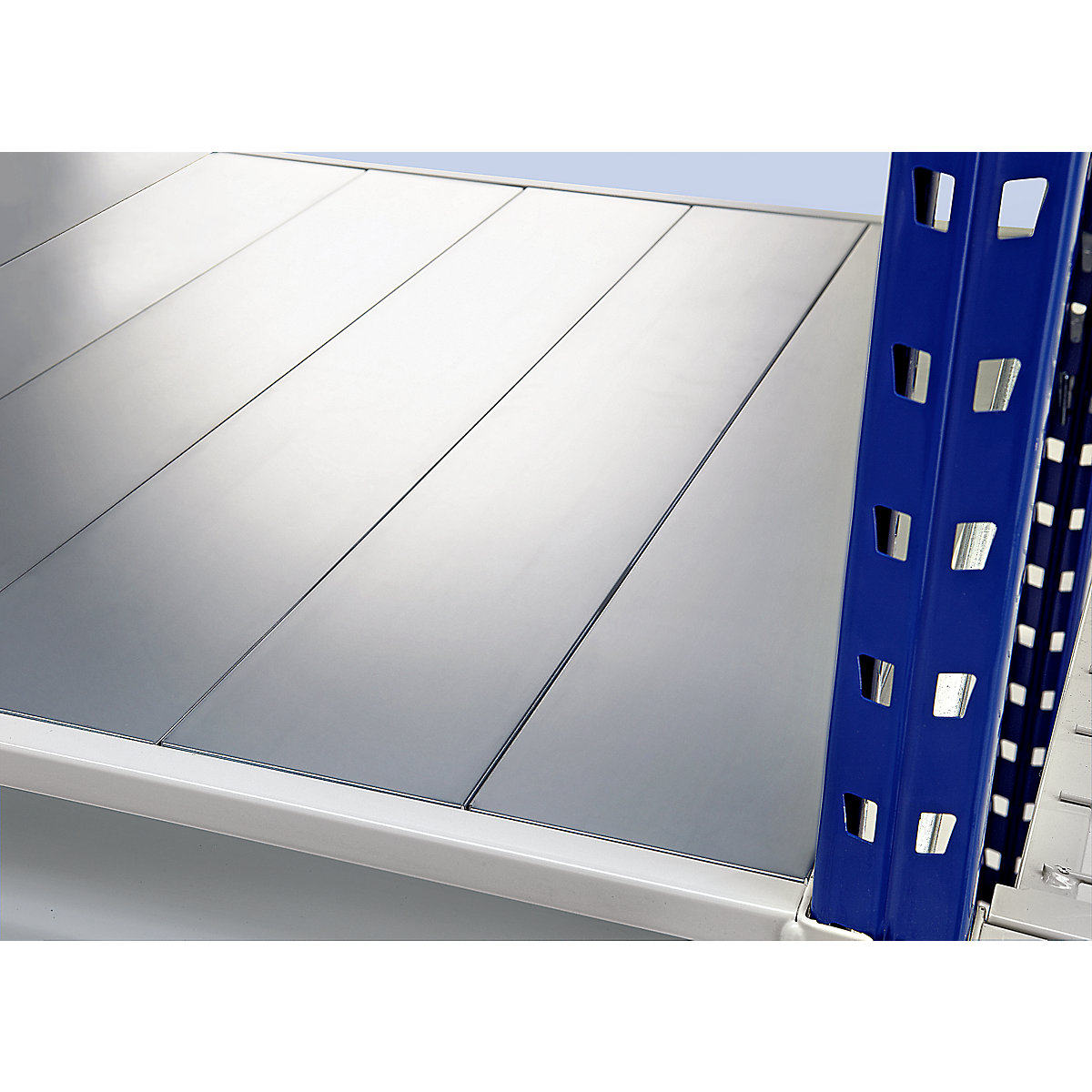

Steel shelf panel modules, zinc plated, thickness 0.5 mm.
Standard shelf unit width
– without footplates: shelf width + 100 mm.
– with footplates: shelf width + 160 mm.
Extension shelf unit width
– without footplates: shelf width + 50 mm.
– with footplates: shelf width + 80 mm.
Shelf unit depth incl. foot plates
Shelf depth + 10 mm.
The specified max. load values are applicable with uniform load distribution. Additional shelf levels may be used if the specified max. bay load is observed.
Technical data
Colour of uprightsgentian blue RAL 5010
Width of upright profile25 mm
Depth of upright profile15 mm
Shelf thickness0.5 mm
Max. bay load4500 kg
Adjustment grid50 mm
Materialsteel
Material of uprightssteel, plastic coated
Cross beam materialsteel, zinc plated
Shelf materialsteel, zinc plated
Cross beam colourlight grey RAL 7035
Shelf coloursilver
Designscrew connection
Design of shelf levelscross-pieces with shelves
Product typeheavy duty bolt-together shelving units
Suppliedflat pack
Shelf unit typestandard unit
Shelf unit height1996 mm
Shelf width2250 mm
Shelf depth800 mm
Width2410 mm
Depth810 mm
Shelf clearance width2245 mm
Max. shelf load720 kg
Number of shelf levels2 pcs.
Weight67.323 kg
Pictorial instructions
Manufacturer / EU responsible Person (GPSR)
Sustainability
Sustainable product

This product actively contributes to protecting our environment and taking social responsibility. It meets our strict sustainability criteria and thus supports an economically, ecologically and socially viable future. The score asks the crucial question for every product: does this product contribute to creating sustainable and fair conditions for today and future generations? Below are the categories in which this product performs particularly well.

You can find out more about product evaluation and our sustainability initiative on our information page .

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
15
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

331.42kg CO₂e
LCA Raw Material Extraction & Processing
41.9%
LCA packaging production
1.4%
LCA Product Manufacturing
48.7%
LCA Inbound and Outbound Transportation
8%
Scoring System
3.0/5.9Overall score
CriteriaWeightingScore
Icon Climate protectionClimate protection30%2.2
Icon Circulatory economyCirculatory economy30%3.5
Icon BiodiversityBiodiversity25%1.0
Icon Economic efficiencyEconomic efficiency10%3.7
Icon InnovationInnovation5%3.9
