EUROKRAFTpro – Pallet racking complete shelf unit
- Heavy duty pallet racking for storing pallets lengthwise
- Beams suitable for versatile use and adjustable in increments of 70 mm
- Individually extendable with matching extension shelf units
10 year guarantee
New
Ref.: 591750 49

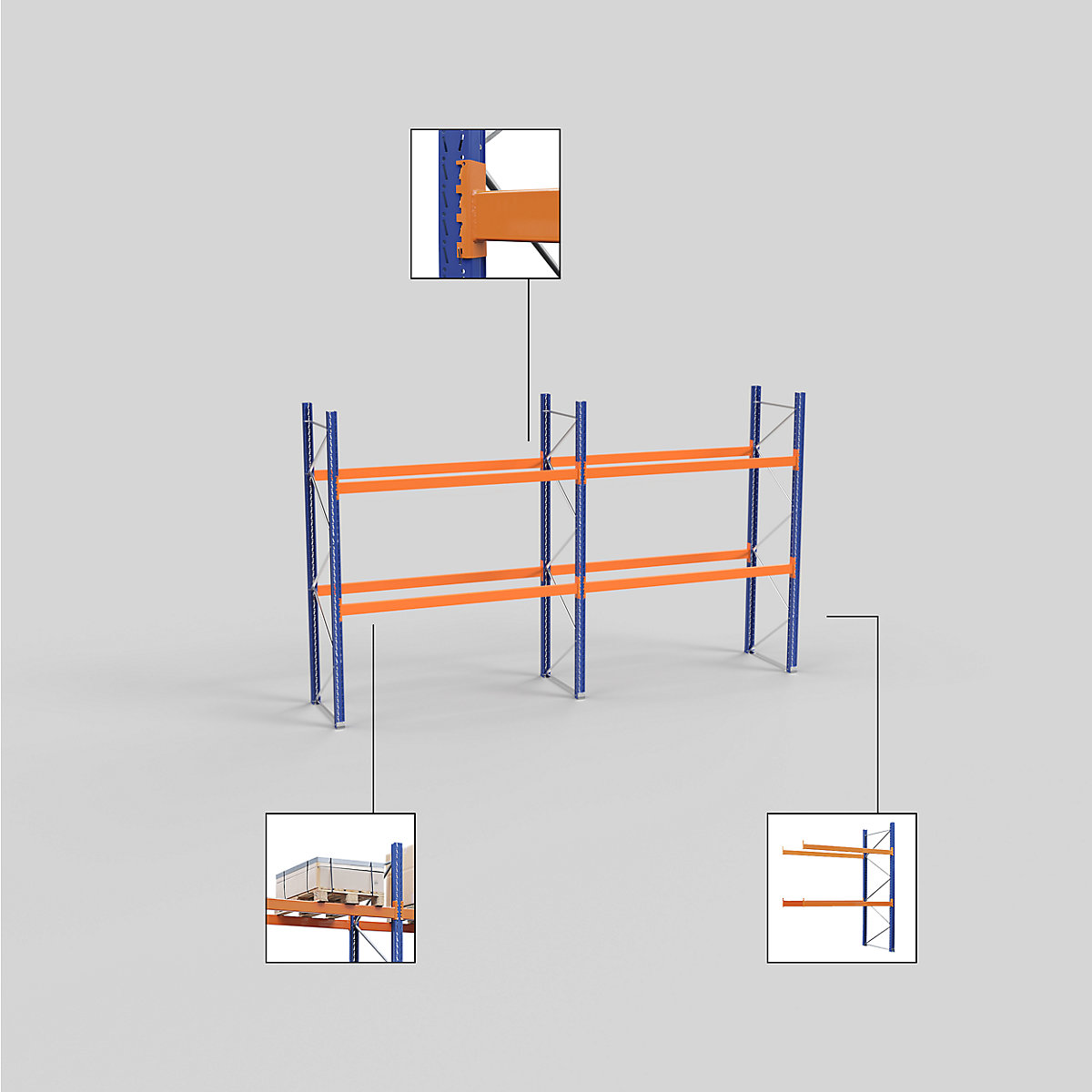

EUROKRAFTpro – Pallet racking, complete shelf unit, HxWxD 3365 x 5700 x 1100 mm
Price / items (Excl. VAT)
£1,329.00
Product description
3 upright frames HxD 3360 x 1100 mm, upright profiles in gentian blue RAL 5010 and with zinc plated cross braces.
4 pairs of beams, length 2700 mm in pure orange RAL 2004.
Incl. bolt anchors.
4 pairs of beams, length 2700 mm in pure orange RAL 2004.
Incl. bolt anchors.
If the pallet racking is to be installed in an earthquake zone, custom made models featuring custom dimensions must be ordered and delivered.
Spacers are required when installed for use from both sides.
Supplied flat pack – easy self-assembly.
All specified max. loads apply with uniform load distribution.
- Heavy duty pallet racking for storing pallets lengthwise
- Beams suitable for versatile use and adjustable in increments of 70 mm
- Individually extendable with matching extension shelf units
10 year guarantee
Technical data
| Max. shelf load | 3200 kg |
|---|---|
| Max. bay load | 6400 kg |
| Overall height | 3365 mm |
| Overall depth | 1100 mm |
| Cross beam length | 2700 mm |
| Height of uprights | 3360 mm |
| Depth of uprights | 1100 mm |
| Material | steel |
| Colour of uprights | gentian blue RAL 5010 |
| Cross beam colour | pure orange RAL 2004 |
| Shelf unit type | complete shelf unit |
| Scope of delivery | 3 pairs of uprights, 4 pairs of 2700 mm beams |
| Overall width | 5700 mm |
| Supplied | flat pack |
| Assembly service | yes |
