Ref.: 571021 49

Universal boltless shelving unit chipboard shelves

(2)

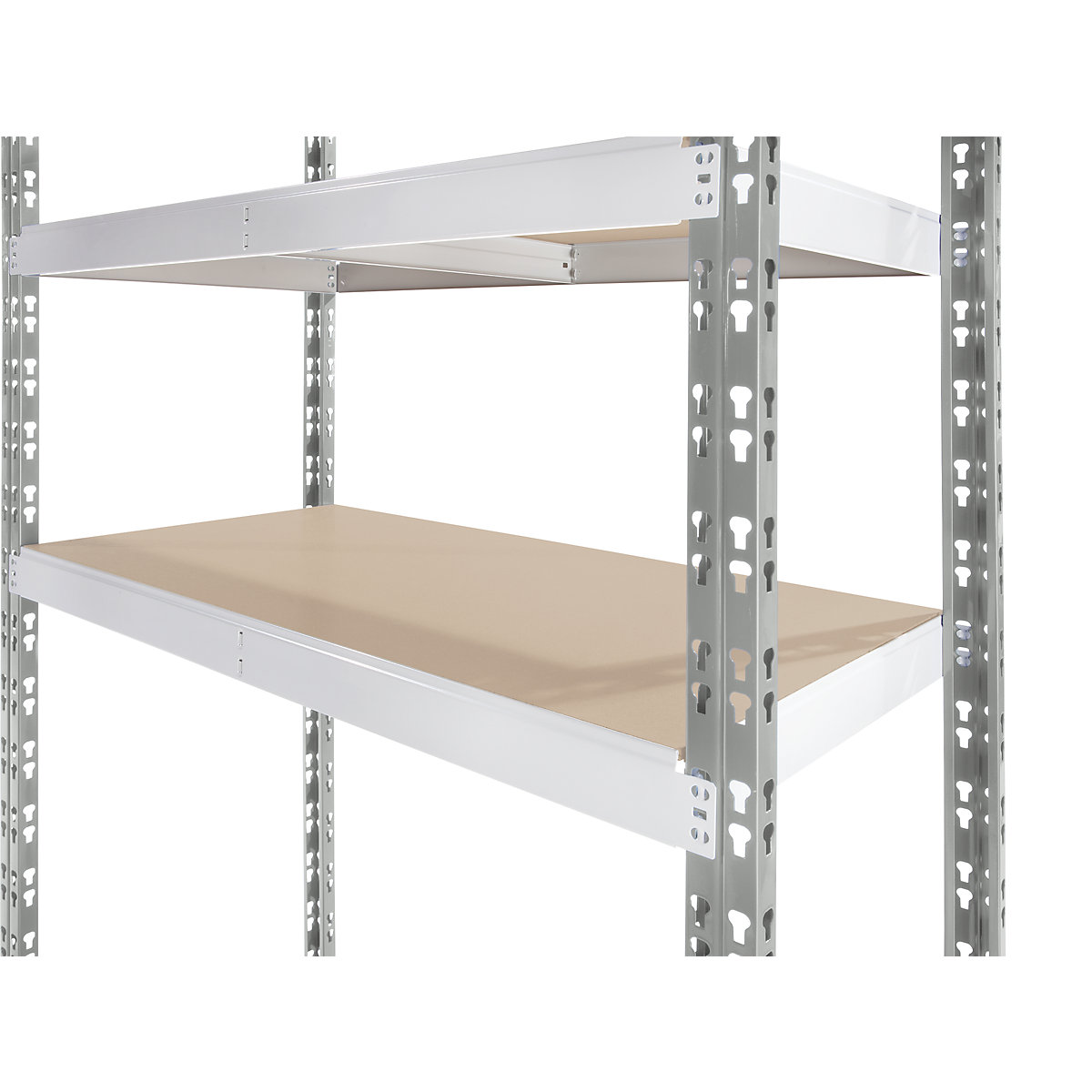

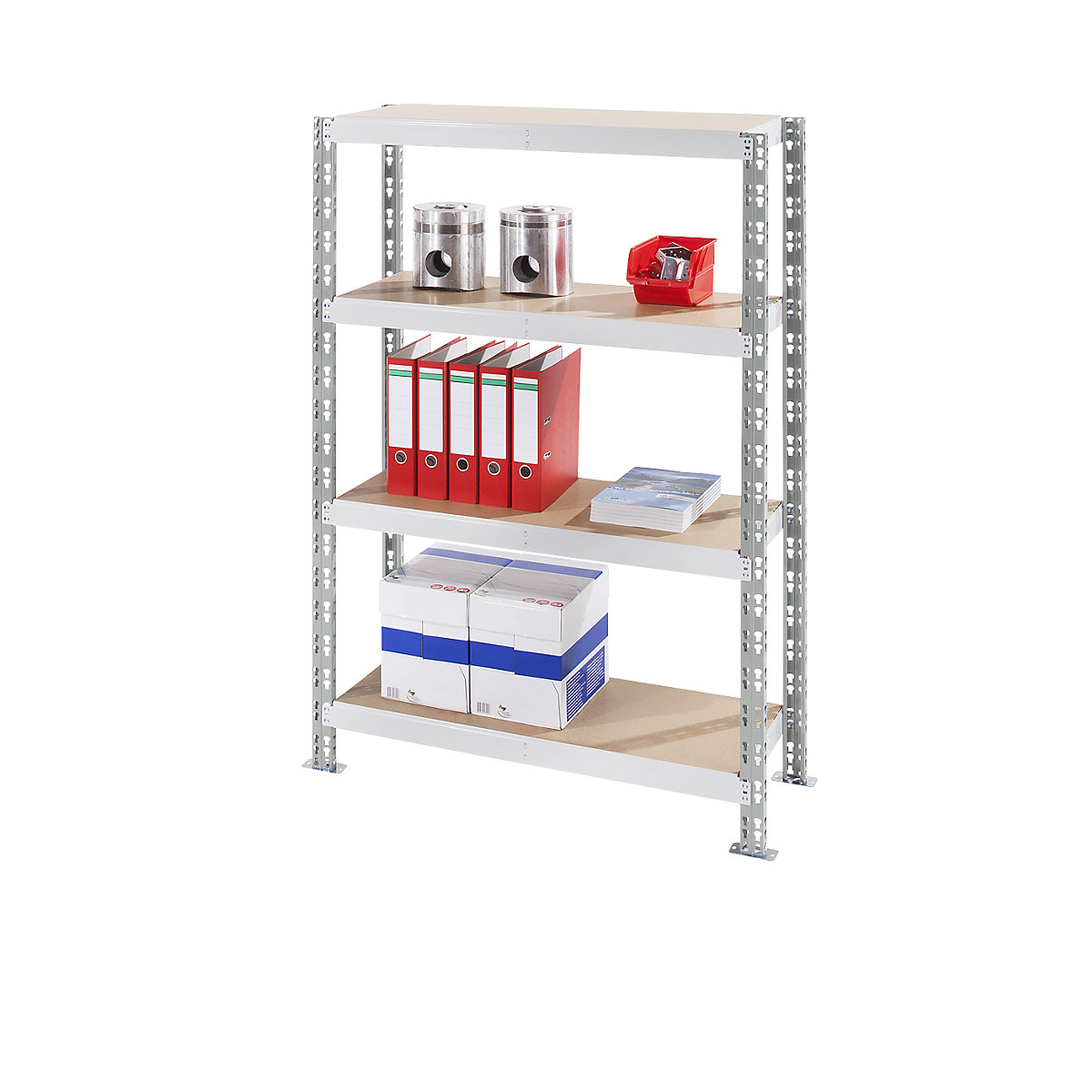

Universal boltless shelving unit

HxWxD 1508 x 1025 x 400 mm, extension shelf unit

Shelf unit type
Shelf unit height [mm]
Shelf depth [mm]
£129.00
Price / item (Excl. VAT)
Delivery time: 7-10 Working days
Product description
  • Optimum price/performance ratio
  • Quick and easy plug-in assembly
  • With high-quality plastic coating
  • Very good space utilisation due to three different shelf depths and four shelf heights
  • Ideal for the warehouse, office, archive, workshop
  • Shelf adjustment grid 75 mm

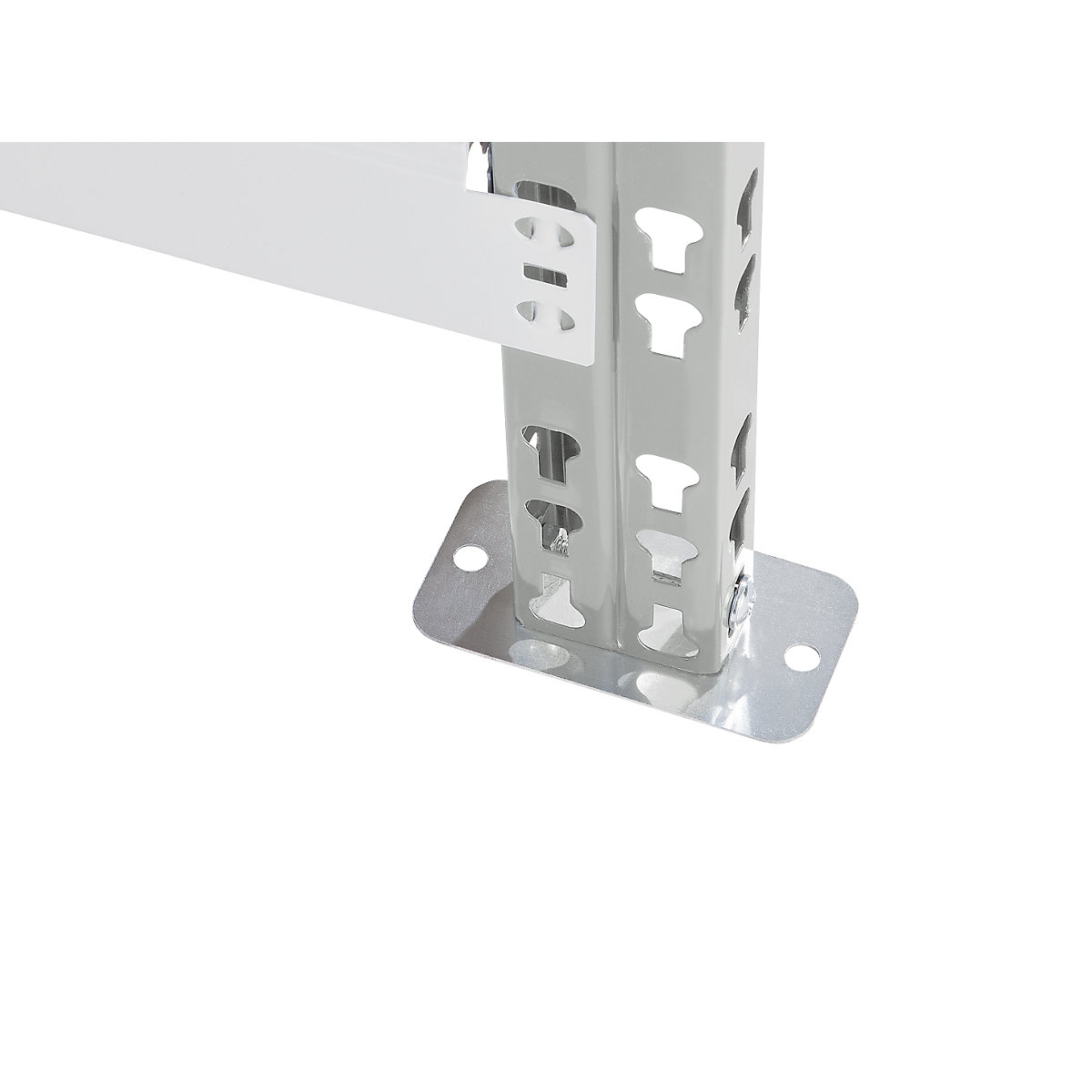

The upright frames are fitted with zinc plated foot plates (98 x 51 mm) that raise the specified shelf unit heights by 1 mm respectively. Screws and plugs for the footplates not included.

Please also observe our installation and assembly manual.
External width of standard shelf unit 1050 mm.
External width of extension shelf unit 1025 mm.
Internal width
External width – 100 mm.
Overall height
Shelf unit height + 1 mm foot plate.
Max. shelf load 450 kg.

If the height of the shelf unit equals more than 5 times its depth, the shelf unit must be secured against tipping using suitable floor anchors.
The specified max. load values are applicable with uniform load distribution. Additional shelves may be used if the specified max. bay load is observed.
Technical data
Shelf width1000 mm
Colourwood white aluminium blue grey RAL 7031
Max. shelf load450 kg
Shelf height adjustment increments75 mm
Shelf materialchipboard
Designplug in
Materialsteel
Shelf colourwood
Colour of uprightsblue grey RAL 7031
Product typeboltless shelving units
Suppliedflat pack
Shelf unit typeextension unit
Shelf unit height1508 mm
Shelf depth400 mm
Max. bay load1800 kg
Number of shelves4 pcs.
Width1025 mm
Depth400 mm
Weight17.81 kg
