Ref.: 118454 49

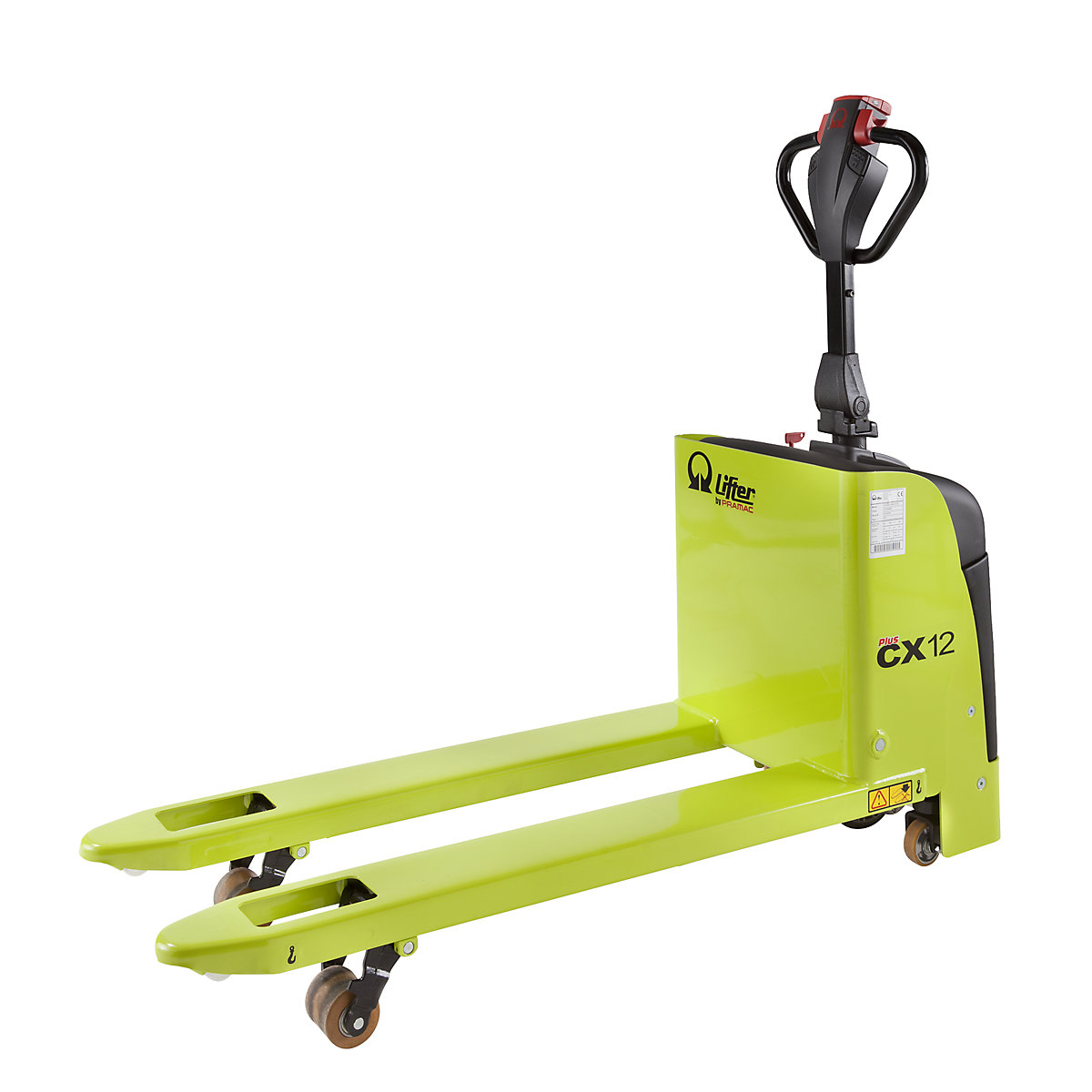

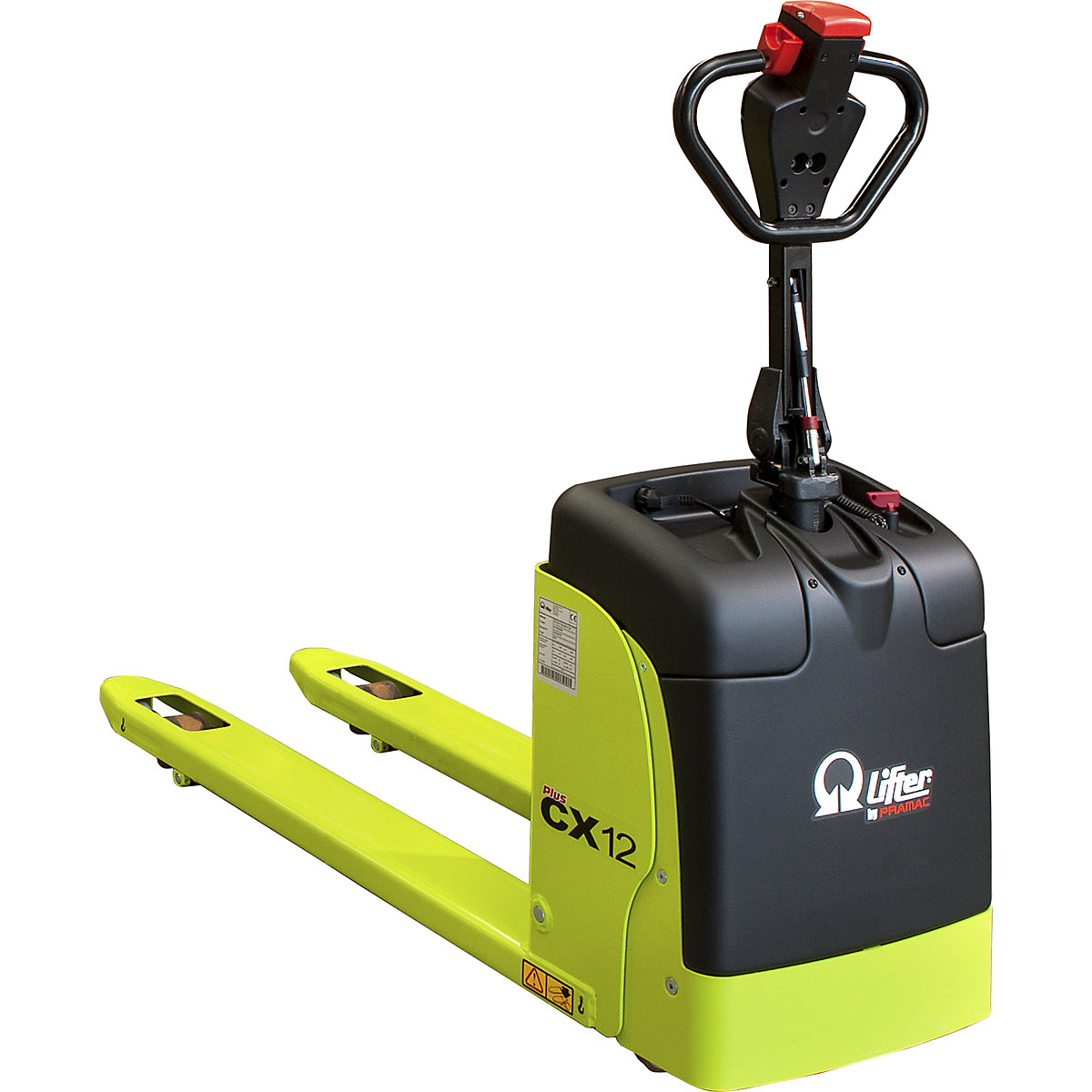

Electric lifting trolley – Pramac max. load 1200 kg
fork dimensions LxW 1150 x 520 mm
Ref.: 118454 49
Electric lifting trolley – Pramac max. load 1200 kg
fork dimensions LxW 1150 x 520 mm
fork dimensions LxW 1150 x 520 mm
£3,550.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£3,550.00
Price / item (Excl. VAT)
Product description
- European product with high quality standard
- Maintenance free AGM batteries
- Operates for approx 2 – 3 hours
For easy use in tight spaces. Especially easy to handle. Smaller turning radius and dimensions comparable with a pallet truck. Spring loaded rollers at the side. Energy saving MOS-FET drive control with proportional speed regulation. Creep speed possible with drawbar in upright position.
With horn, emergency stop switch and all-round foot protection.
Maintenance free AGM batteries ensure operation for 2 – 3 hours or a multiple service life compared to standard batteries.

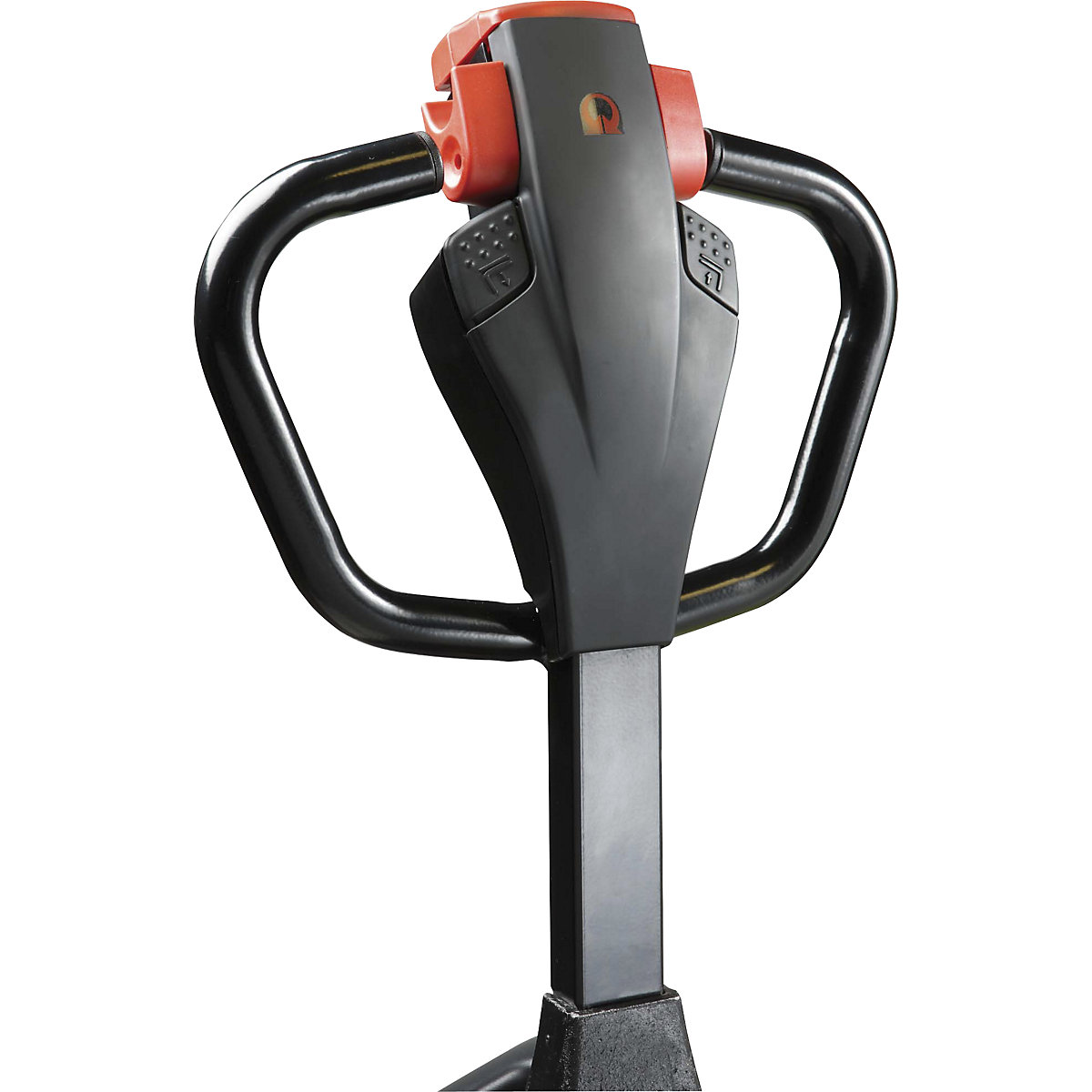

Safety steering unit with ergonomic controls
Direction controller in butterfly design for sensitive, stepless start-up and stop. Raising and lowering activated on the drawbar handle. LED display for battery status. Button for horn. Security key to protect the driver.
Changes direction when counterpressure is applied.
With horn, emergency stop switch and all-round foot protection.
Maintenance free AGM batteries ensure operation for 2 – 3 hours or a multiple service life compared to standard batteries.
Safety steering unit with ergonomic controls
Direction controller in butterfly design for sensitive, stepless start-up and stop. Raising and lowering activated on the drawbar handle. LED display for battery status. Button for horn. Security key to protect the driver.
Changes direction when counterpressure is applied.
Other lifting trolleys on request
– Fork lengths 800 or 1000 mm
– Lifting truck with scales
– Larger models – also with operator platform
– Inverter charger for trucks
– Fork lengths 800 or 1000 mm
– Lifting truck with scales
– Larger models – also with operator platform
– Inverter charger for trucks
Technical data
| Lifting range | 85 – 200 mm |
|---|---|
| Fork length | 1150 mm |
| Fork width | 150 mm |
| Distance across forks | 520 mm |
| Length | 1510 mm |
| Width | 520 mm |
| Overall height | 1345 mm |
| Min. lifting speed | 0.03 m/s |
| Max. lifting speed | 0.04 m/s |
| Min. driving speed | 4.3 km/h |
| Max. driving speed | 4.8 km/h |
| Climbing performance with load | 10 % |
| Climbing performance without load | 25 % |
| Turning radius | 1268 mm |
| Thickness of fork prong | 55 mm |
| Battery | 2 x 12 V / 60 Ah |
| Battery charger | 8 A impulse charger |
| Working gangway for pallet length | 2120 mm |
| Roller material | polyurethane |
| Fork roller version | single |
| Fork roller diameter | 82 mm |
| Fork roller width | 82 mm |
| Steering wheel width | 50 mm |
| Steering wheel diameter | 186 mm |
| Max. load | 1200 kg |
| Product type | electric lift trucks |
| Supplied | assembled |
| Weight | 148 kg |
| Instructions |
