Ref.: 532833 49

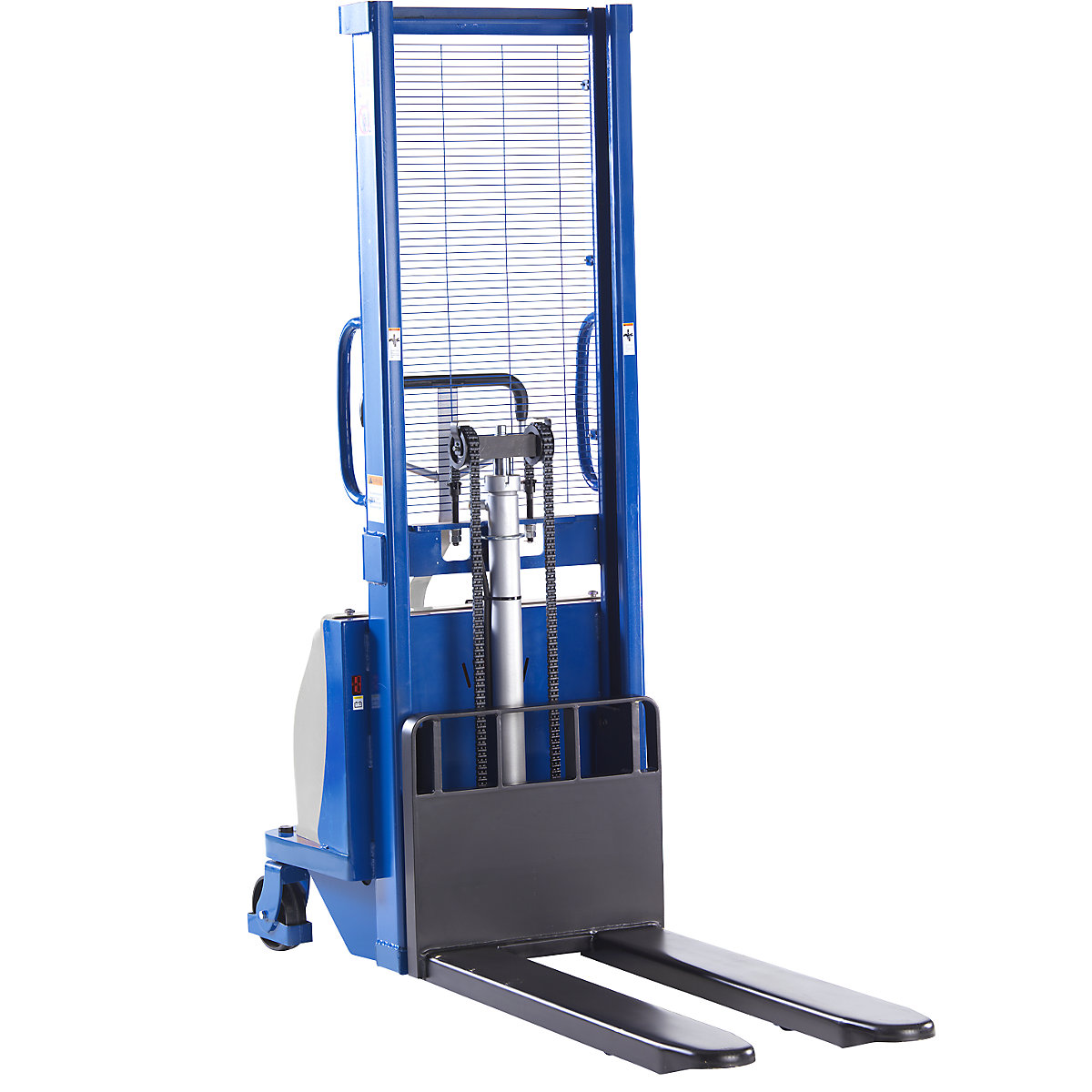

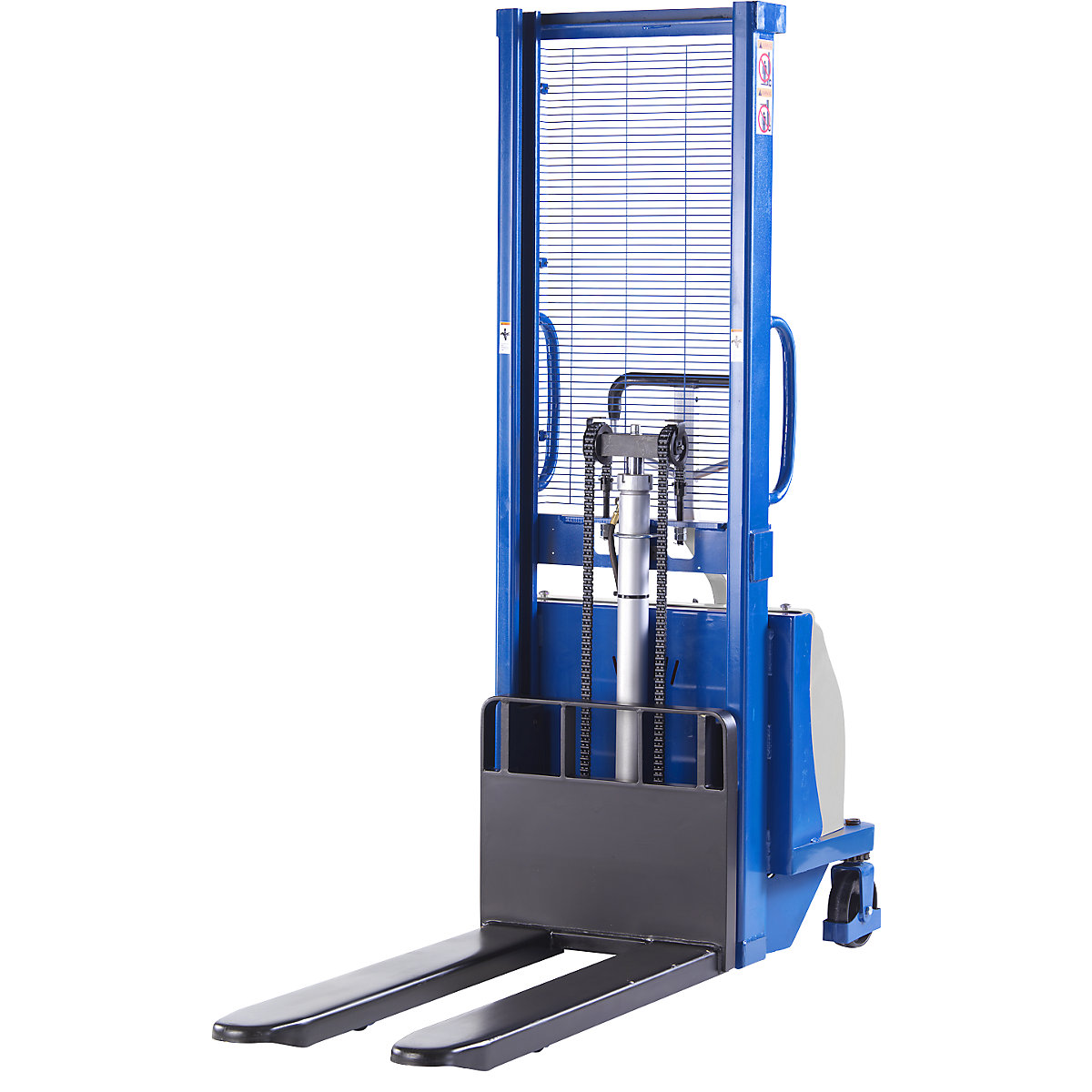

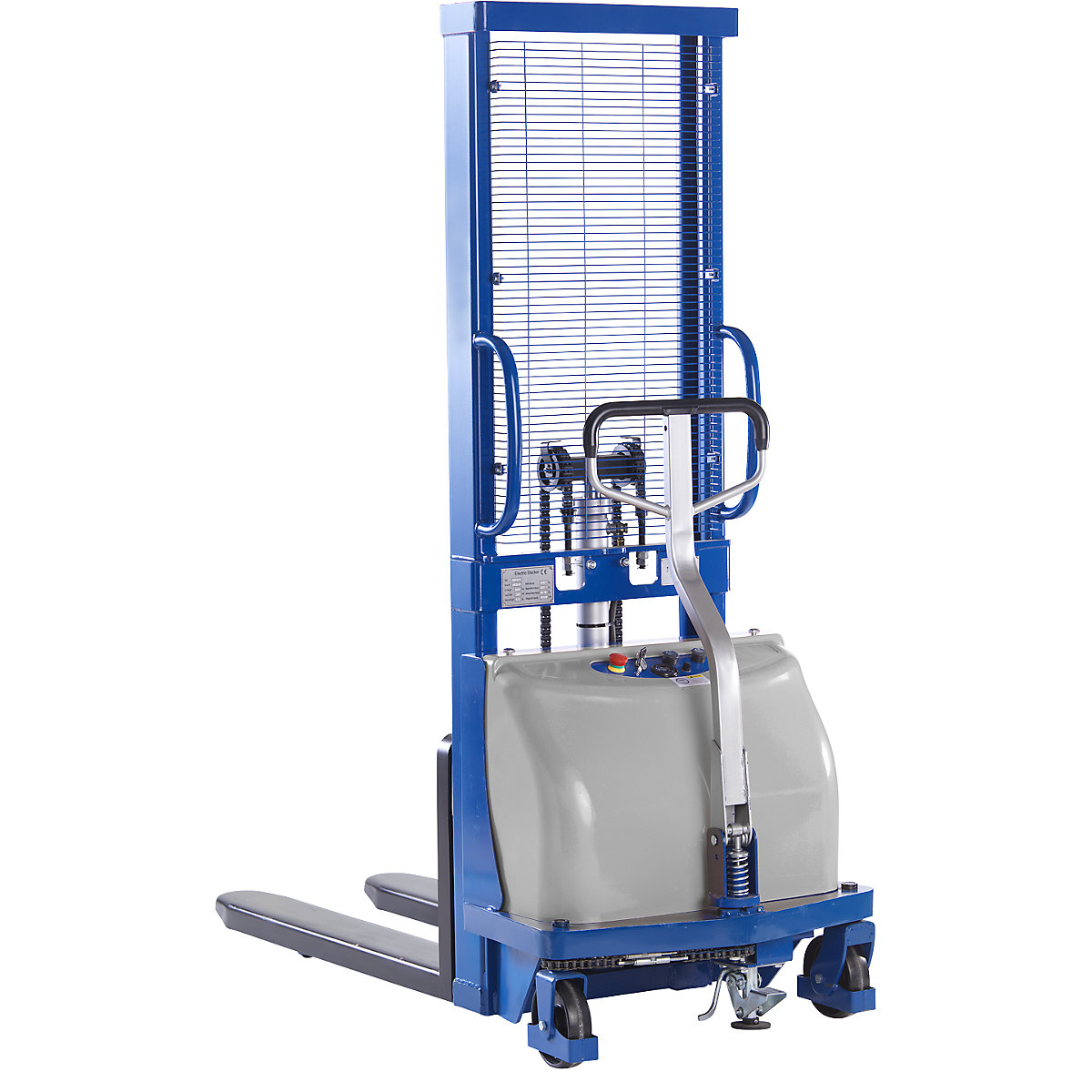

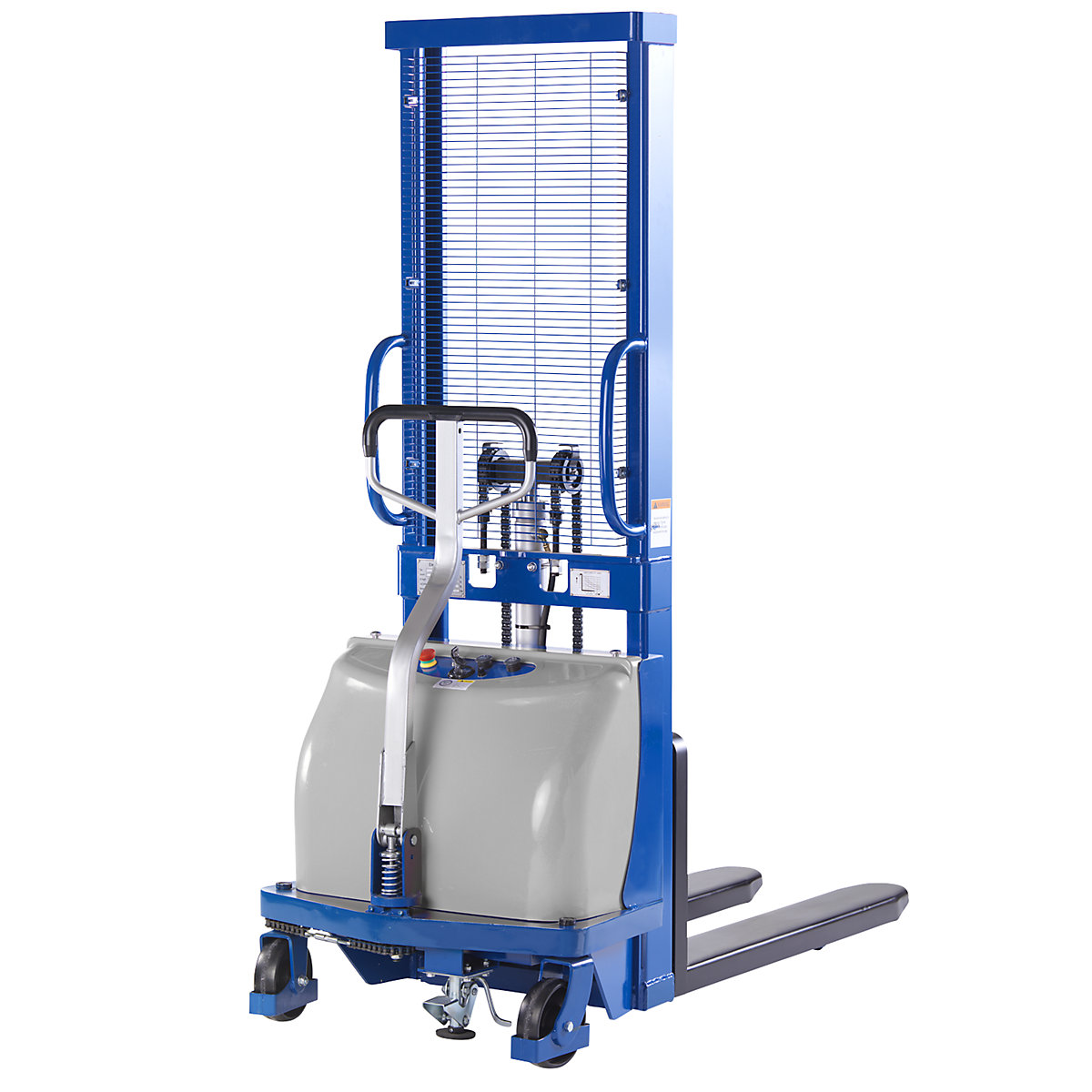

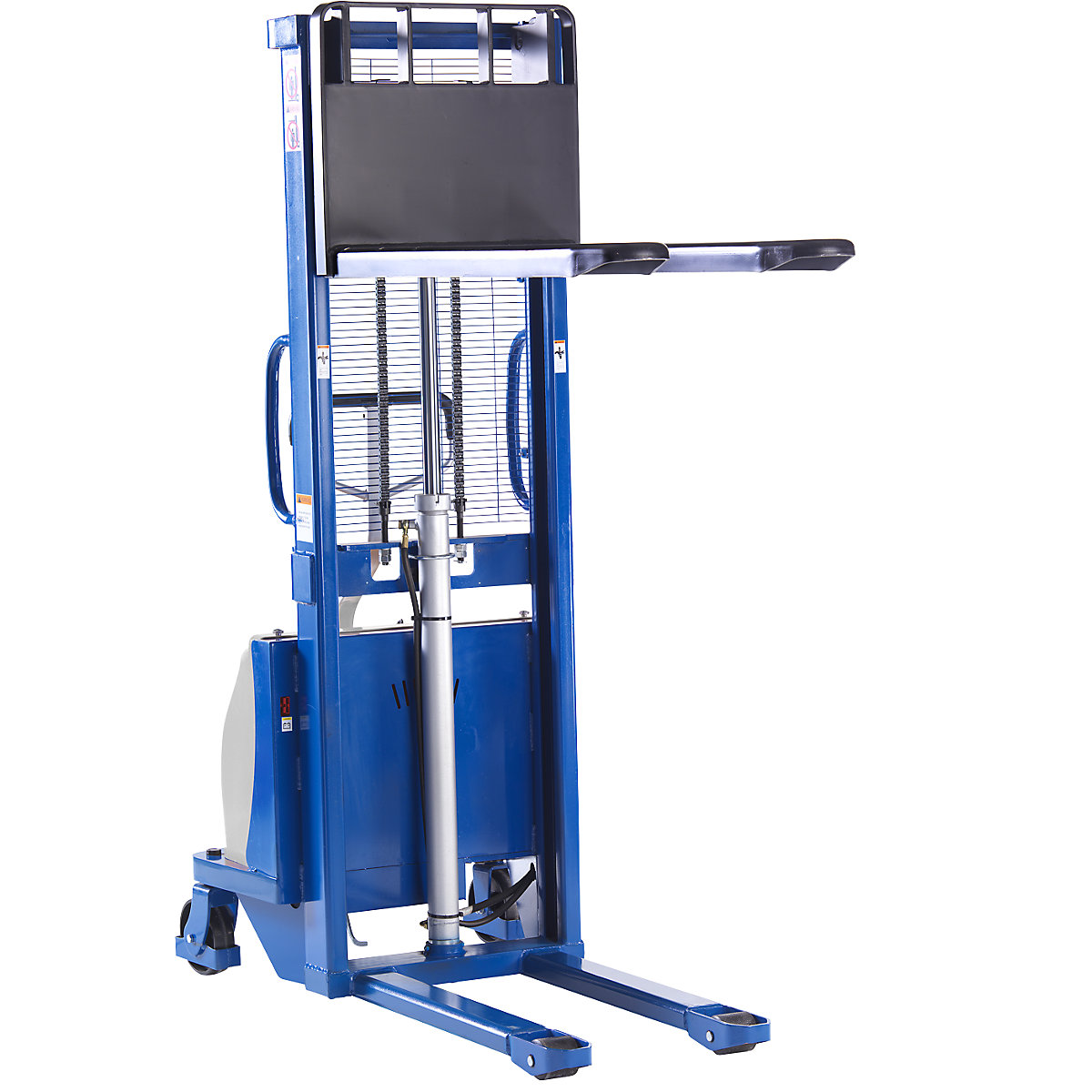

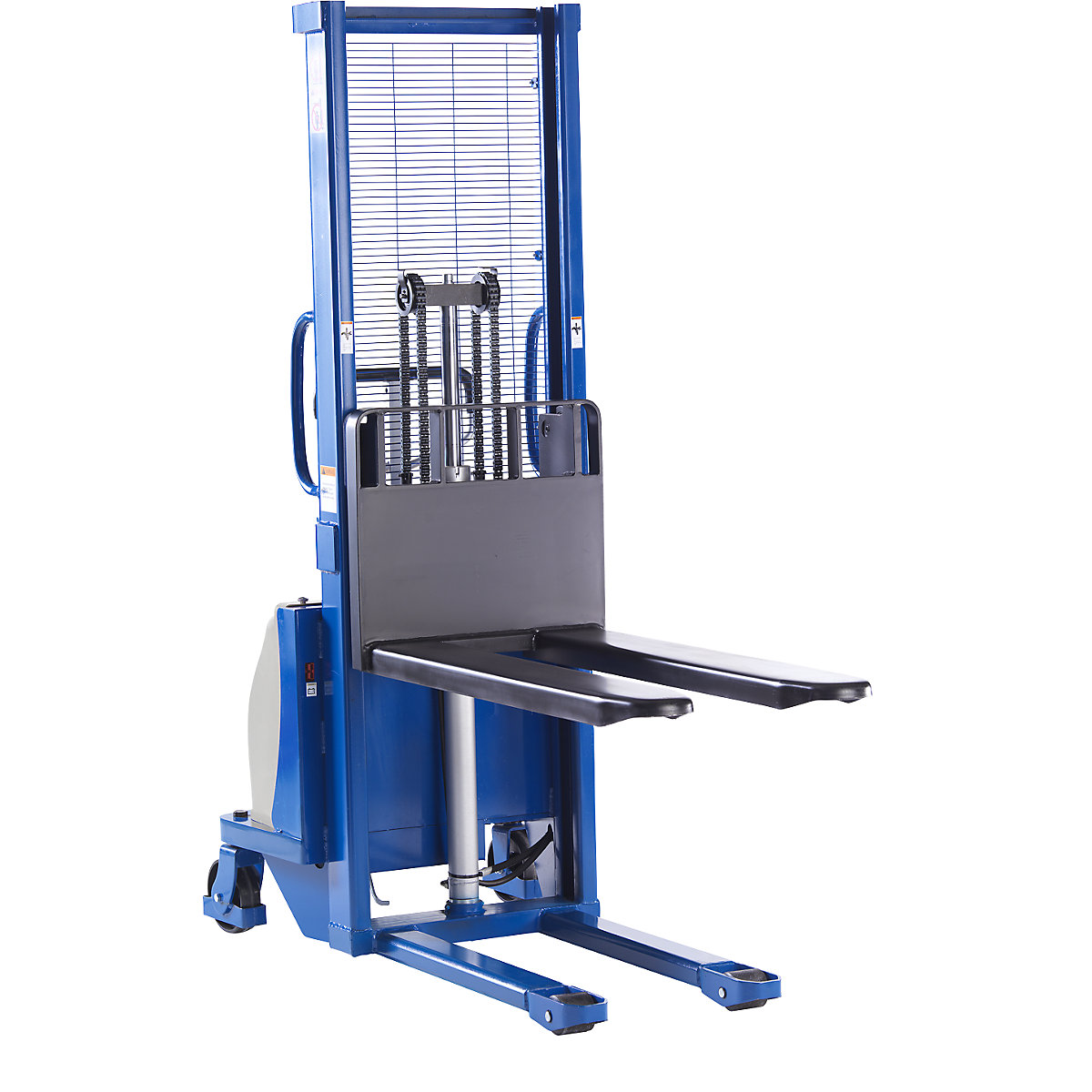

Semi-electric drawbar stacker max. load 1200 kg
lifting height 1600 mm
Lifting range [mm]
Ref.: 532833 49
Semi-electric drawbar stacker max. load 1200 kg
lifting height 1600 mm
lifting height 1600 mm
Lifting range [mm]
£2,600.00
Price / item (Excl. VAT)
Only 3 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£2,600.00
Price / item (Excl. VAT)
Product description
- Electric lift – manual drive
- Powerful lift
- Strong battery
- Easy to operate
- Slight change of direction
- With safety valve

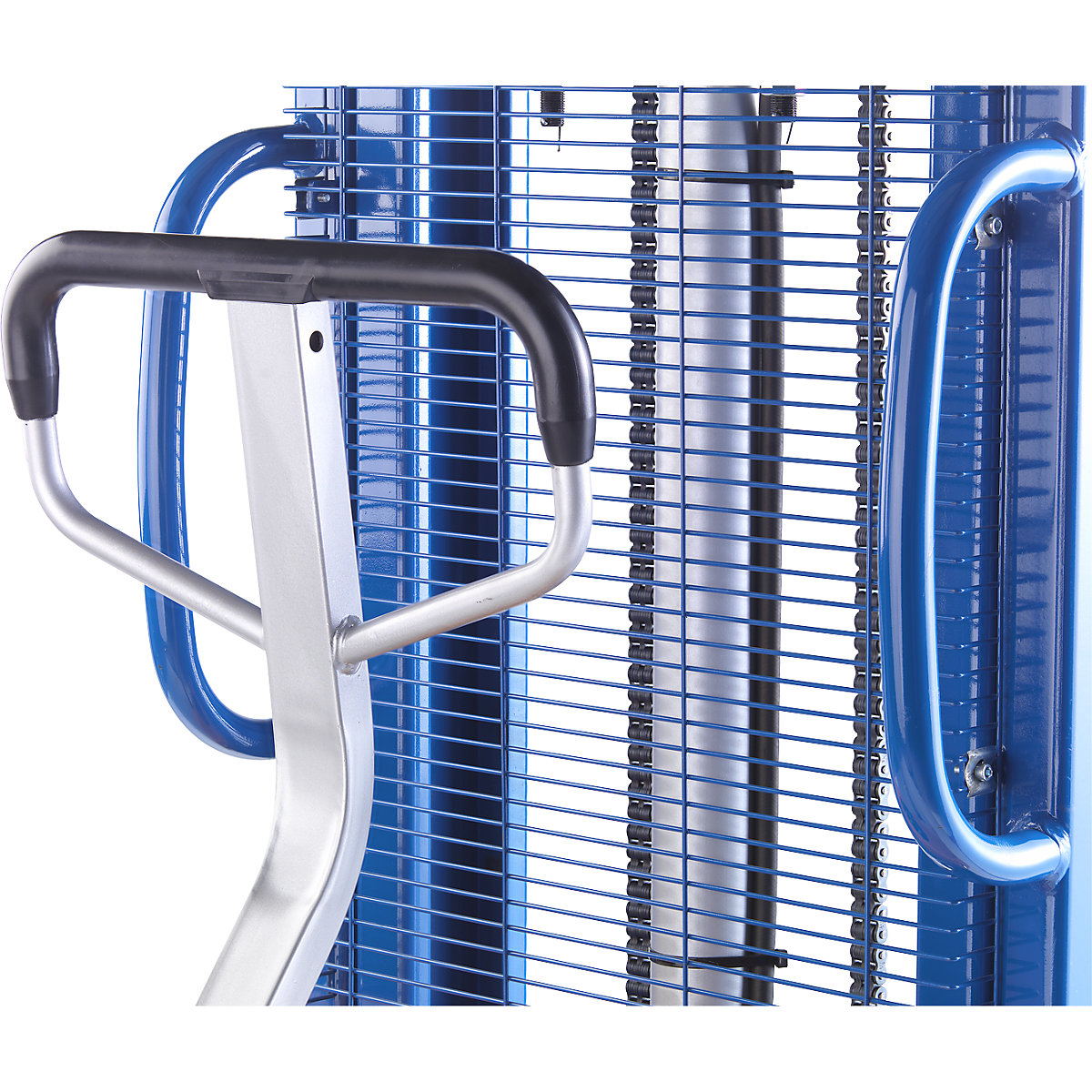

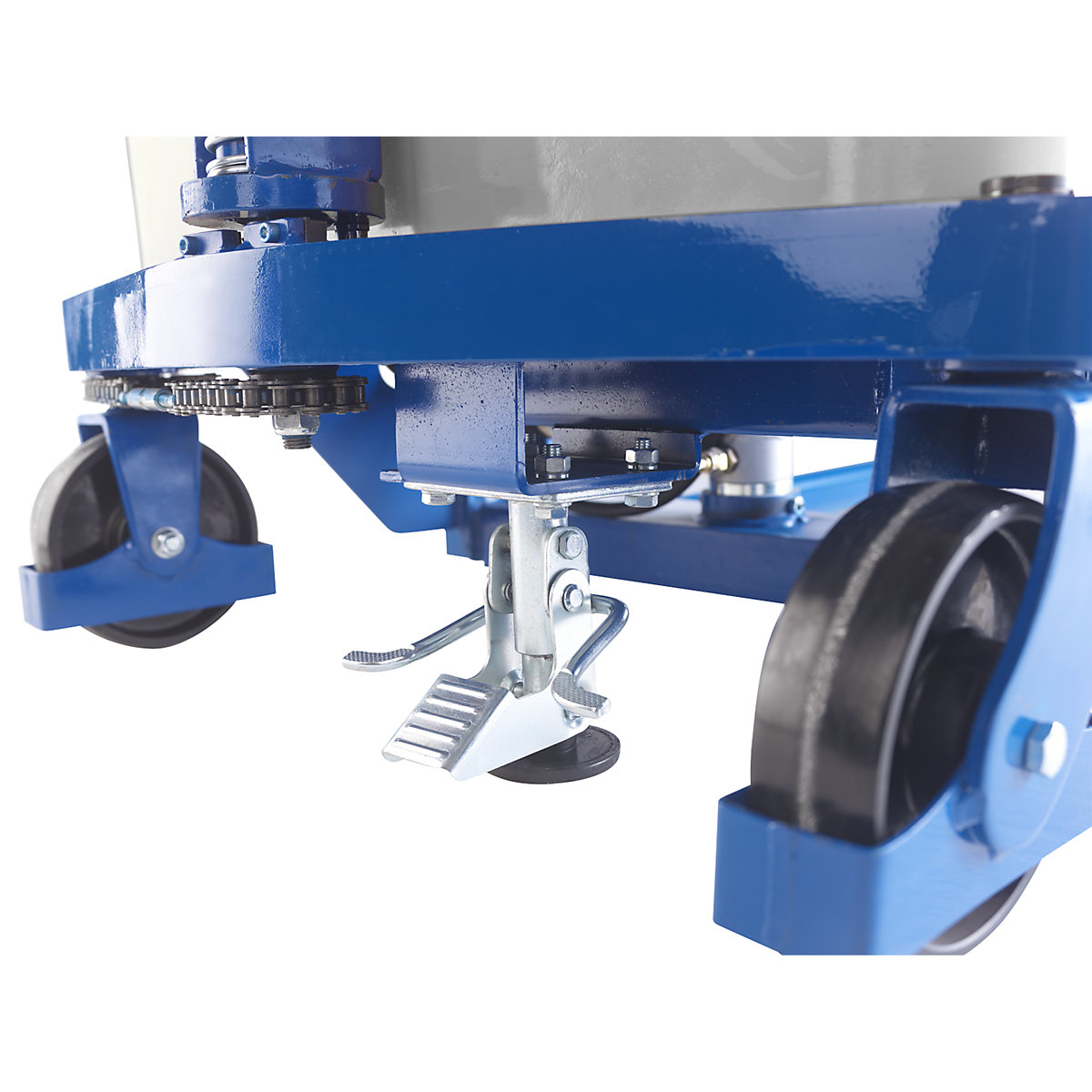

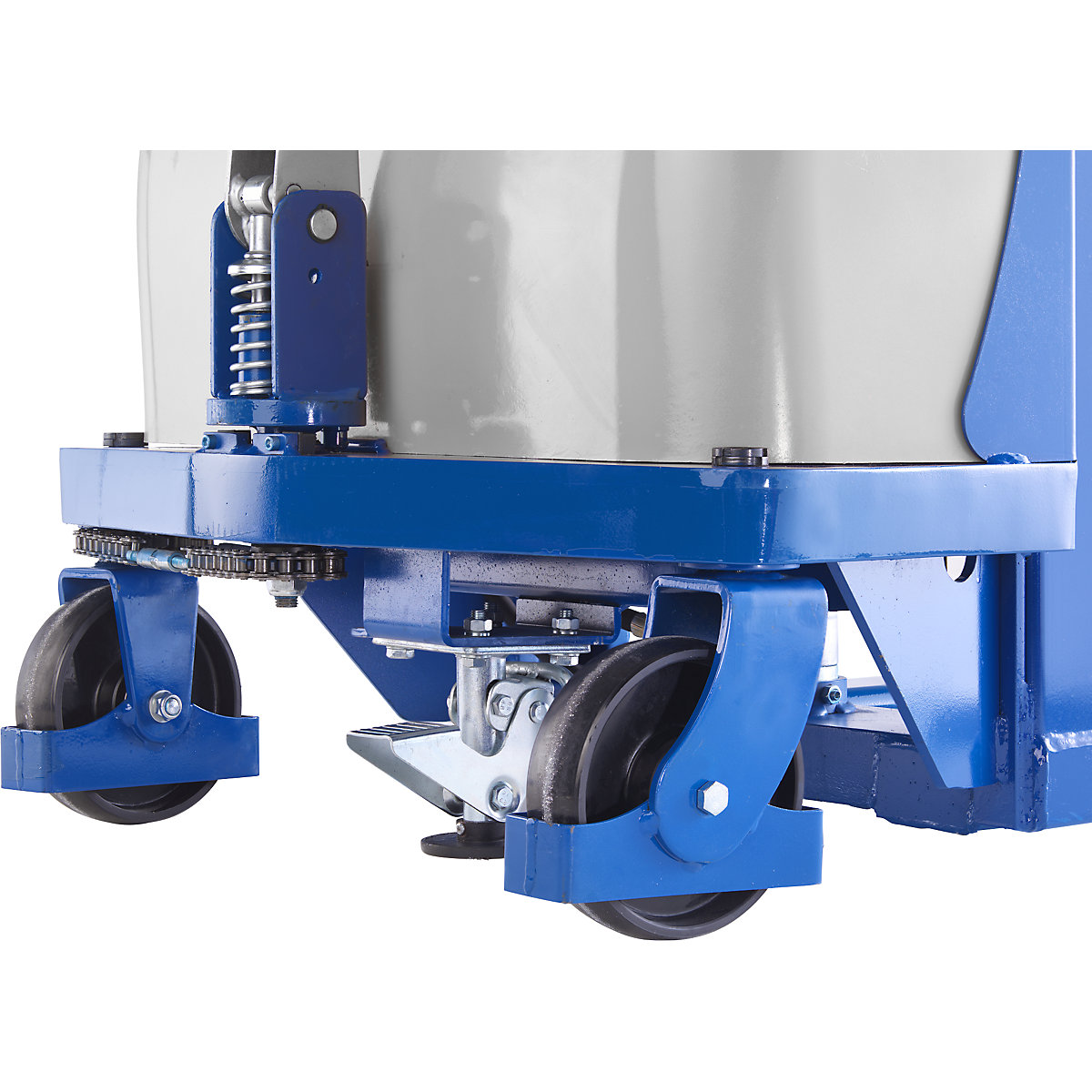

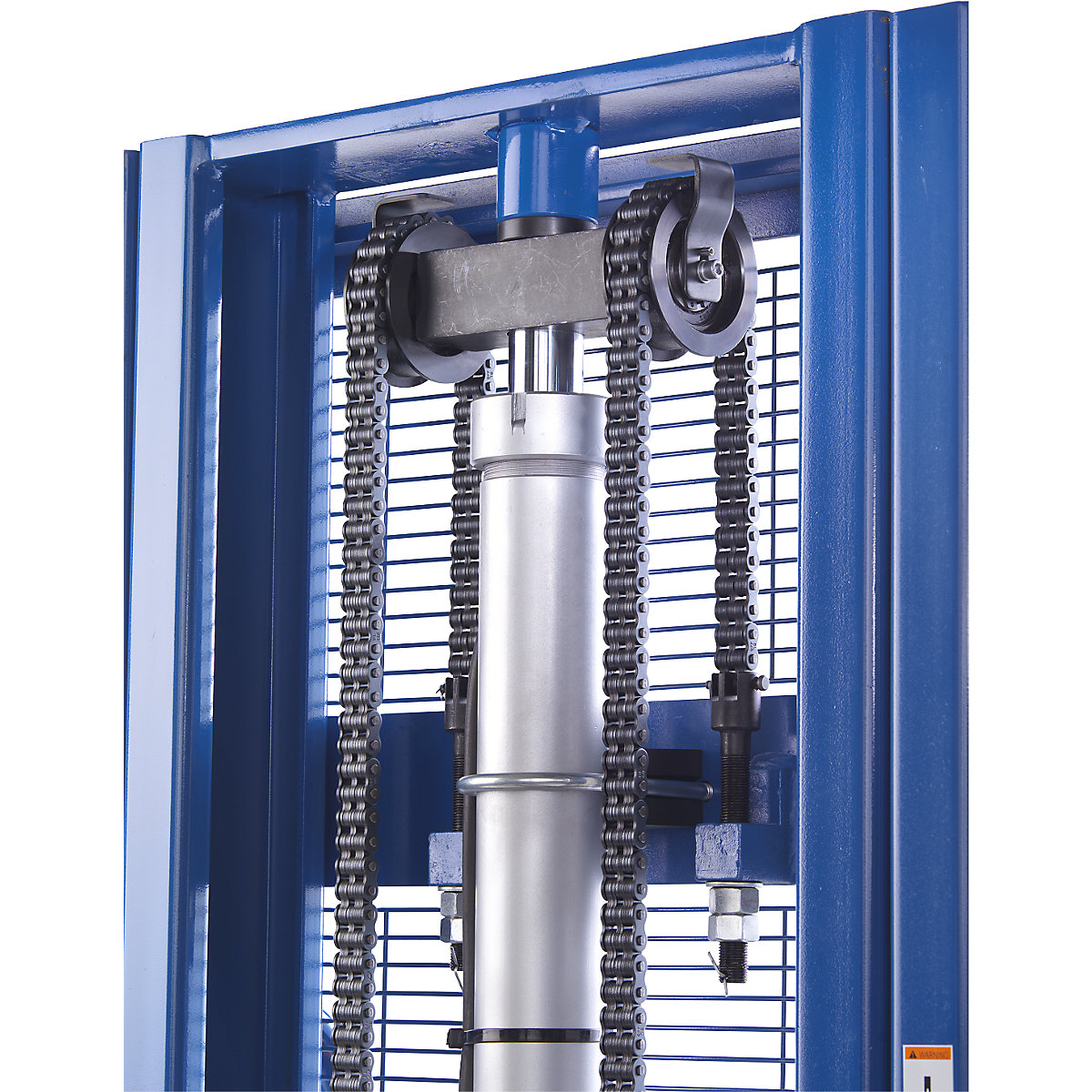

The electric drawbar stacker is characterised by its electro-hydraulic load lifting mechanism. It is moved by pulling on the drawbar or pushing the two powerful handles. It is therefore ideal for occasionally loading and unloading commercial vehicles and for storing and removing goods in warehouses with shorter routes. Max. load 1500 kg, battery 125 Ah with powerful external 10 A charger. Lifting heights up to 3000 mm. Drawbar is connected to the steering wheels via a chain. The advantage is an easy change of direction. Central foot operated wheel stop for firm stand. Safety valve prevents the fork from falling in case of failure. Overload and deep discharge protection for battery prolongs its service life.
Technical data
Max. load | 1200 kg |
---|---|
Fork length | 1150 mm |
Fork width | 170 mm |
Distance across forks | 570 mm |
Length | 1678 mm |
Width | 800 mm |
Min. lifting speed | 70 mm/s |
Max. lifting speed | 90 mm/s |
Turning radius | 1425 mm |
Thickness of fork prong | 60 mm |
Battery | 12 V / 125 Ah |

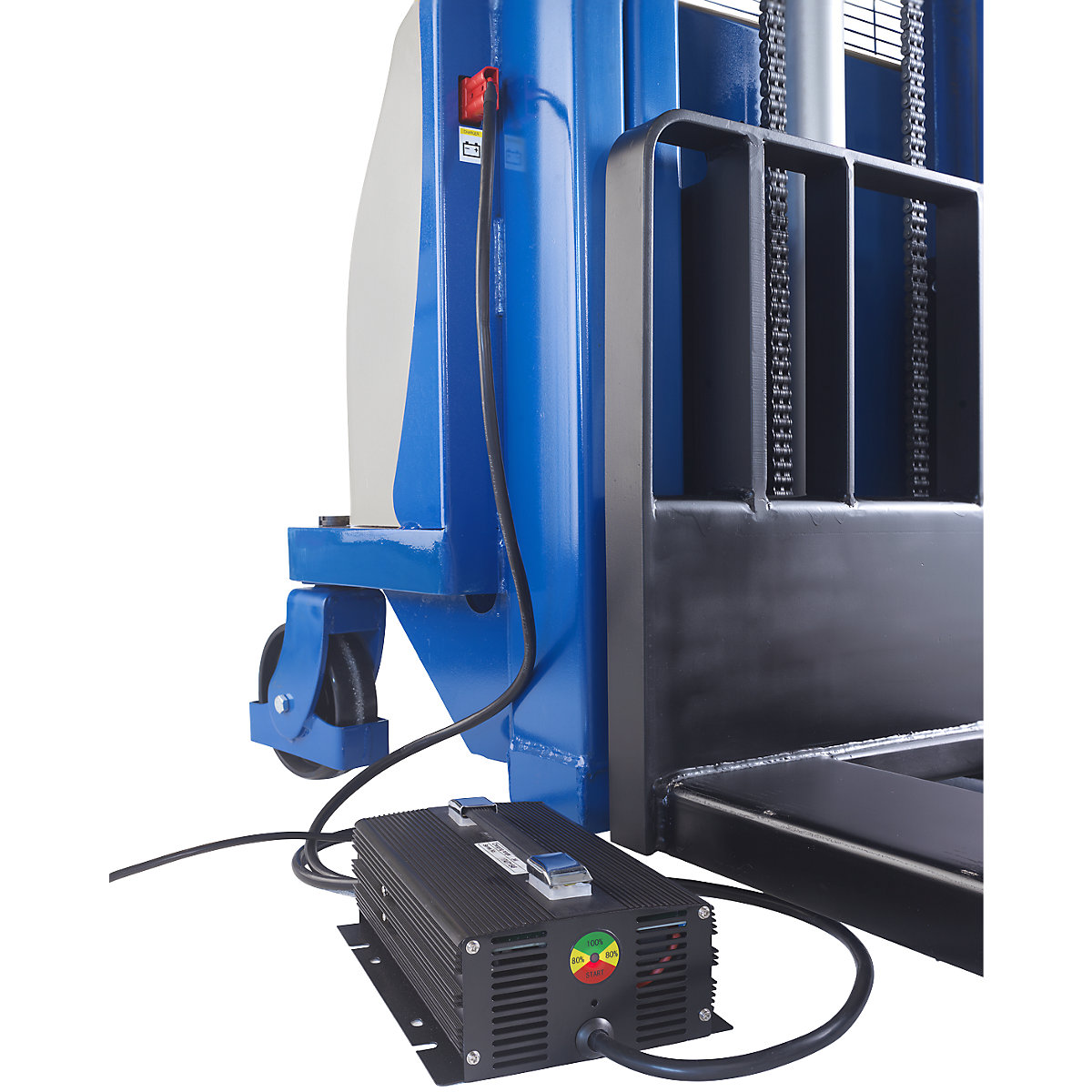

Battery charger | 230 V / 12 V, 10 A |
Working gangway for pallet length | 2267 mm |

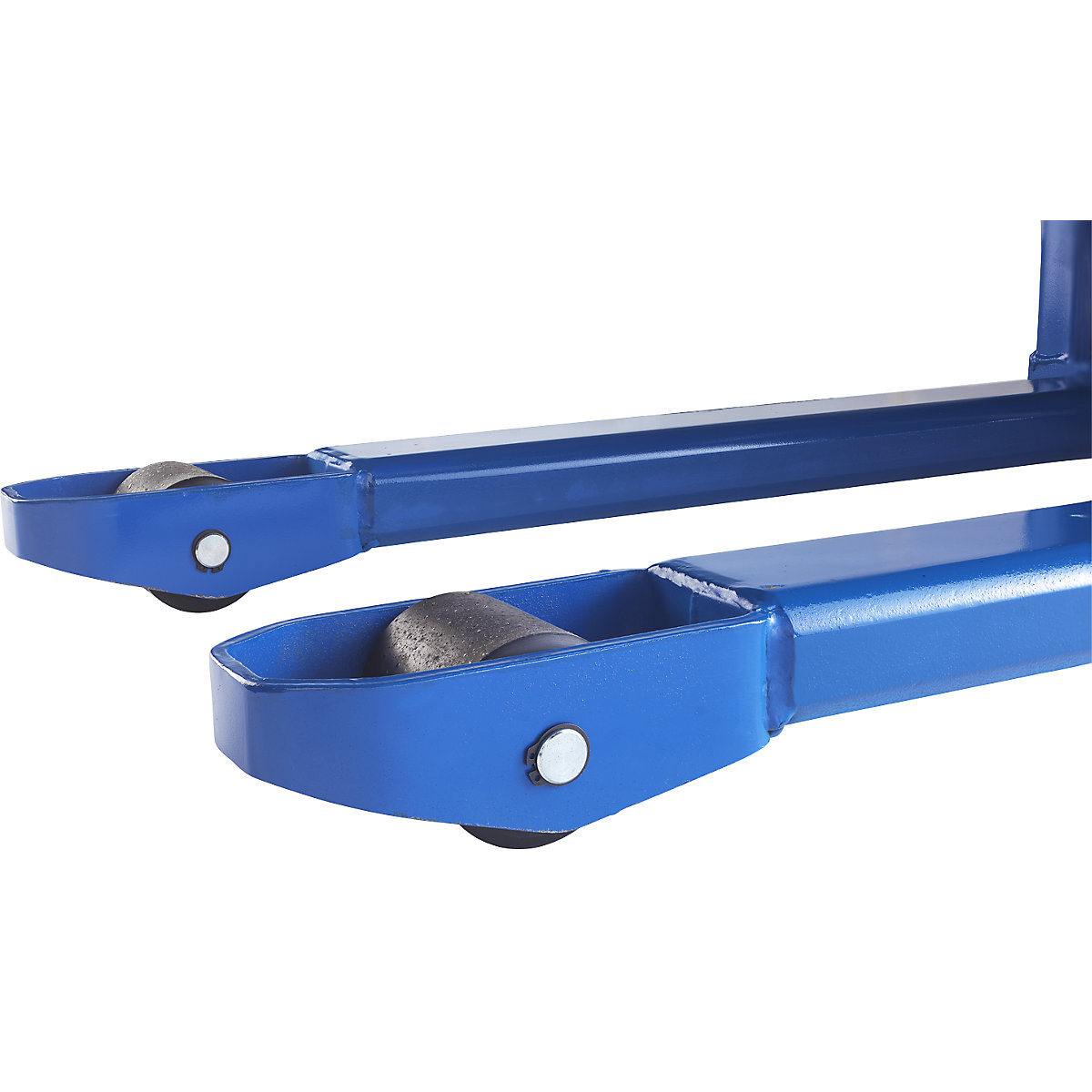

Roller material | nylon |
Fork roller version | single |
Fork roller diameter | 80 mm |
Fork roller width | 70 mm |
Steering wheel width | 50 mm |
Steering wheel diameter | 180 mm |
Lifting motor | 1.5 kW |
Colour | blue |
Product type | drawbar stackers |
Supplied | assembled |
Lifting range | 90 – 1600 mm |
Overall height | 2090 mm |
Design of mast | single mast |
Weight | 355 kg |
Instructions |
