Drum tipper – eurokraft pro with rotary mechanism and hand crank

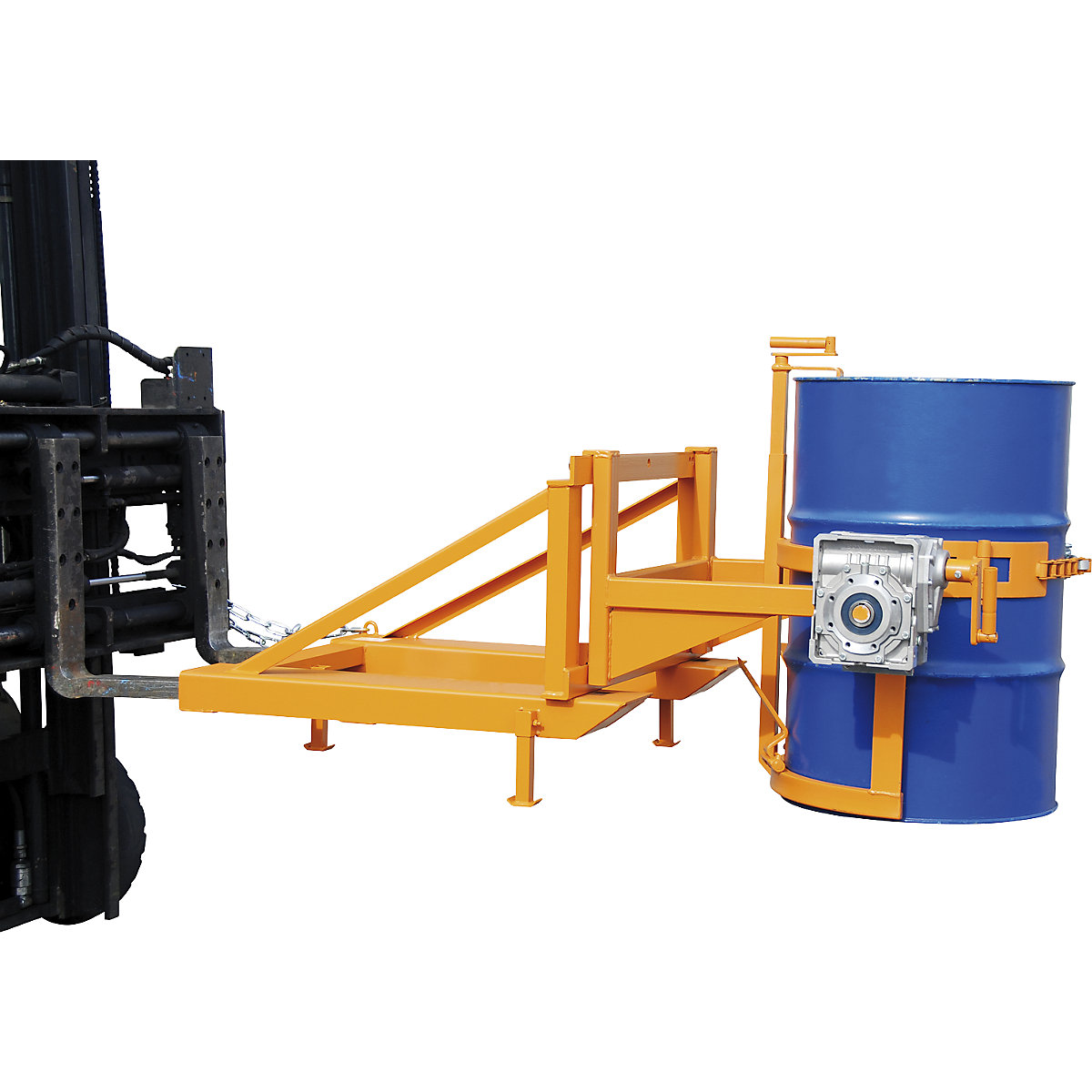

The drum tipper with turning device and hand crank enables the safe picking up, transport and controlled emptying of steel and plastic drums. The stacker attachment is suitable for steel bung drums, steel lid drums, rolling hoop drums, plastic L-ring drums, plastic double L-ring drums and plastic lid drums with a capacity of 110 to 220 litres and a diameter of 490 to 590 mm. This supports efficient workflows in warehouse, production and disposal operations.

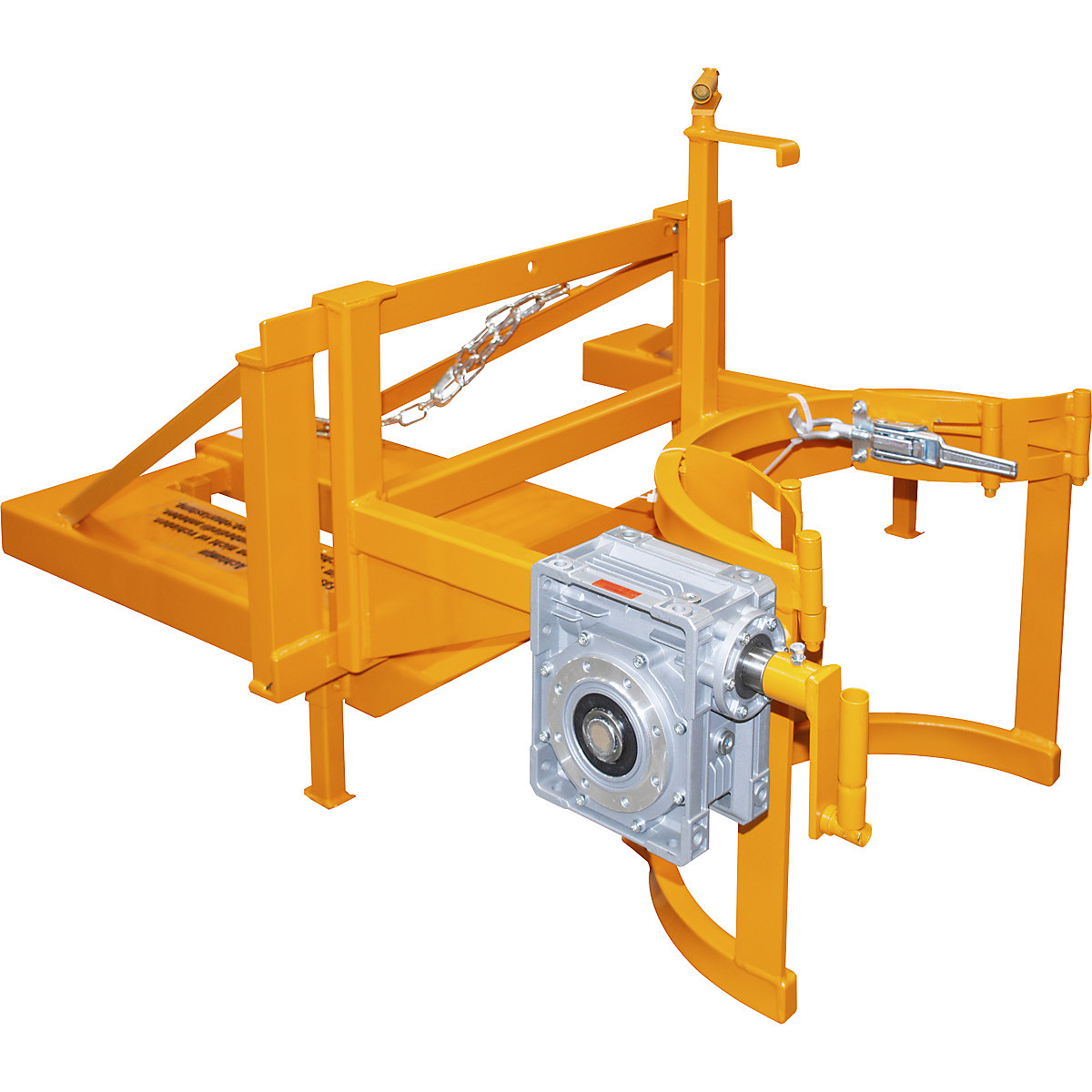

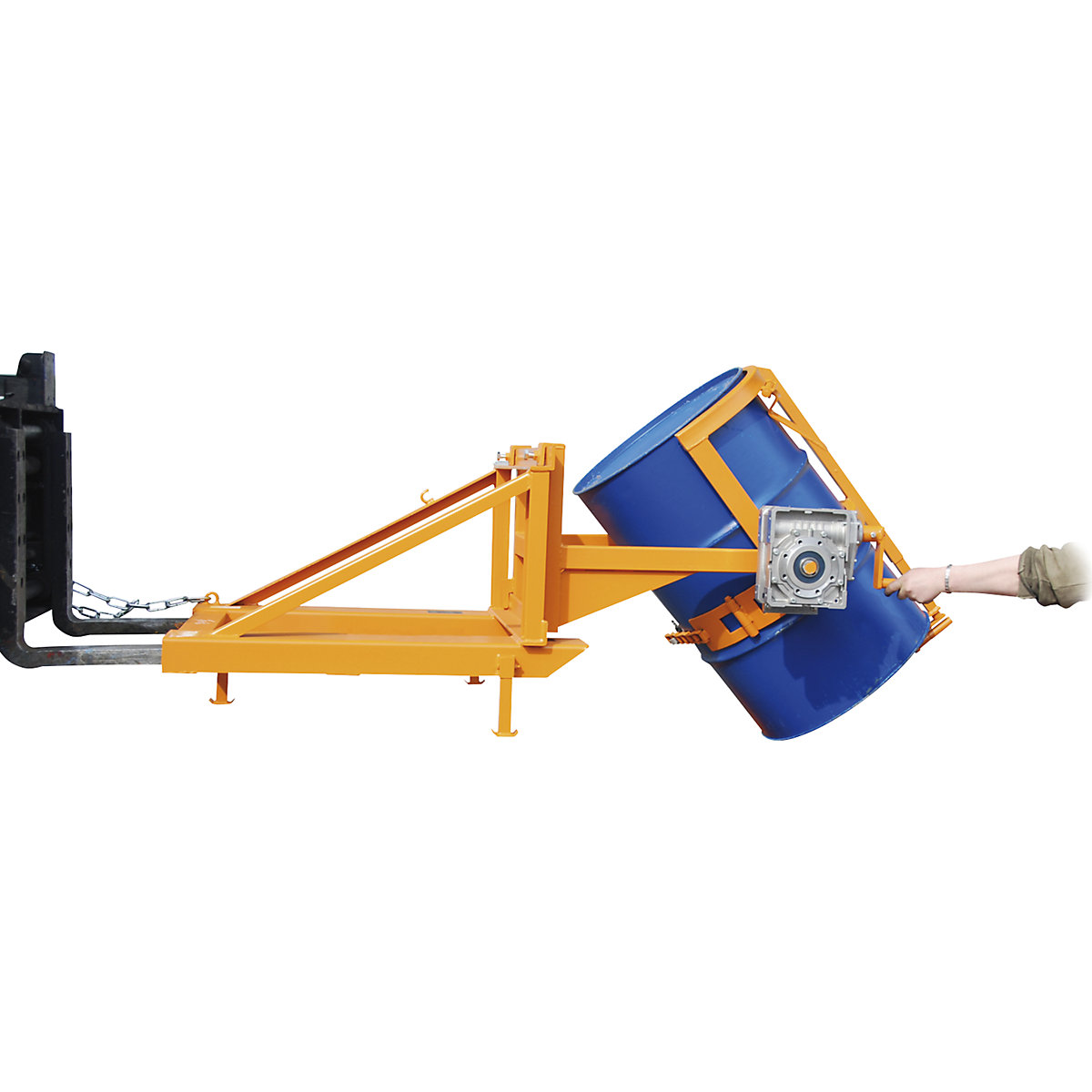

The bolt-on turning device offers a 270° rotation range. The drum contents can thus be emptied specifically in the desired direction. Tipping is carried out via a hand crank. Manual operation enables controlled and precise positioning of the drum without the contents spilling out in an uncontrolled manner.

The drum holder with turning mechanism is securely closed via an eccentric clamp. As a result, the drum remains reliably fixed during pick-up, transport and tipping. A self-locking gearbox prevents unintentional reverse rotation and increases operational safety.

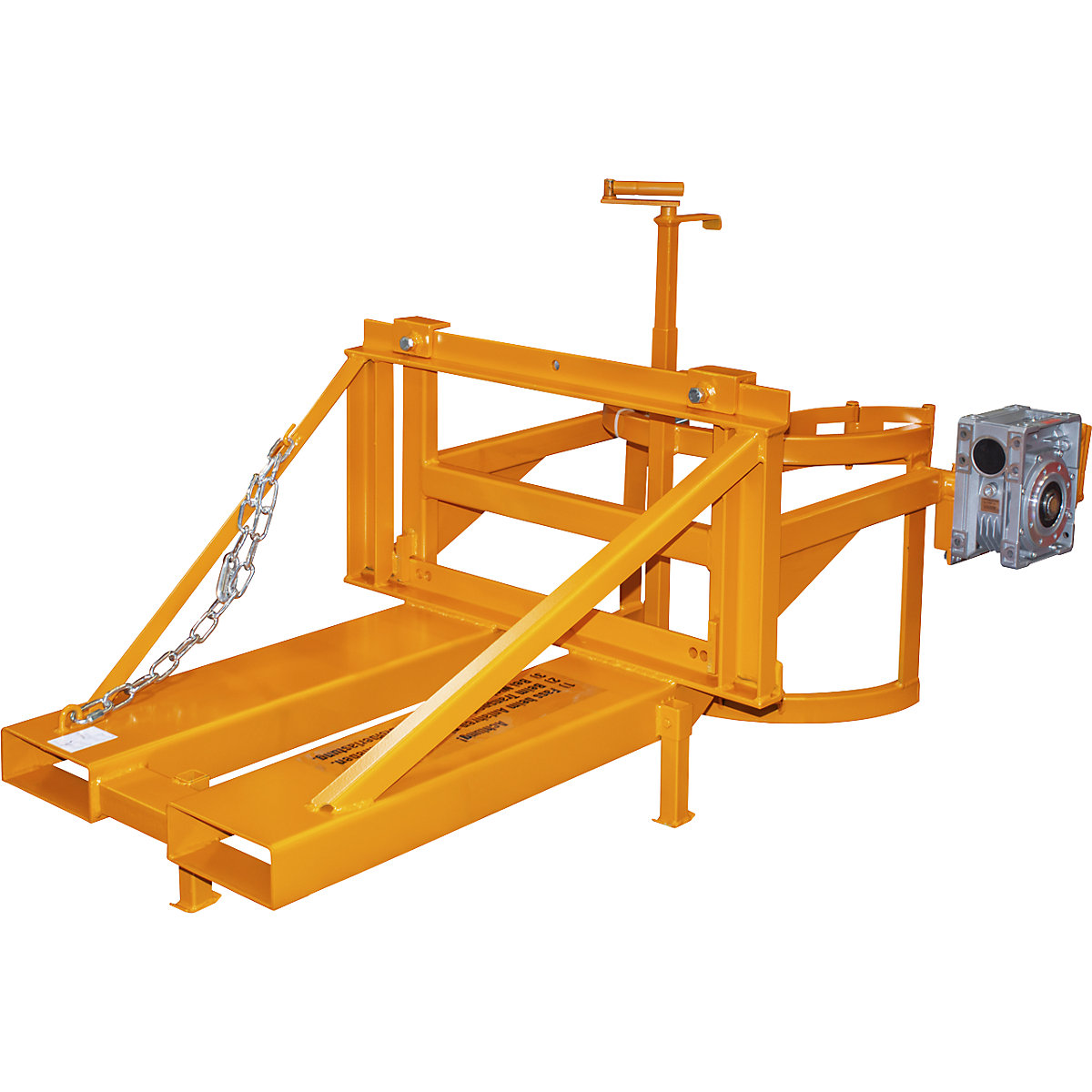

The sturdy steel base frame is designed for pick-up with a forklift truck. A safety device protects against unintentional slipping off the vehicle. With a max. load of 360 kg, the drum tipper is also suitable for heavy, filled drums. The forklift pockets are designed for fork arms with a cross-section of 150 x 60 mm and a clear distance of 650 mm. The drum tipper is available with an optional painted surface in yellow orange RAL 2000 or in a zinc plated model.
