Ref.: 969088 49

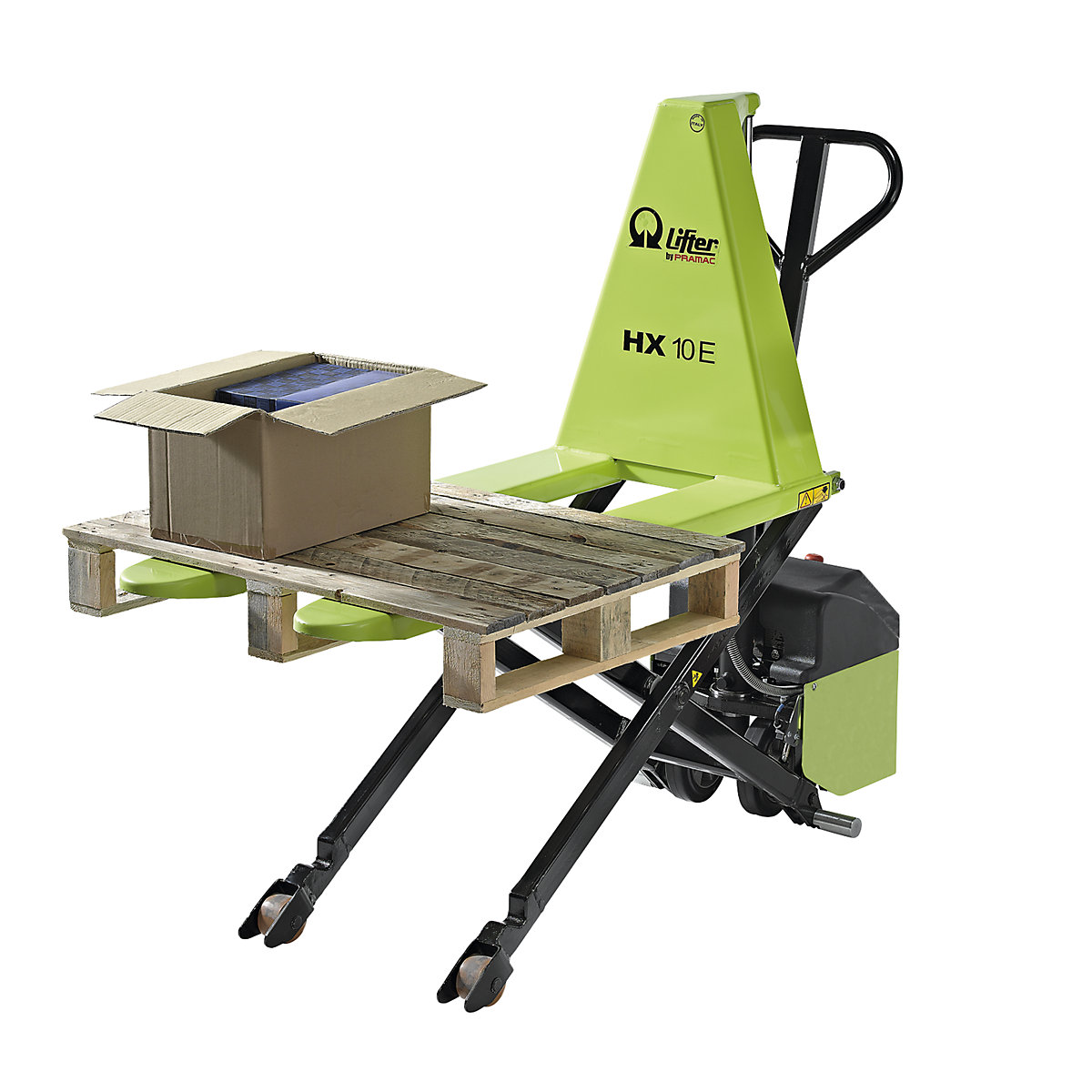

High-lift pallet truck, electro-hydraulic – Pramac max. load 1000 kg

High-lift pallet truck, electro-hydraulic – Pramac

fork length 1150 mm, battery 12 V / 60 Ah

Fork length [mm]
Length [mm]
Steering wheel material
Load centre [mm]
Turning radius [mm]
Battery
£2,775.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Product description
  • Lift, move and deliver loads up to 1000 kg
  • Work at an ideal height
Due to the reduced weight and excellent manoeuvrability, this universal truck can be used for transport tasks, putting parts into and out of storage, supplying assembly lines and much more.
Up to a height of 400 mm, the devices can be easily moved with load. Furthermore, the stabilisers that come as standard ensure a stable footing. Compact design due to telescopic cylinder. Self-lubricating scissor bearing.
Available to choose from: models with maintenance free 50 Ah AGM battery with an extended battery life, or with 60 Ah starter battery for less intensive use.
External 6 A impulse charger included in delivery. Lifts smoothly and quickly, prevents physical straining.
High quality powder coating in attractive, custom green colour.
Technical data
Max. load1000 kg
Lifting range85 – 800 mm
Lift driveelectro-hydraulic, 12 V
Fork width160 mm
Distance across forks540 mm
Width540 mm
Height1300 mm
Steering radius180 °
Steering wheel diameter200 mm
Steering wheel width50 mm
Roller materialpolyurethane
Fork roller versionsingle
Fork roller diameter80 mm
Fork roller width50 mm
Colourgreen
Finishpowder coated
Battery charger6 A impulse charger
Lifting time without load5.5 sec
Lifting time with full load8.94 sec
Featureelectro-hydraulic mobile up to 400 mm lifting height
Product typehigh-lift pallet trucks
Suppliedassembled
Fork length1150 mm
Length1690 mm
Steering wheel materialpolyurethane
Battery12 V / 60 Ah
Weight139 kg
